BSS AC-5S-WHT-US | Analog Controller with 5 Position Source Selector US Decora White

BSS AC-5S-WHT-US Analog Controller with 5 Position Source Selector US Decora White

The Soundweb Contrio AC-V and AC-5S are simple analog wall controllers designed for use with BSS Audio Soundweb London devices. Both the AC-V and AC-5S are available in black or white, and in single-gang US Decora or single-gang EU form factor.
The AC-V and AC-5S are designed to connect to General Purpose Inputs (GPI) (also known as “Control Inputs”) found on Soundweb London devices. Most Soundweb London devices contain 12 GPI. The Soundweb London BLU-GPX contains 36 GPI.
The AC-V contains a single 47k Ohm logarithmic potentiometer which is useful for volume control. The AC-V requires one GPI. Therefore, up to 12 AC-V controllers can connect to a single Soundweb London device, and up to 36 AC-V controllers can connect to a single BLU-GPX.

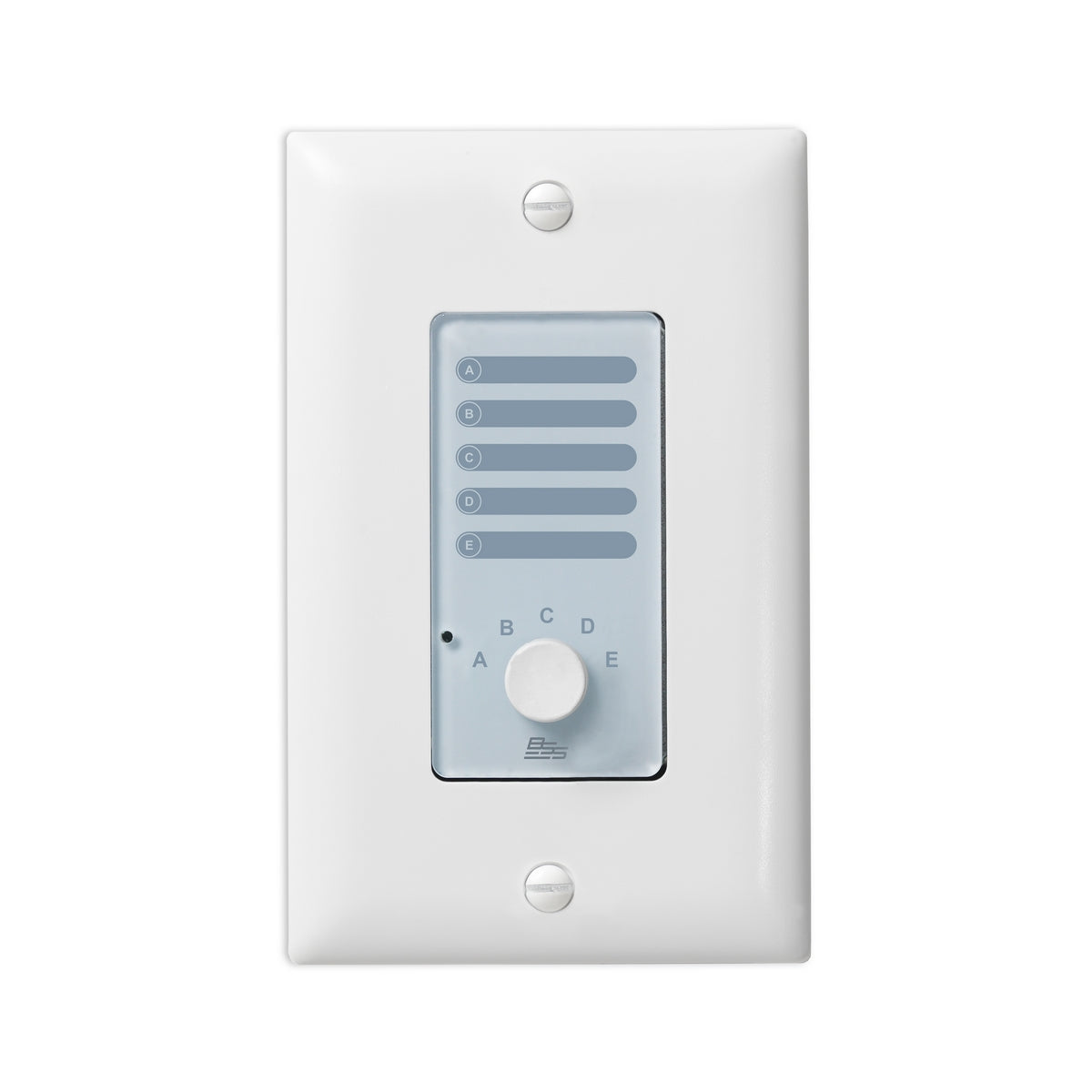

The AC-5S contains a single five-position resistor ladder which is useful for source selection or preset recall. The AC-5S requires one GPI. Therefore, up to 12 AC-5S controllers can connect to a single Soundweb London device, and up to 36 AC-5S controllers can connect to a single BLU-GPX.
The AC-V and AC-5S are configured using HiQnet London Architect or HiQnet Audio Architect via simple drag and drop operations. While almost any parameter can be mapped to the physical controls, the AC-V is most commonly used for volume control, and the AC-5S is most commonly used for source selection or preset recall.

Key Features

• Analog Wall Controllers
• Cost-Effective Control Solution
• AC-V for Volume Control
• AC-5S for Source Select / Preset Recall
• Compatible with BSS Audio Soundweb London devices
• Available in Black or White
• Available in US Decora or EU Version
• Single-Gang Size
• Configured in London Architect or Audio Architect via Drag-and-Drop

Technical Specifications

Recommended wiring VW-1 Rated, 5V, 1mA
Color Options
The AC-V and AC-5S are available in
black or white to fit elegantly within
their surroundings.
Shape Options
The AC-V and AC-5S are available in
US decora or EU shapes
