BSS BLU-DAN | 256 Channel Low Latency Half Rack Dante BLU Link Bridge Signal Processor

BSS BLU-DAN 256 Channel Low Latency Half Rack Dante BLU Link Bridge Signal Processor

The Soundweb London BLU-DAN offers Dante audio and BLU link. This means that the BLU-DAN can be used to add Dante to one or more BLU link devices.

The BLU-DAN is configurable through HiQnet Audio Architect. A rich palette of logic objects and a drag and drop method of configuration provide a simple and familiar design environment.

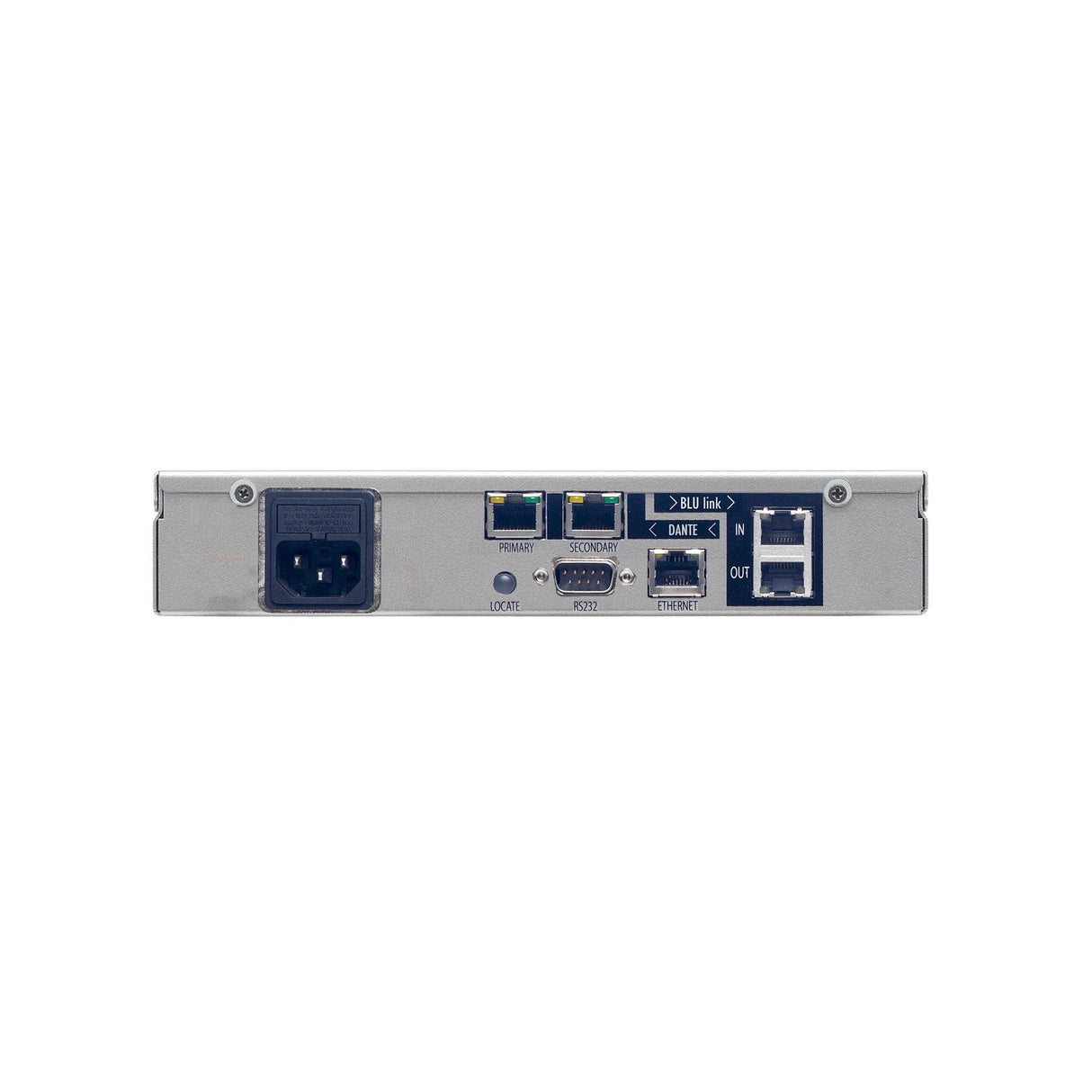

The BLU-DAN features Dante audio. The BLU-DAN is capable of simultaneously transmitting and receiving up to 64 channels of Dante audio (64 x 64). Primary and Secondary ports are provided for fault tolerance. Control is through a separate Ethernet port.

The BLU-DAN also features BLU link, a low latency, fault tolerant digital audio bus of 256 channels, which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

Key Features

• Dante Audio
• BLU link - 256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
• Add Dante to one or more BLU link devices

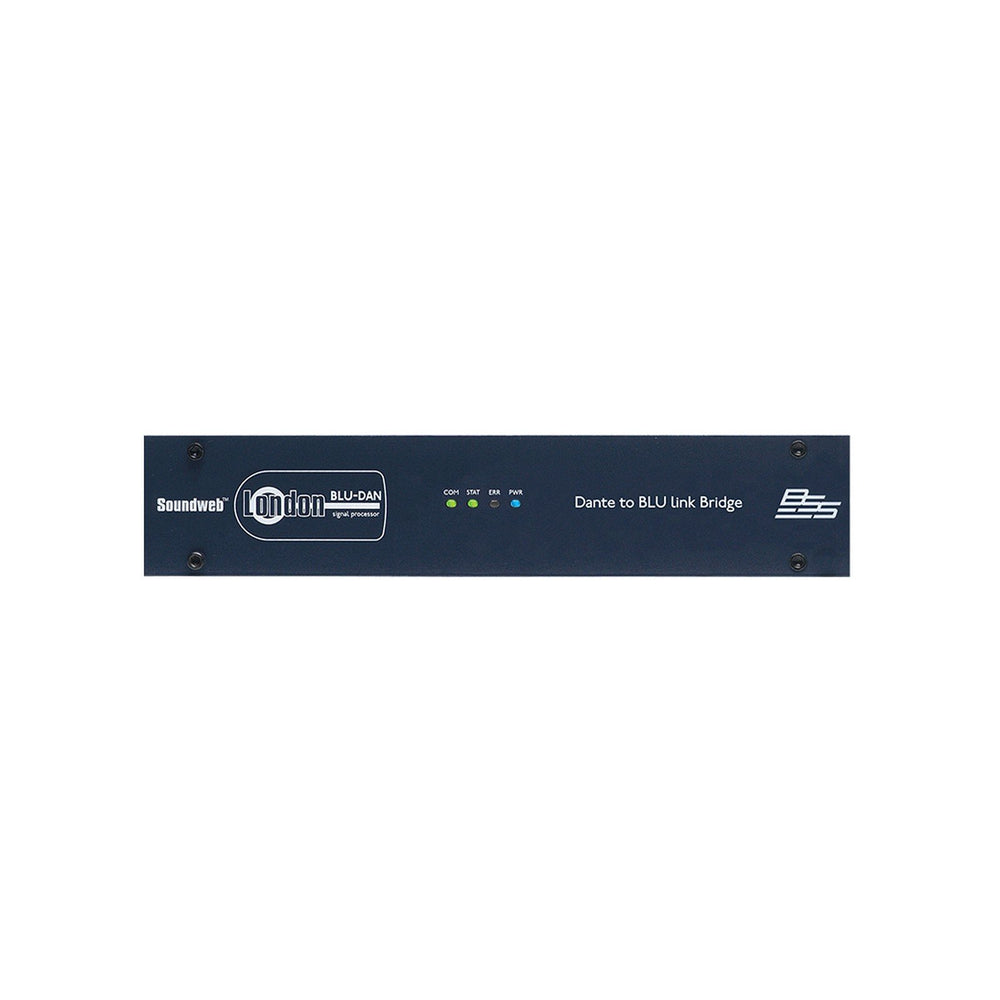

• Clear Front Panel LED Indication
• Bi-Directional Locate Functionality
• HiQnet Device
• Configuration, Control and Monitoring from HiQnet Audio Architect
• 1RU, Half-Rack Device

Technical Specifications

Chassis:
Half rack (single space, half-width)
Dante:
yes
SWL Digital Audio Bus:
256
RS-232:
Yes
Dimensions H(U) x W x D:
1.75 Inches (1U) x 8.625 Inches x 13.5 Inches
Weight:
5.3 lbs
