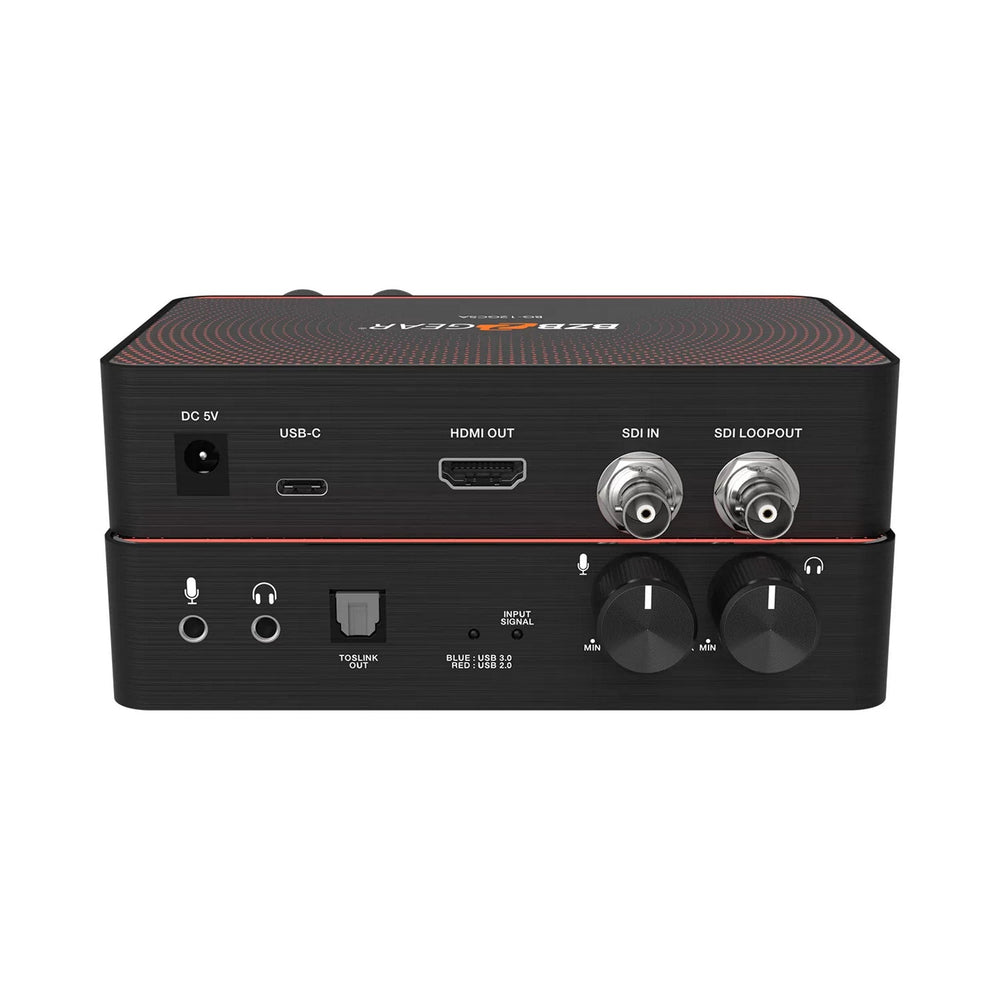

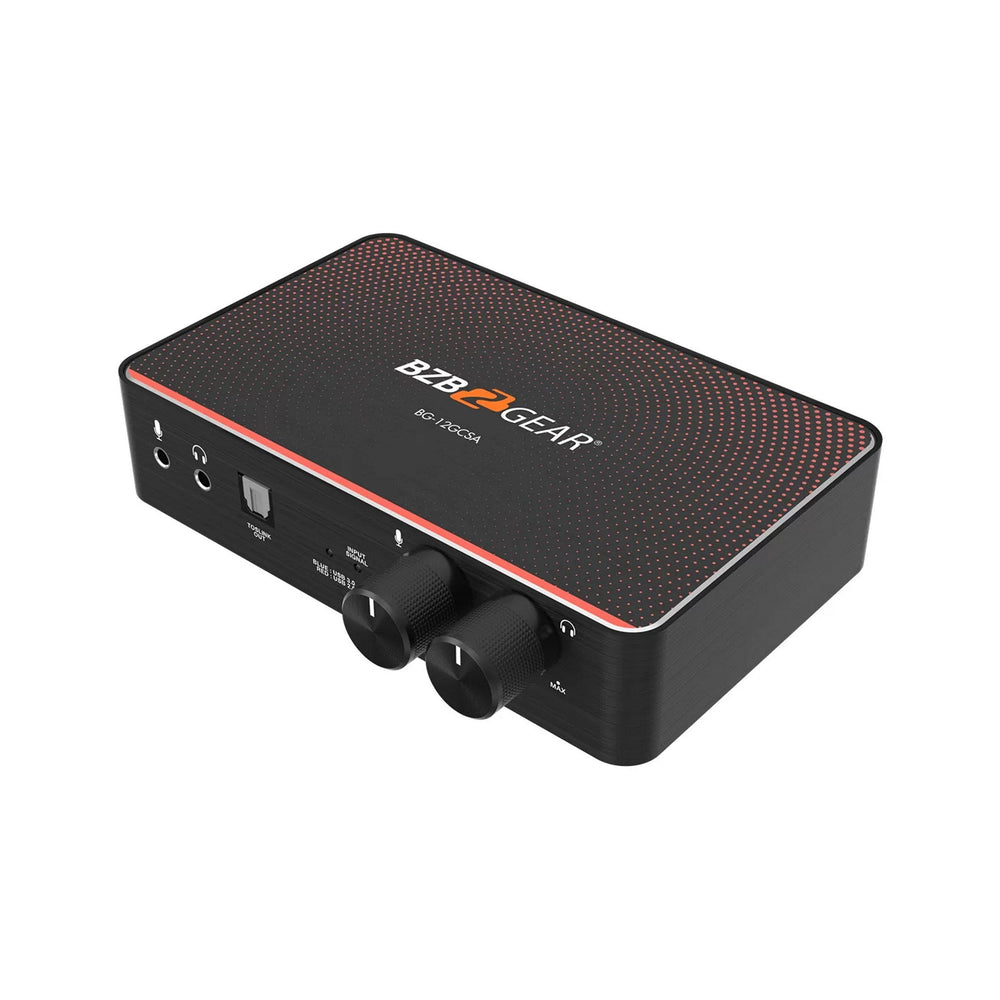

BZBGEAR BG-12GCSA USB-C 12G-SDI Video Capture Box
Description
Description
BZBGEAR BG-12GCSA USB-C 12G-SDI Video Capture Box
The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.
Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.
Key Features
- Volume control Use the volume control knobs to adjust the MIC/Headphone volume
- Plug and Play Auto-detection of video format
- Software Compatibility Compatible with most 3rd party software such as OBS Studio and AMCap
- Mic-in-mix Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the SDI connection
- Low Latency 3~4ms at 1080P
- Auto-Detection Auto 12G/6G/3G/HD-SDI detection
- SDI video and audio streams over USB 3.1 Type-C Gen 1
- UVC1.0/1.1/1.5
- Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)
- HDMI up to 4K2K@60
- SDI input & loopout resolutions: 720p@50,720p@59.94, 720p@60, 1080i@50, 1080i@59.94, 1080i@60,1080p@23.97, 1080p@24, 1080p@25, 1080p@29.97, 1080p@30, 1080p@50, 1080p@59.94, 1080p@60, 4K2K@23.98, 4K2K@24, 4K2K@25, 4K2K@29.97, 4K2K@30, 4K2K@50, 4K2K@59.94, 4K2K@60
- Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Deinterlacer & scaler (upscale to 1080p@120Hz)
- SDI audio extraction
- Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
- USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
- USB-C reversible
What's in the Box
- 1x BG-12GCSA
- 1x USB 3.0 A to C Cable (host to device)
- 1x User Manual
