BZBGEAR BG-4KCHA USB-C 4K60 Video Capture Box

BZBGEAR BG-4KCHA USB-C 4K60 Video Capture Box

The BG-4KCHA is an advanced USB-C 4K video capture device with a scaler, HDMI 2.0 loopout, audio, and HDR10 to SDR conversion, designed for professional HDMI video signal capturing. It uses a USB 3.1 Type-C Gen 1 (USB 3.0) interface, allowing for high-speed transmission. Additionally, the HDMI input and loopout can support up to 4K2K@60, enabling users to connect the BG-4KCHA to a 4K@60 source and capture Ultra HD (4K2K@30) video. With the capability to capture and display uncompressed HDMI video, the BG-4KCHA provides more realistic color renditions. Moreover, the BG-4KCHA employs large volume image buffer technology to effectively avoid video tearing, while the high sampling rate and accuracy result in captured videos with high sharpness, rich details, and fewer color edges.

Furthermore, the HDR10 to SDR conversion allows Playstation and Xbox players to enjoy 4K2K@60 HDR games on a 4K TV through the loopout HDMI port and record real-time 4K2K@30/1080P@120 video streams with SDR quality through the USB 3.0 port simultaneously. With its versatility and features, the BG-4KCHA is a highly capable and professional-grade HDMI video capture device for demanding applications.

* PS5 & Xbox Series X also support 1080P120.

Key Features

• 4K UHD Video resolution up to 4K2K@30/1080P@120 (Video stream over USB-C)* HDMI input & loopout up to 4K2K@60

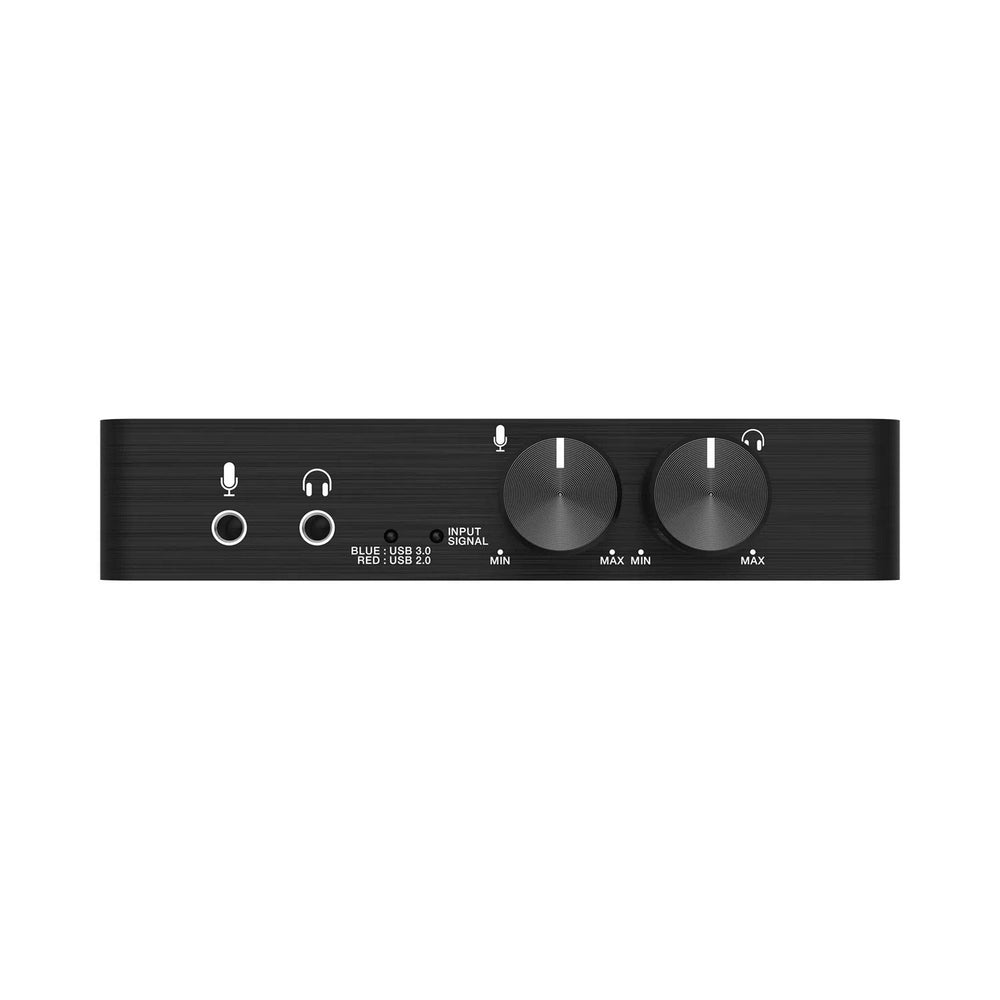

• Volume control Use the volume control knobs to adjust the MIC/Headphone volume
• Plug and Play Auto-detection of video format
• Software Compatibility Compatible with most 3rd party software such as OBS Studio and AMCap
• Mic-in-mix Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the HDMI connection
• Low Latency 3~4ms at 1080P
• Deinterlacer & scaler**
• HDMI audio extraction
• HDR10 to SDR conversion***
• Play 4K@60 HDR on the HDMI out while streaming/capturing gameplay at 4K2K@30/1080P@120 with SDR colors
• Supports USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 720P@30)
• HDMI video and audio streams over USB 3.1 Type-C Gen 1
• UVC1.0/1.1/1.5
• Operating Systems: Windows 7/8.1/10/11, Mac, & Linux OS

What's in the Box

• 1x BG-4KCHA
• 1x USB 3.0 A to C Cable (host to device)
• 1x User Manual
