BZBGEAR BG-SDITPG-G2 4K UHD 12G SDI Video G2 Test Pattern Generator

BZBGEAR BG-SDITPG-G2 4K UHD 12G SDI Video G2 Test Pattern Generator

Introducing the BG-SDITPG-G2 12G/6G/3G/HD/SD-SDI Pattern Generator, the ultimate tool for SDI pattern generation and testing. This state-of-the-art device offers multi-format support for 12G/6G/3G/HD/SD and a wide range of test patterns, making it an essential tool for professionals in broadcasting, professional AV, and related industries.

The BG-SDITPG-G2 features a comprehensive set of video test patterns, including still and moving patterns, as well as audio support (SMPTE-291M) with up to 8 channels of AES-compliant audio at a 48KHz sample rate. With this generator, you can calibrate and test SDI-enabled video devices and displays with ease and precision.

Designed for intuitive operation, the BG-SDITPG-G2 comes equipped with four buttons, a rotary switch, and an LCD screen, ensuring effortless control and management. Its user-friendly interface allows for quick access to various features, making it a cost-effective solution for all your SDI pattern generation needs.

Whether you're working with NTSC, PAL, 720p, 1080i, 1080p, or even 4K2K resolutions, the BG-SDITPG-G2 supports a wide range of output resolutions and bit rates. It delivers reliable performance and supports 10-bit color space, ensuring accurate and high-quality signal testing.

How to Control and Manage this Unit:

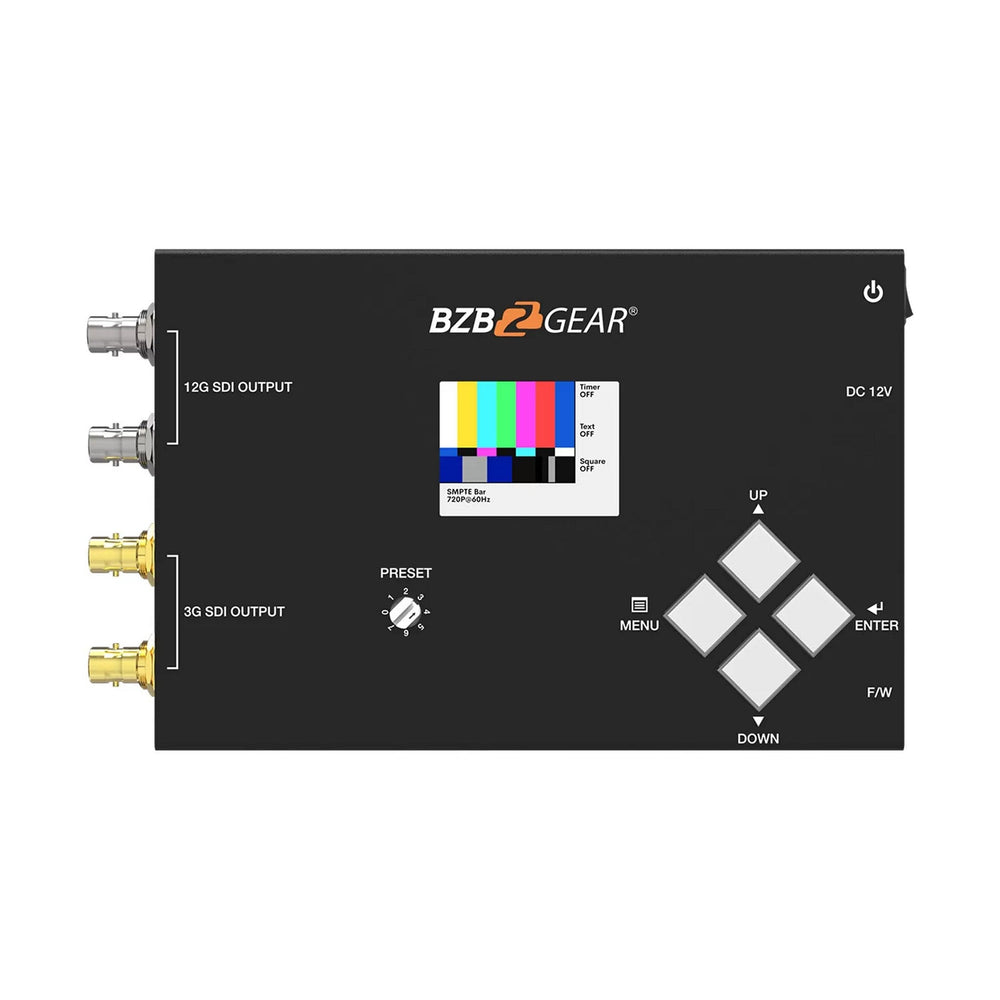

Intuitive LCD Screen and Control Panel: The BG-SDITPG-G2 is equipped with an LCD screen and a user-friendly control panel, featuring four responsive buttons and a convenient rotary switch. Effortlessly navigate through the diverse settings and options using this intuitive interface.

Instant Memory Recall for Settings: Simplify your workflow by effortlessly saving your preferred settings and configurations into the device's memory. This feature ensures swift and convenient access to your chosen configurations whenever needed.

Remote Control via LCM (Local Control Module): Experience centralized control capabilities by remotely managing the BG-SDITPG-G2 using the LCM (Local Control Module). This advanced functionality provides a seamless and efficient way to control the generator from a distance.

Key Features

• Multi-format support 12G/6G/3G/HD/SD-SDI
• Multi-pattern functionality Still and moving video test patterns
• Audio support Up to 8 channels of AES-compliant audio at 48KHz sample rate (SMPTE-291M)
• Intuitive controls Four buttons, rotary switch, and LCD screen
• Easy saving Save settings to memory
• Preset Support Supports preset modes for added convenience
• Wide range of output resolutions: NTSC, PAL, 720p, 1080i, 1080p, 4K2K
• Multiple bit rates: 2.97 Gbps, 2.967 Gbps, 1.485 Gbps, 1.4835 Gbps, 5.94Gbps, 5.934Gbps, 11.88Gbps, 11.868Gbps, 270 Mbps
• 10-bit color space for accurate and high-quality testing

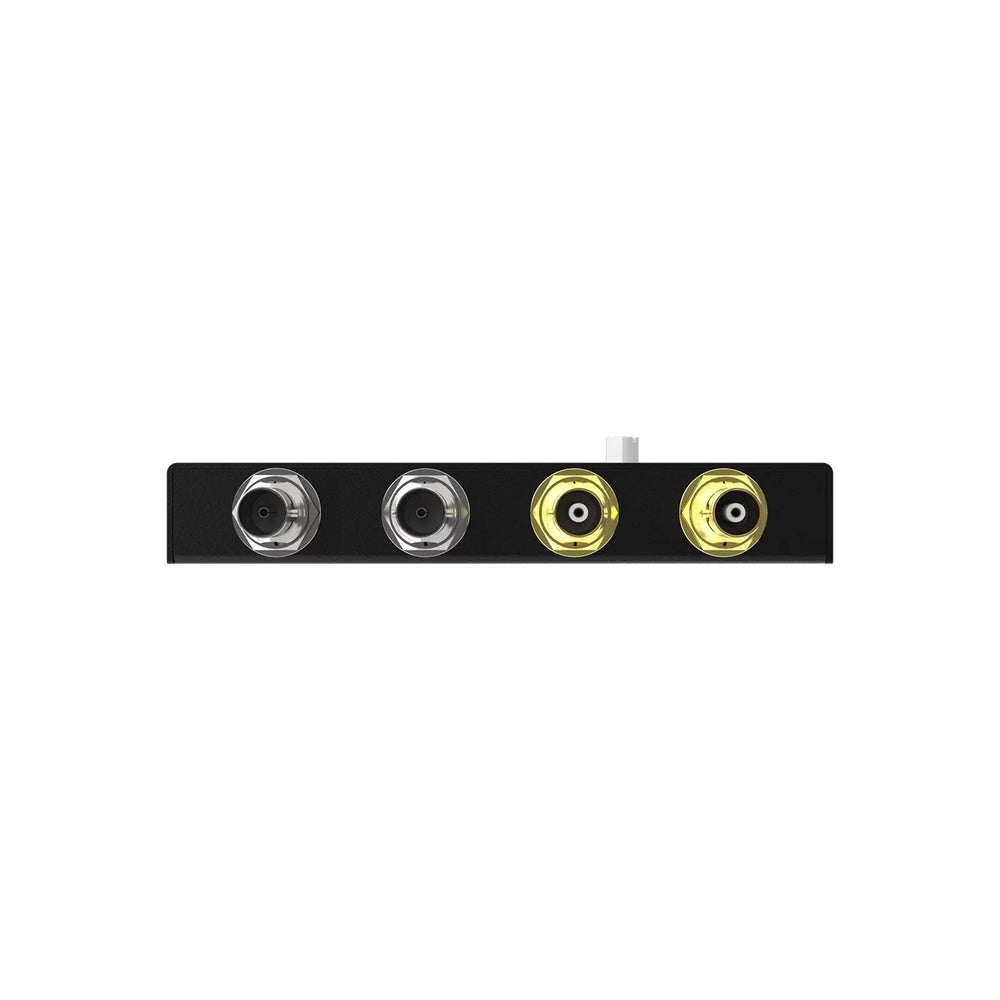

• SDI output: SDI, HD-SDI, 3G-SDI, 6G-SDI, 12G-SDI
• Cost-effective: Calibrate and test SDI-enabled video devices and displays

What's in the Box

• 1x BG-SDITPG-G2
• 1x 12V power supply unit
• 1x User Manual
