C2G 26889 4K 60Hz USB-C to HDMI Adapter Cable, 3-Feet
Description
Description

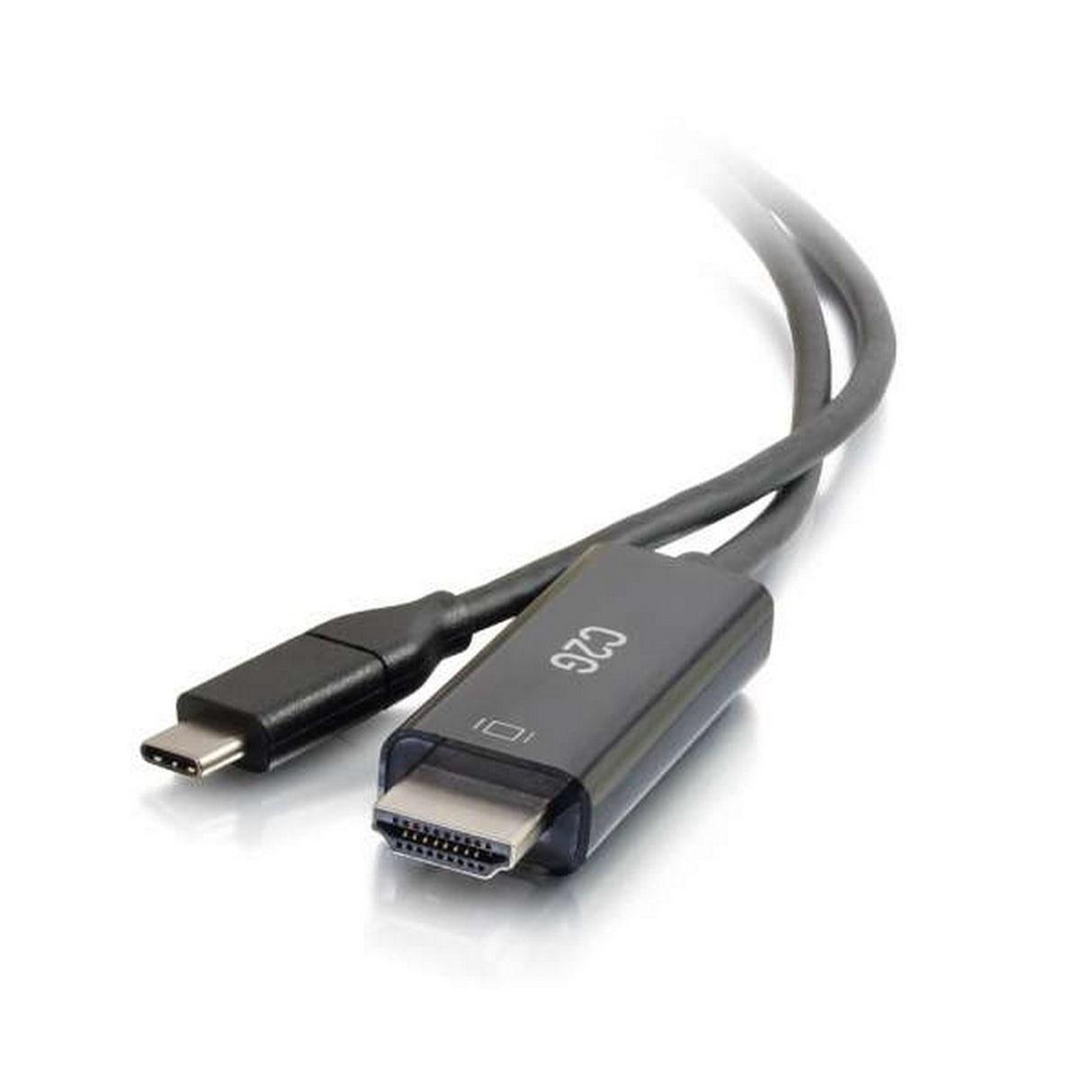

C2G 26889 4K 60Hz USB-C to HDMI Adapter Cable, 3-Feet
The USB-C to HDMI Audio/Video Adapter Cable 4K 60Hz allows for a direct connection of a USB-C device to an HDTV, projector, or other display with an HDMI port--making it an ideal solution for the office, work space applications, or home use. This adapter cable is a perfect accessory for Apple, Microsoft Surface, and other leading laptops and tablets.
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable.
This adapter utilizes the audio/video support built into USB Type-C ports to feed an audio/video signal to an HDMI HDTV or projector. This adapter supports up to a 4K (4096 x 2160 at 60Hz) resolution, allowing it to deliver a high quality video image to the connected display.
Key Features
- Supports resolutions up to 4K (4096 x 2160 at 60Hz)
- Adapter in cable form factor
- Compatible with 3.1 USB-C and Thunderbolt 3 ports
- Reversible, symmetrical USB-C connector
- Plug and Play - no driver required
- Compatible with the Apple iPad Pro, MacBook, MacBook Air, and MacBook Pro
- Compatible with the Microsoft Surface Book 2 and Surface Go
Technical Specifications
Electrical Specifications
USB Type-C <34AWG(7/0.06TC)+EAM>*4P+32AWG(7/0.08)*2C+26AWG(7/0.16TC)*2C+32AWG(7/0.08TC)*4C+AB(16/10/0.08TC 85%TC)OD:4.2MM~Black
Rated Temperature: 80°C ; Voltage: 30V
Max Conductor Resistance at 20°C: 34AWG , 860 OHMS/KM
Insulation Resistance: 10M-KM MIN at 20°C DC 500V.(EIA-364-21)
Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA-364-20)
Physical Specifications
Operating Temperature: 0 ~ 45°C Ambient
Storage Temperature: -10 ~ 70°C Ambient
USB Type-C Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
HDMI Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation. Chipset: PS176 QFN-48PIN <(>&<)> VL100
Molding Material: Black PVC Conforms to RoHS
Product is CE Marked and Conforms to 2011/65/EU RoHS2
