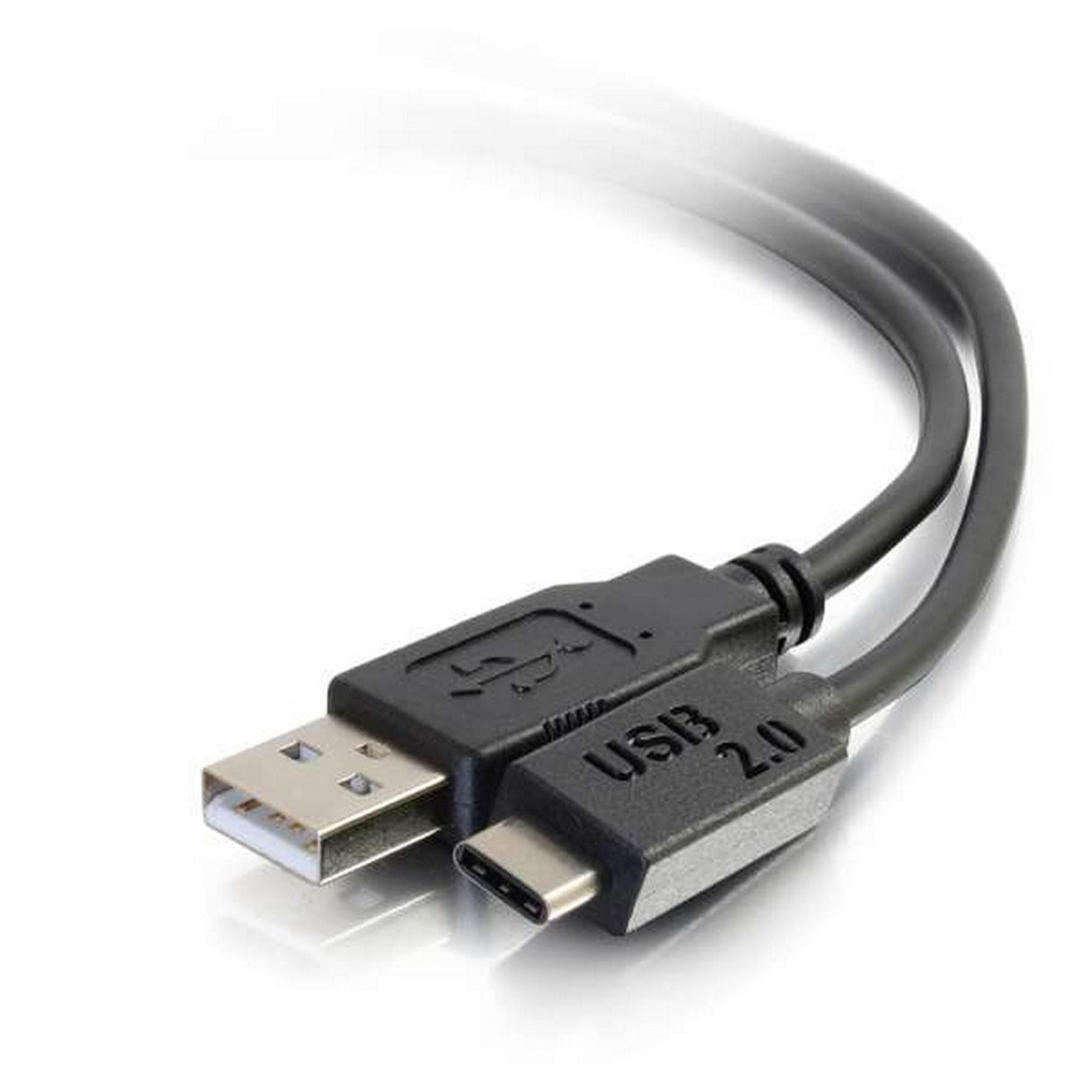

C2G 28872 USB 2.0 USB-C to USB-A Cable M/M, 10 Foot, Black
Description
Description
C2G 28872 USB 2.0 USB-C to USB-A Cable M/M, 10 Foot, Black
This USB 2.0 USB-A to USB-C cable is the perfect solution for connecting a smartphone, tablet, or another mobile device with a USB-C port to a computer with the standard a USB Type-A port for USB 2.0 communication. The USB-C connector has a robust design allowing for the connector to be plugged in and un-plugged up to 10,000 times. The sturdy construction ensures that the product provides peace of mind and is built to stand up to the rigors the most demanding on the go life. The USB-C connector has a symmetrical design which is identical on both sides, it does not matter if you plug it in upside-down or right-side-up. It will plug in the first time every time while preventing damage to the connector port. The color coded USB Type-C connector allows this cable to be easily identified as a USB 2.0 cable and differentiated from other cables which may support a different feature set.
Key Features
- Provides compatibility for USB-A laptop, tablet, or desktop to connect to a USB-C cellphone, tablet printer or external hard drive
- Designed to support USB 2.0 communication and features
- Backwards compatible with USB 1.1 devices
- Color coded white and labeled to designate USB 2.0 feature support
Technical Specifications
Electrical
Voltage Rating
30V
Dielectric Strength
AC-500V/1 Minute No Breakdown (EIA-364-20)
Insulation Resistance
DC-500V 10M?/1 Minute No Breakdown (EIA-364-21)
Conductor Resistance
28AWG-237/KM Max 22AWG-55/KM Max
Attenuation (Max)
0.2dB at 1MHz; 0.39dB at 4MHz; 0.57dB at 8MHz; 0.76dB at 12MHz; 0.95dB at 24MHz; 1.35dB at 48MHz; 1.9dB at 96MHz; 3.2dB at 200MHz
Propagation Delay Skew
High-Speed Max 26ns; Low-Speed Max 18ns; 100ps High-Speed Only
Impedance
90±15%?
Common Mode Impedance
30±30%?
Physical
Operating Temperature
0°C - 50°C
Operating Humidity
20% - 85% RH
Storage Temperature
-25°C - 70°C
Storage Humidity
0% - 90% RH
Cable OD
4.2mm ±0.2
Shield
Shield 1: AL Wrap coverage 100%; Shield 2: Braid 16/5/0.10 TC
Hood Type
Molded
Warranty
Lifetime
Conductor 1
Material
Stranded Tinned Copper
Size
28AWG (7/0.12)
Insulation
HD-PE
Color
White/Green (Twisted Pair)
Conductor 2
Material
Stranded Tinned Copper
Size
22AWG (7/0.254)
Insulation
SR-PVC
Color
Red/Black
USB 2.0 Type-C Connector
Gender
Male
Insulation
Black
Contact Material
Gold Flashing
Shell Material
Nickel Plated
USB 2.0 Type-A Connector
Gender
Male
Insulation
Black
Contact Material
Gold Flashing
Shell Material
Nickel Plated
