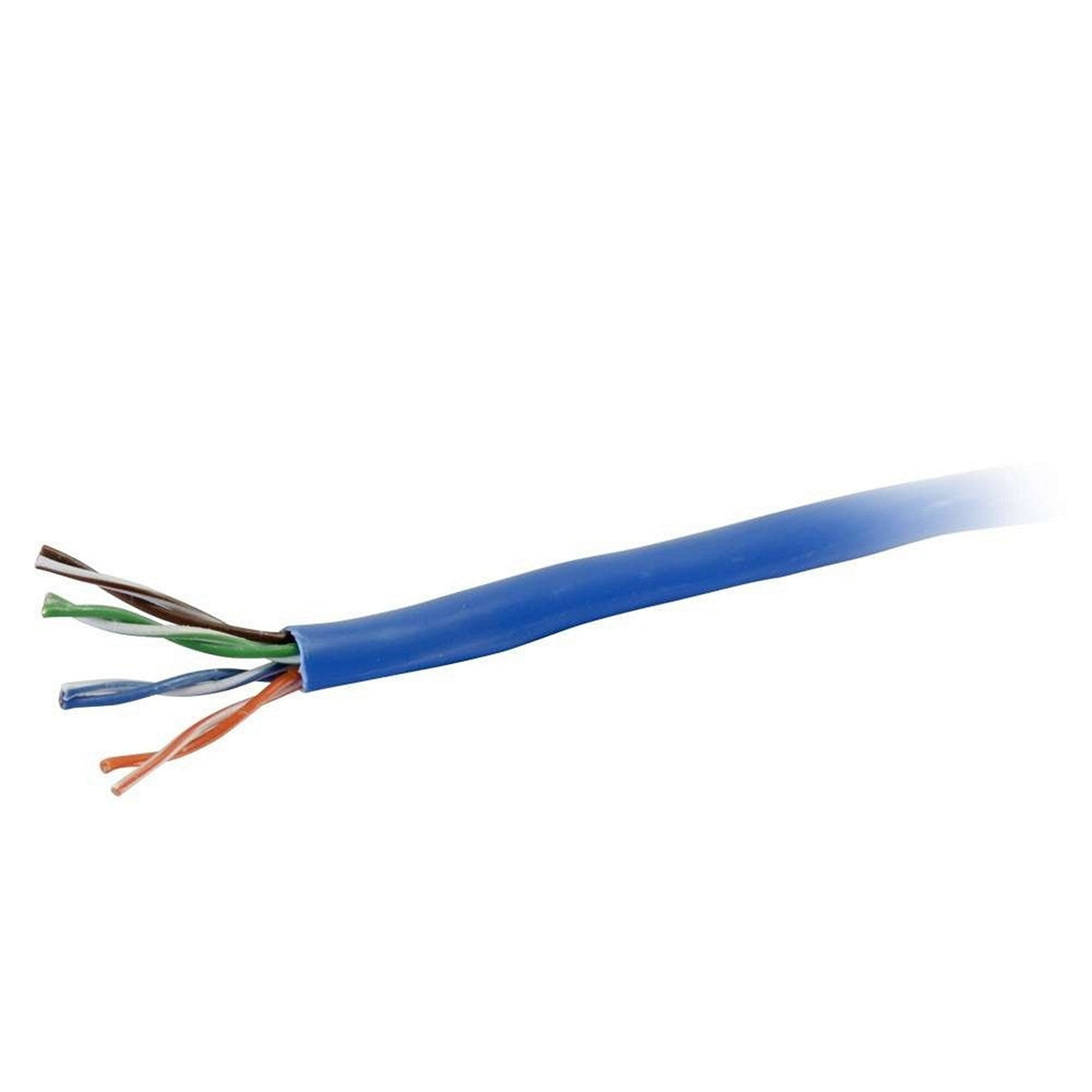

C2G 43405 Cat6 Bulk Unshielded UTP Ethernet Network Cable, 1000 Feet

C2G 43405 Cat6 Bulk Unshielded UTP Ethernet Network Cable, 1000 Feet

This in-wall rated Cat6 cable is perfect for creating custom length network patch cables. The stranded conductor construction makes this cable flexible and easy to work with, while the design of this box allow it to be easily dispensed. This cable is built to ANSI/TIA-568-C.2 standards and tested at frequencies up to 400MHz making it the ideal product for high performance transmissions. The jacket is foot marked allowing for easy determination of the amount of cable remaining.

Key Features

• 24AWG, stranded, bare copper conductors
• In-wall, CM-Rated, jacket
• No-snag box makes for easy pulling
• Foot marked to easily identify remaining cable

Technical Specifications

Color
Blue
Length
1000.00 Foot
Jacket Rating
In Wall
UPC
757120434054
Warranty
Lifetime
Vendor
C2G
Weight
23.245 LB
Electrical Characteristics
Voltage rating
300V
Spark test
2.5KV DC
AC leakage (current through jacket)
< 10mA (1.5KV AC)
Conductor DC resistance
< 14/100m
Resistance unbalance
< 5%
Dielectric strength
1.5KV AC for 2s
Insulation resistance
> 5000M/KM
Mutual capacitance
< 5.6nF/100m
Capacitance unbalance (pair-to-ground)
< 160 pF/100m
Physical Characteristics
Conductors
Material
24AWG (7/33) stranded, bare copper
Insulation
Polyolefin (PO)
Outside diameter
1.00 0.03mm
Overall cable
Jacket material
Flame retardant polyvinyl chloride (FRPVC)
Jacket thickness
0.50 0.05mm
Outside diameter
5.4 0.2mm
Storage temperature range
-20 to 75 degrees C
Installation temperature range
0 to 60 degrees C
Operating temperature range
-20 to 60 degrees C
Minimum bend radius
21.6mm
Maximum pulling tension
110N
