C2G 54439 USB-C 7-in-1 Dual Display MST Docking Station
Description
Description
C2G 54439 USB-C 7-in-1 Dual Display MST Docking Station
The USB-C 7-in-1 Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery connects to USB-C or Thunderbolt 3 enabled laptops and is the perfect hybrid dock for an office desktop solution, when traveling for business or when working from home - making it ideal for inside and outside reps that need the essential connectivity while in the office or at home. This docking station has been tested with Windows, Mac, and Linux operating systems. It is compatible with all three operating systems - please note that the MST feature is only compatible with Windows.

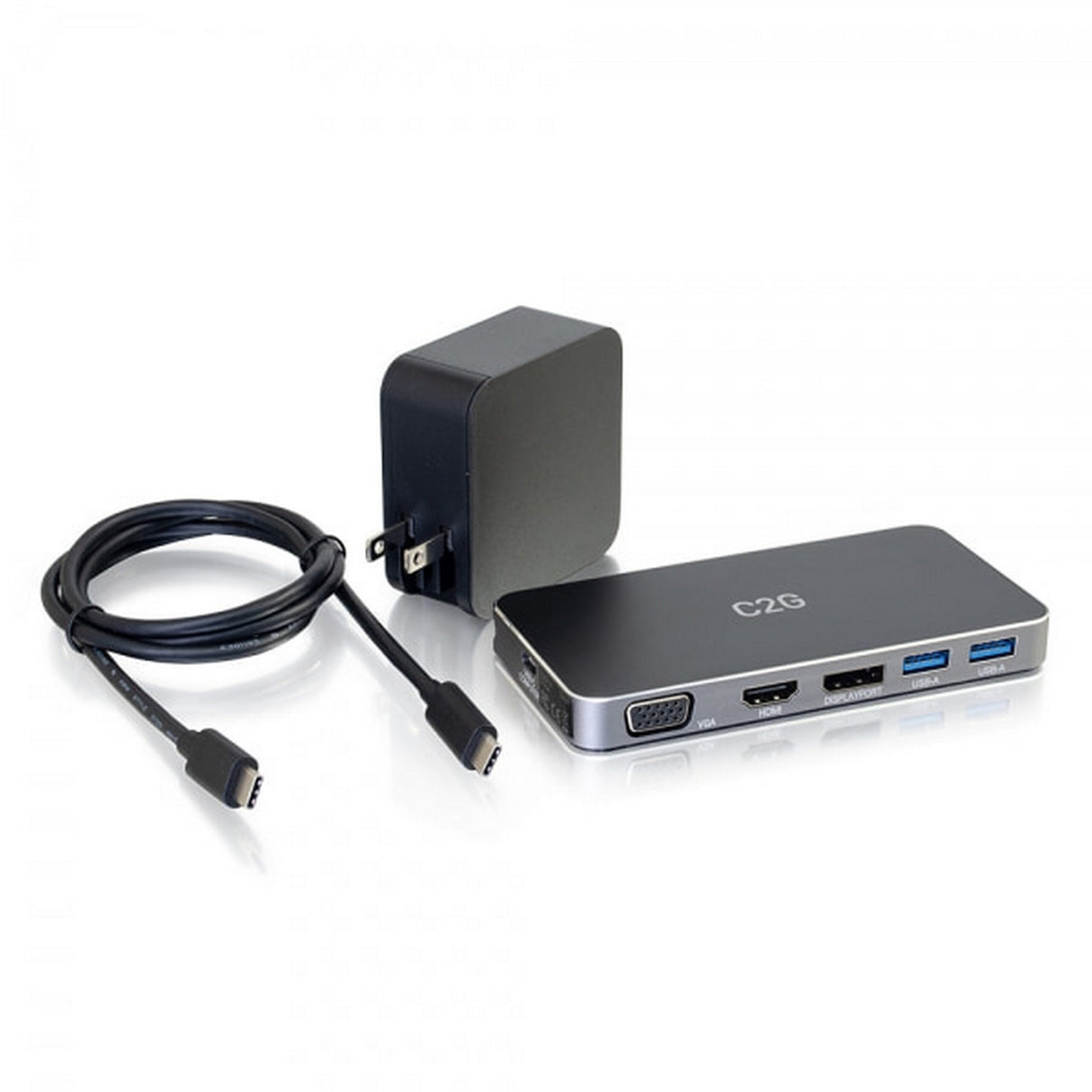

This USB-C Dual Display MST docking station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 100W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. This docking station includes a 60W USB-C power supply.
The MST feature allows for three different display configurations on multiple monitors connected to a single source with a USB-C output. MST is great for multiple display desk setup - improving multitasking and productivity. The MST dual display feature supports resolutions up to 1920 x 1080 at 60Hz. The docking station will support 4K (3840 x 2160) at 30Hz resolution when using the DisplayPort or HDMI port independently. The USB-A ports support SuperSpeed USB 5Gbps data transfers - allowing a full HD movie to be downloaded in under a minute. The USB-C port supports SuperSpeed USB 10Gbps - allowing for twice the amount of data in the same amount of time as the USB-A ports. Optimize performance by connecting displays designed for 1080p or 4K signals and USB-C devices designed for 10Gbps transfer speeds.

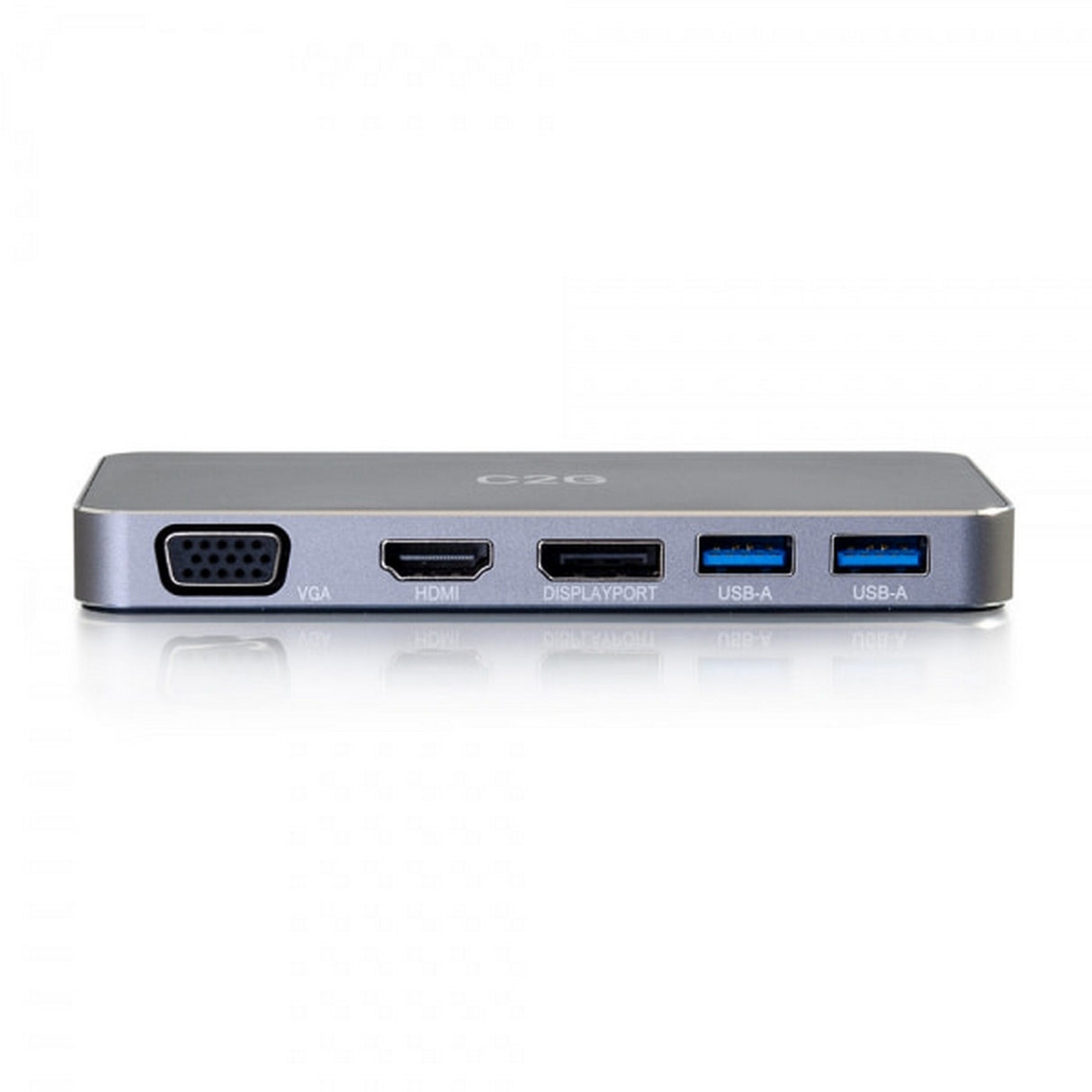

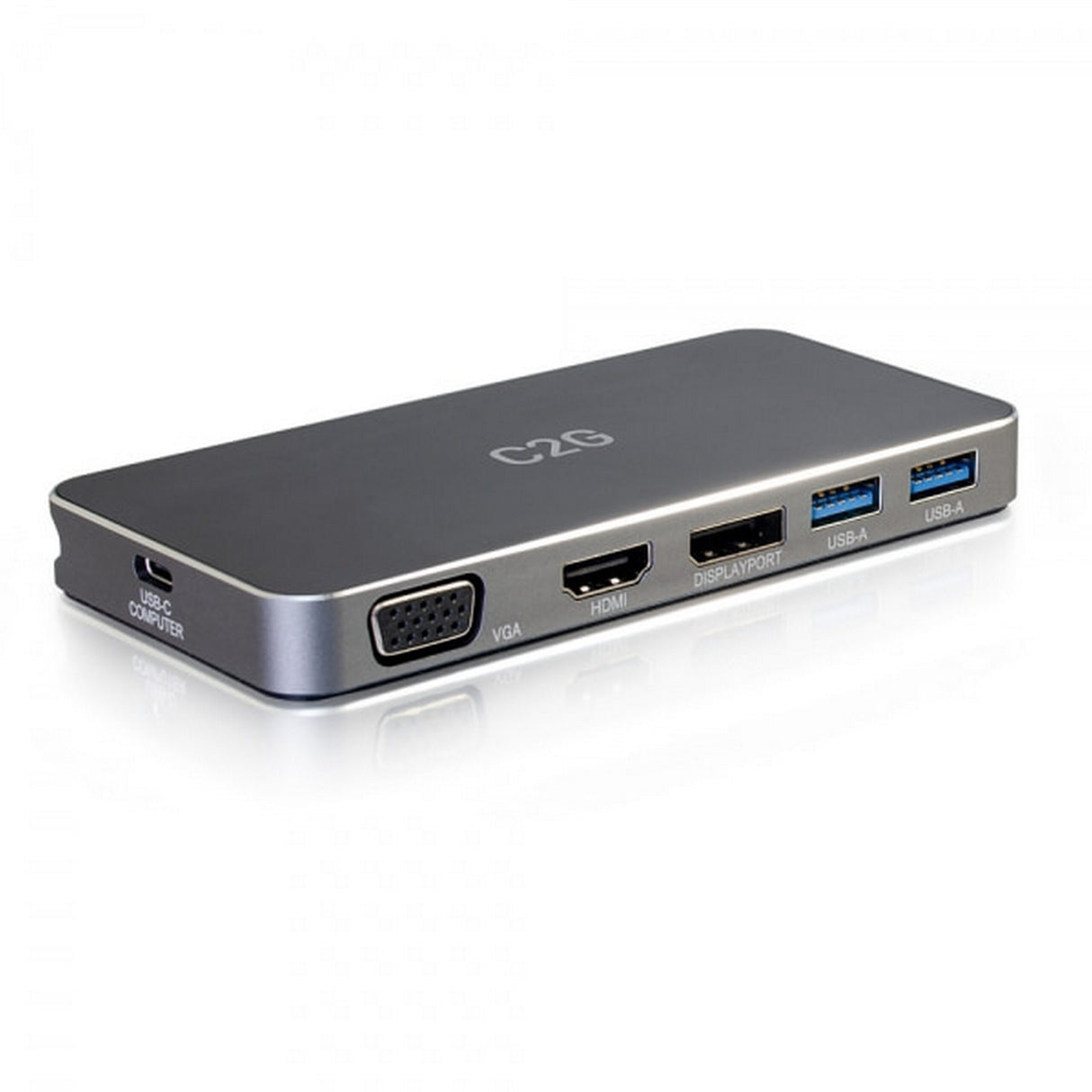

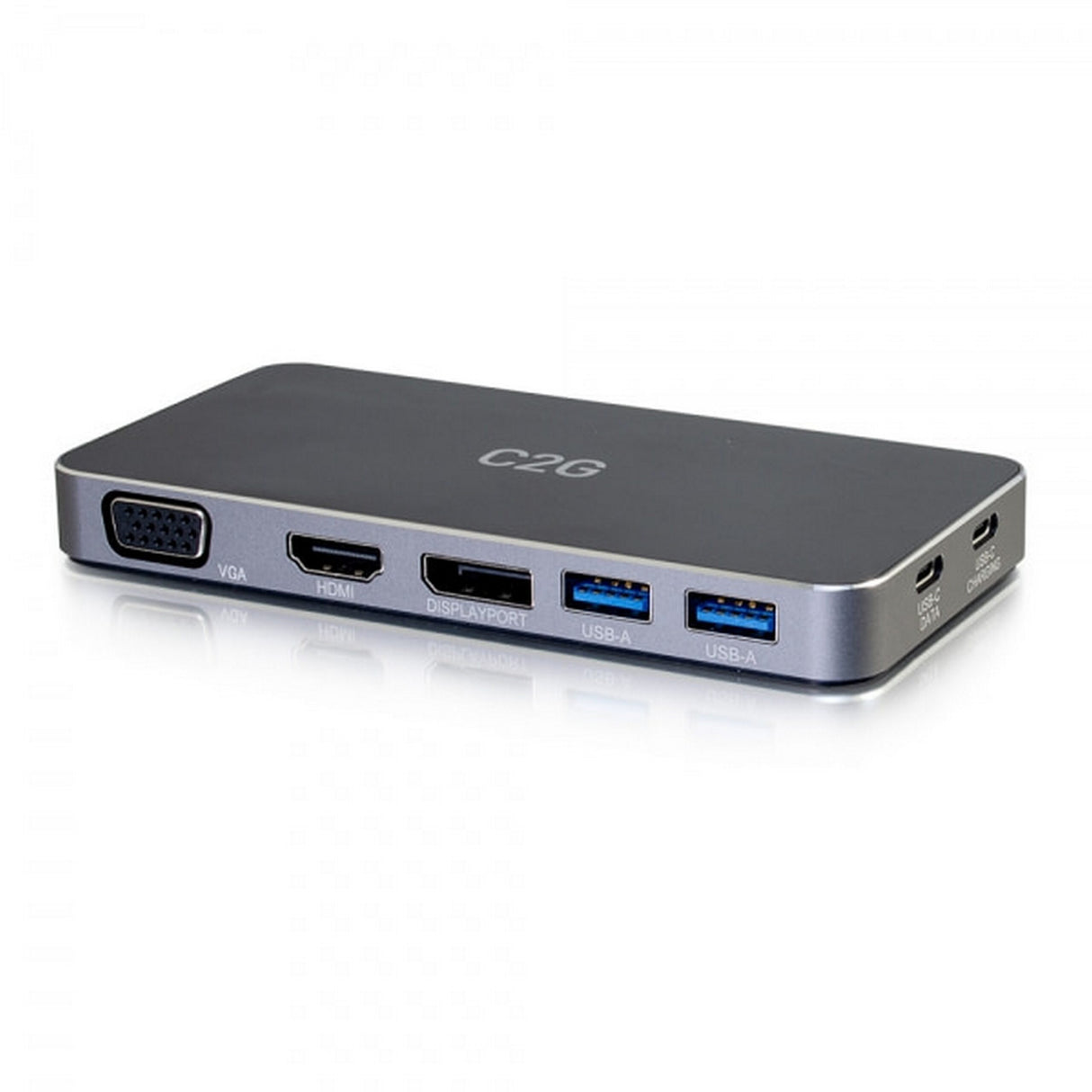

PORTS
4K HDMI: Connect to a 4K display via the HDMI port.
4K DisplayPort: Connect to a DisplayPort display via the DisplayPort port.
VGA: Connect to a VGA display via the VGA port.

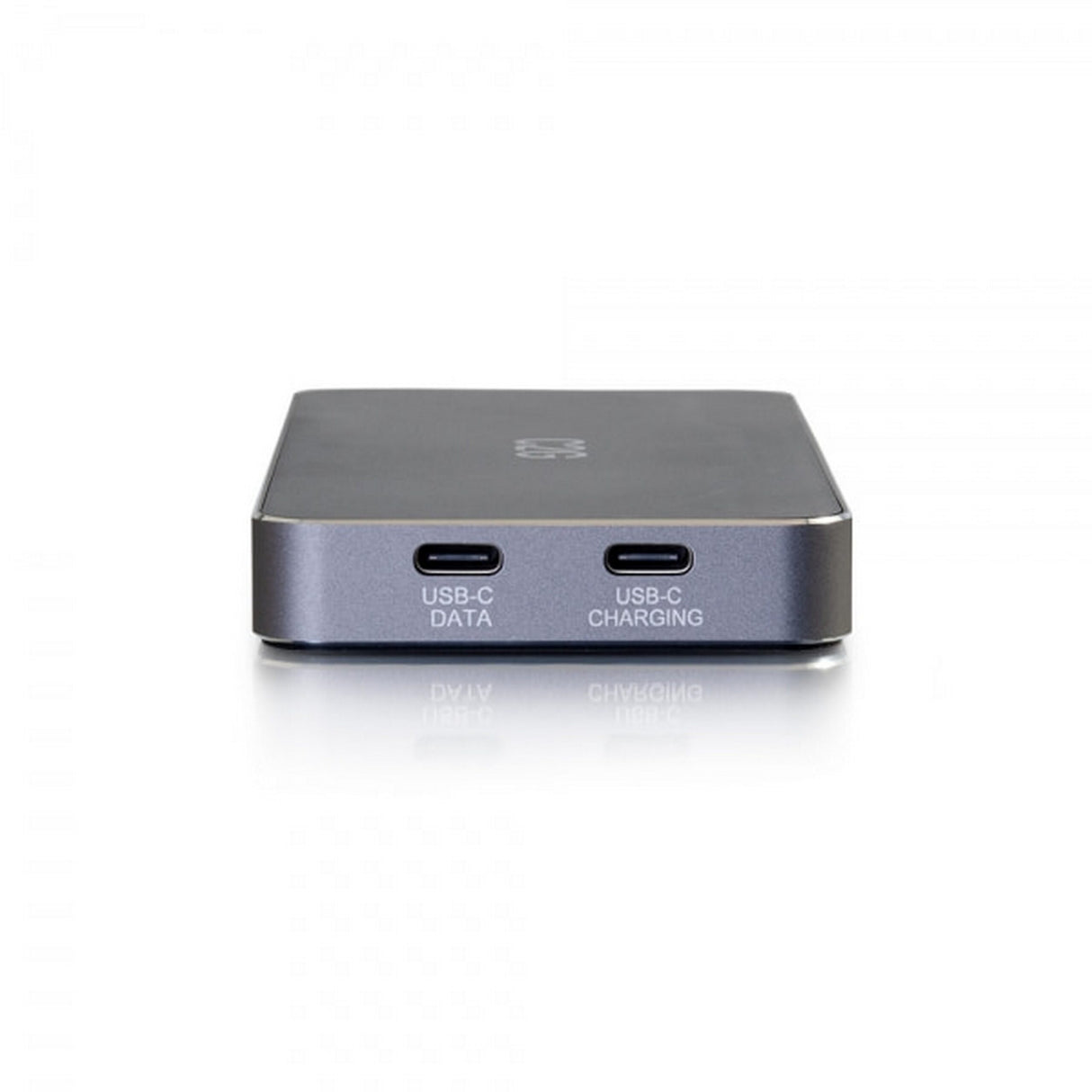

1x USB-C: Connect storage devices and transfer data up to 10Gbps through the USB-C port.
1x USB-C Power Delivery: Power a laptop or tablet with up to 100W power delivery.
2x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
Key Features
- 60W USB-C power supply to support connected displays and devices
- Supports up to 100W of power delivery to keep your laptop charged
- Multi-Stream Transport (MST) allows three different display configurations on multiple monitors
- Supports resolutions up to 4K, for viewing your screen content at full HD
- Supports VGA resolutions up to 1080p
- Supports dual display resolutions up to 1080p
- USB-A and USB-C ports for fast data transferring

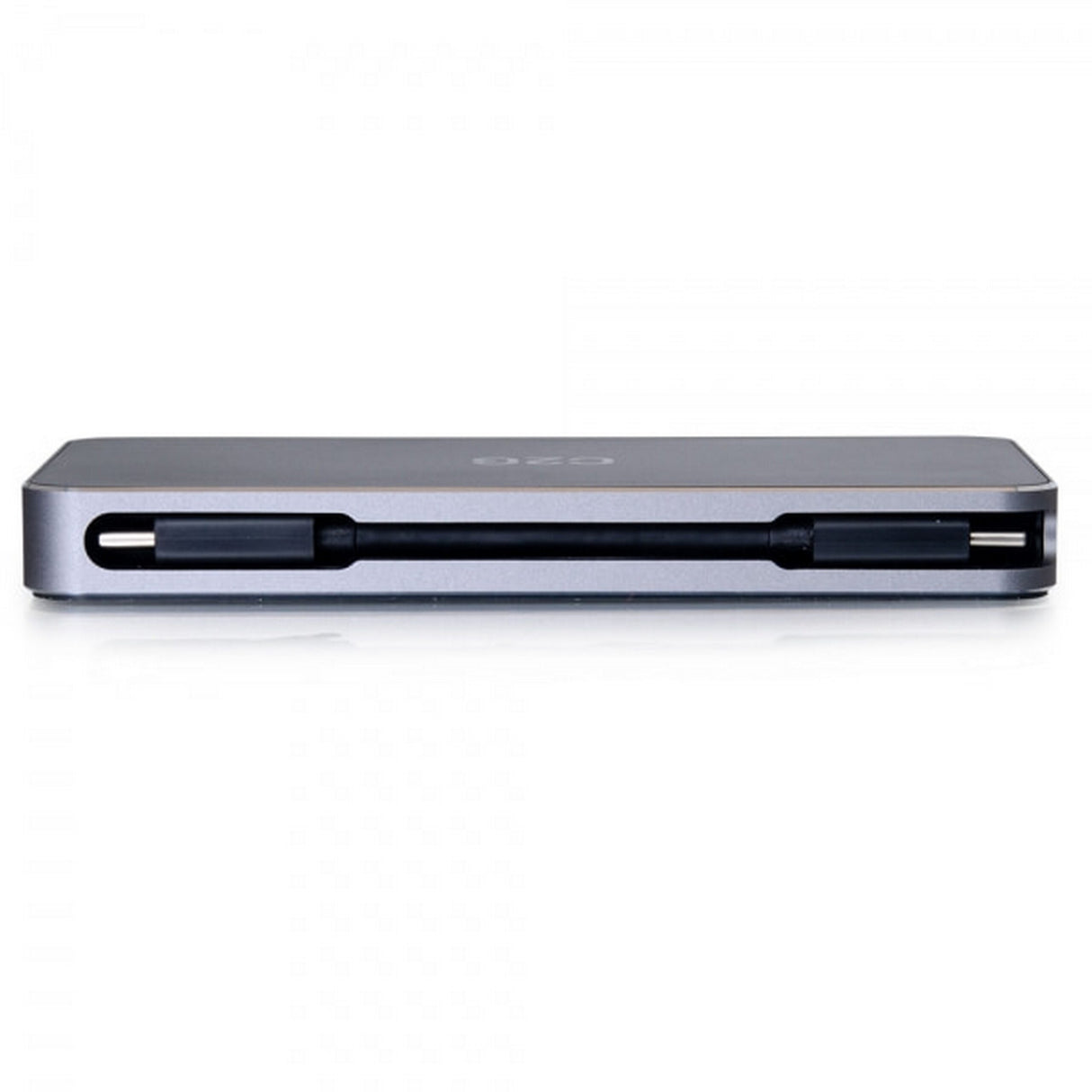

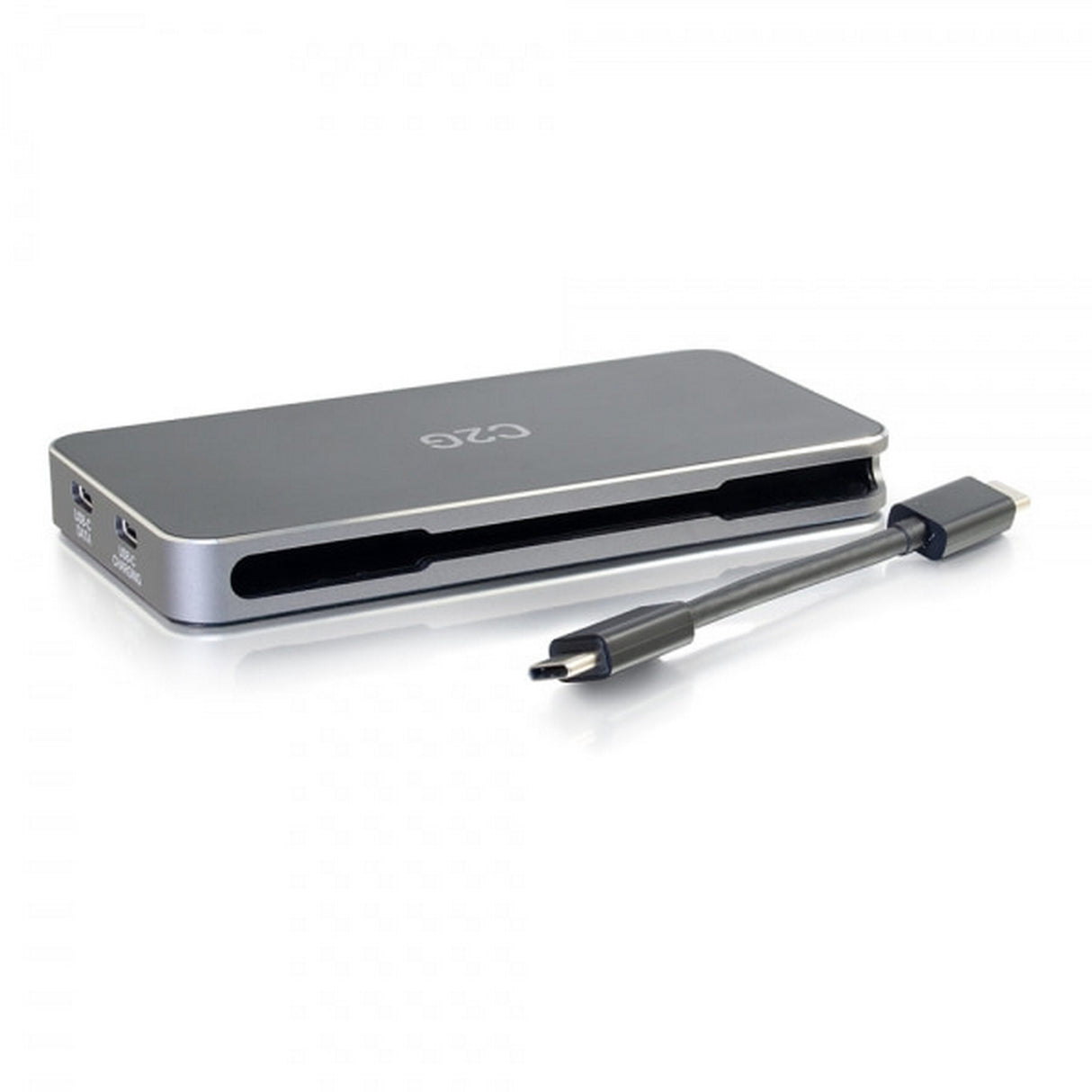

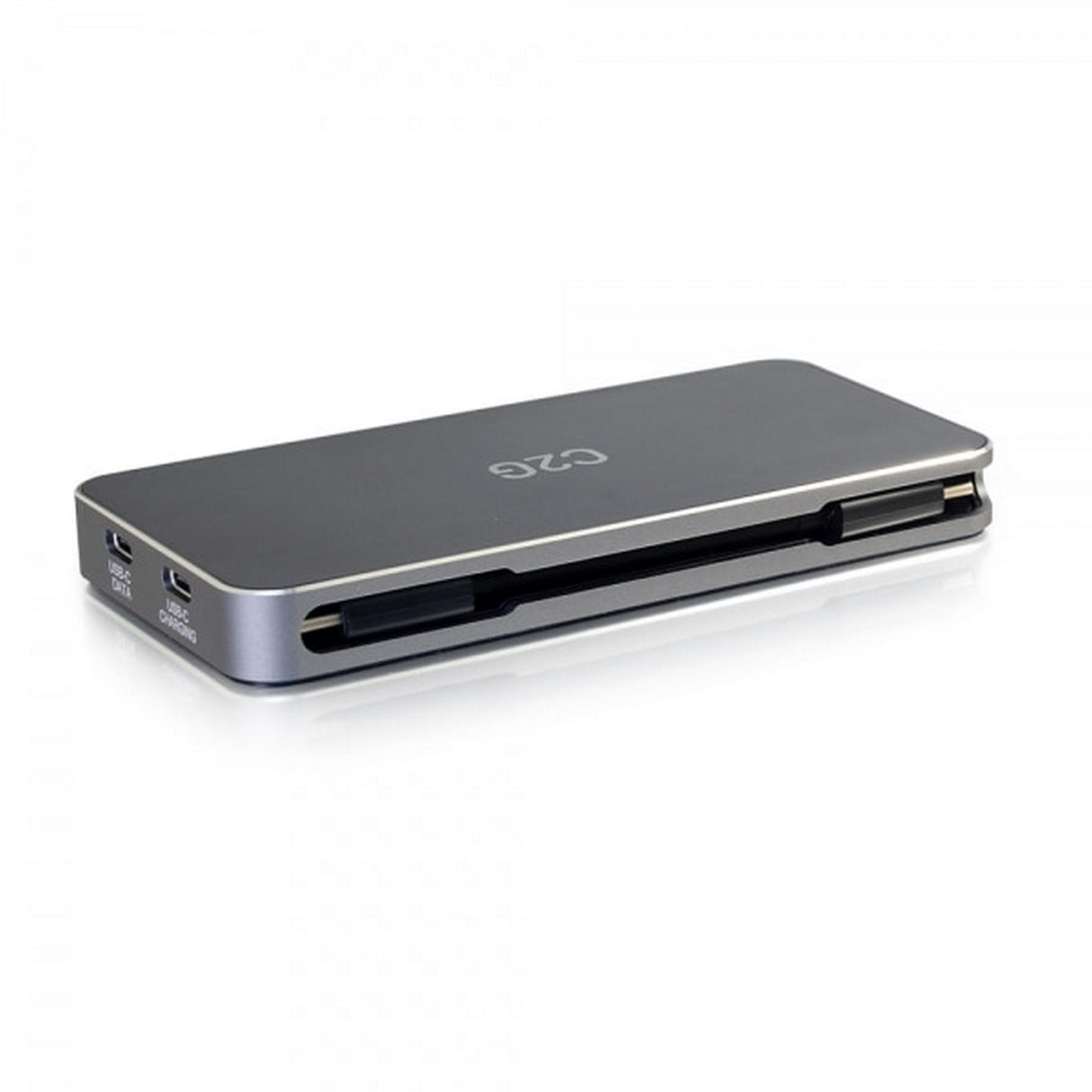

- Storage compartment for included USB-C M/M cable, readily available when you need it
- Reversible, symmetrical USB-C connector, so no guessing how to plug it into your laptop
- Compatible with Windows, Mac, and Linux operating systems
- 5 year warranty, for peace of mind - with the highest quality docking stations
Technical Specifications
HDMI Resolution
3840 x 2160 @ 30Hz
DisplayPort Resolution
3840 x 2160 @ 30Hz
VGA Resolution
1920 x 1080 @ 60Hz
Power Delivery Charging
20V / 3A
USB-C Power Supply
3A max. charge current
USB-C Power Supply input
100-240v
Operating Temperature
0C to 50C
Storage Temperature
-25C to 70C
USB-C Power Supply Operating Temperature
0C to 40C
USB-C Power Supply Storage Temperature
-20C to +80C
Input
USB-C Female
Output
2 x USB-C Female
USB-C Contact Pin
Copper Alloy, Gold Plated
USB-C Shell
Stainless Steel, Nickel Plating
USB-C Insulation
LCP, Black
Output
VGA Female HD15
VGA Contact Pin
C5191, Gold Plated
VGA Shell
SPCC, Nickel Plating
VGA Insulation
PA9T, Black
Output
HDMI Female 19pin
HDMI Contact Pin
C5191, Gold Plated
HDMI Shell
C2680, Nickel Plating
HDMI Insulation
LCP, Black
Output
DisplayPort Female 20pin
DisplayPort Contact Pin
C5191, Gold Plated
DisplayPort Shell
SPCC, Nickel Plating
DisplayPort Insulation
LCP, Black
Output
2 x USB 3.0 9pin
USB 3.0 Contact Pin
Copper Alloy
USB 3.0 Shell
SUS, Nickel Plating
USB 3.0 Insulation
LCP, Blue
Dimensions
127 +/- 0.2 x 63.2 +/- 0.2 x 14 +/- 0.2mm
Regulatory Approvals
FCC, CE
