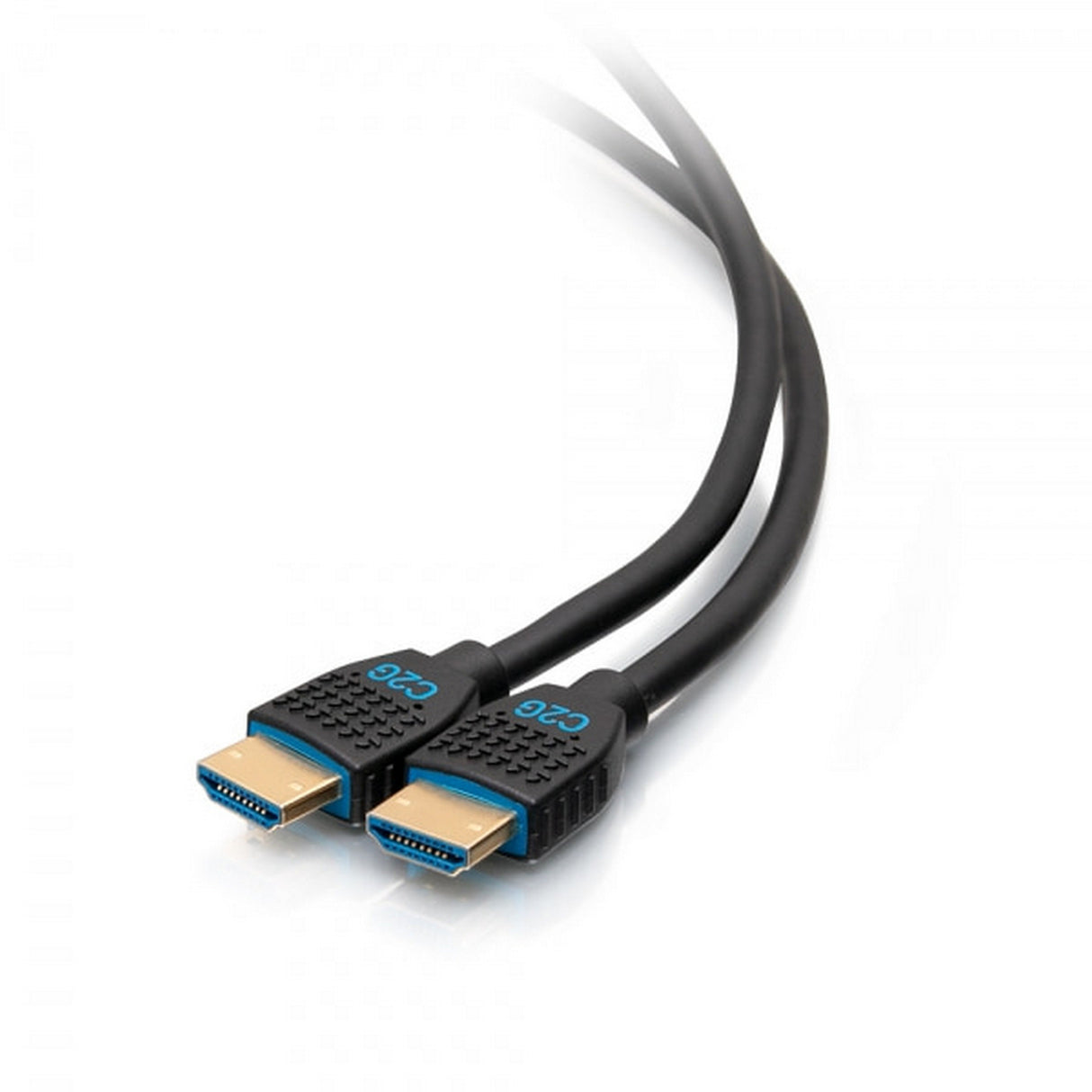

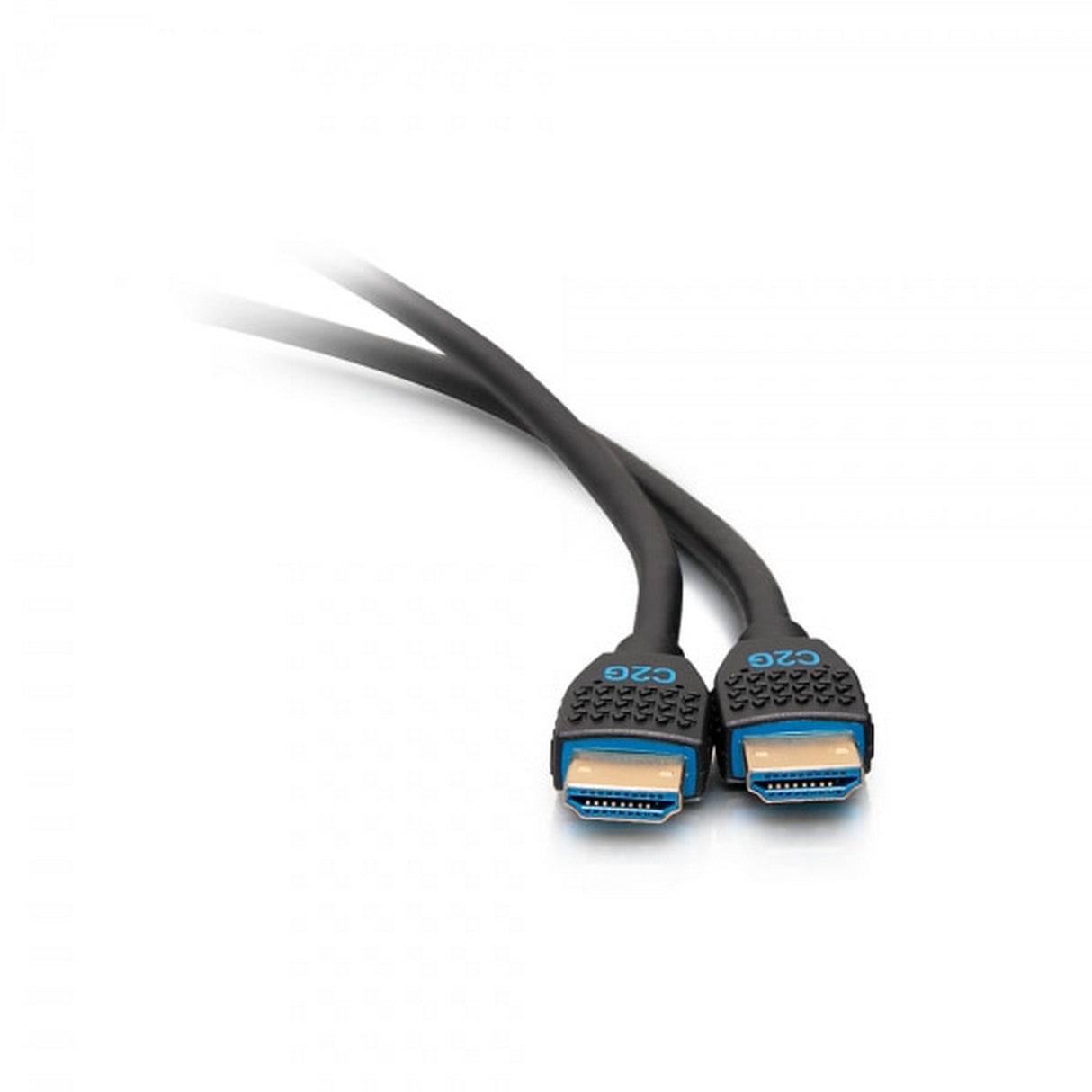

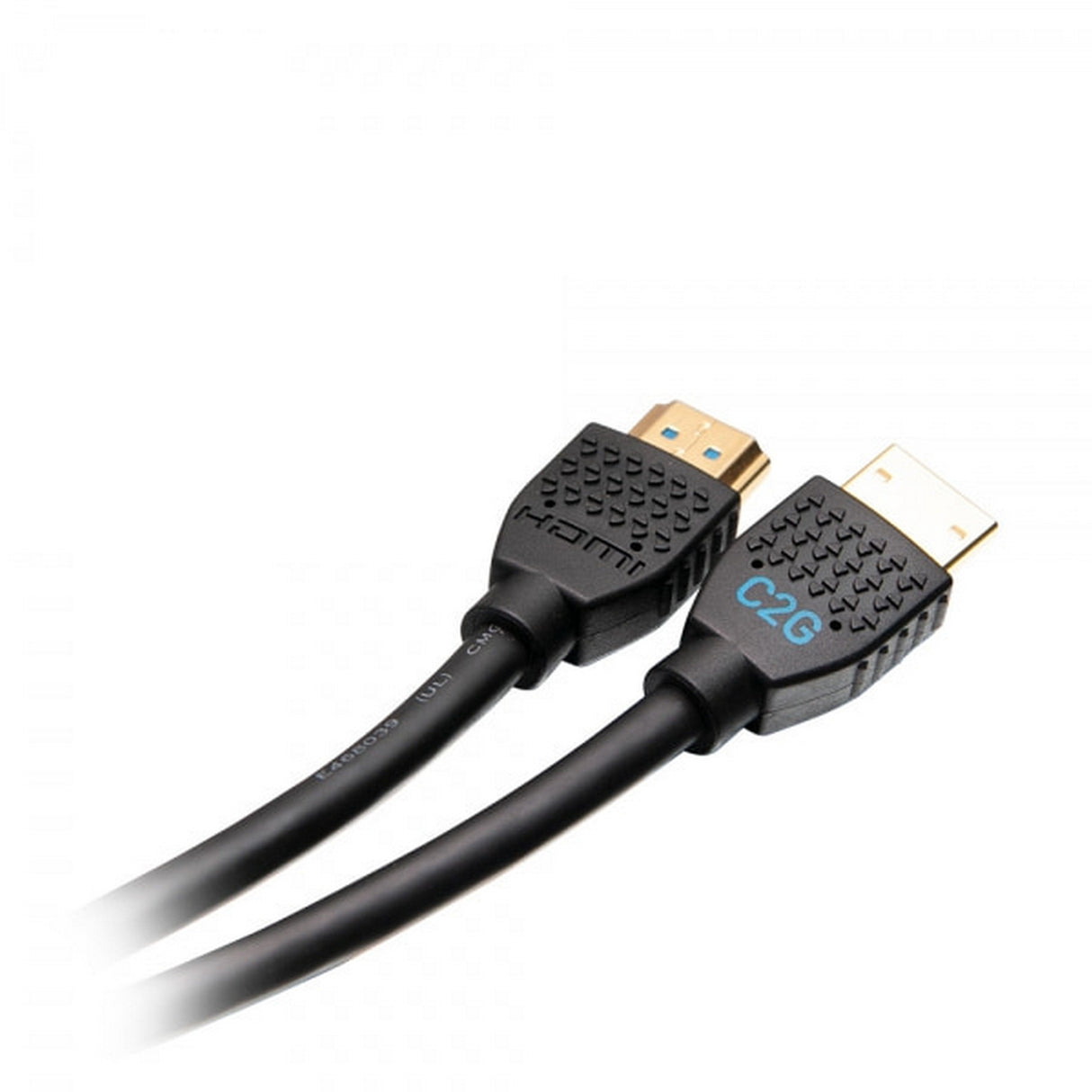

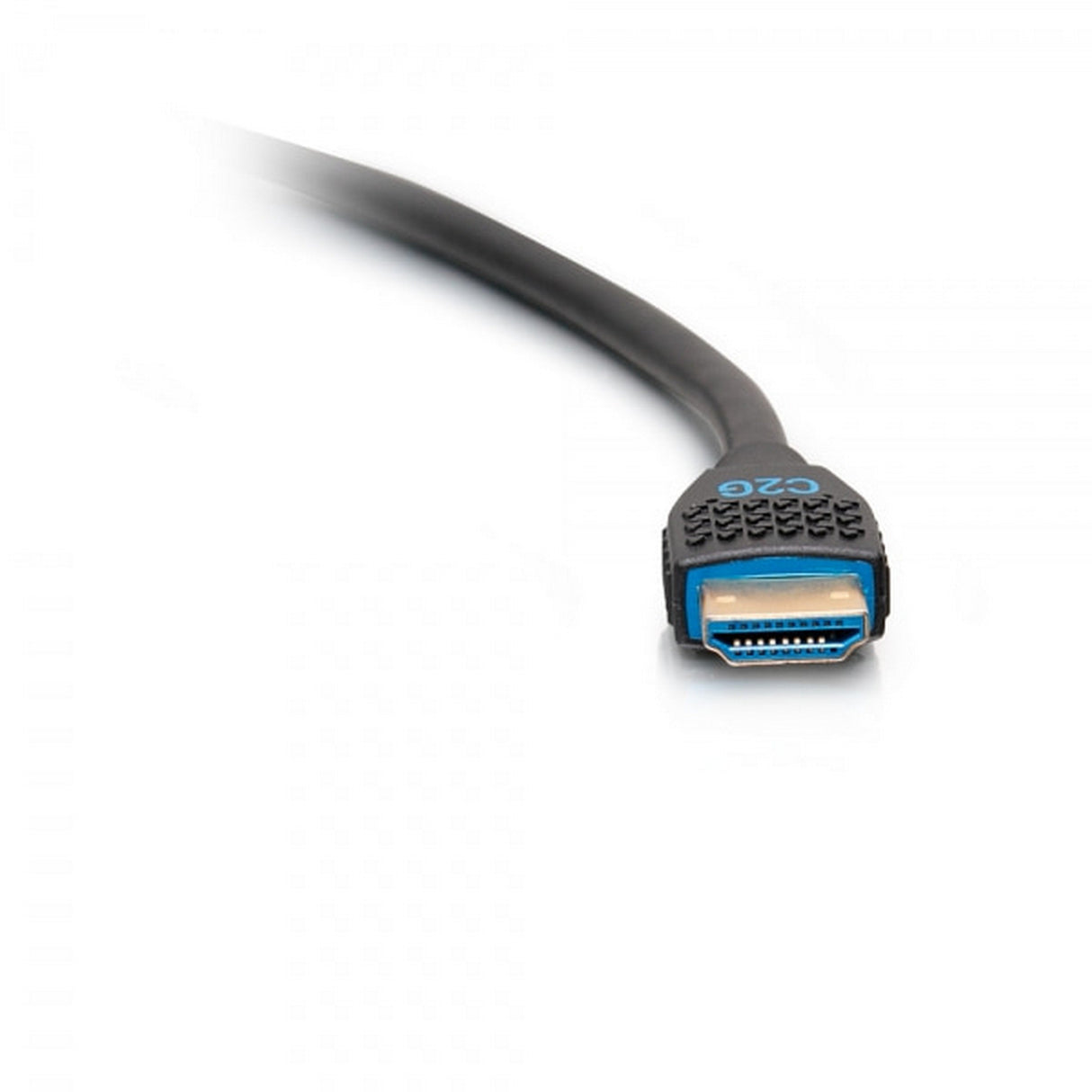

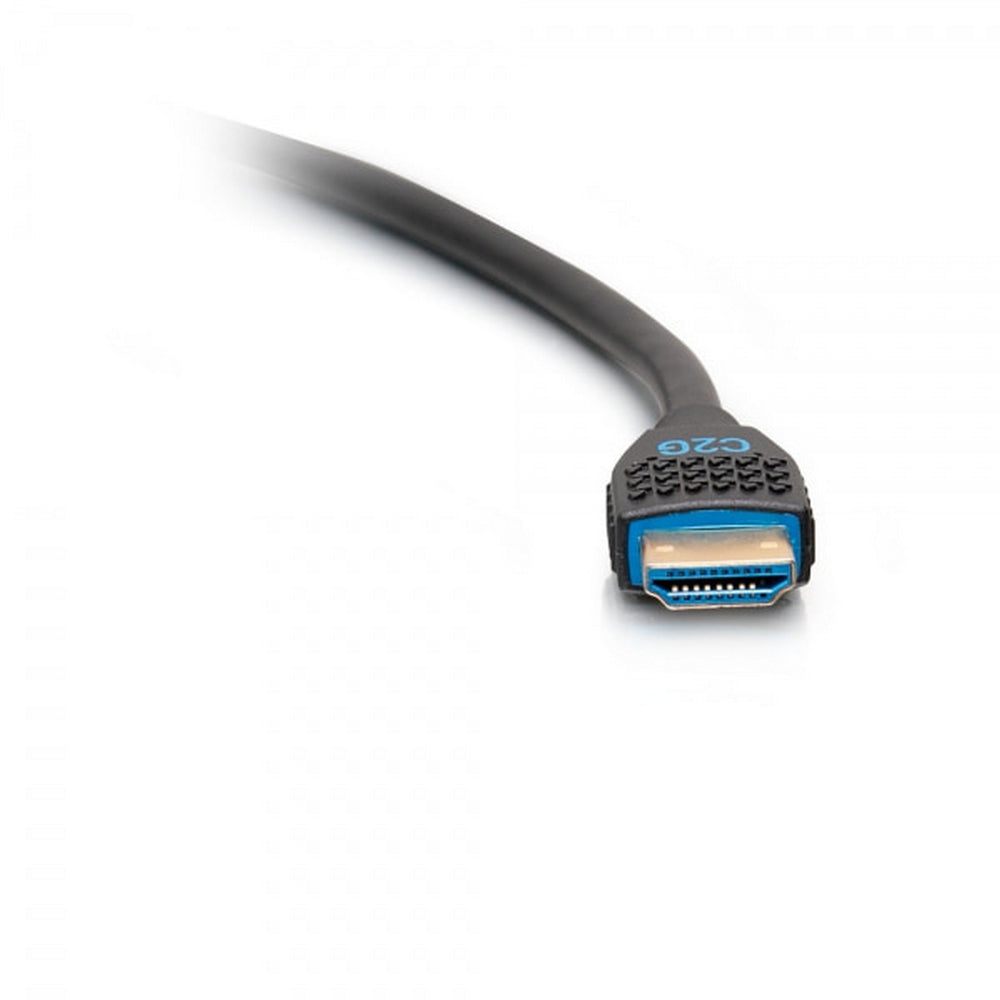

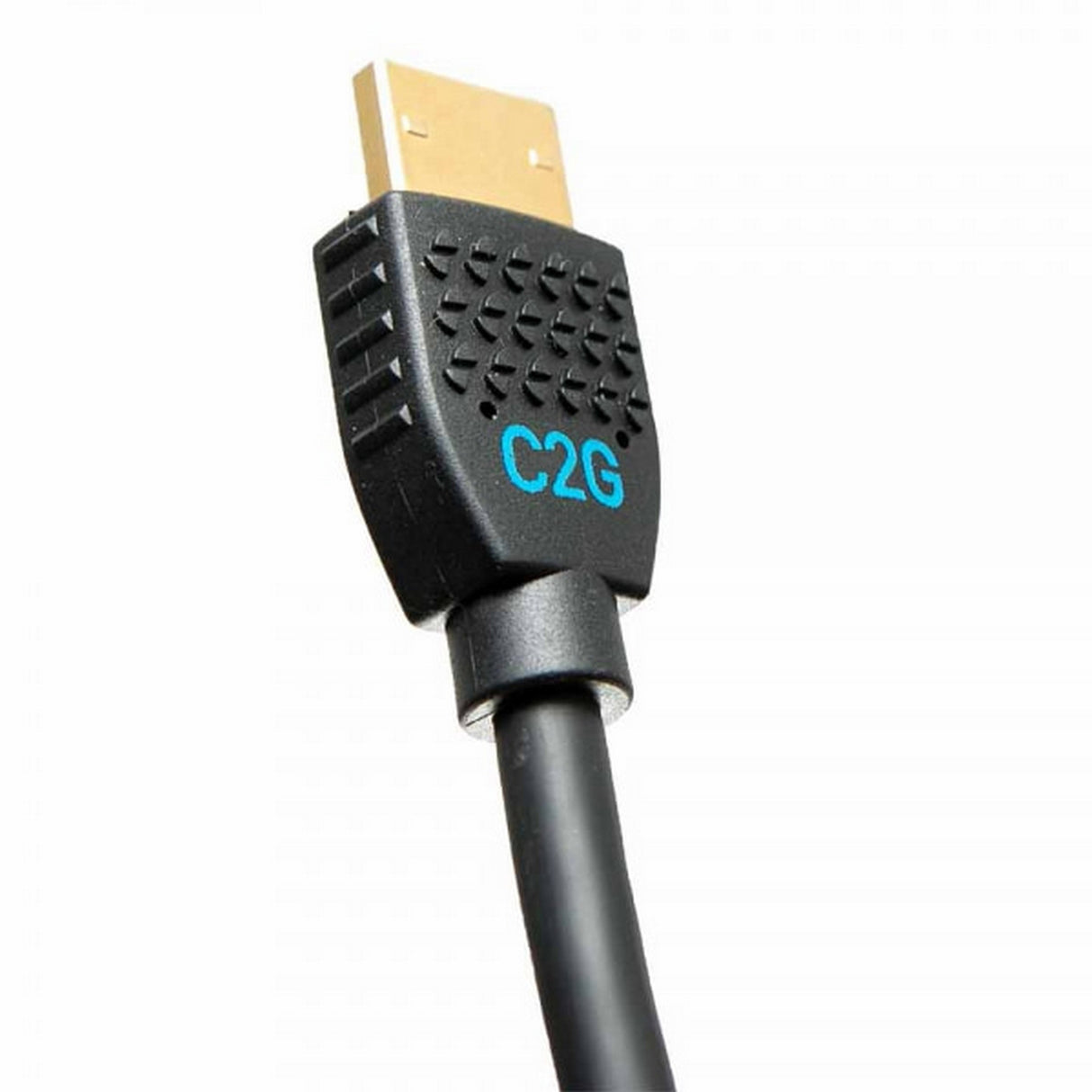

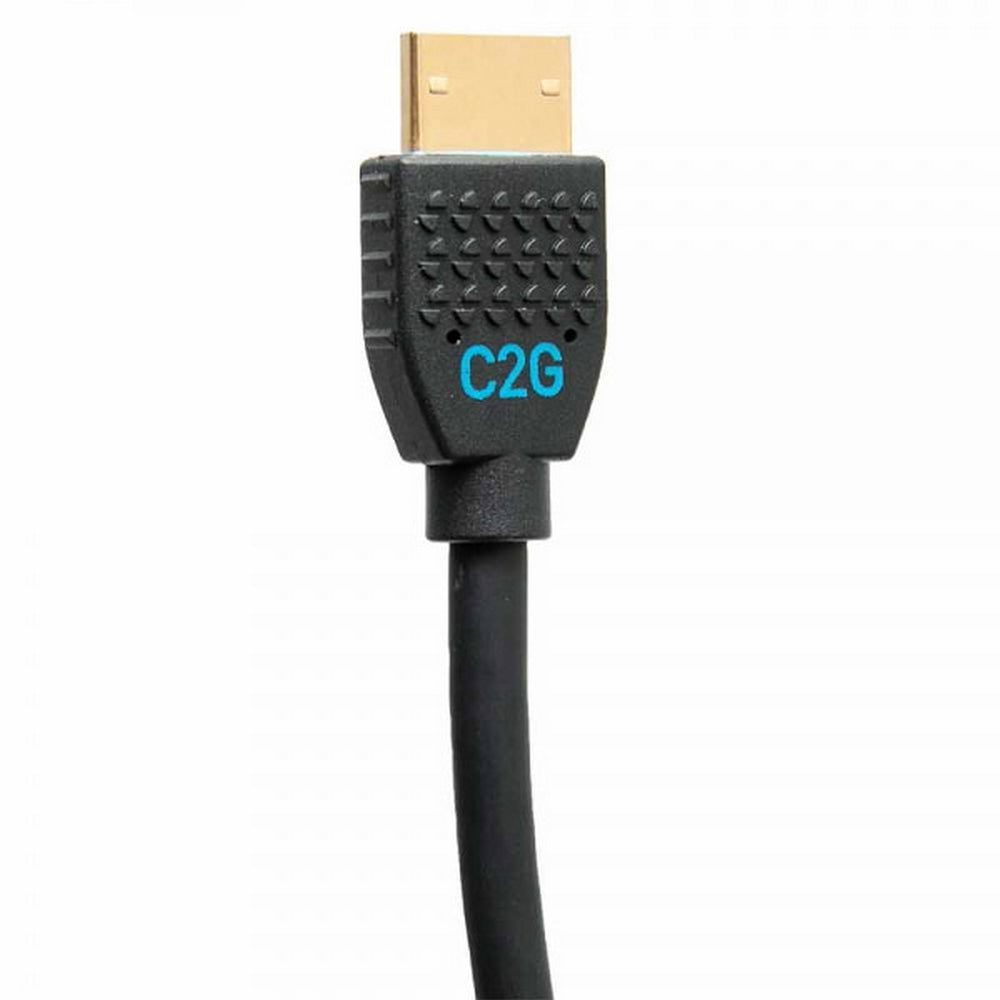

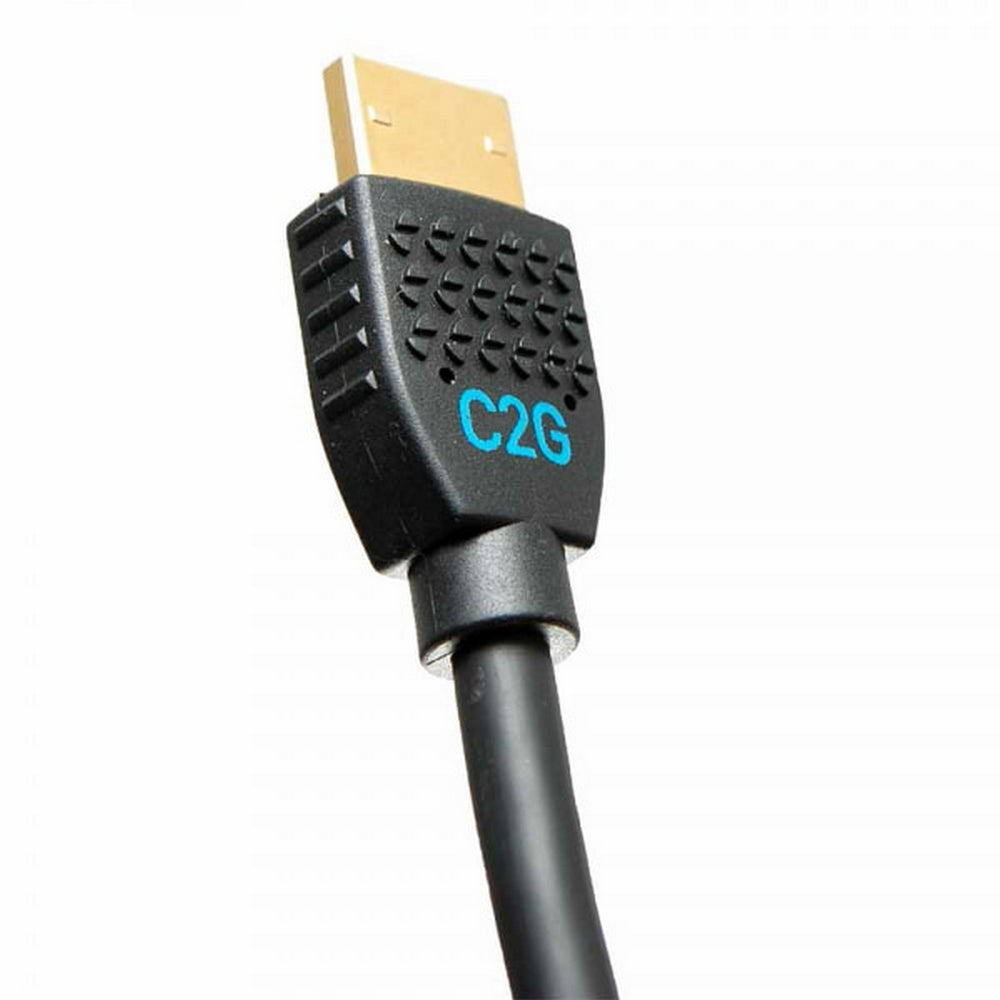

C2G Performance Series Ultra Flexible High Speed HDMI Cable, 4K 60Hz In-Wall, 10 Foot

C2G Performance Series Ultra Flexible High Speed HDMI Cable, 4K 60Hz In-Wall, 10 Foot

The C2G Performance Series Ultra Flexible High Speed HDMI Cable is perfect for connecting a wide variety of devices from computers to projectors and monitors, AV presentation furniture, or in-wall applications requiring high speed HDMI features and video resolutions up to 4k (4096 x 2160) at 60Hz - perfect for conference rooms, classrooms, churches, and other commercial installations. This Ultra Flexible High Speed HDMI Cable was designed for installations in tight spaces and offers commercial grade connectors that feature compact overmolding for high density environments, integrated finger grips on the top, bottom, and sides, for easy insertion and removal, and the gripping connector shell has 2x greater port retention to keep your devices connected. The gold plated connectors on the cable allow for better shielding, increased electrical conductivity, and durability. This Ultra Flexible High Speed HDMI Cable supports the updated library of Consumer Electronic Control (CEC) commands, allowing communication between devices connected through the HDMI ports. Lastly, this fully-functional, high bandwidth cable has been tested to perform at industry standards and is backed by a lifetime warranty.

Key Features

• Supports all HDMI 2.0 features including resolutions up to 4K (4096 x 2160) at 60hz 4:4:4, which means higher quality video for viewing your screen content
• In-wall (CMG/FT4) rated jacket, so you can safely run the cable inside of a wall and have a clutter free, clean look

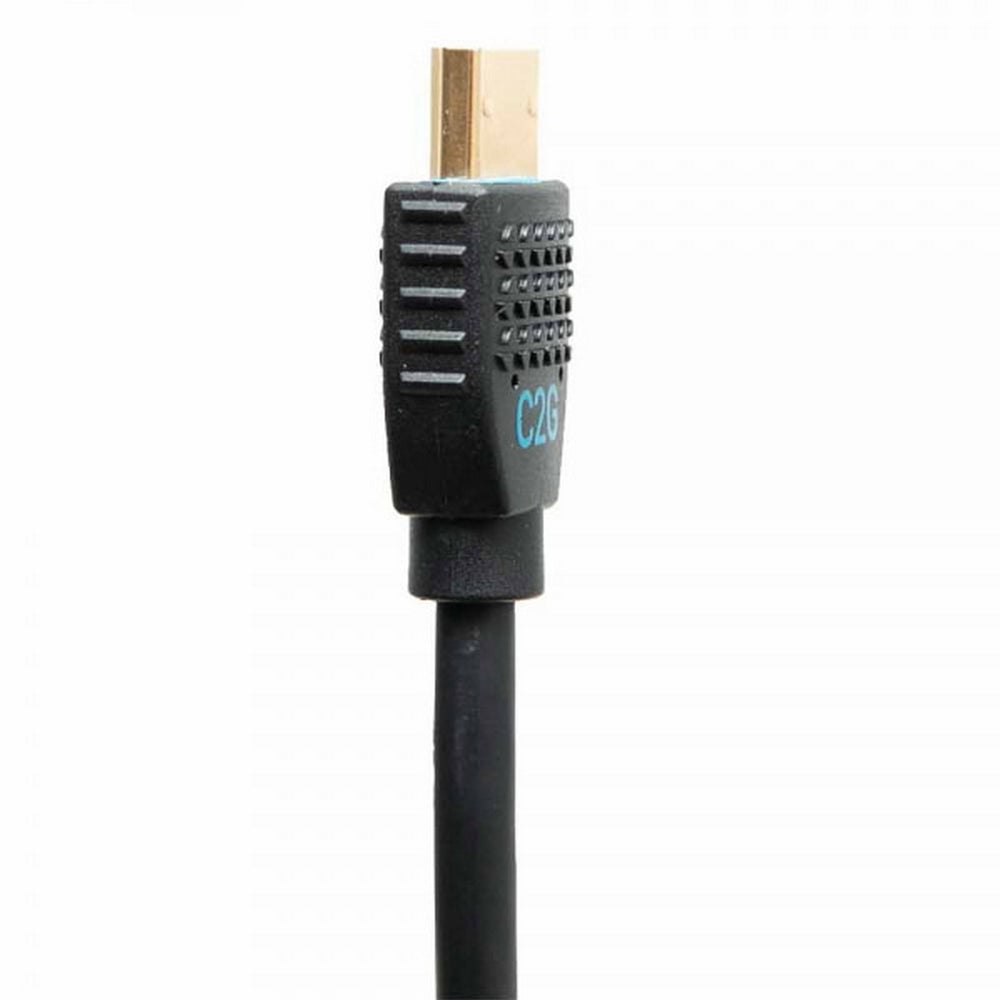

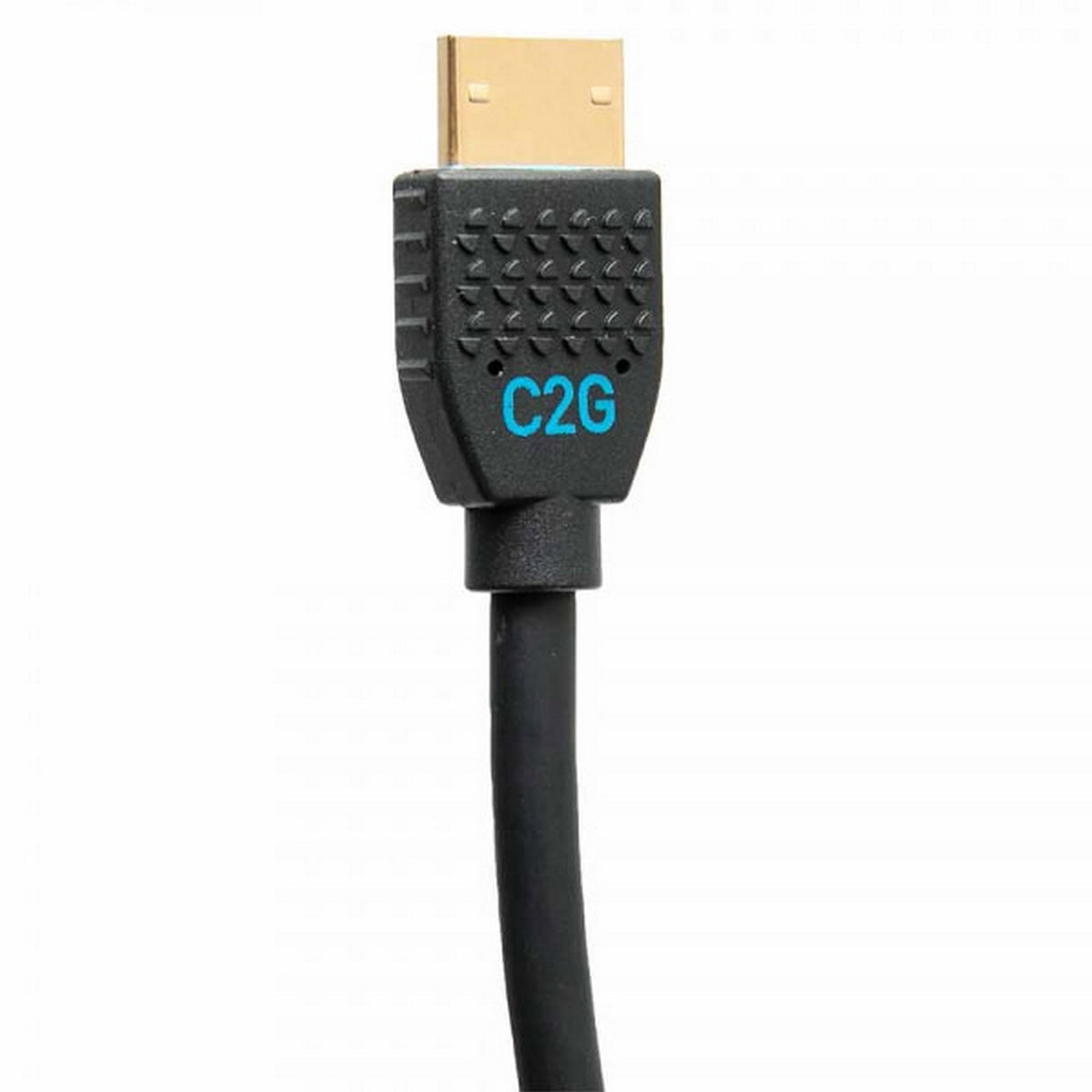

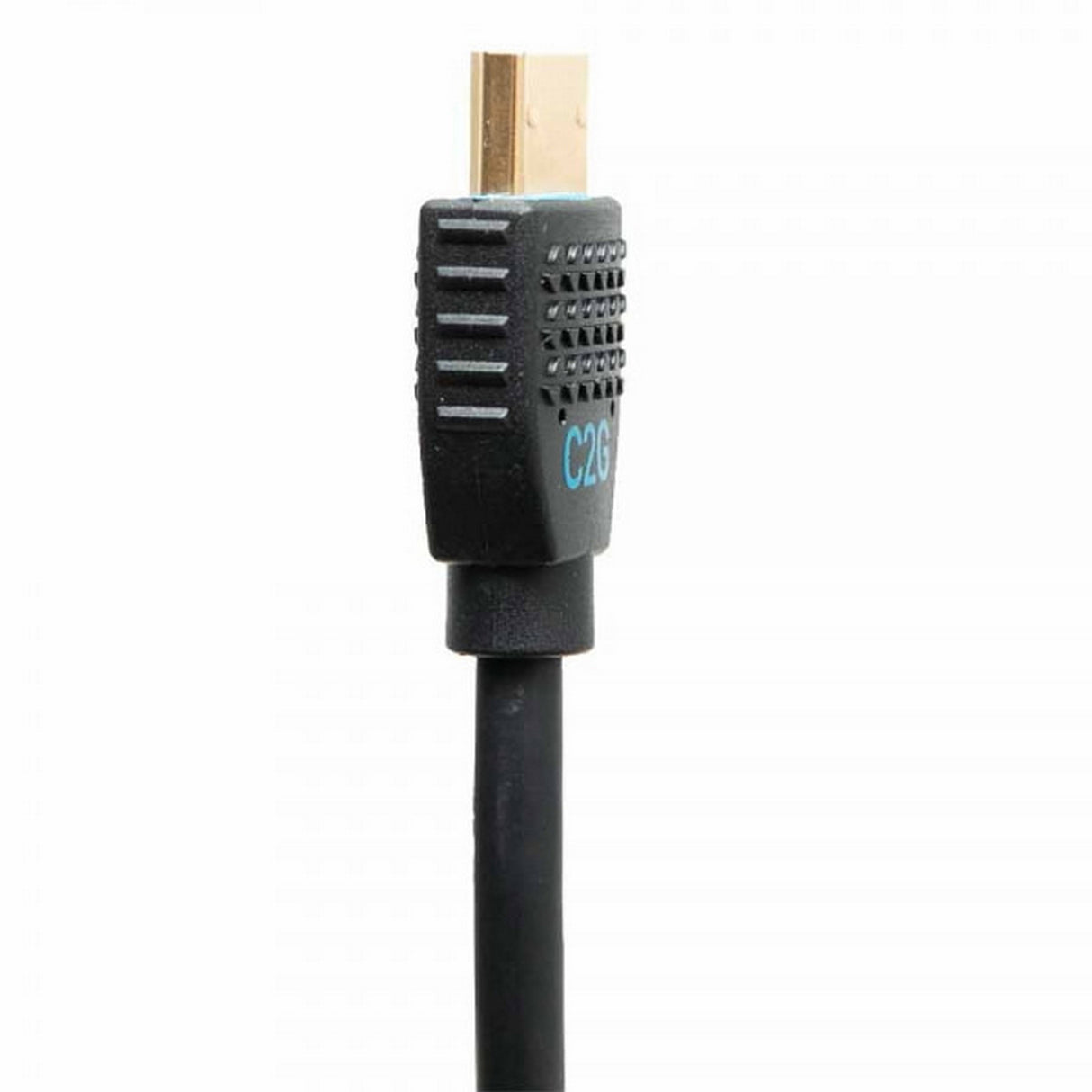

• Integrated finger grips on the connectors for easy insertion and removal
• Gripping connector shell for 2x greater port retention
• Gold plated connectors for increased electrical conductivity and enhanced durability
• Supports CEC extensions for control of consumer electronics devices through a single control point
• Backed by a Lifetime Warranty for peace of mind

Technical Specifications

Color
Black
Length
10.00 Foot
Jacket Rating
CMG In-Wall Rated
UPC
757120103783
Warranty
Lifetime
Vendor
C2G
Weight
0.350 LB
Signal Specifications
Supports HDMI Resolutions up to 4K 60Hz, 4:4:4, 18 Gbps
Supports Full HD Blu-ray Disc and HD DVD Video
Supports 3D Video
Perceptual Quantizer (PQ HDR OETF (SMPTE ST 2084)
Hybrid Log-Gamma (HLG) HDR OETF
Static HDR Metadata (SMPTE ST 2086)
DVD Audio, Super Audio CD (DSD)
Dolby True HD, DTS-HD Master Audio Bitstream Capable
4 Audio Streams
Ethernet Channel
100 Mbit/s
Consumer Electronic Control (CEC), with Updated List of CEC Commands
Electrical Specifications
Voltage Rating
30V
Temp
Connector: Temp Rating: 220C
Cable
Temp Rating: 75C
Conductor Resistance
5
Insulation Resistance
10M?
Differential Data Input Voltage
4.8V to 5.3V
Differential Data Output Voltage
4.7V to 5.3V
Physical Specifications
Operating Temperature
-20C to +75C; 85% RH (Non-Condensing)
Storage Temperature
-10C to +55C; 85% RH (Non-Condensing)
Tensile Strength
100N
Minimum Bend Radius
48
Cable Jacket Ratings
CMG FT4
Connector Gripping Force
HDMI Withdrawal Force: 3.12 to 3.28kgf (9.8N/1.0kgf Min; 39.2N/4.0kgf Max)
Connector Gripping Force
HDMI Insertion Force: 2.54 to 2.61kgf (44.1N/4.5kgf Max)
Physical Characteristics
Material
Housing: PVC Molding
SR-Mold
PVC, Color: Black
Jacket Color
Black
Connector Insulator
Blue; Front of the Housing: Blue; “C2G”
Jacket OD
6.00-0.20mm; Jacket Material: PVC; Jacket Thickness: 0.56mm (REF)
Shield Drain
7/0.10T (30AWG); Shield AL/Mylar: AL Face Inside; Shield Mylar; Transparent Mylar Tape
Shield Filler
Filler; Shield Paper: Paper: Paper; Shield Constitution N/mm: 16/9/0.08; Shield Material: Tinned Copper; Shield Coverage %: 65%
Connector
HDMI Type A Male Connector, Metal Shell Gold Plated, Electrical Contact Copper; Alloy Gold Plated 5u’, Insulator Color: Blue
Cable UL/CUL/CSA Rating: Type: (7/0.10T*1P+D+AL+MY) *5C+7/0.10T*3C+7/0.127T*1C+F+Paper+B16/9/0.08T OD: 6.00mm;
Cable UL/CUL/CSA Rating: Print: High Speed HDMI Cable With Ethernet E468040 (UL) CL2 75C 30AWG
Product is CE Marked and Conforms to 2011/65/EU ROHS 2
