C2G  |  SKU: C2G-50212

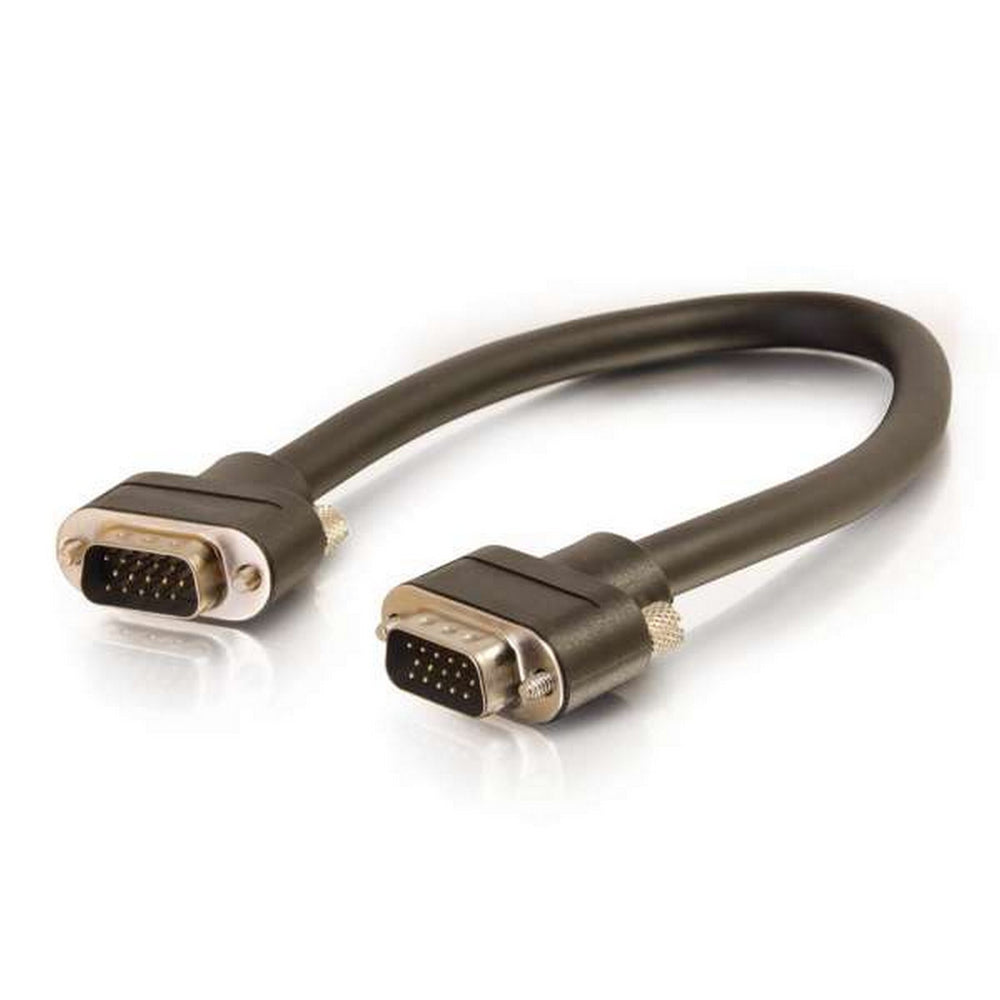

C2G Select VGA Video Cable Male to Male, 6 Foot

$1899
🚚 Order within the next 2 hours, 15 minutes for delivery by 16 May, 2024.

Condition: New



Description

C2G Select VGA Video Cable Male to Male, 6 Foot

The C2G Select VGA Video Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536). The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display’s capabilities, ensuring that the content from the source is sent at the optimal resolution for the display.

Key Features

  • In-wall, CMG-rated jacket
  • Supports up to a 2048x1536 resolution
  • All 15 pins wired to support DDC2 (E-DDC) and EDID
  • Low profile connectors

Technical Specifications

Electrical
Maximum resolution supported
2048x1536
Nominal impedance
75±5
Nominal capacitance
28pF/m
Conductor resistance
30AWG - 376.96/km, 28AWG - 237.25/km
Insulation resistance
10M?/km at 20°C DC-500V
Dielectric strength
AC 500V/1 minute
Physical
Voltage rating
30V
Minimum bend radius
51mm
Conductors (3 conductors)
Conductor type
30AWG (7/0.127)(tinned copper(OFC))
Insulation
Foam-PE
Covering
PVC
Drain wire
28AWG (7/0.127)(tinned copper)
Shield
Aluminum foil (100% coverage)
Conductor (9 conductors)
Conductor type
28AWG (7/0.127)(tinned copper(OFC))
Insulation
SR-PVC
Overall cable construction
Foil shield
Aluminum foil (100% coverage)
Braided shield
16/10/0.12 (85% coverage)(tinned copper(OFC))
Drain wire
26AWG (7/0.20)(tinned copper)
Jacket
CMG
Connectors
Connector type
HD15 VGA
Plating
Nickel
Housing material
Black PBT
Dimensions (HxWxD)
13.1x31.2x24.0mm
