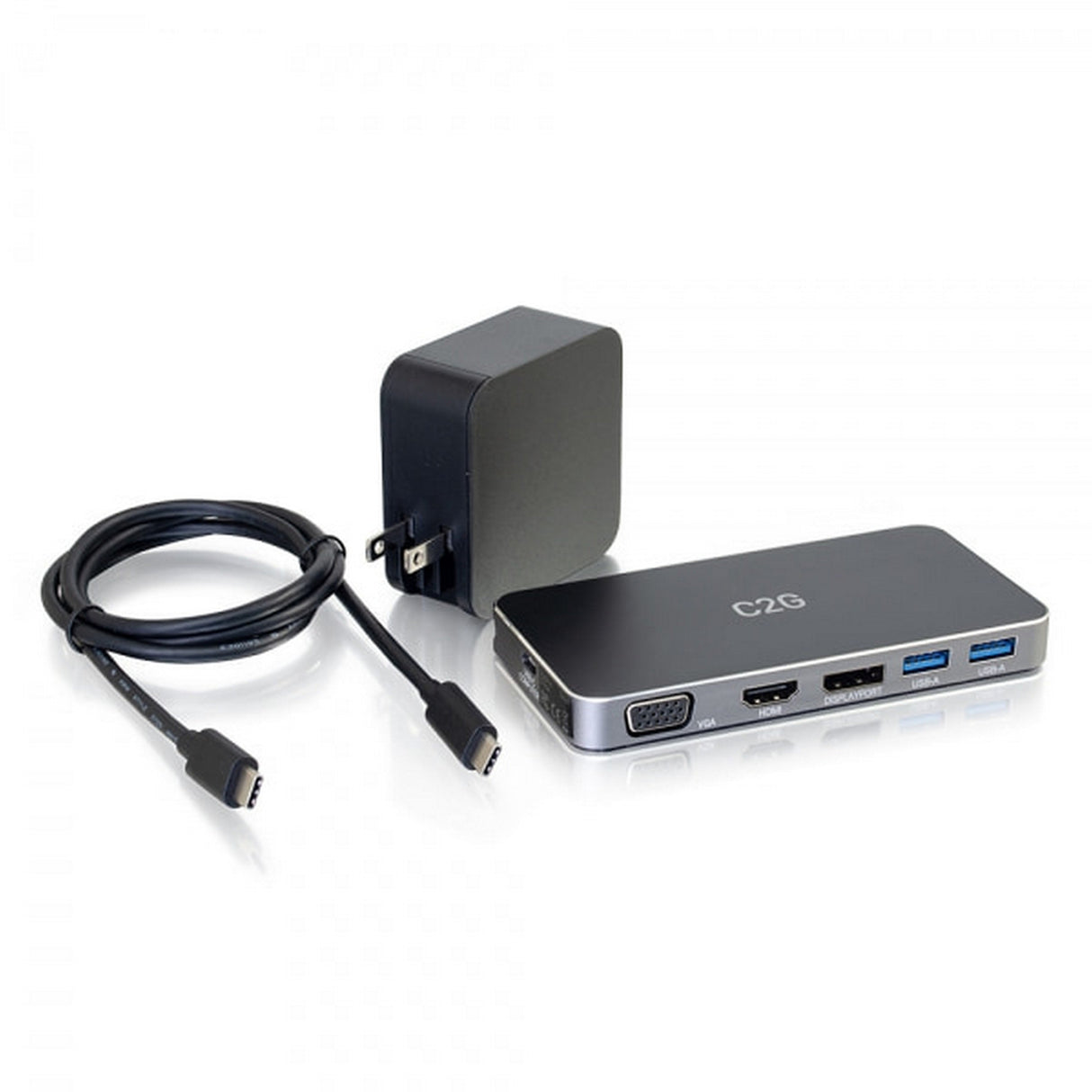

C2G USB-C 7-In-1 Dual Display Dock Kit for Laptops
Description
Description
C2G USB-C 7-In-1 Dual Display Dock Kit for Laptops
The USB-C 7-in-1 Dual Display Dock Kit connects to USB-C or Thunderbolt 3 enabled laptops and includes the cable connectivity solution needed for up to two HDMI displays, making it perfect for transforming your laptop into a full desktop solution through a single connection point. Perfect for setting up a workspace at the office or in the home.
Key Features

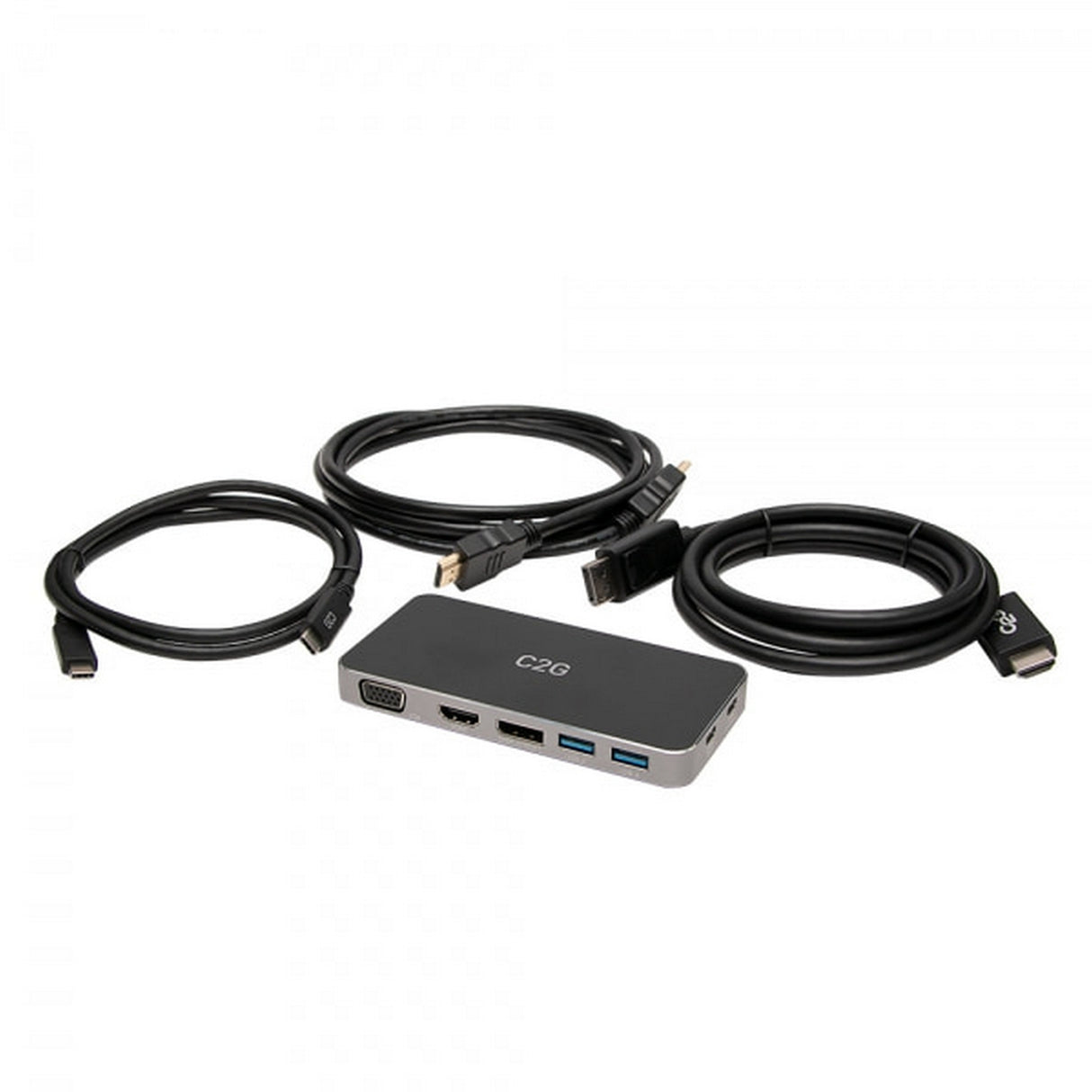

- Includes the cables needed to connect the dock to two HDMI displays
- Supports resolutions up to 4K, for viewing your screen content at full HD
- Supports dual display resolutions up to 1080p
- Includes 60W USB-C power supply to support connected displays and devices
- Supports up to 100W of power delivery to keep your laptop charged
- Multi-Stream Transport (MST) allows three different display configurations on multiple monitors
- USB-A ports to add keyboard/mouse combo, storage devices, or to charge a smart phone

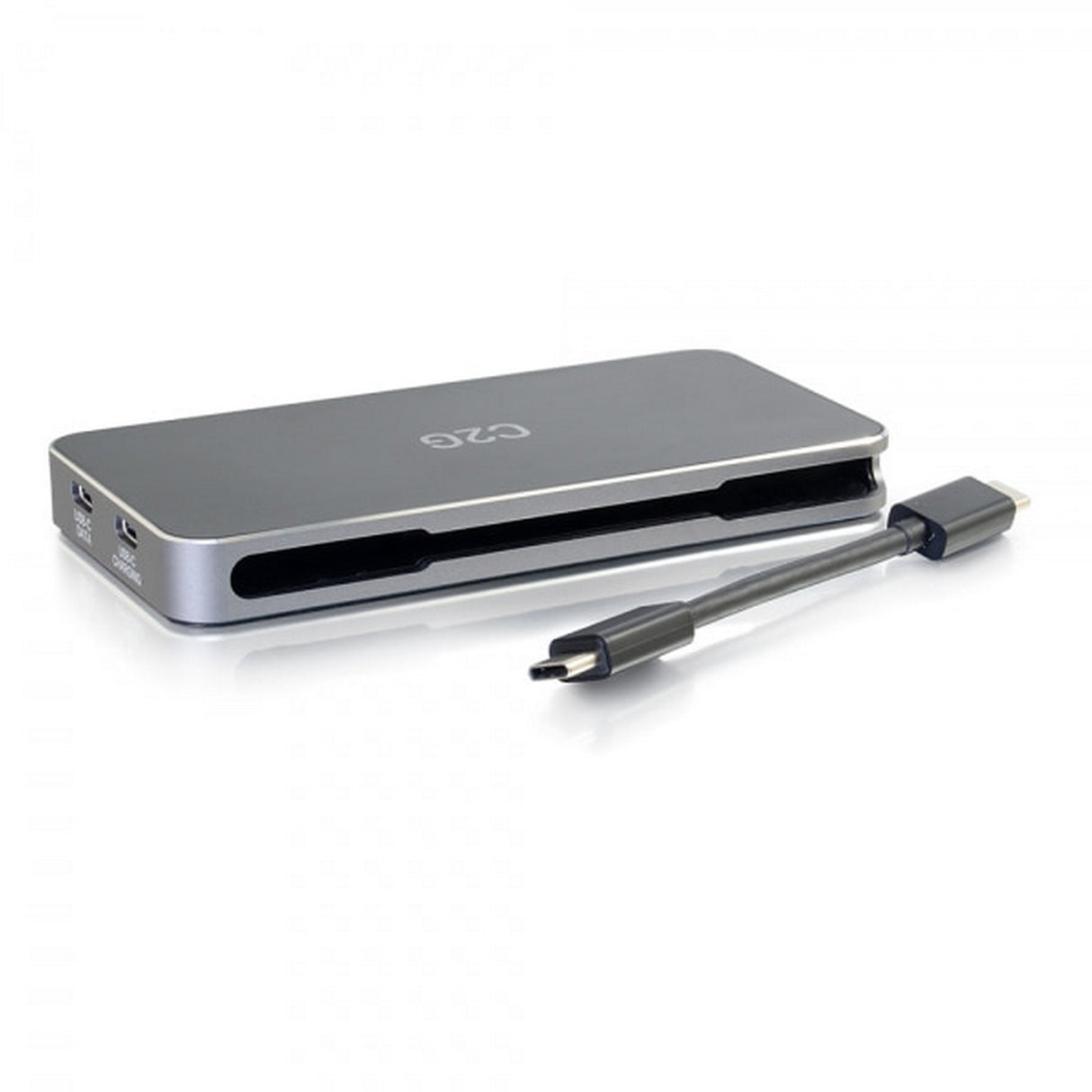

- Storage compartment for additional USB-C M/M cable, readily available when you need it
- Reversible, symmetrical USB-C connector, for plugging a single connection into your laptop
- Compatible with Windows, Mac, and Linux operating systems
- 5 year warranty, for peace of mind - with the highest quality docking stations
Technical Specifications
Color
Grey
UPC
757120544777
Warranty
5 years
Vendor
C2G
Weight
0.870 LB
Signal Specifications
HDMI Resolution
3840 x 2160 @ 30Hz
DisplayPort Resolution
3840 x 2160 @ 30Hz
VGA Resolution
1920 x 1080 @ 60Hz
Support

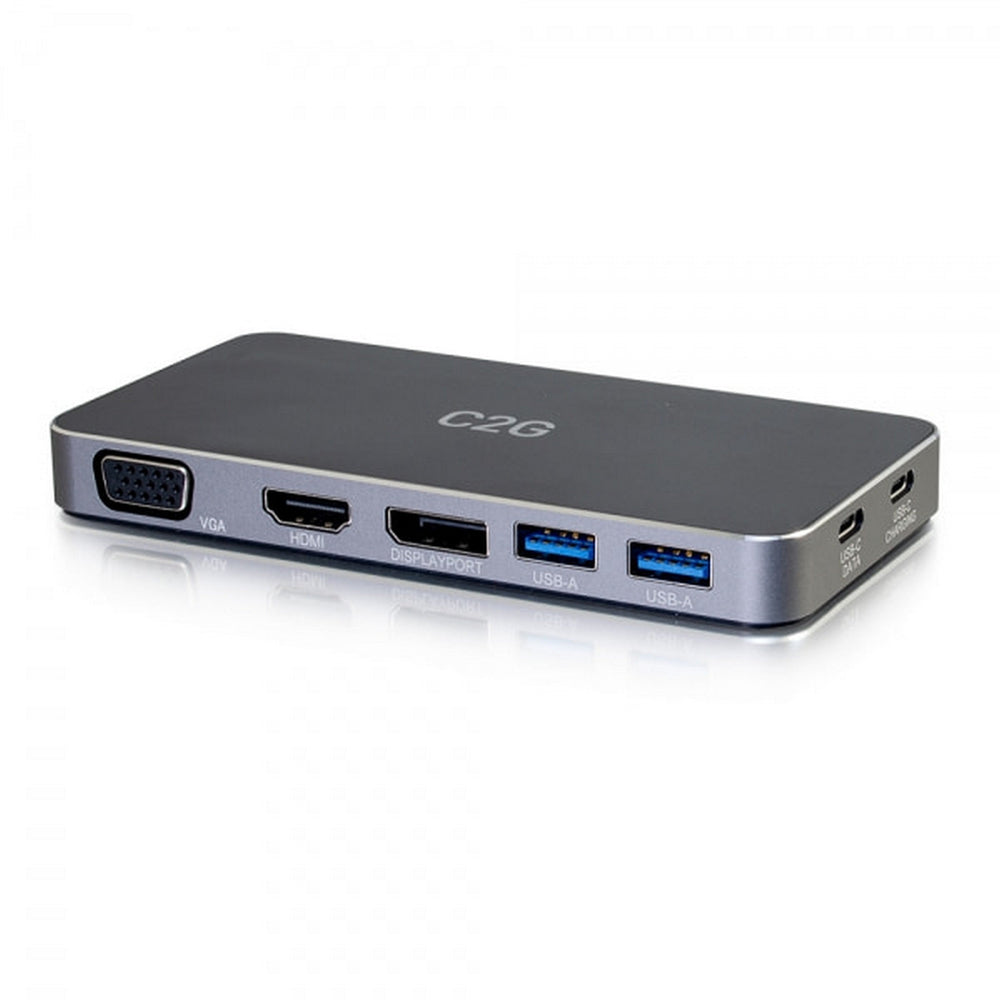

USB-C Male Input and HDMI, DisplayPort, VGA, 2 x USB-A, and 3 x USB-C Female Outputs
USB-C Female
Connecting PD Adapter: Up to 60W (20/3A)
HDMI Male to Male Cable: HDMI Specification: 2.0; Nominal Velocity of Propagation - 18Gbps; Up to 4K @ 60Hz
DisplayPort Male to HDMI Male Cable: Supports Resolutions up to 1080p
Electrical Specifications
Power Delivery Charging
20V / 3A
USB-C Power Supply
3A max. charge current
USB-C Power Supply input
100-240v
HDMI Male to Male Cable: DC Resistance - 300V; Dielectric Strength - AC 500V/minute; Nominal Attenuation - 300kHz-825MHz - >5dB, 825MHz-2.475GHz - >5dB, 2.475GHz-4.125GHz - >12dB, 4.125GHz-5.1GHz - >20dB; Voltage Rating - 30V
DisplayPort Male to HDMI Male Cable: Voltage Rating: 30V; Conductor Resistance: @ 20C Max;
Physical Specifications
Operating Temperature
0C to 50C
Storage Temperature
-25C to 70C
USB-C Power Supply Operating Temperature
0C to 40C
USB-C Power Supply Storage Temperature
-20C to +80C
HDMI Cable
Operating Temperature: -20 to 80C
HDMI Cable
Storage Temperature: -25 to 85C
DisplayPort Male to HDMI Male Cable
Operating Temperature: 0C to 50C
DisplayPort Male to HDMI Male Cable
Storage Temperature: -25C to 70C
Physical Characteristics
USB-C Female
Contact Pin: Copper Alloy, Gold Plated; USB-C Shell: Stainless Steel, Nickel Plating; USB-C Insulation: LCP, Black
VGA: Female HD15; Contact Pin: C5191, Gold Plated; Shell: SPCC, Nickel Plating; Insulation: PA9T, Black
HDMI: Female 19pin; Contact Pin: C5191, Gold Plated; Shell: C2680, Nickel Plating; Insulation: LCP, Black
DisplayPort: Female 20pin; Contact Pin: C5191, Gold Plated; Shell: SPCC, Nickel Plating; Insulation: LCP, Black
USB-A 3.0: 9pin; Contact Pin: Copper Alloy; USB 3.0 Shell: SUS, Nickel Plating; Insulation: LCP, Blue
Dimensions
127 - 0.2 x 63.2 - 0.2 x 14 - 0.2mm
Regulatory Approvals
FCC, CE
HDMI Cable: Drain Wire - 30AWG (07/0.10), Tinned Copper
HDMI Cable: Foil Shield - Aluminum Foil, 100% Coverage
HDMI Cable: Braided Shield - 16/4/0.12, Al/Mg
HDMI Cable: Jacket - PVC, Black, O.D. - 6.0 - 0.2mm
HDMI Cable: Minimum Bend Radius - 60
HDMI Cable: RoHS Compliant
DisplayPort Male to HDMI Male Cable: Jacket: PVC; Shield: AL-Mylar-Coverage 100%; Braid-16/9/0.12; Drain
2:30AWG (7/0.08 BC); OD: 6.5-0.2
DisplayPort Male to HDMI Male Cable: CE Compliant
