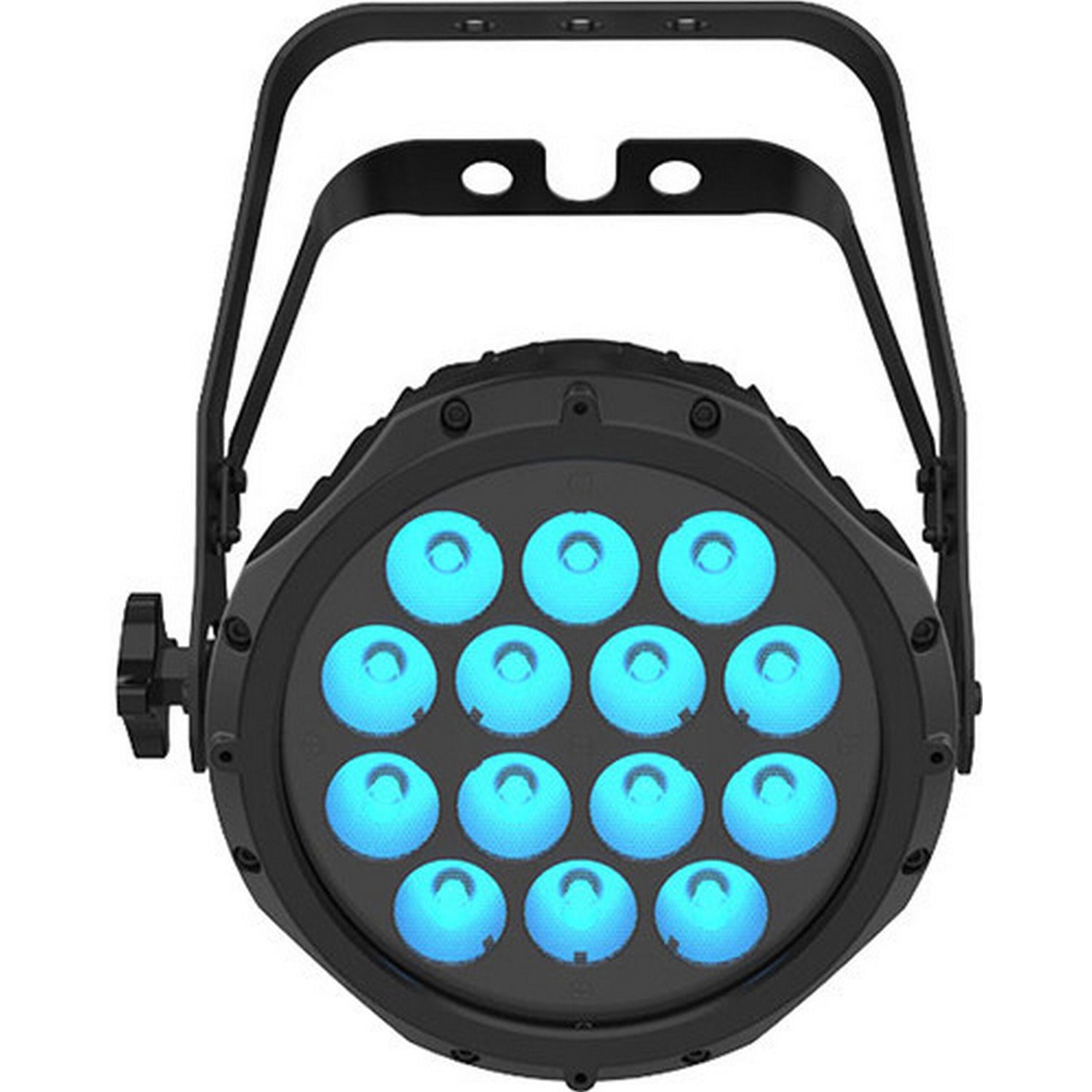

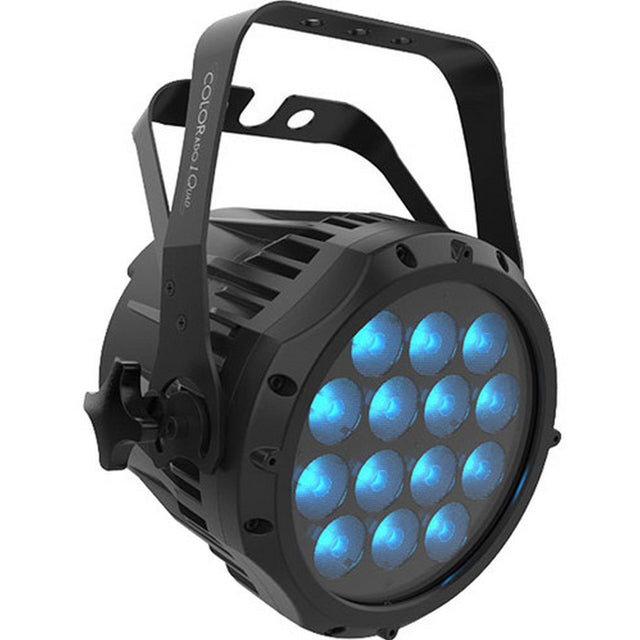

Chauvet COLORado 1 Quad IP65 Indoor/Outdoor Wash Lite with 14.5 W RGBW LEDs

Chauvet COLORado 1 Quad IP65 Indoor/Outdoor Wash Lite with 14.5 W RGBW LEDs

Chauvet COLORado 1 Quad is an excellent indoor/outdoor robust wash light with 14 5 W RGBW LEDs that deliver big power from a compact, yet solid IP65 housing. A 13° beam angle gives you ample control over the beam and selectable dimming curves facilitate the integration of the fixtures into existing rigs. And outdoor rated power and data connectors allow for easy connections without propriety cabling.

Key Features

• RGBW LED wash for touring, rental, and production, indoors or out
• All environment operation with IP rated power and DMX connections
• Color temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility
• LED display with password protection
• M12 GORE® valve for assured internal equalization
• Simple and complex DMX channel profiles for programming versatility
• Double-bracket yoke doubles as floor stand

Technical Specifications

Optical
Light Source
14 LEDs (quad-color RGBW) 5 W, (350 mA), 50,000 hours life expectancy.
Color Temperature (range)
2800 to 10,000 K
Beam Angle
13°
Field Angle
26°
Lumens
1,633
Illuminance (total)
1510 lux @ 5 m
Dynamic Effects
Dimmer
Electronic
Shutter/Strobe
Electronic
Strobe Rate
0 to 14 Hz
Standalone Color Mixing
Yes
Color Temperature Presets
Yes
Dim Modes
5
Dim Curves
4
Built-in Automated Programs
Yes
Customizable Programs
Yes
Recall Custom Programs
Yes
Construction / Physical
Dimensions
11.96 x 9.96 x 7.95 in (304 x 246 x 202mm)
Weight
9.8 lb (4.5 kg)
Exterior Color
Black
Housing Material
Aluminum die-cast
Accessory Holder/Gel Frame Size
7.5 in (191 mm)

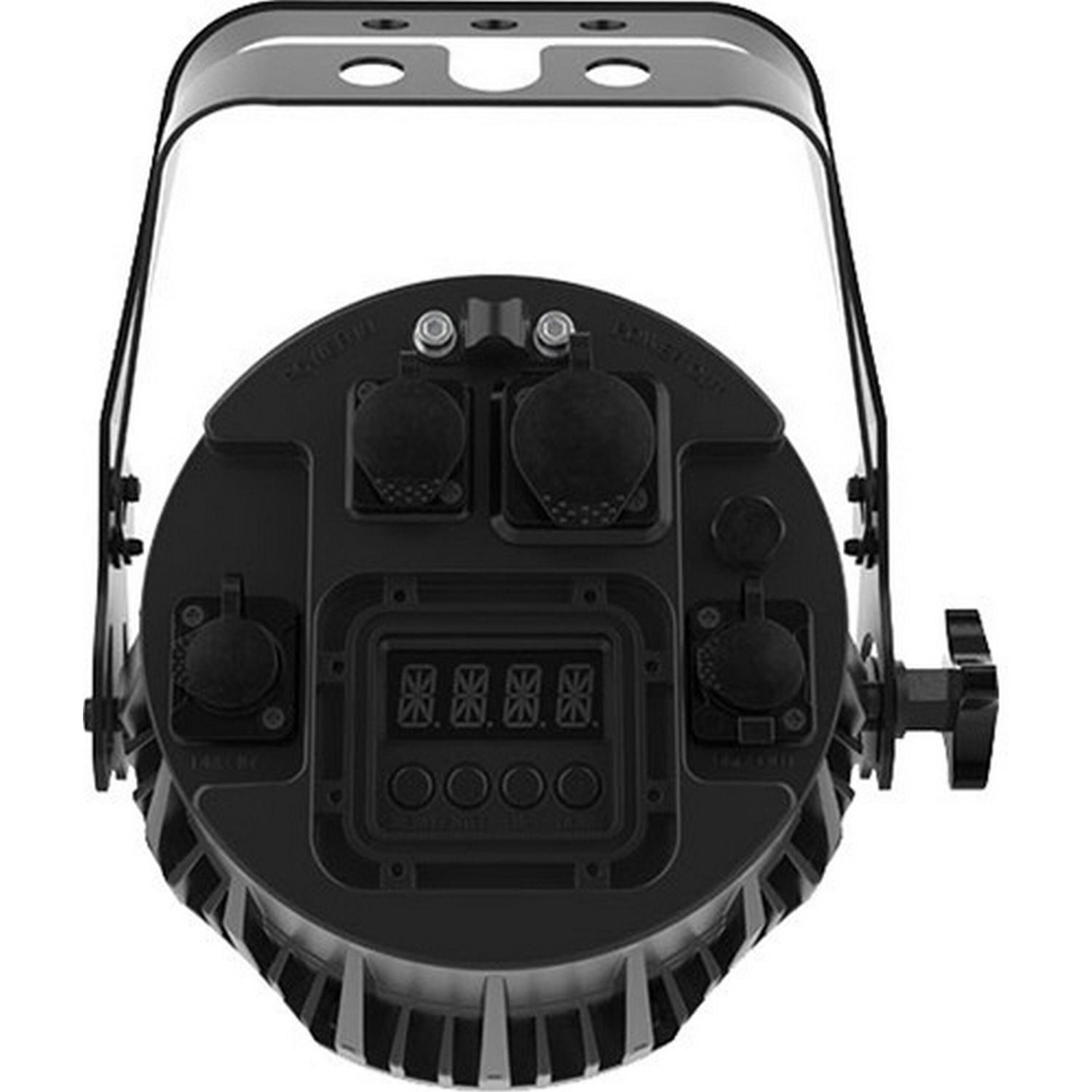

Connections
Power Connection
Edison (Local) plug to Seetronic Powerkon IP65
Power Input
Seetronic Powerkon IP65
Power Output
Seetronic Powerkon IP65
Data Connectors
5-pin IP65 XLR
Cable Length (power)
5 ft (1.5 m)
Control
Control Protocol
DMX, RDM
DMX Channels
4, 5, 6, 7, 9, 10, 13 or 15
Modes/Personalities (RGB)
3 personalities (TOUR, TR16, AR1.D)
Modes/personalities (RGBW)
6 personalities (ARC.2, AR2.D, AR2.S, SSP, 16Bit, 8Bit)
Electrical
Input Voltage
100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking
15 units @ 120 V; 25 units @ 208 V; 27 units @ 230 V
Power and Current
109 W, 0.892 A @ 120 V, 60 Hz
Power and Current
110 W, 0.529 A @ 208 V, 60 Hz
Power and Current
112 W, 0.492 A @ 230 V, 50 Hz
Certifications / Qualtifications
CE, MET
IP Rating
IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient)
-4 °F to 113 °F (-20 °C to 45 °C)
