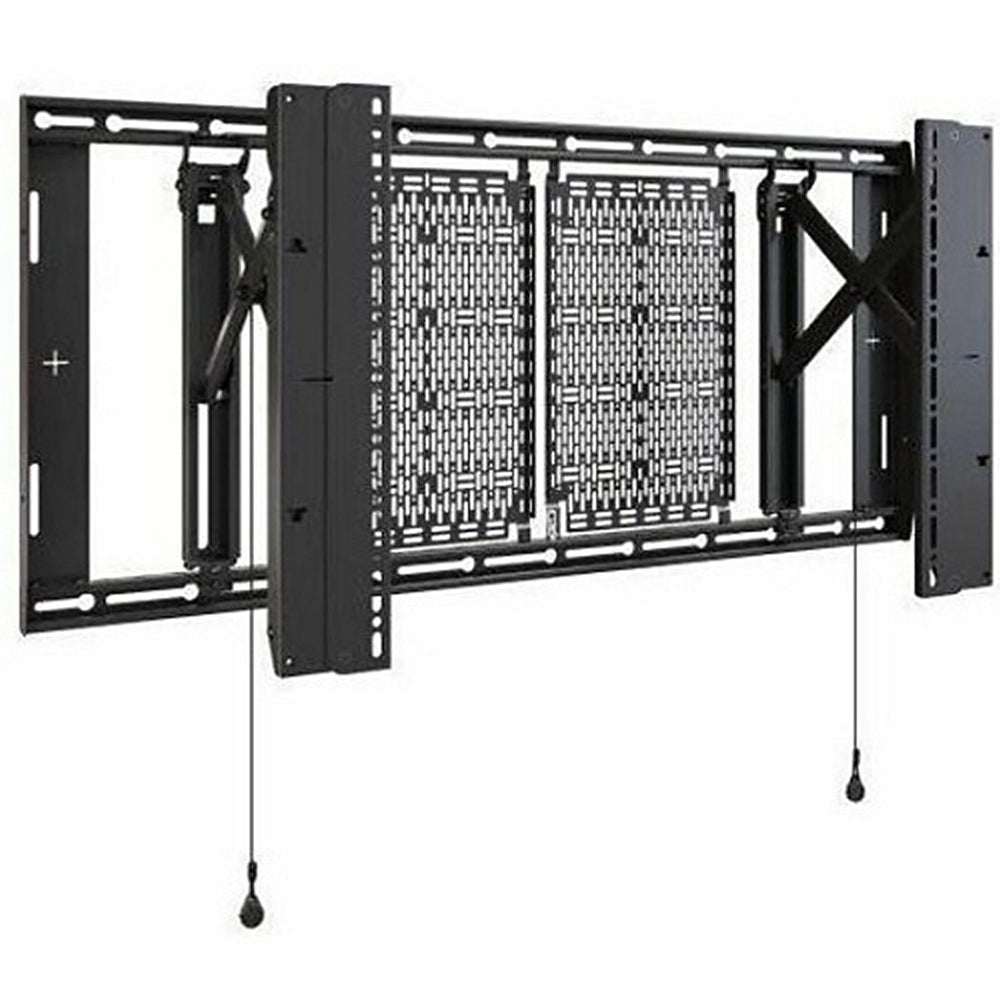

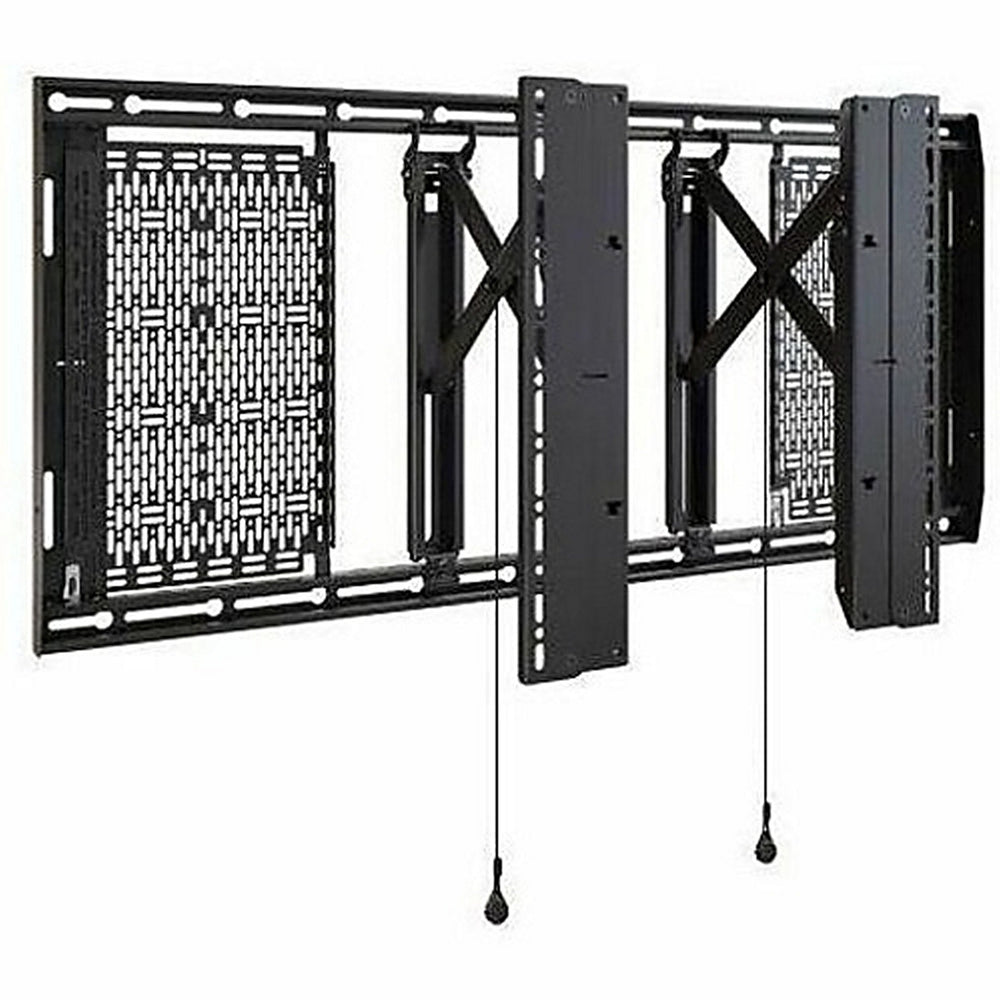

Chief AS3LD Tempo Flat Panel Wall Mount System for 49-86-Inch Displays PDU Bundle

Chief AS3LD Tempo Flat Panel Wall Mount System for 49-86-Inch Displays PDU Bundle

This all-in-one configurable wall mounting system is designed to improve efficiency by streamlining installation workflow. AV professionals can increase productivity and add money to the bottom line with this new system, especially for mass rollouts. Install on any wall and neatly store AV devices with simple, unparalleled service access. Install 2-6 small devices behind the display on integrated Lever Lock™ storage panels. The AS3LDP7 ships with a PD-715SC-NS Middle Atlantic slim profile, 7 outlet, 15A power strip. Tempo Wall Mount System is thoughtfully designed with feedback from installers for faster deployments.

Accelerate AV Installations
One part number, one box, one order!
Ship to site pre-loaded with small devices and cabling.

Save Money
Reduce onsite installation personnel and time.
Minimize last-minute shipping costs of missing parts.

Feature Flexibility
Wall plate and extending interface design facilitates centering display in the right position.
10° of adjustable display tilt in 2.5° increments.

Streamlined for Success
Total installation depth facilitates ADA compliance*
Up to 1” (25 mm) post-install leveling adjustment.

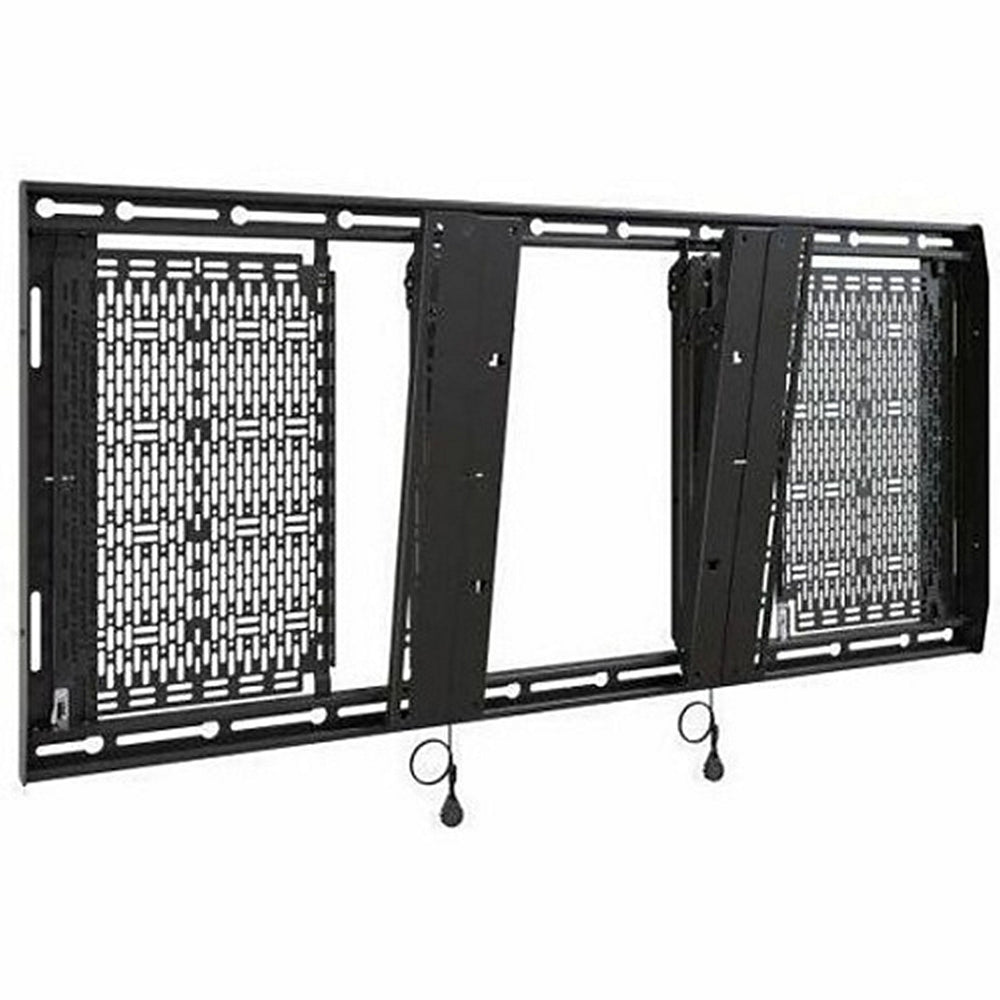

Integrated Storage
Ships with two 15”x10” Lever Lock™ plates with space to add more.
Storage plates can be moved along the mounting rail for best placement of components.

Simplify Service
12.6” (320 mm) of service access.
Open wall plate for easy positioning of power and data sources and in-wall storage.
Ships with a PD-715SC-NS Middle Atlantic slim profile, 7 outlet, 15A power strip

Technical Specifications

Dimensions & Measurements
Amps
15 Amp
Cord Length
10 ft (3.1 m)
Lateral Shift
Yes
Minimum Depth
1.96” (50 mm)
Overall Dimensions
42.03” x 19.75” x 1.96” (1068 x 502 x 50 mm)
Service Depth
12.6 in (320.3 mm)
Shipping Dimensions
47.64” x 22” x 2.76” (1210 x 559 x 70 mm)
Typical Screen Size
49” - 86”
Volts AC
120 VAC
Wall Stud Compatibility In
16” OC
24” OC
Weight Capacity
200 lbs (90.7 kg)
Characteristics & Features
Accessory Type
Power
Adjustability
Extension
Lateral Shift
Micro-Adjustable
Tilt
Application
Wall
Cable Type
Corded
Color
Black
Includes PDU
Yes
Number of Circuits
1
Orientation
Landscape
Outlet Count
7
Plug Type
5-15P
Post-Installation Leveling Roll
1” (25 mm)
Service Extension
10.65 (271 mm)
Solution Type
Universal
Surge Protection Type
None
Tilt
-10°/+0°
2.5° increments
VESA Mounting Pattern
up to 970 x 450 mm
