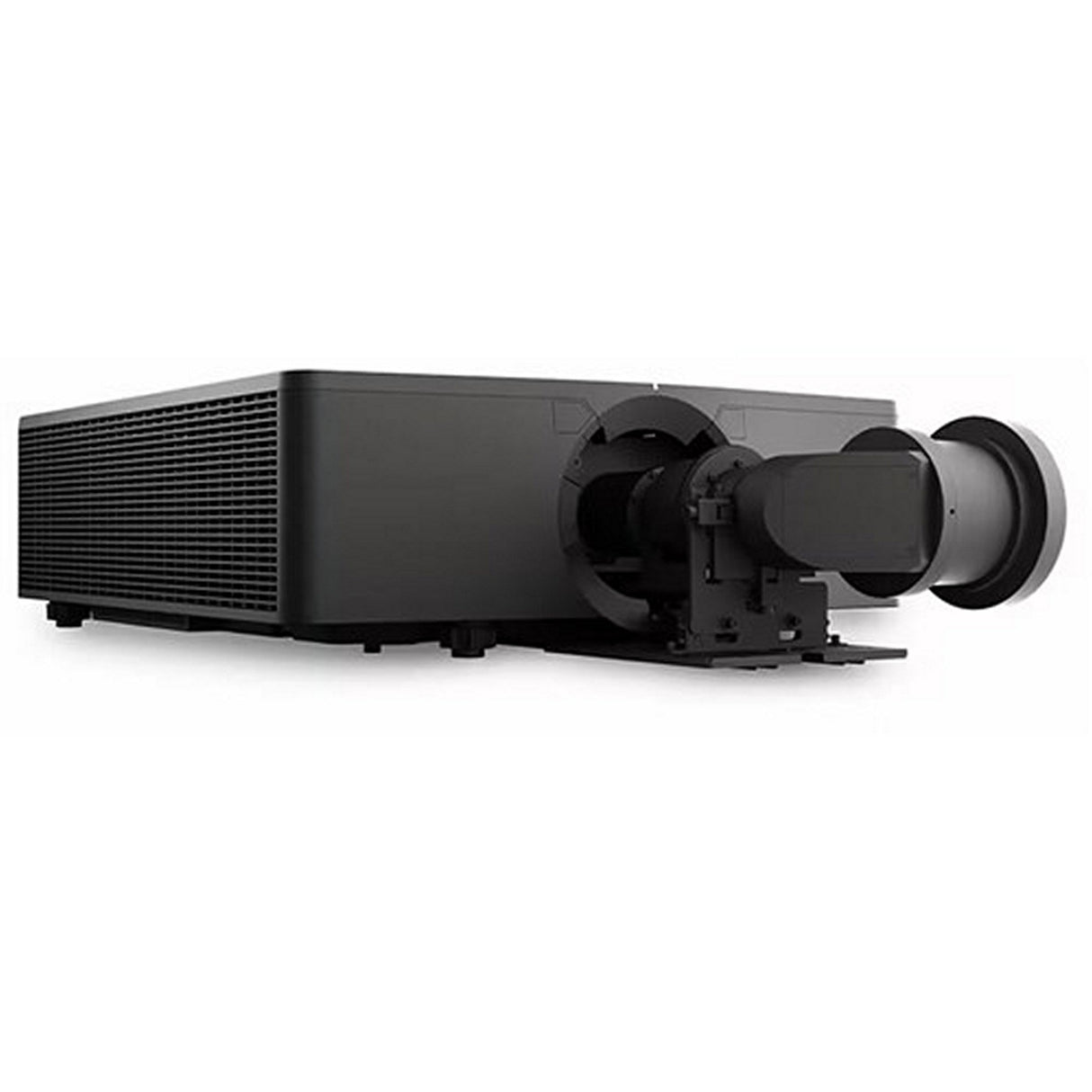

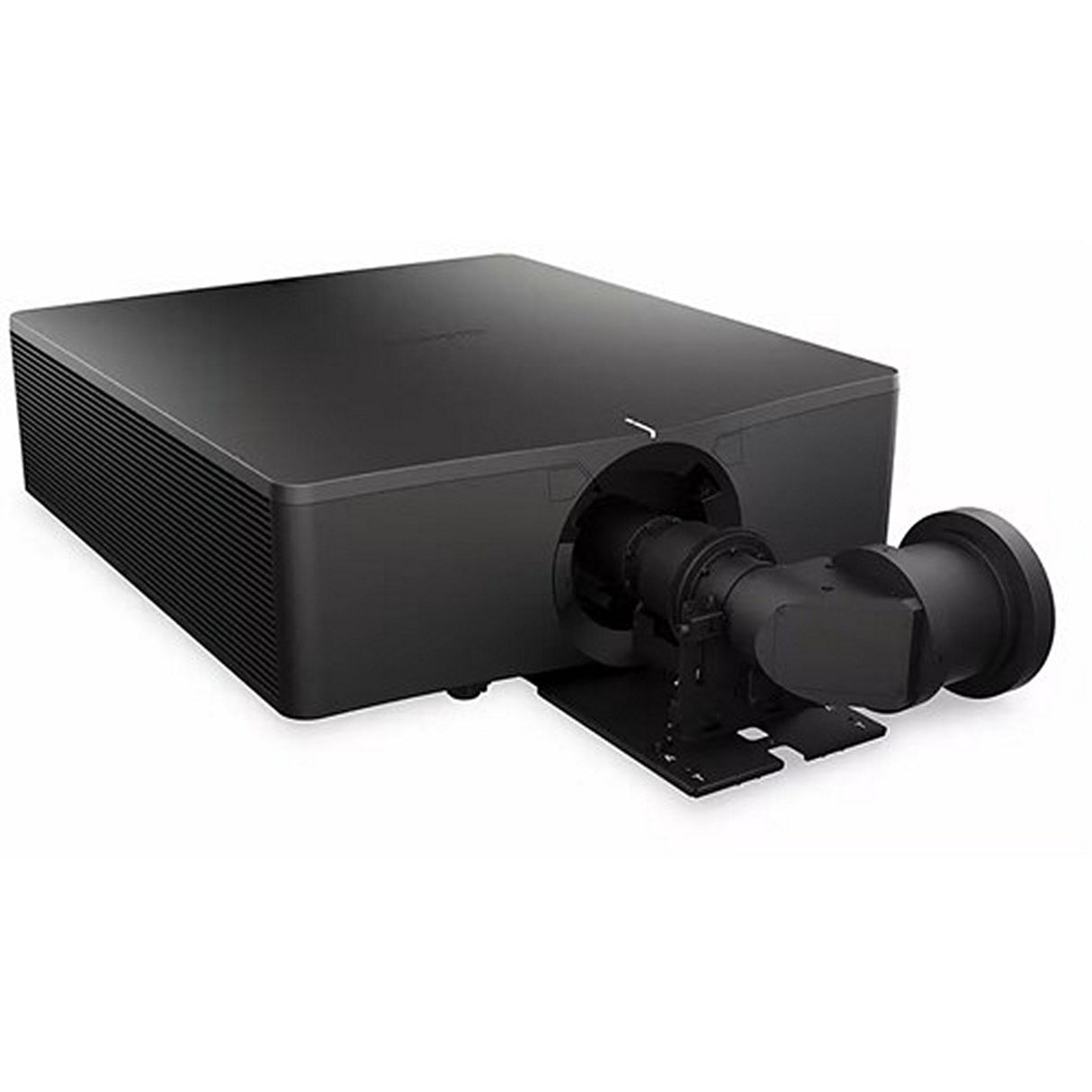

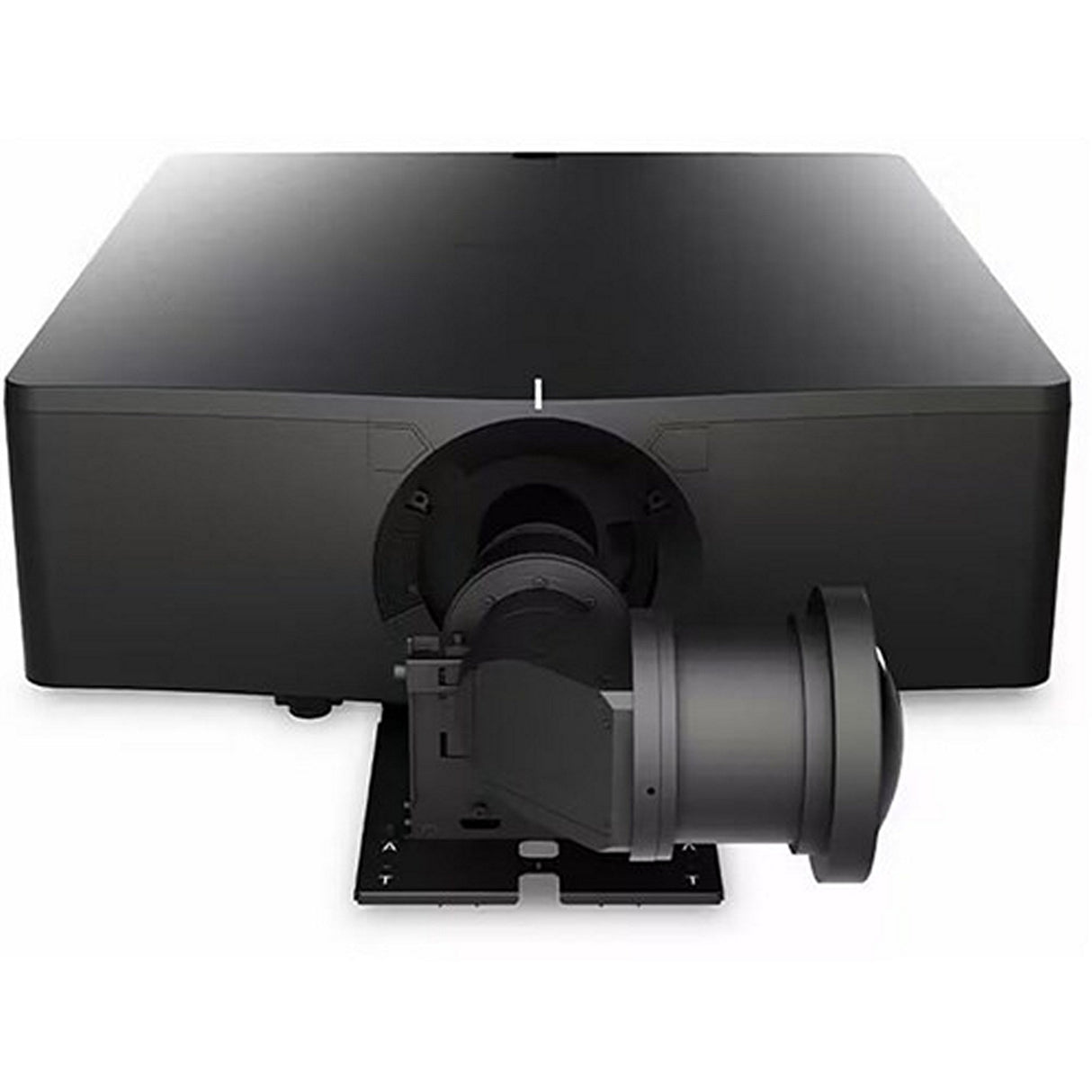

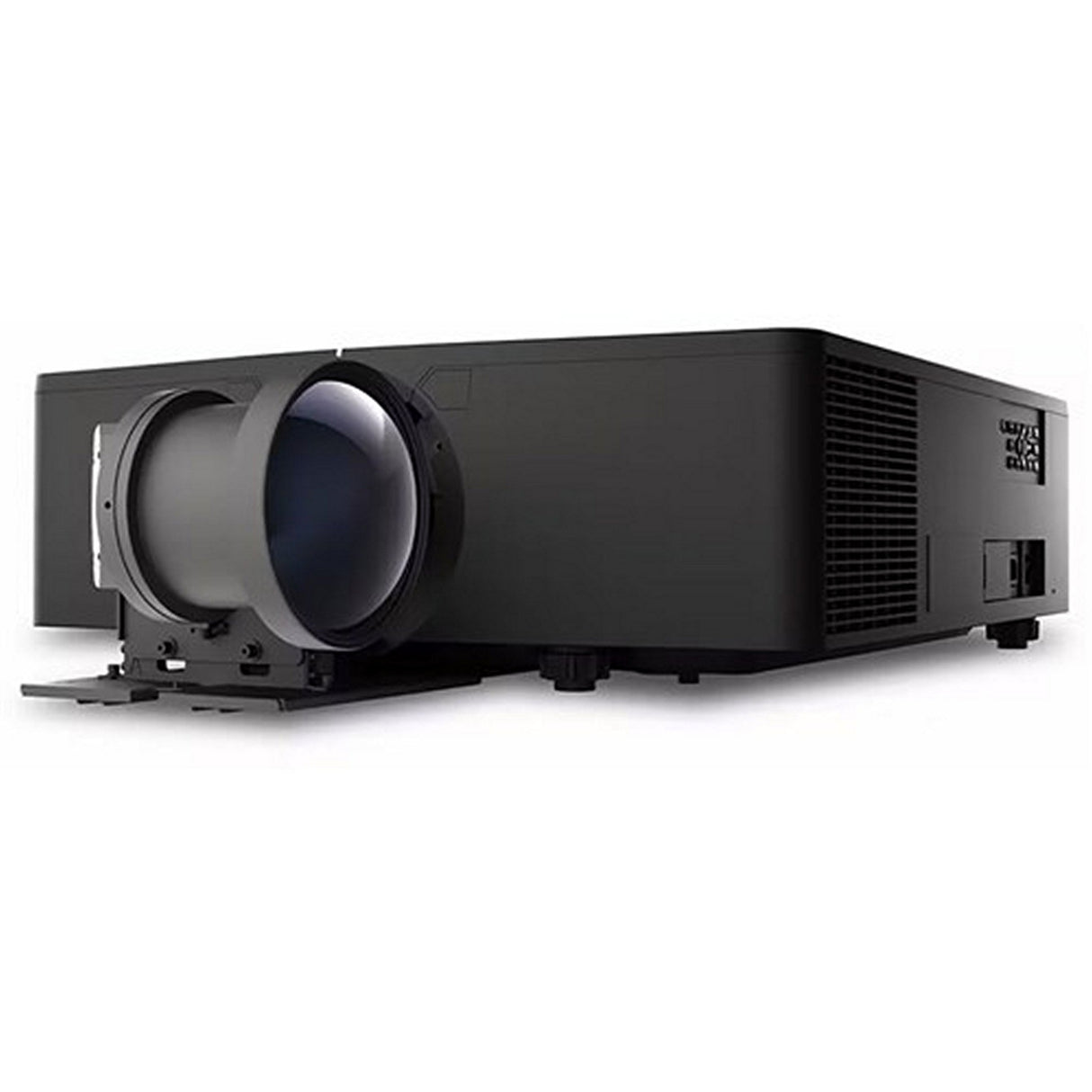

Christie D20WU-HS 20600 ISO Lumens WUXGA 1DLP Laser Projector

Christie D20WU-HS 20600 ISO Lumens WUXGA 1DLP Laser Projector

There is no other 1DLP projector with a better lumen-to-weight ratio. Achieving 20,600 lumens and weighing less than 100 lbs.(42 kg), the Christie D20WU-HS is the lightest and brightest 1DLP laser projector on the market. The powerhouse performance makes the D20WU-HS a viable alternative to similarly bright 3DLP projectors.

The D20WU-HS is not only bright. It produces amazing, true-to-life visuals too. This is thanks to the enhanced color accuracy of Christie’s patented BoldColor Technology and WUXGA resolution.
Featuring the built-in Christie Twist warping and blending engine and compatible with Christie Mystique automated camera-based alignment solutions, the D20WU-HS offers users the tools needed to quickly and easily set up, align and maintain irregular screens and multi-projector displays.
Its light weight makes it easy to lift, ship and install, especially when used with the optional rigging frame while the omnidirectional capability gives you installation flexibility.

Key features

• Christie BoldColor Technology - Enhanced color performance and saturation over standard laser projection
• Long-life laser light source - Up to 20,800 hours of virtually maintenance-free operation
• Compact and lightweight - Weighs less than 100 lbs. for easy lifting, shipping and setup.
• Warp and blend - Built-in Christie Twist for quick and easy setup of multi-projector displays
• Compatible with Christie Mystique - Automated camera-based alignment solutions that eliminate the challenges, time and expertise required to align, stack, warp and blend complex multi-projector arrays and projection mapping experiences
• Fully omnidirectional - Unrestricted design and installation flexibility
• Lens compatibility - Designed to work with all Christie HS Series lenses for added cost savings and versatility
• Comprehensive connectivity - Full connectivity for popular formats including 3GSDI for added redundancies
• Christie Virtual Remote 1DLP - Gives you wireless control from any smartphone or tablet
• Advanced electronics - Firmware updates take only minutes

Technical Specifications

Brightness
20,600 ISO lumens
18,500 ANSI lumens
Color wheel
4 segment (RGBY) - 2X or 3X speed
Contrast (nominal)
Full on/off (Christie RealBlack enabled): 2,000,000:1
Dynamic contrast: 5000:1
Full on/off (Christie RealBlack disabled): 1200:1
ANSI 250:1
Display
1 x 0.96” DMD
Native resolution
1920 x 1200 (2,304,000 pixels) 16:10
Illumination system
Laser phosphor with Christie BoldColor Technology
Typical lifetime
20,000 hours to 50%
Signal inputs
HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
3GSDI x 1 (BNC)
DVI-D x 1 (digital only)
HD15 x 1
USB x 1 (type A) - image viewer or WiFi dongle (optional)
HDBaseT (RJ45 x 1)
3D
HDMI 1.4, HDBaseT - frame packed, top/bottom, side-by-side
Up to 120Hz output
3D Sync In (BNC) - for genlocking projectors
3D Sync Out (BNC) - for genlocking projectors or controlling emitters
Signals
HDTV formats VGA through to WUXGA (1920 x 1200)
Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
162 MHz
Scan rates
Horizontal: 15 kHz to 91 kHz
Vertical: 24 Hz to 85 Hz
Monitor out (loop through)
3GSDI x 1 (BNC)
DVI-D x 1 (Digital out)
Control and networking
RS232 In
Control via HDBaseT
Ethernet (10/100) RJ45
Built-in backlit keypad
Wired remote control (3.5mm stereo) - loop out available for daisy chaining
12VDC trigger at 200mA (ID:2.5mm)
Accessories
IR remote w/ wired remote jack (wire not included)
AC line cords for projector head
User manual
Optional
Christie One Rigging Frame
Lens adapter for E Series lenses
1DWUSB-BGN (wireless dongle for video and control)
HS fog filter covers + filters (order once per projector then only filters refills)
HS fog filter refills (1 set)
Christie One Mount Plus
One Mount Extender Rod
One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
Replacement remote control
Warping and blending
Christie Twist
Optional
Christie Twist Premium and Twist Pro
Christie Mystique automated camera-based alignment
Lens mount
Boresight adjustable
Motorized horizontal and vertical lens offset (memory available)
Motorized zoom and focus adjustment (memory available for full ILS lenses)
Lens options
0.84-1.02:1 zoom lens (no zoom/focus memory) - adapted 1.2-1.5:1 E Series lens
1.02-1.36:1 zoom lens (no zoom/focus memory) - adapted 1.5-2.0:1 E Series lens
1.2-1.5:1 zoom lens (full ILS)
1.5-2.0:1 zoom lens (full ILS)
2.0-4.0:1 zoom lens (full ILS)
4.0-7.0:1 zoom lens (full ILS)
Operating voltage
Normal: 200-240VAC @ 60/50 Hz with a 10A fuse
Power consumption
Normal mode: 1880W
ECO1 mode: 1504W
ECO2 mode: 940W
Operating current
WLAN mode: <8.0W
Standby mode: <0.5W
Dissipation
Normal mode: 6653 BTU/hr
Audible noise
Typical: 45dB(A)
Eco mode: 39dB(A)
Dimensions
(L x W x H) 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet
Weight (without lens)
93.7 lb (42.5 kg)
Shipping dimensions
(L x W x H) 36.34 x 33.19 x 20.20" (923 x 843 x 513mm)
Shipping weight
119 lb (54 kg)
Operating environment
Temp: 0 to 40° C (32 to 104° F)
Humidity: 0 - 85% non-condensing
Regulatory
UL/CSA/IEC 60950-1
FCC Class A
CE
FDA
CCC
KC
PSE
CU
SABS
BIS
VCCI
RCM
Ukr
TER
SASO
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS
REACH
WEEE
Limited warranty
Three years parts and labor on the projector
Three years or 15,000 hours parts and labor on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
