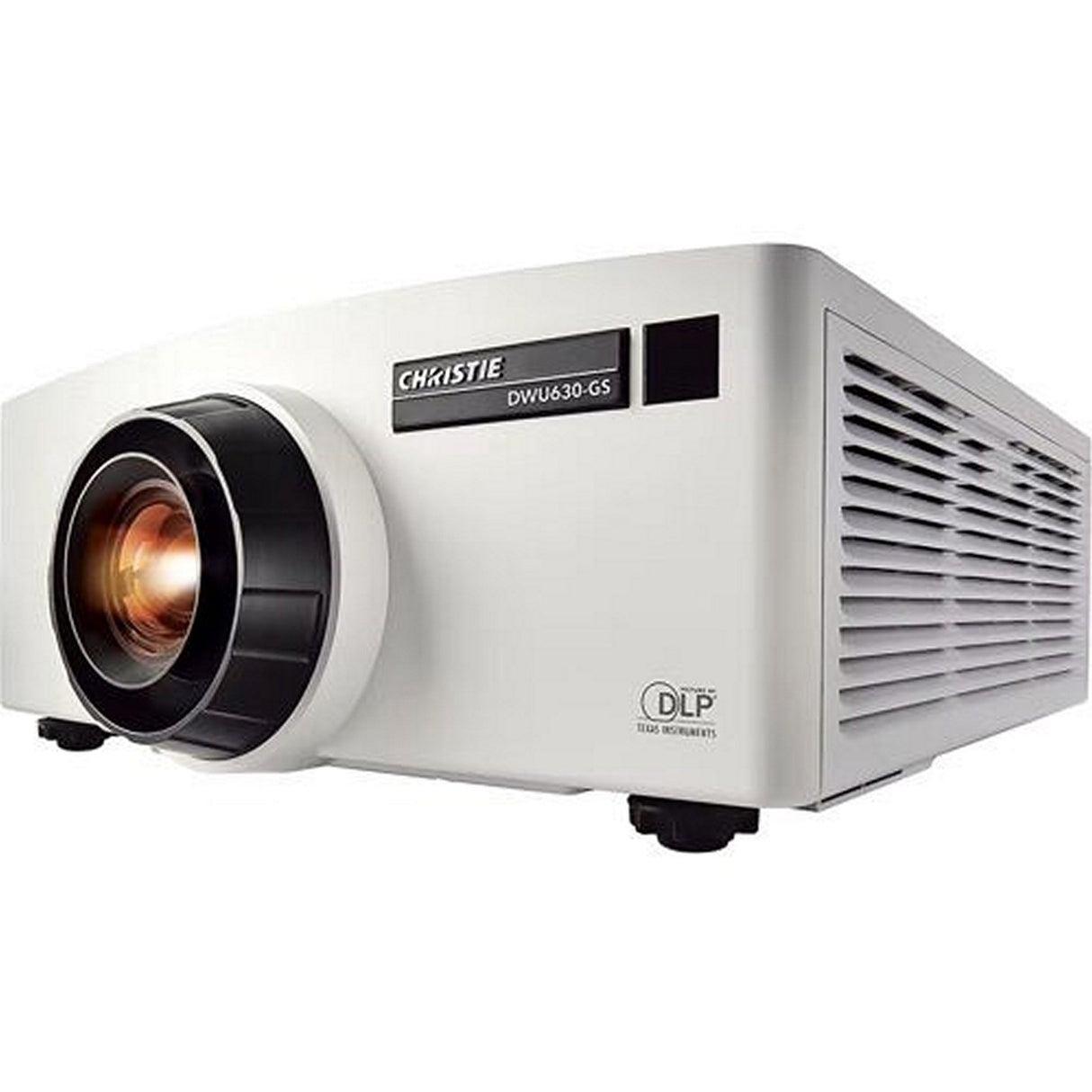

Christie DWU630-GS | 1DLP WUXGA 6750 Lumen Phosphor Projector

Christie DWU630-GS 1DLP WUXGA 6750 Lumen Phosphor Projector

Bring bright, vibrant and high resolution visuals into your class or meeting room with the Christie DHD630-GS. This affordable, low maintenance laser phosphor projector provides 20,000 hours of operation coupled with zero consumables for a budget-friendly cost of ownership.

Key Features

• High brightness Advanced, highly efficient laser diodes for 6,125 ISO lumens of light output
• Unbeatable contrast Christie RealBlack technology produces an incredible 4,000,000:1 full on/off contrast ratio
• Range of lenses to choose from Compatible with all GS Series lenses, including the new Ultra Short Throw (UST) lens
• Whisper quiet A very quiet noise rating of 36dBA allows it to be placed anywhere in the room without being a distraction
• Compact and light One of the smallest and lightest projectors in its brightness class
• 24/7 operation - 1DLP reliability ideal for high usage environments

Technical Specifications

Brightness
6,125 (ISO)
5,400 (Center)
5,400 (ANSI)
Color wheel
4 Segment (RGBY) - 2X or 3X speed
Contrast (nominal)
Full On/Off (Christie Real Black Enabled): 4,000,000:1
Dynamic Contrast: 6,000:1
Full On/Off (Christie Real Black Disabled): 1,200:1
ANSI: 250:1
Display
1 x 0.65” DMD
Resolution
1920 x 1080 (2,073,600 pixels) 16:9
Illumination type
High efficiency blue laser phosphor
Illumination lifetime
20,000 hours
Signal inputs
Standard
HDMI x 2
DVI-D x 1 (Digital only)
HD15 x 1
Remote in: 3.5mm stereo female (provides serial communications and power)
HDBaseT (RJ45 x 1)
RJ45 x 1 (Control over wired network connection)
3D
HDMI 1.4, HDBaseT - Frame Packed, Top/Bottom, Side by side
Up to 120Hz output
Does not support frame sequential 3D
3D Sync Out (BNC) - for genlocking projectors or controlling emitter or polarizer
Signals
HDTV formats VGA through to WUXGA (1920 x 1200)
Horizontal and vertical scaling while maintaining aspect ratio, all inputs
Pixel clock
162MHz
Scan rates
Horizontal: 15 kHz to 91 kHz
Vertical: 24 Hz to 120 Hz
Signal outputs
HDMI x 1
Control & networking
RS232 In
Control via HDBaseT
Ethernet (10/100) RJ45
Built-in backlit keypad
IR remote
Wired remote control (3.5mm stereo)
Accessories
Standard
IR Remote w/ wired remote jack (wire not included)
AC Line cords for projector
User Manual
Optional
Christie One Mount
One Mount Extender Rod
One Mount Rigging Kit (used with One Mount, One Mount Plus and/or One Mount Extender Rod)
Cable cover GS white
Lens mount
Boresight adjustable
Motorized horizontal and vertical lens offset
Motorized zoom and focus adjustment
Lens options
Lens 0.75-0.95 Zoom G/GS
Lens 0.95-1.22 Zoom G/GS
Lens Zm Std G/599-GS 1.22-1.53
Lens Zm Std G/555-GS 1.22-1.52
Lens Zm HP G/GS 1.22-1.52
Lens 1.52-2.89 Zoom G/GS
Lens 2.9-5.50:1 Zoom G/GS
Lens UST 0.36 (120") Ultra short throw lens
Power requirements
Operating voltage
Normal: 100-240 VAC @ 50/60 Hz (w/ 15A fuse)
Power consumption
Normal Mode: 650W
Operating current
Normal Mode: 9.5A (100V-240V)
Dissipation
97.5W
Audible Noise (typical 2x Wheel Speed)
34dB(A) Eco2 Mode
36dB(A) Normal Mode
Physical dimensions (L x W x H)
19.90 x 17.95 x 7.60" without feet or lens
505 x 456 x 190mm without feet or lens
Physical weight
39.94lbs (15.85kg) without lens
Shipping dimensions (L x W x H)
24.65 x 23.43 x 13.74"
626 x 596 x 349mm
Shipping weight
47.06lb (21.35kg)
Operating environment
0 to 40 C (32 to 104 F), 0-2500 ft altitude
0 to 30 C (32 to 86 F), 5,000-10,000 ft altitude
Humidity: 0 - 85% non-condensing
Regulatory
Contact Christie for timing of certifications: UL/CSA/IEC 60950-1, FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS, REACH, WEEE
Limited warranty
3 years parts and labor on the projector
3 years or 15,000 hours parts and labor on the illumination system*
Contact an authorized Christie representative for full details of our limited warranty
