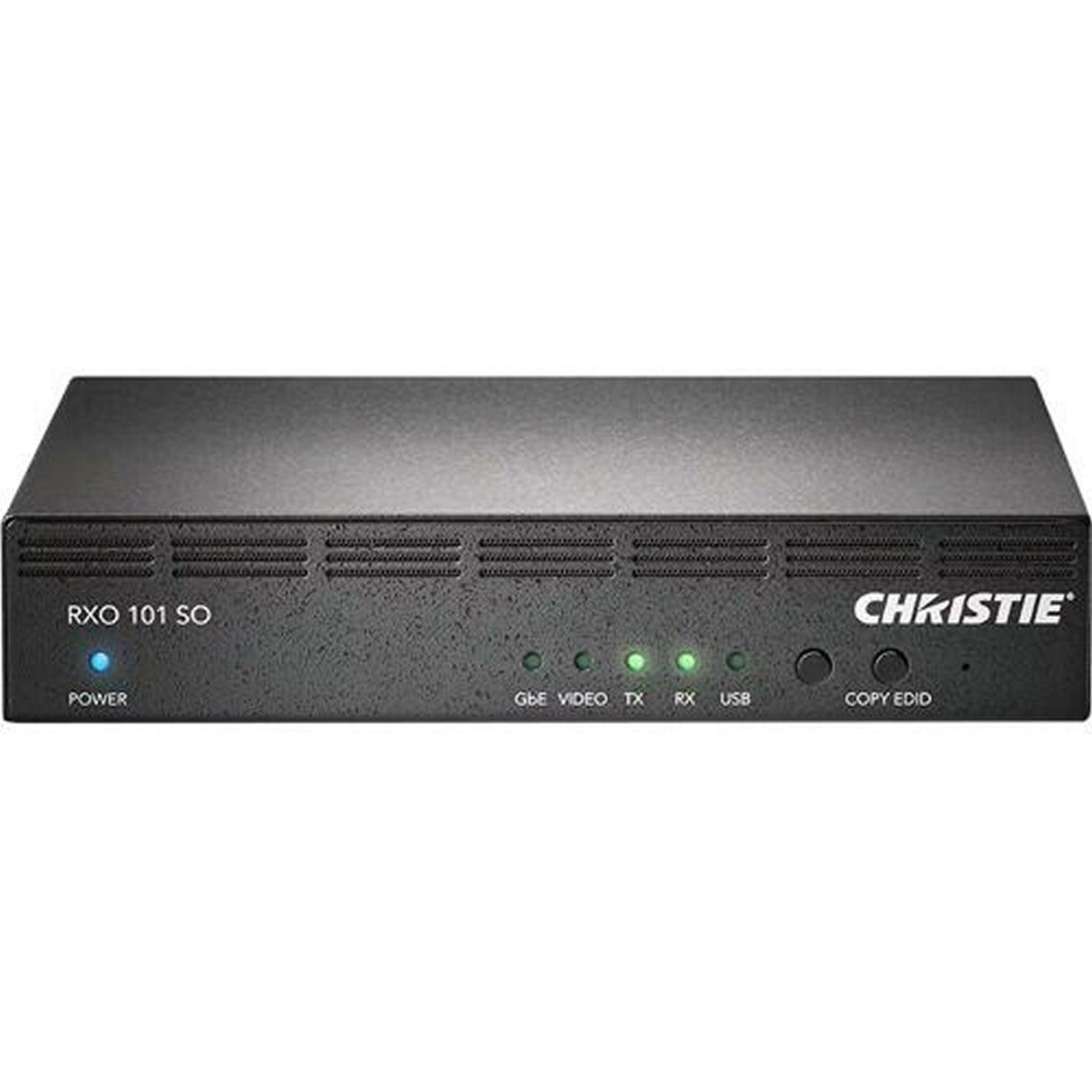

Christie RXO 101 SO Terra Receiver

Christie RXO 101 SO Terra Receiver

The Christie Terra Receiver is designed to deliver audiovisual data and control from an SDVoE system to displays and other devices. As part of a Terra solution, the Terra Receiver delivers artifact-free video at resolutions up to 4K@60Hz with zero-frame latency, and device control over standard 10G networks. Users benefit from full signal management and processing including magnification, downscaling, KVM, PiP, image compositing and multiviewer applications for a flexible platform that ensures the highest quality, onscreen experience for both large format and standard displays.

Featuring front-facing LED indicators, the Terra Receiver provides quick status reports for increased ease-of-operation, system validation and user-confidence. SDVoE-compliant and supporting a wide range of video formats, the Terra Receiver functions seamlessly as part of a Christie Terra solution or third-party SDVoE components, displays and devices to create complete AV-over-IP distribution and processing systems.

Key Features

• Complete AV and control connectivity: support includes HDMI 2.0, DisplayPort 1.2, audio, RS-232, IR control, Gigabit Ethernet and USB
• Zero-frame latency: enables natural, real-time monitoring, communication and collaboration, synchronized across displays among users as well as simultaneous response and control of all networked devices
• Intelligent EDID management: easy management of EDID across the entire system to ensure adaptability across multiple sources and displays
• Integrated screen management: support for PiP, image composition and multiviewer applications and featuring built-in broadcast quality scaling, screen magnification and bezel compensation for seamless and reliable image presentation and quality
• Supports high dynamic range (HDR) and deep color: capable of maintaining enhanced image information without compromise
• Serial RS-232 and IR bidirectional control: easily integrate control into the system reducing the need for additional devices
• Broad audio format support: interfaces, processes and transports a wide range of audio formats to support compatibility with the destination device
• Audio embedding and de-embedding: provides flexibility to supply the desired audio format to an AV device or display

Technical Specifications

Video Out
HDMI
Output format
HDMI 2.0a
Content Protection
HDCP 2.2 compliant
Maximum Resolution
4096x2160, 60Hz formats including, 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0
HDR, 3D and Deep Color pass through support
Maximum Bandwidth
594 MHz
Audio Out
Analog stereo
Line level, 3.5mm stereo mini-jack
HDMI Embedded Audio
Multi-channel PCM, Dolby True HD, DTS-HD Master Audio
Routable Control Ports
Serial RS-232, 9-PinD, up to 115.2 k baud
Wired IR In, 3.5mm stereo mini-jack
Wired IR Out, 3.5mm DC mini-jack
USB 2.0, type-A plug
1000BaseT Ethernet, RJ45
Video Processing
Video is uncompressed, except 4K/60 input formats including 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0. Ultra-lightweight 1.3-to-1 compression ratio is used for these formats which is artifact-free
Color space, bit depth and frame rate conversion
Video wall magnification including synchronization and bezel compensation
Image compositing and multi-viewer functionality
Note: Terra multi-viewer assembles downscaled sources and is best used for monitoring rather than presentations. Careful system design and programming should be applied if more than one multi-viewer display is used in a system. Up to 32 images on a multi-viewer if all images are presented adjacent to each other in a grid. The number of sources that can be presented reduces if downscaled sources are not presented in simple grid arrangements.
Latency
Zero-frame latency transport
< 120 microseconds, see reference guide for details
Network
Content Transport and Control
10G Ethernet, SFP+
Optional Control
1000BaseT Ethernet, RJ45
Protocols
IP, TCP, UDP, IPv4, IGMPv2
Content Encryption
AES 128-bit
Switching Platform
Non-blocking 10GbE IGMPv2 multicast
Supplied with generic coded 10GBASE-SR SFP+ 850nm LCLC transceiver for OM3 or OM4 multimode fiber
Front Panel LED Indicators
Link validation for
Video signal, transmit, receive, 1G Ethernet, USB, power
Button 1
Supply EDID to transmitters
Button 2
Programmable (future)
Dimensions
(WxHxD) 8.41 x 1.66 x 6.22” (213.5 x 42 x 158 mm) case only
(WxHxD) 8.41 x 1.66 x 6.50” (213.5 x 42 x 165 mm) including connectors
Weight
2.3 lbs. (1.1 kg) excluding power supply
2.8 lbs. (1.3 kg) with power supply
Sound Pressure
Less than 38 dBA on a tabletop from a distance of 0.5m (typical)
Material
Steel, painted black
Environmental
Operating Temperature
From 0°C - 40°C
Storage Temperature
-20°C - 60°C / -4°F - 140°F
Relative Humidity
20 - 90% RH (non-condensing)
External Power Supply
Input
100 - 240 VAC, 50 - 60 Hz
Output
12V DC, 3.0A, 36W maximum
Typical Operation
10W, 35 BTU
Reliability
MTBF
> 50,000 hours
MTTR
< 15 minutes
Regulatory
CE/FCC Class A
Directives (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)
