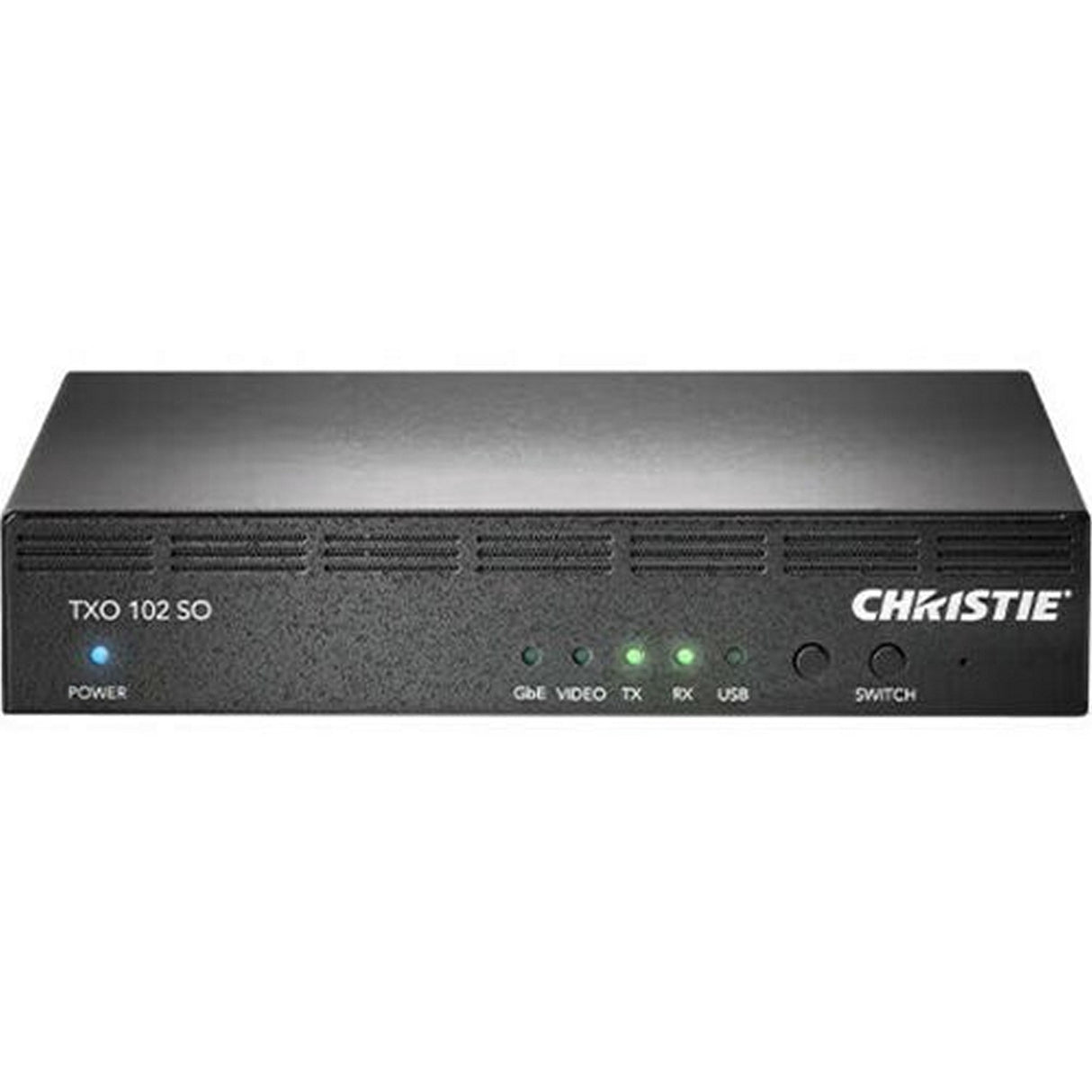

Zero-frame latency for natural, real-time monitoring, communication and collaboration, synchronized across displays. As part of a Terra solution, the Christie Terra Transmitter processes audiovisual sources and control signals to deliver uncompressed, zero-frame latency, artifact-free content over 10G networks. The Terra Transmitter supports video resolutions up to 4K@60Hz and accepts multiple content and control connections, including HDMI 2.0, USB, HDCP 2.2, DisplayPort 1.2, serial RS-232, EDID and more. This powerful and flexible component does not require additional devices to process signals. Featuring front-facing LED indicators, the Terra Transmitter provides quick status reports for increased ease-of-operation, system validation and user-confidence. SDVoE-compliant and supporting a wide range of video formats, the Terra Transmitter functions seamlessly as part of a Christie Terra solution or third-party SDVoE components, displays and devices to create complete AV-over-IP distribution, processing and KVM systems.

Key Features

• Uncompressed AV processing: 4:4:4 quality maintained from source to display resulting in pixel-perfect, artifact-free, fluid and natural content that is uncompromised
• Video resolution support up to 4K@60Hz: system support for a full range of common video signals, today and into the future
• Complete AV and control connectivity: support includes HDMI 2.0, DisplayPort 1.2, audio, RS-232, IR control, Gigabit Ethernet and USB
• Zero-frame latency: enables natural, real-time monitoring, communication and collaboration among users as well as simultaneous response and control of all networked devices
• Intelligent EDID and HDCP management: easy management of EDID and HDCP across the entire system to ensure adaptability across multiple sources and displays
• KVM functionality: endpoints can access and control AV sources using keyboard and mouse interfaces
• Supports high dynamic range (HDR) and deep color: capable of maintaining enhanced image information without compromise
• Serial RS-232 and IR bidirectional control: easily integrate control into the system reducing the need for additional devices
• Broad audio format support: interfaces, processes and transports a wide range of audio formats to support compatibility with the destination device

Technical Specifications

Video In
One switchable input
HDMI or DisplayPort
Input format
HDMI 2.0a, DisplayPort 1.2
Content Protection
HDCP 2.2 compliant
Maximum Resolution
4096x2160, 60Hz formats including, 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0
HDR, 3D and Deep Color pass through support
Maximum Bandwidth
594 MHz
Audio In
Analog stereo
Line level, 3.5mm stereo mini-jack
HDMI Embedded Audio
Multi-channel PCM, Dolby True HD, DTS-HD Master Audio
Routable Control Ports
Serial RS-232, 9-PinD, up to 115.2 k baud
Wired IR In, 3.5mm stereo mini-jack
Wired IR Out, 3.5mm DC mini-jack
USB 2.0, type-B plug
1000BaseT Ethernet, RJ45
Video Processing
Video is uncompressed, except 4K/60 input formats including 8-bit 4:4:4, 10-bit 4:2:2, 10-bit and 12-bit 4:2:0. Ultra-lightweight 1.3-to-1 compression ratio is used for these formats which is artifact-free
Color space, bit depth and frame rate conversion
Broadcast quality downscaling and up-scaling
Latency
Zero-frame latency transport
≤120 microseconds, see reference guide for details
Network
Content Transport and Control
10G Ethernet, SFP+
Optional Control
1000BaseT Ethernet, RJ45
Protocols
IP, TCP, UDP, IPv4, IGMPv2
Content Encryption
AES 128-bit
Supplied with generic coded 10GBASE-SR SFP+ 850nm LCLC transceiver for OM3 or OM4 multimode fiber
Front Panel LED Indicators
Link validation for
Video signal, transmit, receive, 1G Ethernet, USB, power
Button 1
Switch input
Button 2
Programmable (future)
Dimensions
(WxHxD) 8.41 x 1.66 x 6.22” (213.5 x 42 x 158 mm) case only
(WxHxD) 8.41 x 1.66 x 6.50” (213.5 x 42 x 165 mm) including connectors
Weight
2.3 lbs. (1.1 kg) excluding power supply
2.8 lbs. (1.3 kg) with power supply
Sound Pressure
Less than 38 dBA on a tabletop from a distance of 0.5m (typical)
Environmental
Operating Temperature
From 0°C - 40°C
Storage Temperature
-20°C - 60°C / -4°F - 140°F
Relative Humidity
20 - 90% RH (non-condensing)
External Power Supply
Input
100 - 240 VAC, 50 - 60 Hz
Output
12V DC, 3.0A, 36W maximum
Typical Operation
10W, 35 BTU
Reliability
MTBF
> 50,000 hours
MTTR
< 15 minutes
Regulatory
CE/FCC Class A
Directives (EC) 2011/65/EU (RoHS); 2012/19/EU (WEEE); Regulation (EC) No. 1907/2006 (REACH)
