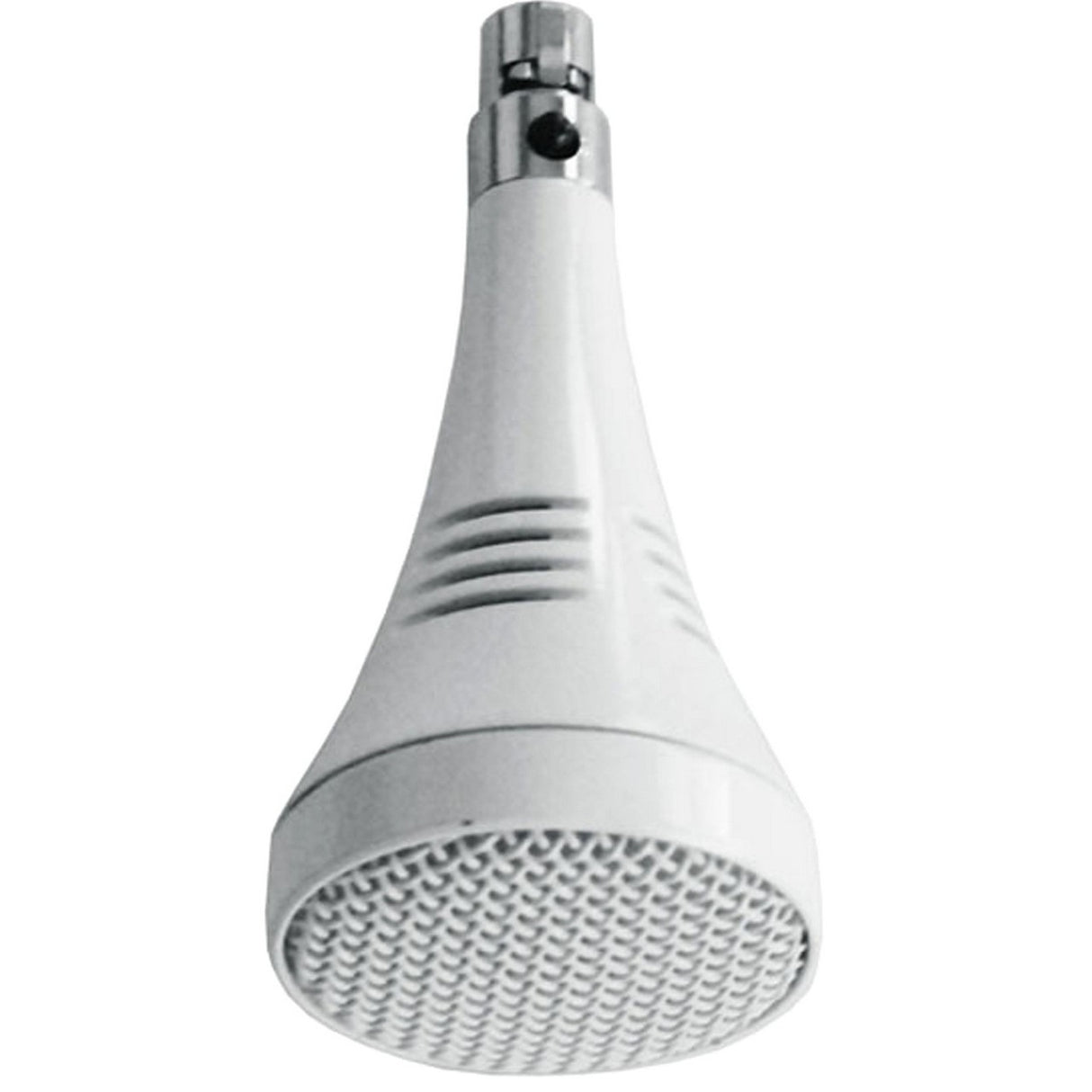

ClearOne Ceiling Microphone Array Kit | Professional White Microphone Array Kit XLR-M Connector 910-001-014-W

ClearOne Ceiling Microphone Array Kit Professional White Microphone Array Kit XLR-M Connector 910-001-014-W

The ClearOne Ceiling Microphone Array enhances any conferencing application which demands high-quality audio. Easily installed and affordable, the Ceiling Microphone Array delivers unbeatable conferencing sound with the most unobtrusive microphone placement option. Three, wide-range microphones are mounted together into a single unit array, providing the rich sound of three individual unidirectional microphones while maintaining full 360-degree overage.

The ClearOne 910-001-014-W is a white Ceiling Microphone Array Kit with Phoenix connector for Converge Pro and Interact Pro which includes white microphone array, white ceiling mounting base, 12 inch white drop down cable, 24 inch white drop down cable, 25 ft RJ-45 plenum rated cat 5 cable and RJ45 receptacle to XLR-M mixer adapter cable.

Key Features

• Built-in, low-cut filter, rejects unwanted noise and increases intelligibility
• Three, wide-range microphones in each unit provide full, 360-degree audio pickup for medium to large conference rooms, overflow areas and training rooms
• Individual microphones in each array utilize ClearOne's powerful, auto-mixer features for the exceptional audio
• Adaptive ambient gating controls constantly adjust to changing environmental noise and counteract unwanted audio.
• First Microphone Priority eliminates any hollow-sounding audio by balancing the elements, focusing audio pickup on the person speaking and maximizing audio clarity
• Optimized to work with ClearOne mixers - CONVERGE Pro, INTERACT Pro, INTERACT Pro 8i, INTERACT AT
• Frees up table space while maintaining superior audio performance
• Drop-ceiling installation is simple, with different options of RJ45 Cat 5/6/7, plenum-rated cables to match your needs
• Multiple ceiling microphone arrays can be connected to any ClearOne mixer for covering a large room space
• Standard CAT5 Ethernet cable runs back to the mixer

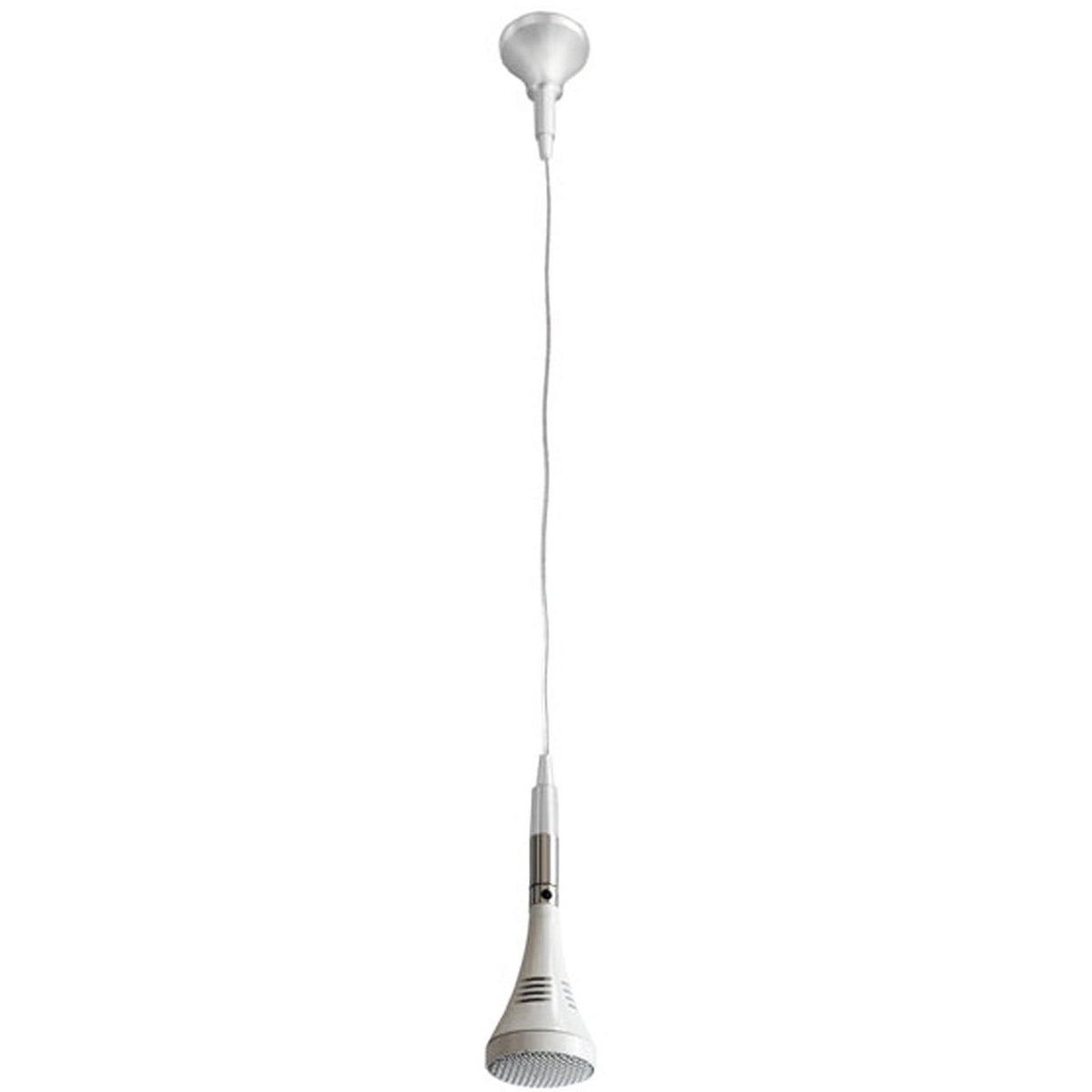

• Includes 12 inch and 24 inch drop-down cables for varying ceiling heights

Technical Specifications

Color
White
Acoustic Characteristics
Polar Pattern: Cardioid
Dynamic Range: 80 dB, 1 kHz @ max SPL
Signal/Noise Ratio: 60 dBA, 1kHz @ 1Pa
Frequency Response: 100 Hz - 12kHz
Sensitivity: 114 mV/Pa
Electrical Characteristics
Element: Fixed-charge back plate permanently polarized condenser
Phantom Power Requirement: 12-52 vdc, 2 mA typical
Impedance: 200 ohm
Cables Included
12-inch and 24-inch 4-pin mini-XLR drop-down cable
25-foot RJ45 male to RJ45 male CAT5e
RJ45 receptacle to mixer adapter cable
Mounting
Ceiling tile pass-through mounting assembly
Max cable length from array to mixer: 300 ft (91.44m)
Dimensions
(W x D xH): 3.3 x 1.5 inches (83.8 mm x 38.1 mm)
Weight
2.2 lbs (1 kg)
Operating Temperature
-4 deg to 158 deg F (-20 deg to 70 deg C)
