Cloud Electronics CS-C8W | 8inch Coaxial Two Way In Ceiling Speaker White

Cloud Electronics CS-C8W 8inch Coaxial Two Way In Ceiling Speaker White

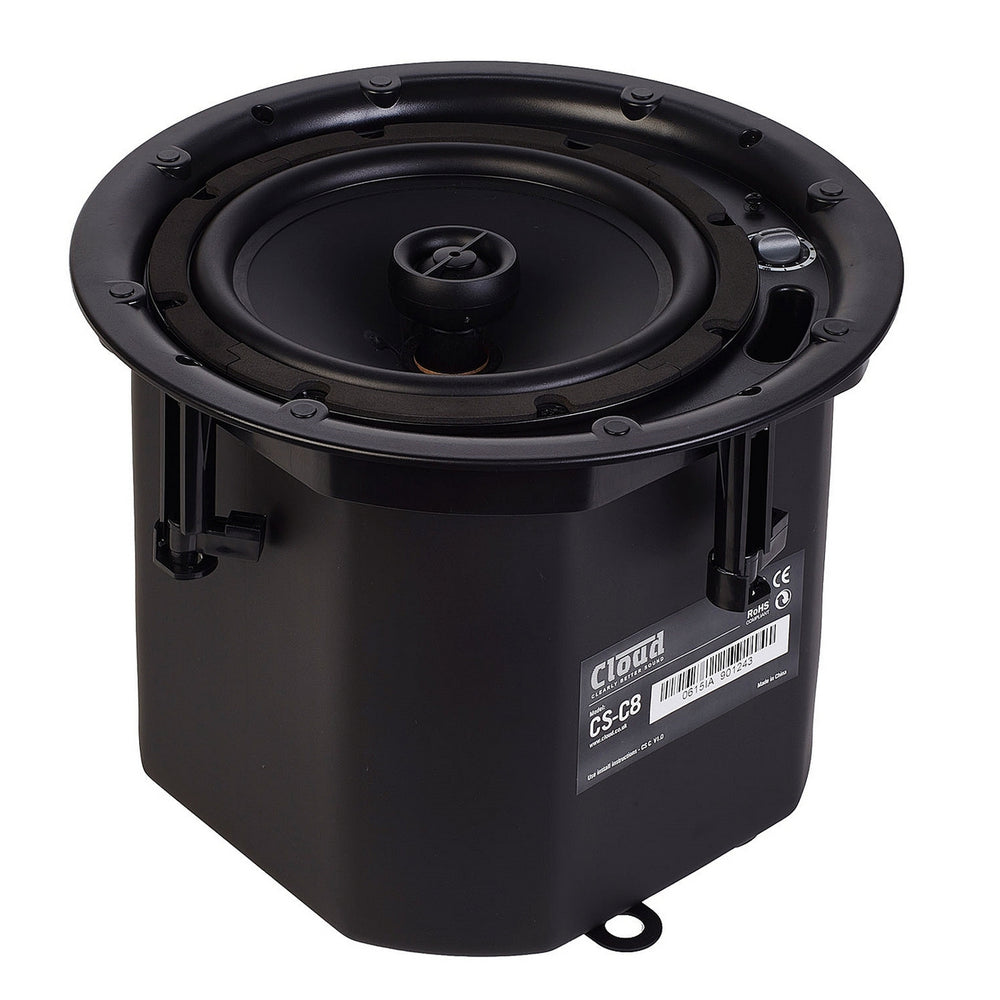

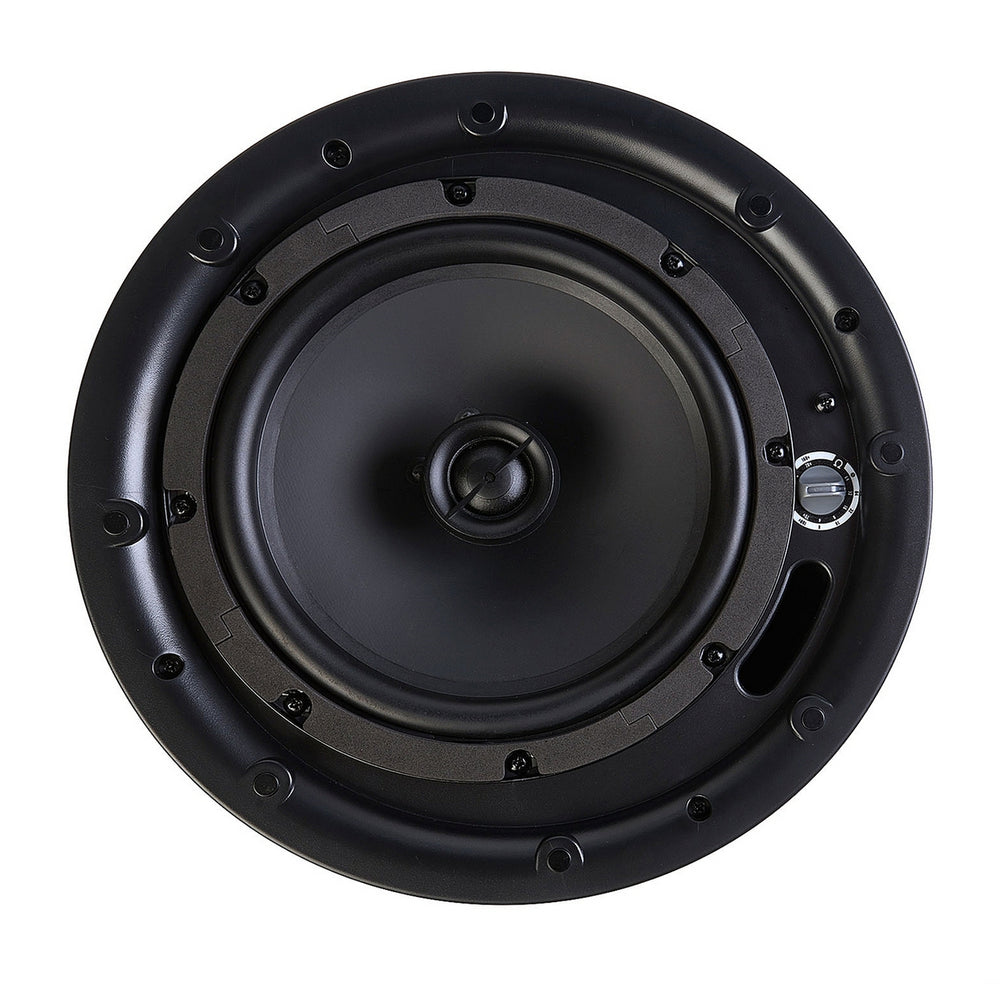

The Cloud CS-C8 In-Ceiling Speaker is a 8-inch coaxial two-way loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C8 offers high sensitivity,smooth frequency response, and excellent off axis performance.All models offer ZeroEdge™ magnetic grilles which remove to reveal high or low impedance switch settings for distributed audio systems.
Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned acoustically to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance, Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-year commercial warranty.

Key Features

• 8" Woofer
• 1" Soft Dome Tweeter
• 64W, 32W, 16W, 8W at 100V
• 75W at 16Ω
• Nom SPL: 90dB
• Max SPL: 111dB
• Magnetic ZeroEdge™speaker grilles (11.39" Diameter)
• Back can depth (8.37" / 212.7mm)

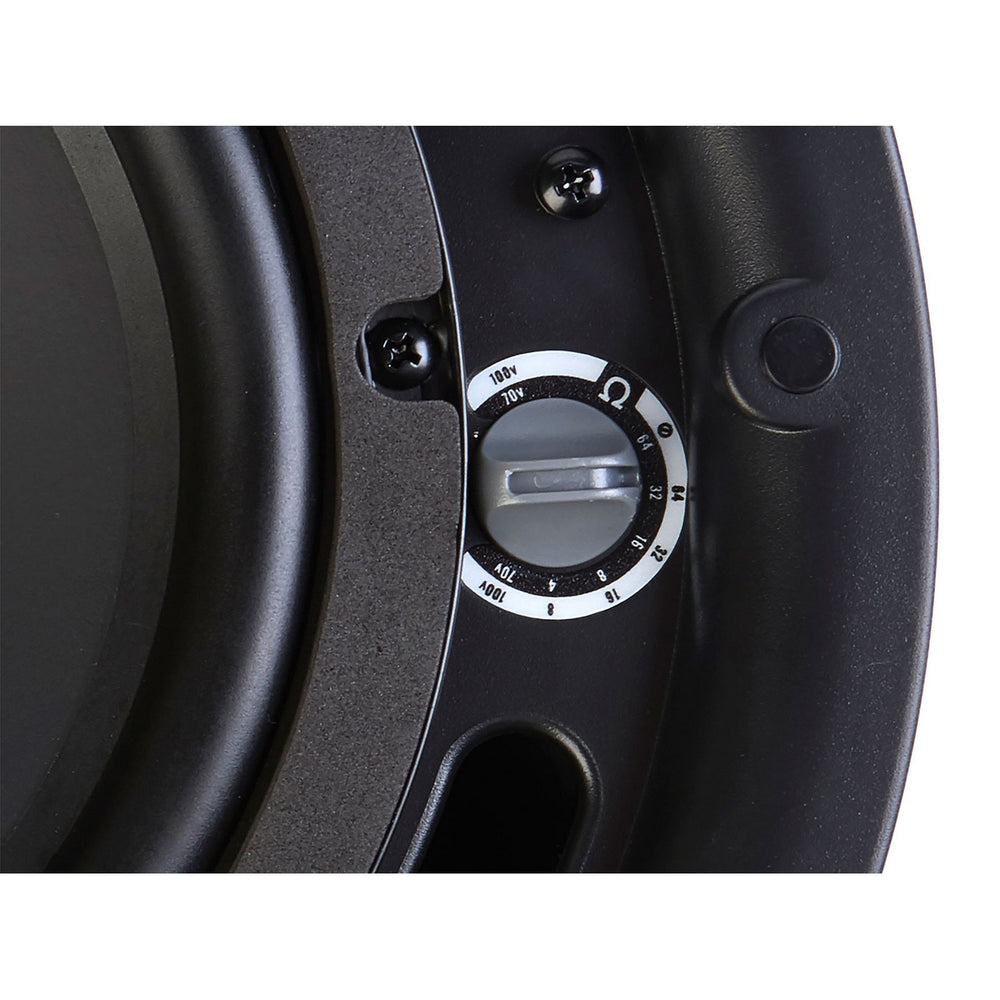

• Accessible high-impedance or low impedance switch settings
• Removable logos to allow for discrete use
• Available in black or white
• Optional Tile Bridge

Technical Specifications

Description 8” 2-way in-ceiling with magnetic grille and steel back can.
Response (f3) 86 Hz -20 kHz
Response (f10) 64 Hz -20 kHz
Impedance 16 ohm
Sensitivity (2.83 V/1 m) 89 dB
Sensitivity (1 W/1 m) 92 dB
Power handling 75 W
Maximum SPL 111 dB
Transformer taps 64, 32,16, 8, 4 W
Tweeter 1 inch silk dome with phase plug
Woofer 8 inch treated paper with rubber surround
Input 4 pin Euroblock
Included accessories Input cover plate (installed), male Euroblock
Optional accessories Tile bridge
Packaging 1 per box, cardboard inner packaging, single instruction sheet
Conformance UL1480 / 2043 planned, RoHS, CE approved
