Cloud Electronics  |  SKU: CLDELEC-MIC-PM1

Cloud Electronics PM-1 | Passive Paging Microphone

$13000
🚚 Order within the next 2 hours, 15 minutes for delivery by 15 May, 2024.

Condition: New



Description

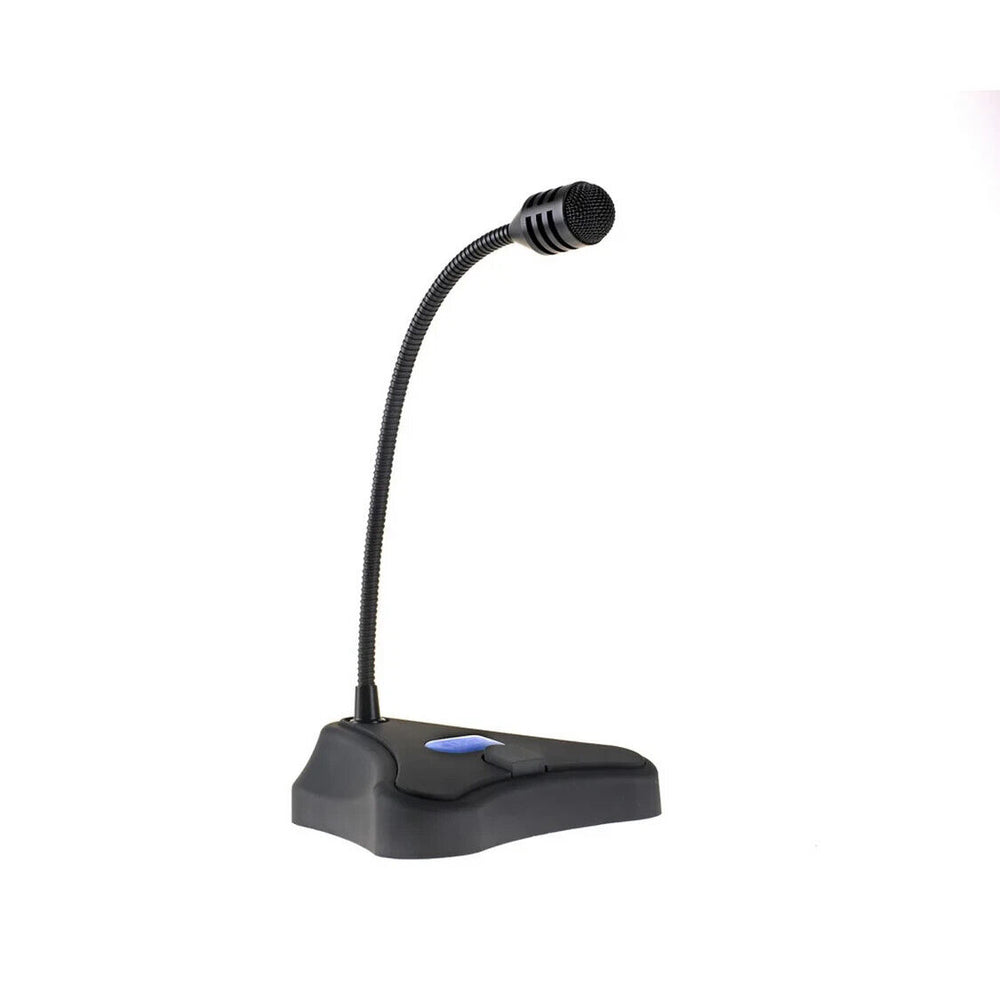

Cloud Electronics PM-1 Passive Paging Microphone

The Cloud PM1 is a passive paging microphone for simple, single zone applications. It is ideal for use with any Cloud zoner and mixer-amplifier where single zone paging is required, but may also be used with any 3rd party zoners etc. Its heavy-duty moulded base and 300mm gooseneck mic give it a modern, attractive appearance, yet it is extremely robust for everyday use (ideal for use behind bars in restaurants and other licensed premises).

Connections are provided for wiring the mic audio signal and access contacts. The PTT button unmutes the mic and provides contacts (NO or NC) for the host device's access connector.

Key Features

  • Single zone paging microphone
  • High quality dynamic mic mounted on 300mm gooseneck
  • Supplied with windshield
  • Solid, heavy non-slip base
  • Integral PTT switch
  • NO or NC contacts for external mic access on host zoner/amplifier
  • Mic muted when not in use
  • Internal cable connections with retention strap

Technical Specifications

Capsule Type: Dynamic, Cardioid
Frequency Response: 80 Hz - 15 kHz
Sensitivity: -54dB + -3dB (0dB = 1 V/Pa at 1kHz)
Type: Momentary
Contacts: NO and NC
Audio: Balanced, 3.5mm pitch screw terminals
Control: NO/NC, 3.5mm pitch screw terminals
Cable Access: At rear, 9mm max. diameter, internal retention
Base Dimensions: 5.9 x 5.9 x 1.7 in
Gooseneck Length (inc. capsule): 12.28”
Weight: 0.95 lbs
