Contemporary Research  |  SKU: COM-QIPHDMI2

Contemporary Research QIP-HDMI 2 | IPTV Encoder

$2,15000
🚚 Order within the next 2 hours, 15 minutes for delivery by 16 May, 2024.

Condition: New

Description

Contemporary Research QIP-HDMI 2 IPTV Encoder

The dual-program QIP-HDMI 2, with two HDMI inputs, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Encoding as MPEG2 or H.264, the QIP-HDMI 2 can output the content as two SPST Multicast or Unicast IPTV streams. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, and NTSC video sources.

Key Features

  • Sources
  • Two HDMI inputs (non-HDCP), 480p to 1080p, embedded PCM audio, pass-through AC-3
  • Two Composite/CC video inputs for encoding, captioning, or EAS use
  • Two analog Stereo and two SPDIF coax audio inputs
  • Encoding
  • Creates up to two high-definition IPTV streams, encoded as H.264 or MPEG2
  • Converts stereo and PCM to AC3, AAC, or MP12, passes through AC-3
  • Can create SAP dual-language audio for each program
  • Accepts 608/708 embedded captioning or Line 21 captioning from composite video inputs
  • Dual hardware scalers accept up to1080p 3G video, including 60/30 Hz, and PAL formats, and can deliver programs at a scaled or native resolution
  • Dual-program operation is standard
  • Operation
  • Sets up with front-panel buttons and easy to use menus, including inputs, encoding, channel, and RF options.
  • Onboard Web page for setup and monitoring, also accessible from front-panel USB port - an Ethernet connection is not required
  • Updates firmware via USB and Ethernet
  • Fan cooled, with adjustable speed
  • Saves power and rack space using efficient design
  • Includes compact switching power supply
  • Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
  • Meets RoHS safety and California energy standards
  • Firmware Updates
  • Firmware is updated using CR Toolbox
  • Click the Downloads tab to view the link to download CR Toolbox
  • Updates to the QMOD/QIP can be made through the rear panel Ethernet port or the front panel USB port
  • When launched, CR Toolbox will check for newer firmware versions

Technical Specifications

Physical
8.5” <216mm> wide x 1.73” <62mm> height (1RU) x 6.0” <153mm> deep
1.5 lbs <0.68kg>
+32 to 122 F operating temperature
Rack mounting for one or two units side-by-side optional (RK1, RK2EZ)
For HRF Half-Racks, use the RK2EZ kit to mount each tuner
Fan cooled, with variable speed
Scaling
Dual hardware scalers
Accepts 1080p - 480i and common PC graphics resolutions, 29.97 - 60 Hz US and PAL refresh rates
Edge to edge presentation with zoom, shrink and X/Y axis positioning
Auto-sync or scales to fixed output resolution
Encoding
H.264 or MPEG2 for HD, MP@ML for SD, 1080i, 720p, 576i, 480p, and 480i output resolution
MPEG 2 Video Encoding bitrate 10-20 Mbps, HD, 4-8 Mps 480i, or variable bitrate
H.264 Video Encoding bitrate 5-10 Mbps, HD, 2-4 Mps 480i, or variable bitrate
PCM or analog audio outputs MPEG1 Layer2 or AAC
Pass-through AC-3 audio

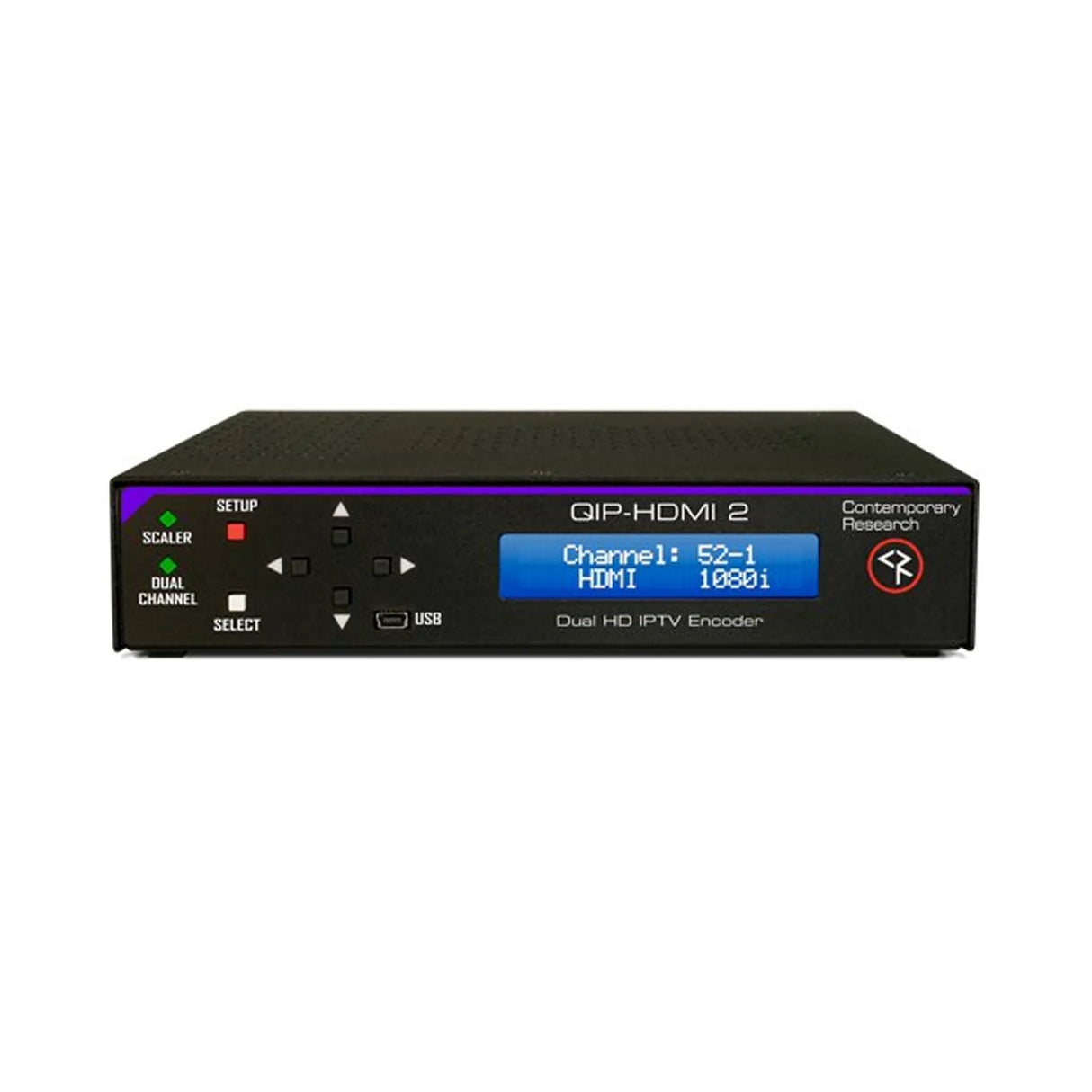

Front Panel
Select and directional buttons for menu setup
Menu LCD, Blue with 2 lines of 20 white characters each

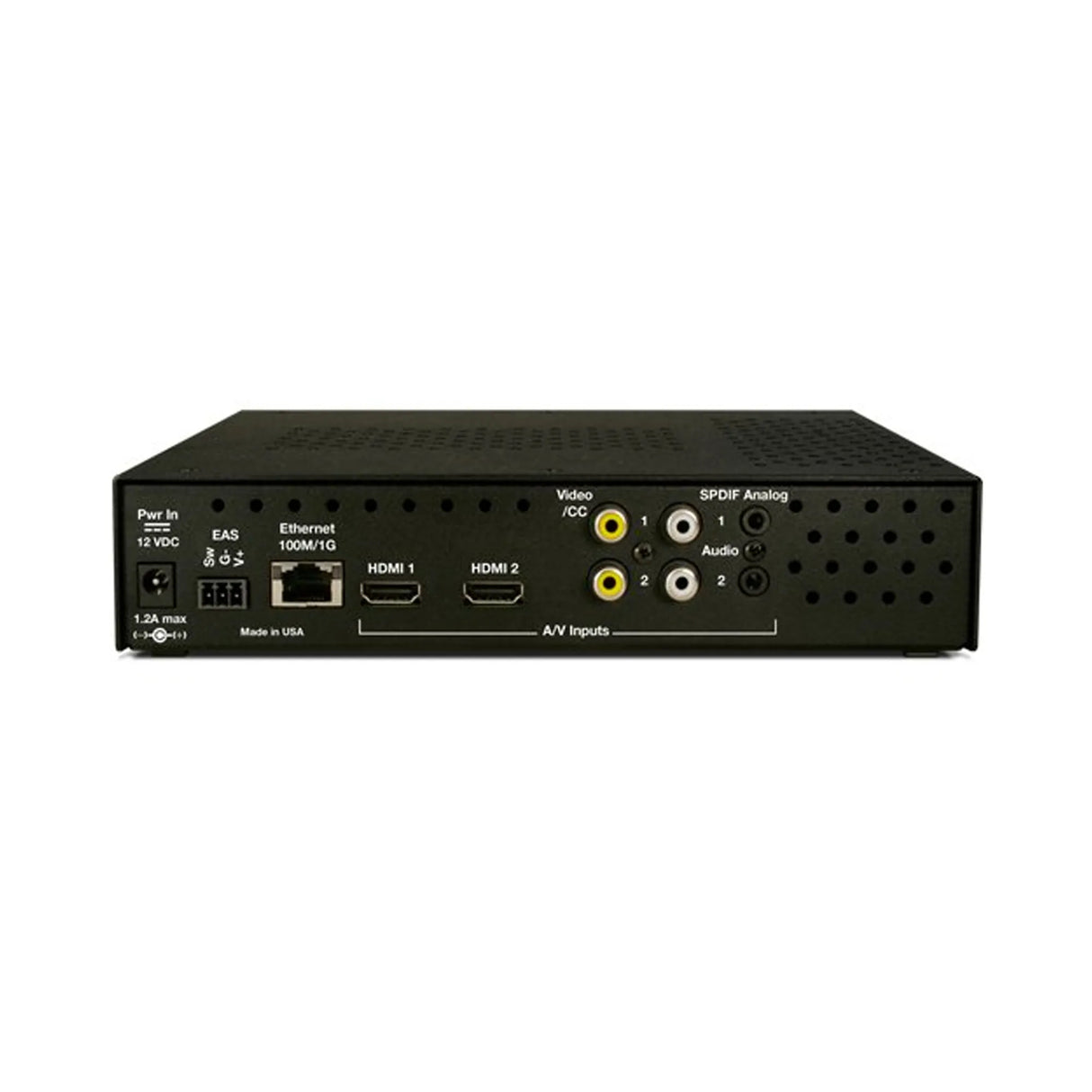

Back Panel
Power: 2.1mm coaxial jack (inside center conductor positive)
1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS: 3 GPI Pins for latching control, SW(NO) for closure, V+ 5-12 VDC, Ground
Ethernet: RJ-45 GigE Ethernet connector for IP control, updates, Unicast/Multicast IPTV and internal Web page
HDMI: Two (non-HDCP), up to 1080p, embedded PCM and AC-3 audio
Composite Video/CC Inputs: RCA female NTSC/PAL (480i/576i), 29.97 Hz, supplies line 21 Captioning
Audio Inputs: Two coax SPDIF digital audio inputs
Analog L and R: 2 stereo mini jacks
Inputs assignable to video inputs
Includes
PS12-2 Switching power supply, 2A 12 VDC, standard AC cord for power strips
RKU, Universal Rack Mount Kit
Option to include PS12-8Y power supply with every 3-4 modulators when ordered in lieu of PS12-2 Power Supply
Optional:
RK1 Single Rack Kit
RK2EZ Dual Rack Kit (Can be used for HRM half-rack mounting as well)
PS12-8-4Y 8A 12V power supply with 4-way splitter to drive up to 4 QIP or QMOD encoders
