The dual-channel QMOD-HDMI 2, with two non-encrypted HDMI inputs, sets a new standard for sports, motion and digital signage encoding. Dual hardware scalers accept content up to 1080p, shapes digital signage for edge-to-edge presentation, and compensates for non-broadcast and PAL refresh rates. Able to deliver two HD programs in one channel, the QMOD-HDMI 2 can also output the content as an IPTV stream. Options include dual-language SAP audio, easy front-panel setup and alternate audio and NTSC video inputs. Web setup, monitoring, and firmware updates are available via USB and Ethernet ports. Two-across mounting offers up to four programs per rack space, with the ability to mix models to handle HDMI, SDI, Component, RGBHV and NTSC video sources. Version 2.3.4 Update reduces end-to-end RF latency to 500 ms and adds RTP protocol for IP streaming.

This unit includes a universal rack mount kit, which is a combination of the RK1 & RK2EZ that will allow you to mount the unit into a 1RU or 2RU slot in your Rack right out of the box.

Key Features

• SOURCES
• Two HDMI inputs, accept from 480i/29.97Hz to 1080p 59.94/60 Hz video
• Accepts embedded HDMI Dolby AC-3 and PCM audio
• Two Composite/CC video input for encoding, captioning, or EAS use
• Two analog Stereo and two SPDIF coax audio inputs
  ENCODING
• Creates SD and high-definition MPEG-2 and/or H.264 streams at 480i, 480p, 576i, 720p, or 1080i for distribution.
• Accepts stereo or PCM audio and converts to Dolby Digital AC-3/, with SAP dual-language capability.
• Embedded captioning from Line 21 data on composite video inputs.
• Dual hardware scalers enable precise formatting of digital signage for edge-to-edge presentation. Units accept up to1080p 30/60 Hz and PAL video, as well as, various computer graphics resolutions while delivering programs at a fixed resolution.
• Dual-channel operation is standard, creates one physical channel with two HD programs.
  OUTPUT
• Delivers a fully agile QAM 64/256 dual program digital cable channel 2-135
• Up to 268 HD Programs/Channels per system
• Streams Multicast or Unicast IPTV from GigE Ethernet port
• Distributes channel over an on-site broadband cable system with adjustable output level up to 29 dBmV, compatible with all CATV format broadband systems
  OPERATION
• Set up with front-panel buttons and easy to use menus; including inputs, encoding, channel, and RF options or use onboard Web page for setup and monitoring
• Update via USB or Ethernet
• Fan cooled, with variable speeds
• Saves power and rack space using efficient design
• Includes compact switching power supply
• Mounts in optional 1RU single (RK1) or dual (RK2EZ) 19” rack kits
• Meets RoHS safety and California energy standards

Technical Specifications

PHYSICAL
8.5” <216mm> wide x 1.73” <62mm> height (1RU) x 6.0” <153mm> deep
1.5 lbs <0.68kg>
+32 Degrees to 122 Degrees F operating temperature, convection cooled
Rack mounting for one- or two-units side-by-side optional (RK1, RK2EZ)
For HRF Half-Racks, use the RK2EZ kit to mount each modulator
Fan cooled, with variable speeds
SCALING
Dual hardware scalers
Accepts 480i - 1080p video and various computer graphics resolutions
Edge to edge presentation with zoom, shrink and X/Y axis positioning
Native or scales to fixed output resolution, 1080p scaled to 1080i
ENCODING
MPEG2/H.264 Profile
MP@HL for HD, MP@ML for SD
1080i, 720p, 576i, 480p, and 480i output resolution
MPEG2 Video Encoding bitrate 10-25 Mbps, HD, 5-6 Mbps 480i, variable bitrate if set for IP output only
H.264 Video Encoding bitrate 5-10 Mbps, HD, 2-4 Mbps 480i, or variable bitrate if set for IP output only
Converts PCM or MPEG1, Layer 2 audio to stereo AC-3, AAC or MP12, pass-through AC-3
SAP Dual-language capability, second audio track is MPEG1, Layer 2
Dual encoders can stream a simultaneous MPEG2 or H.264 QAM MPTS stream and separate IP SPTS streams, or one encoder can process an MPEG2 stream for QAM, and the second can process an H.264 IP stream
MODULATION
Switchable 64/256 QAM, J83 Annex B, Interleaving Modes (128,1)
MER 38 dB typical
COMPLIANCE
FCC Class B, RoHS, meets California energy standards
FRONT PANEL

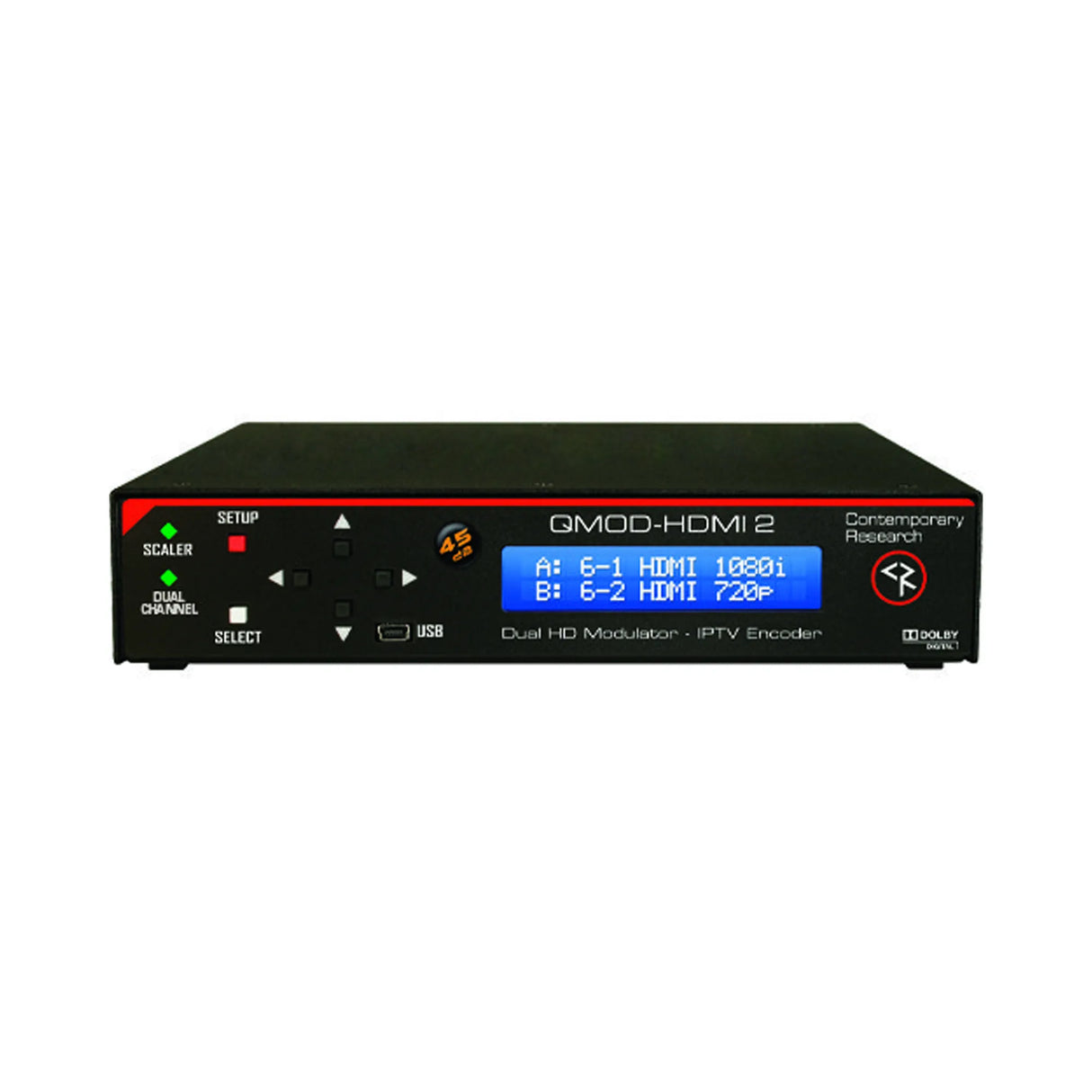

Menu Setup with front panel Select and Directional buttons
Menu LCD, Blue with 2 lines of 20 white characters each
BACK PANEL
Power
2.1mm coaxial jack (inside center conductor positive)
1.1A maximum, 11.5 to 13.5 VDC, 12 VDC typical
EAS
3 GPI Pins for momentary or latching control
Ethernet

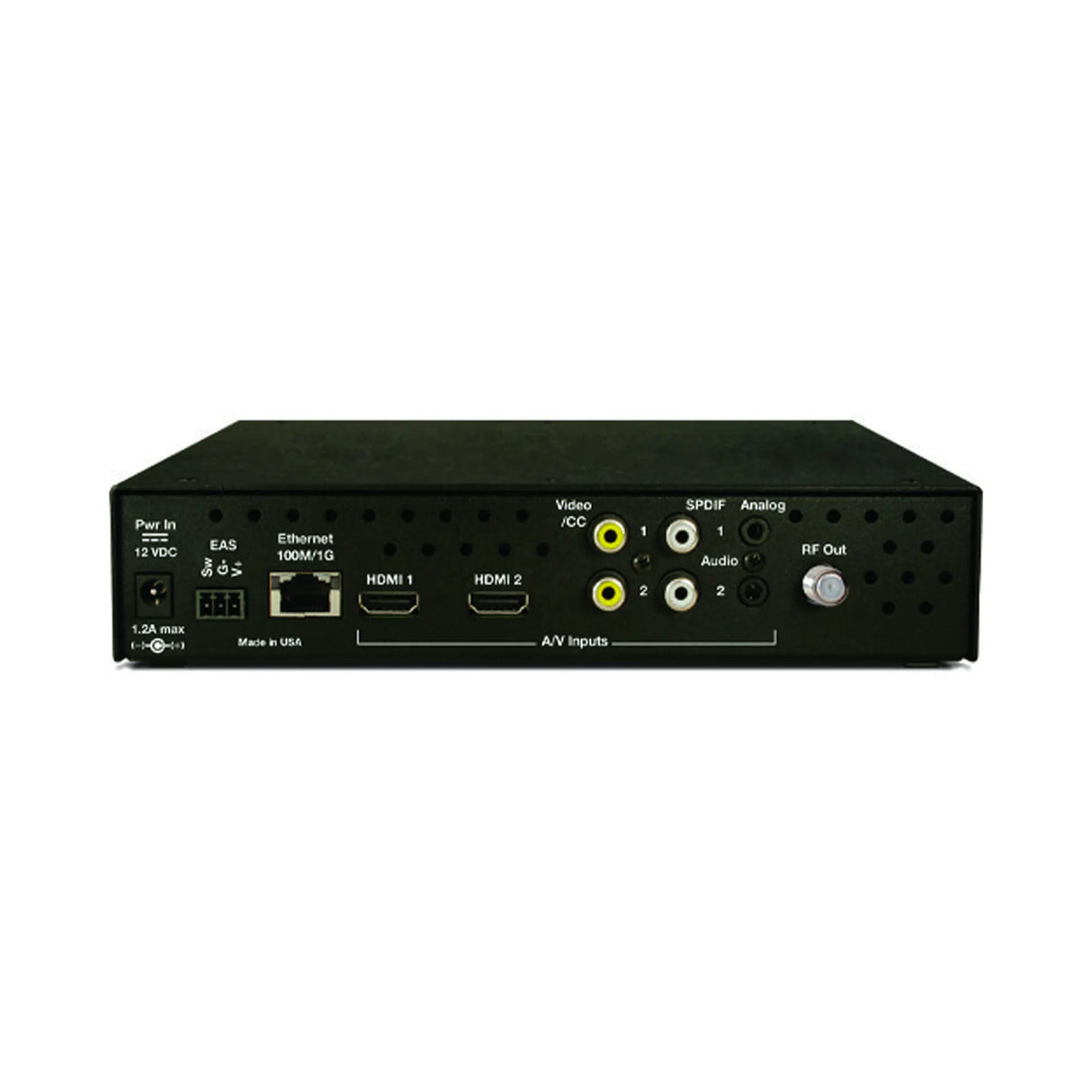

RJ-45 GigE Ethernet connector for IP control, updates. Unicast or Multicast IPTV, and internal Web page
HDMI (non-HDCP: Two HDMI inputs, up to 1080p
Composite Video
RCA female NTSC/PAL (480i/576i), 29.97 Hz, also used for Line 21 captioning data
SPDIF Audio
Two Digital SPDIF Coax RCA jacks, PCM/AC-3 48/44.1K sample rate
Inputs assignable to video inputs
Stereo Audio
Two stereo analog 3.5mm inputs
Inputs assignable to video inputs
RF: `F', female, 75-ohm impedance
Agile, channels 2-135 (48-860 MHz), standard, HRC, or IRC spacing
6 MHz bandwidth fits any open channel without interference to adjacent channels
1 KHz resolution, +/- 30 ppm accuracy, +/- 35 ppm stability
29 dB typical output power, attenuated in 5 steps, approx 4 dB
