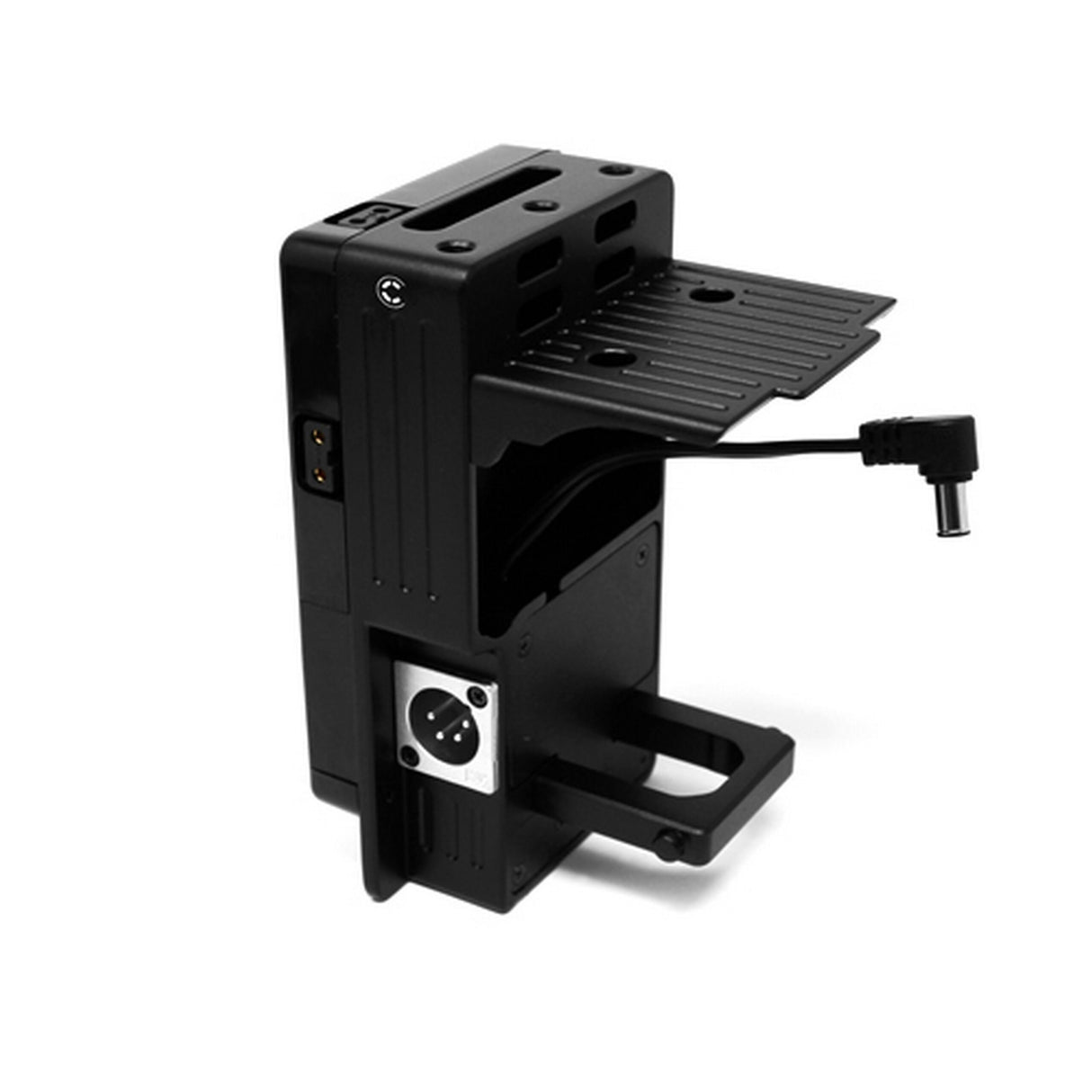

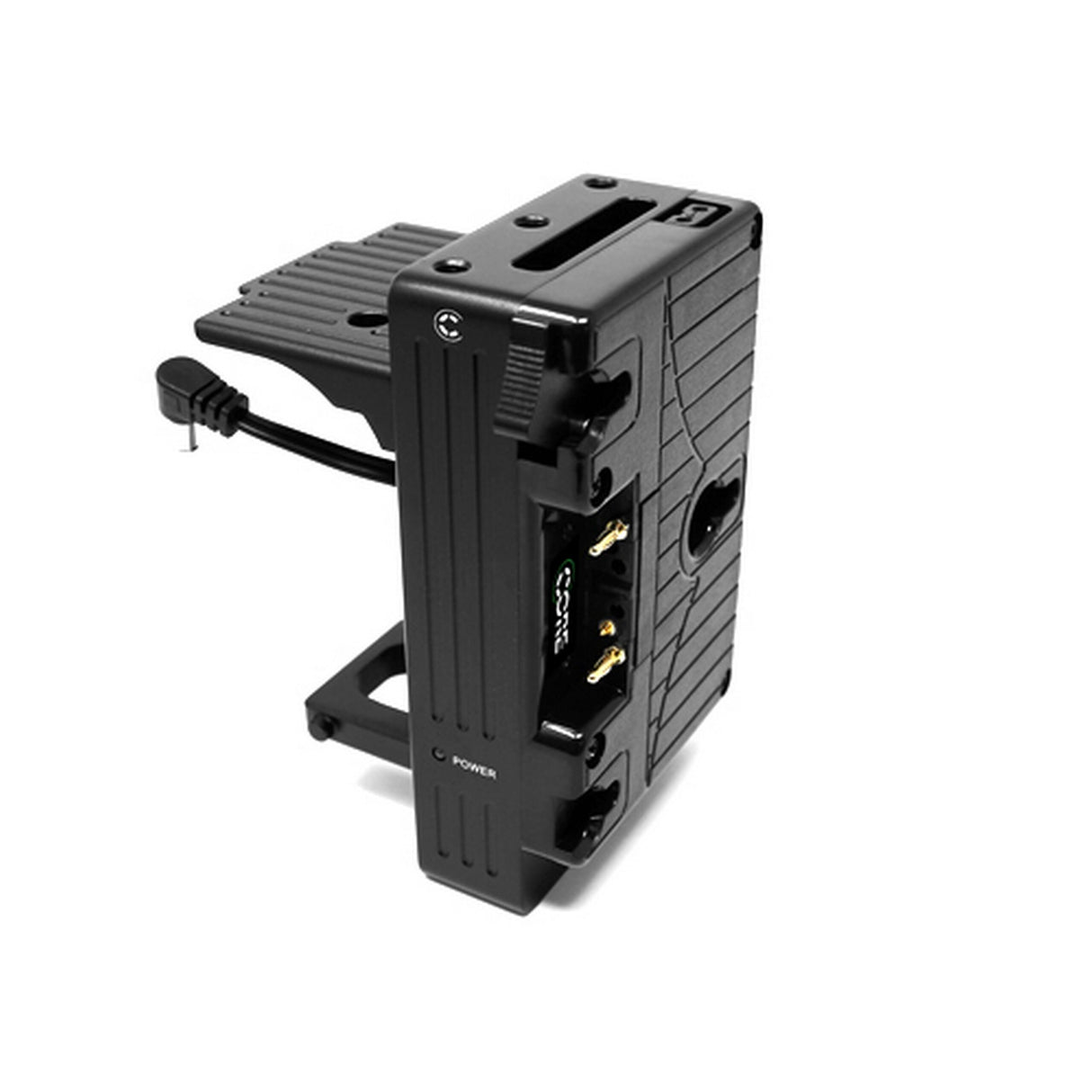

Core SWX CXA-FX9 3-Stud Battery Plate for Sony PXW-FX9, Gold Mount

Core SWX CXA-FX9 3-Stud Battery Plate for Sony PXW-FX9, Gold Mount

The CXA-FX9 mounts directly to the back of the Sony PXW-FX9, as an alternative power option to the Sony XDCA-FX9. The milled aluminum product inserts into the battery slot of the camera and also attaches into the top of the camera(with included screw hardware) to provide a secure platform for mounting gold mount batteries directly onto the FX9 camera. It has a 19.5v DC output with a visual low battery warning LED and a 4-pin XLR DC input for hotswapping between external and on-board power. In addition, it’s equipped with two powertaps to power additional accessories and three 1/4-20 threads on the top to attach accessories. A USB firmware update port on the rear ensures future compatibility with camera firmware updates.

Key Features

• Input: 11.9vdc-16.8vdc(on-board and 4p XLR DC-in). Inputs are hot swappable.
• Output for camera: DC 19.5v
• Powertaps: DC 11.9-17v, Unregulated

Technical Specifications

Size
5.4” x 3.35” 3.7”
Weight
1.2 lbs
Firmware port
USB Micro
LED power indication
Bi-color(red/green)
