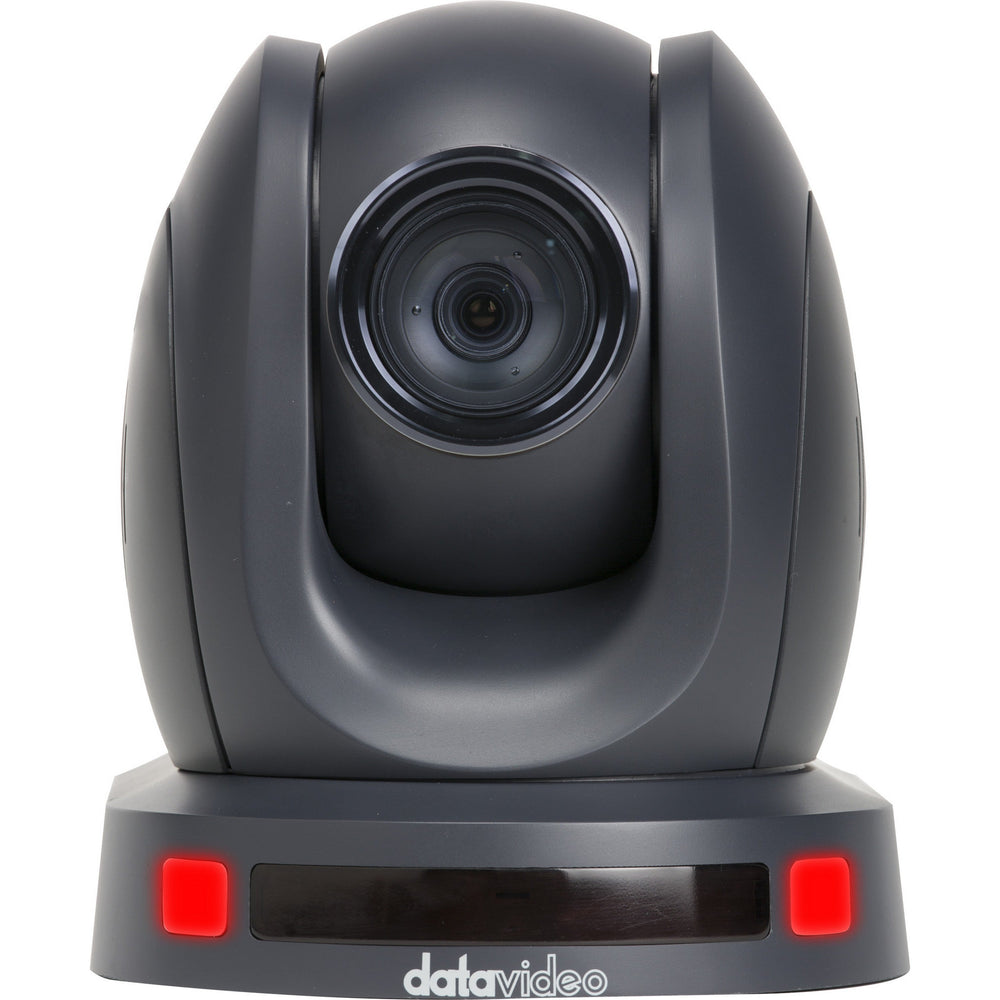

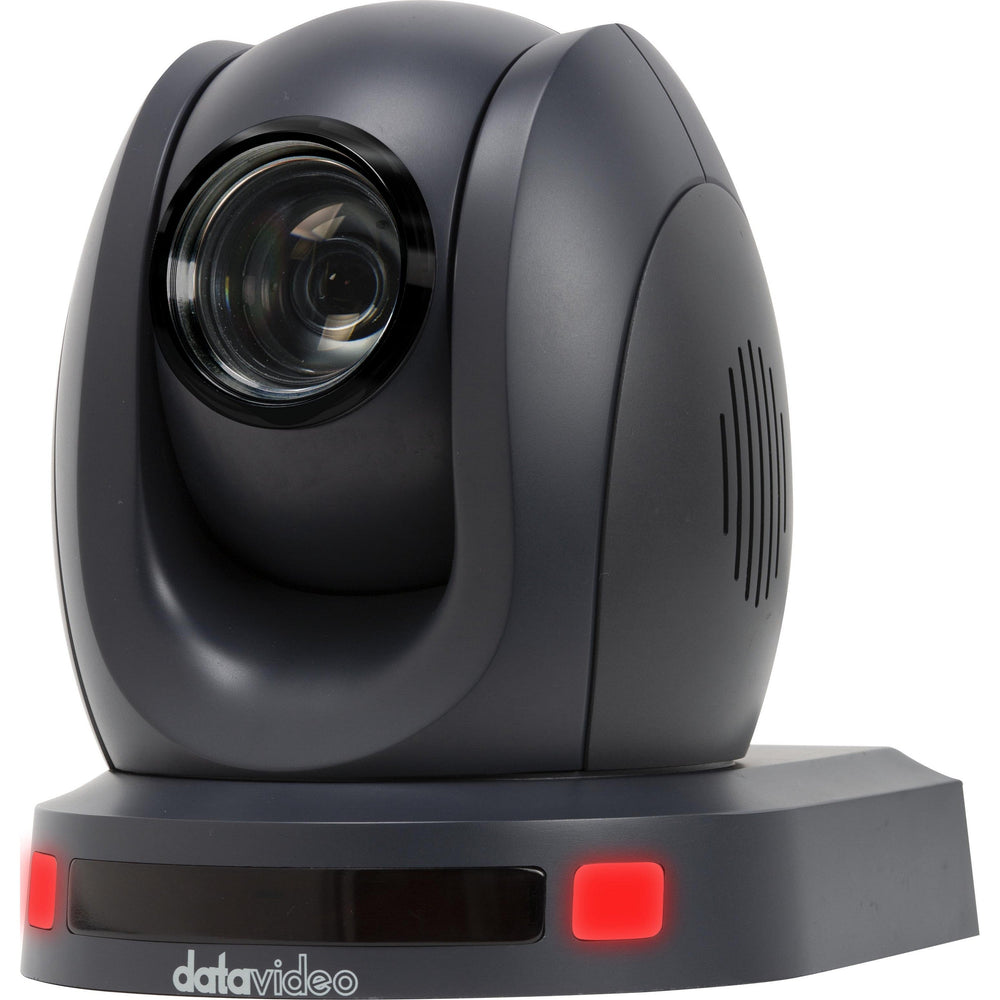

Datavideo PTC-140NDI 20x NDI HX, 3G-SDI and HDMI PTZ Camera
Resolution is up to 1920x1080 with a frame rate up to 60fps.
Low Noise CMOS Ensures High SNR of Camera Video
Advanced 2D/3D noise reduction technology is used to further reduce the noise, while ensuring image sharpness.
Dark Blue and White Color Models
PTC-140NDI is available in two colors, dark blue and white.
Suitable for broadcast, worship, video conferencing and etc.
Supports H.264/H.265 Video Compression
Support compression of resolution up to 1920x1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression. AAC, MP3 and PCM audio compression also supported.
Available to Control Thru Many Ways
Control real-time pan, tilt, and zoom camera movements with Datavideo RMC-300A, 300C, and 180.
RS-232, RS-422 and RS-485 ports to use DVIP and VISCA commands to integrate with larger control systems.

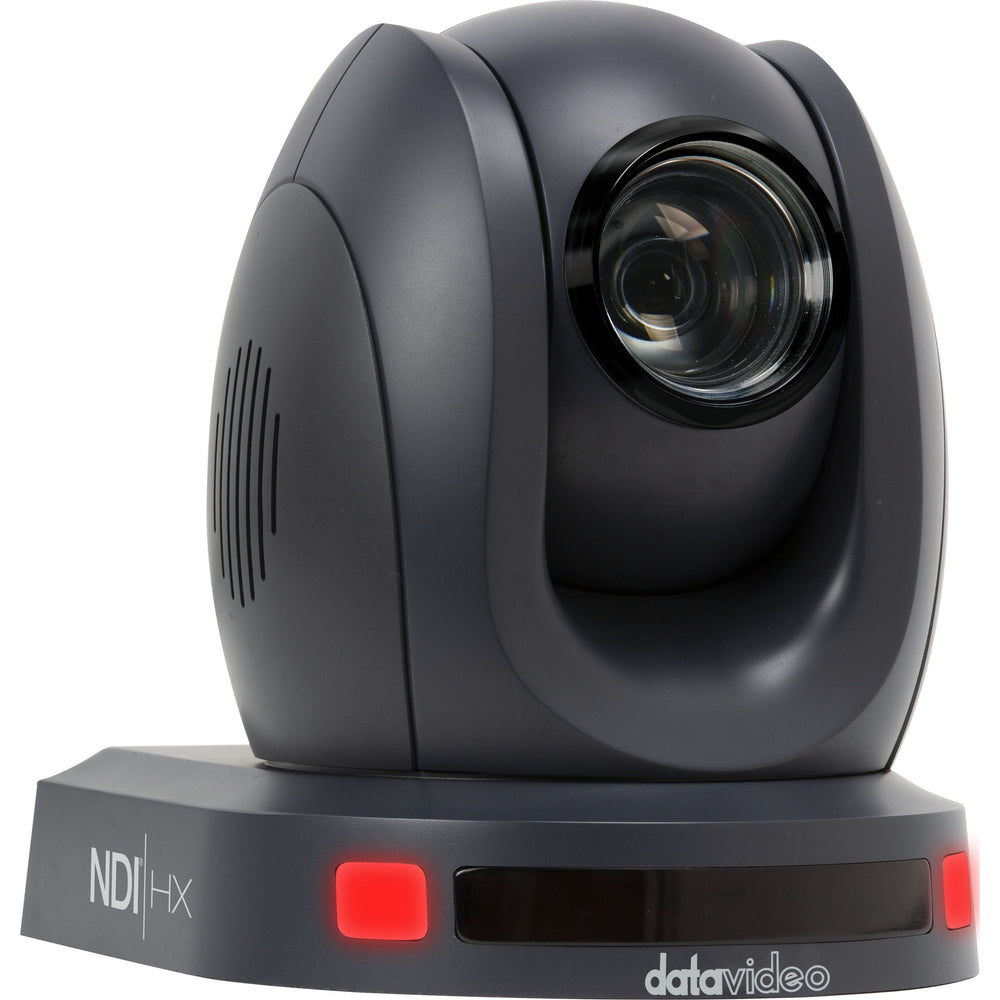

One Ethernet Cable with NDI | HX Technology
There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.
Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.
NDI is a registered trademark of Newtek, Inc.
Technical Specifications
Video format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340
Tilt: +90 to -30
Panning / Tilting Speed
Pan: 0.1~60/sec
Tilt: 0.1~30/sec
Preset
255 Positions
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7 (WIDE END) / 3.3 (TELE END)
Image Compensation
Backlight Compensation

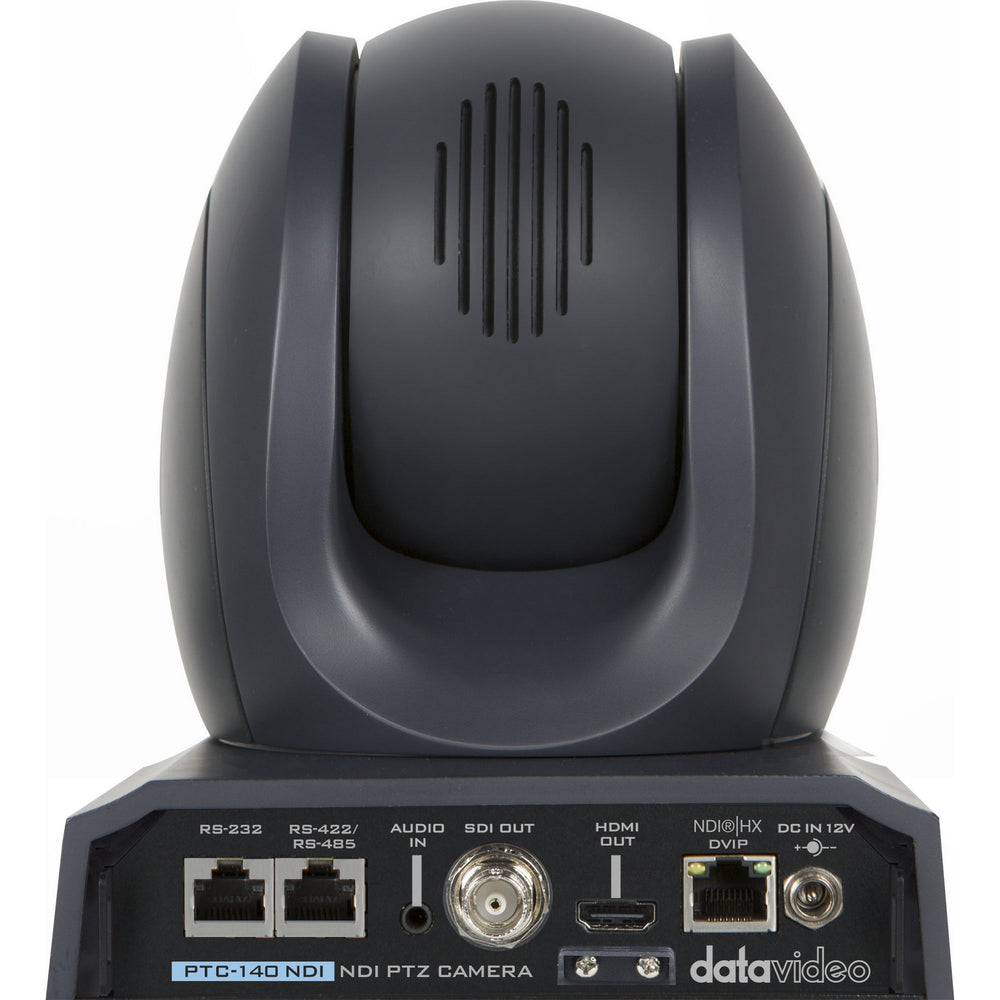

Video Output
HDMI x 1
SDI x 1
Audio Input
3.5mm Line in
Tally LED
Dual colors (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps
DVIP, NDI
Remote Control Interface and Transmit Distance
LAN: for IP control (DVIP / NDI)
RS-232, RS-422, RS-485
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/G.711A Audio compression
HD IP Interface
100M IP port(100BASE-TX); Support DVIP and NDI
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast, etc
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
RMC-180/RMC-300C/RMC-300A
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/WM-11
Color
Dark Blue/White
Dimension (LxWxH)
156 x 184 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 C
Power
DC 12V 12W
