Datavideo PTC-140W 20x HD/SD-SDI and HDMI PTZ Camera, White
Description
Description
Datavideo PTC-140W 20x HD/SD-SDI and HDMI PTZ Camera, White
The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution, 60fps.
20x Optical Zoom, 10x Digital Zoom
The PTC-140's 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.
Advanced 2D/3D noise reduction function
Supports advanced digital noise reduction, even in less-than-perfect lighting conditions can shoot clear and smooth image.
H.264/H.265 video compression for streaming
With built-in streaming encoder, can encode up to 2 simultaneous streams to any cloud service.
Dark or Light Body
The PTC-140 is available in dark gray or white (coming soon) to remain inconspicuous in permanent setups.
Simple multi-camera control at your fingertips
With its ergonomic joystick and tactile button layout, the RMC-180 makes it easy to set up and control up to four Datavideo PTC-140 cameras for any live video production.
Remote control and preview by web user interface
The web user interface provides preview, pan-tilt-zoom control and configurations setting in IP mode.
RMC-300C can control up to 24 PTC-140 cameras
Works together with an iPad or Android tablet to control up to 24 Datavideo PTC-140 cameras.
Technical Specifications
Video format
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340 , Tilt: +90 to -30
Panning / Tilting Speed
Pan: 0.1~60/sec
Tilt: 0.1~30/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7 (WIDE END) / 3.3 (TELE END)
Image Compensation
Backlight Compensation

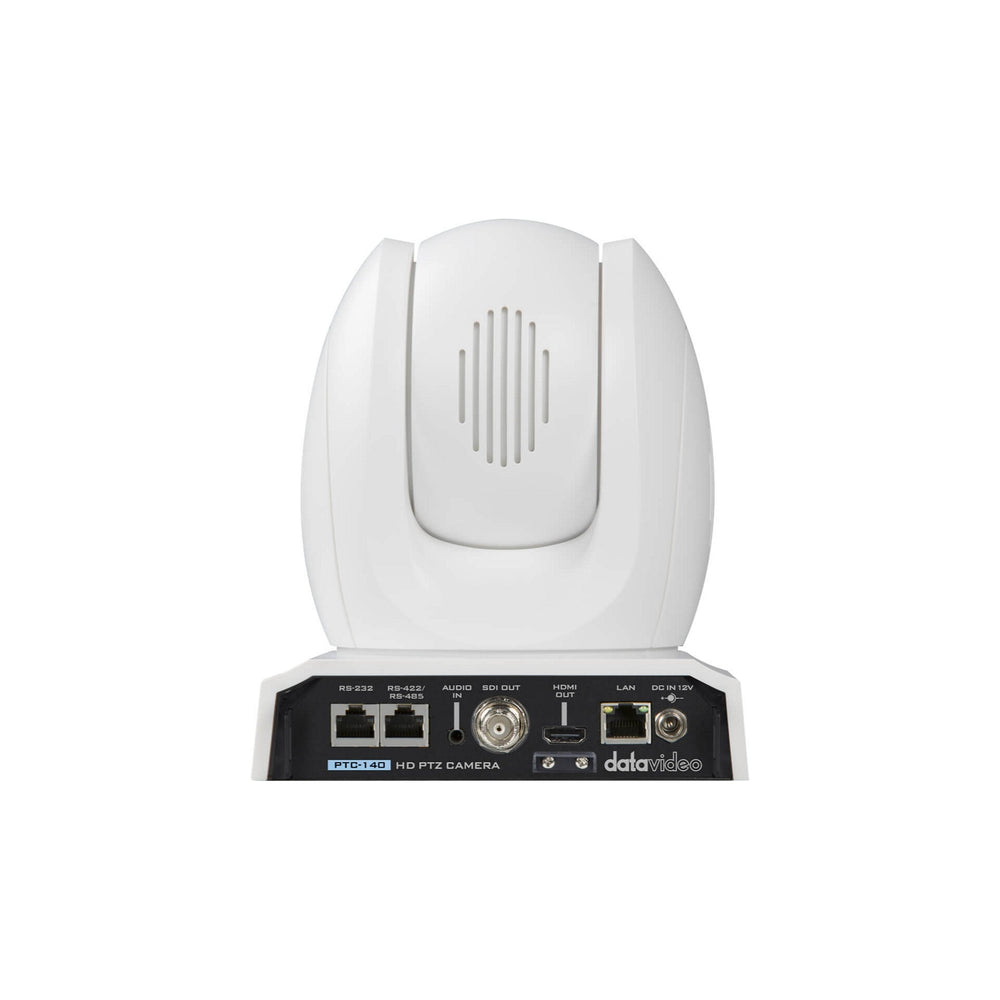

Video Output
HDMI x 1
SDI x 1
Audio Input
3.5mm Line in
Tally LED
Dual color (Red, Green)
Filter
M52.0 x 0.75 Thread with UV Protection
Protocol
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/38400/9600/4800/2400bps
DVIP
Remote Control Interface and Transmit Distance
RJ-45: for IP control (DVIP)
RS-232: Mini DIN 8-pin (IN) Mini DIN 8-pin (OUT)
RS-485
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/PCM Audio compression
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
Network Protocol
RTSP, RTMP
F/W Update
Ethernet
IR Control
Yes
Camera Control Unit
RMC-180/RMC-300C
Tripod Mount
1/4-20 UNC
Options
WM-1
Color
Black/White
Dimension (LxWxH)
156 x 182 x 186 mm
Weight
1.6 kg
Operating Temp. Range
0~40 C
Power
DC 12V 12W
What's in the Box
1 x PTC-140 Unit

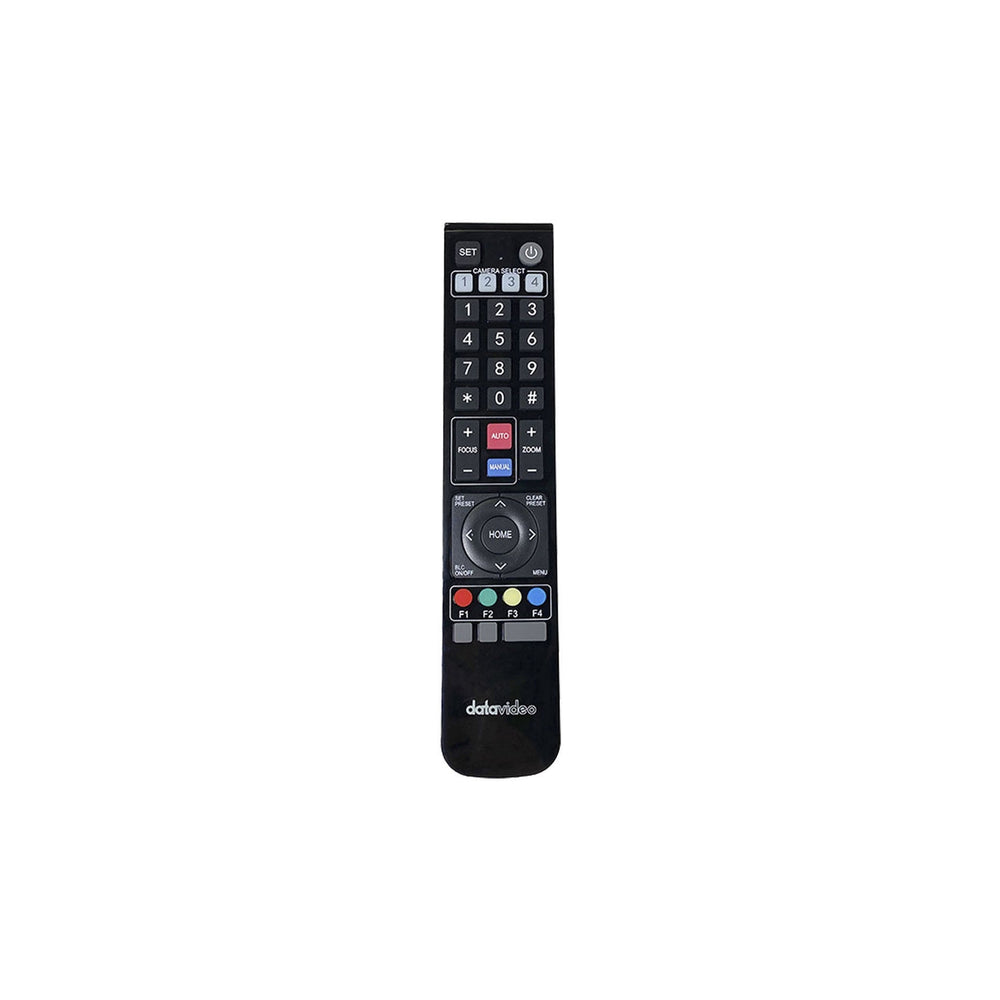

1 x IR remote controller
1 x PTC-140 Thank You Card
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x UV Filter
1 x DC 12V Power Adaptor
1 x Power Cord
1 x A tightrope
1 x RS-232 DB9 9 Pin to 8 Pin Mini DIN Cable
1 x RS-485 2 Pin Connector
