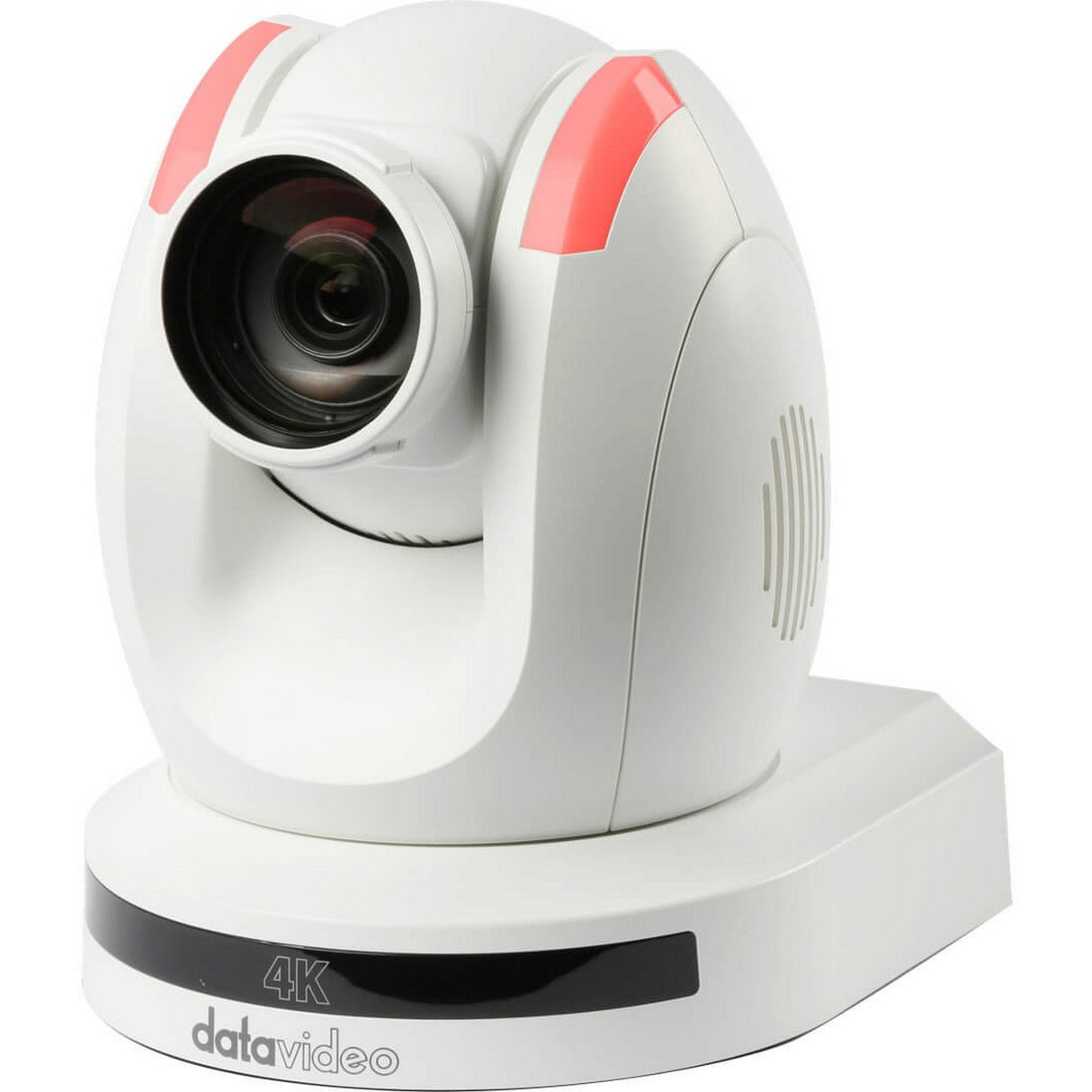

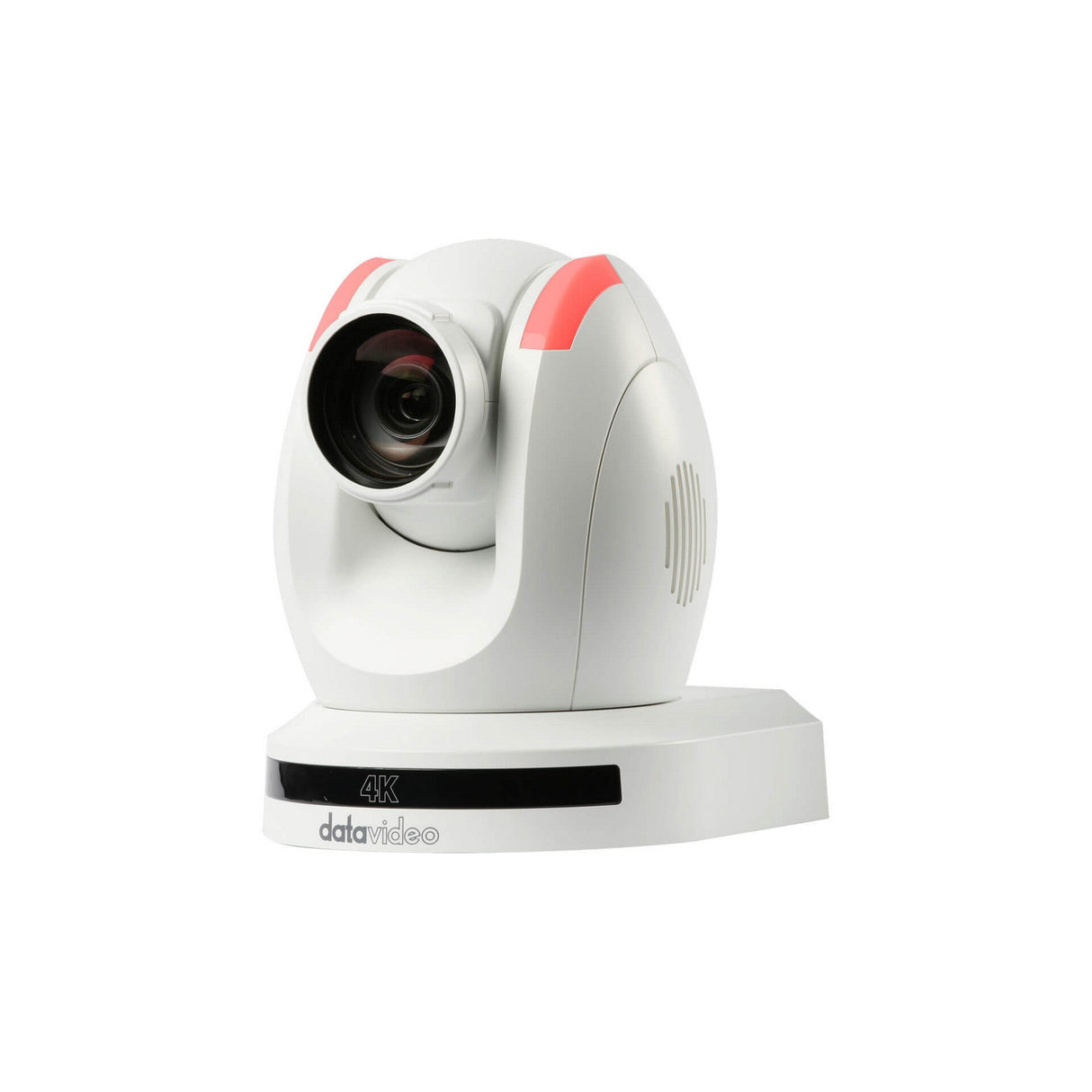

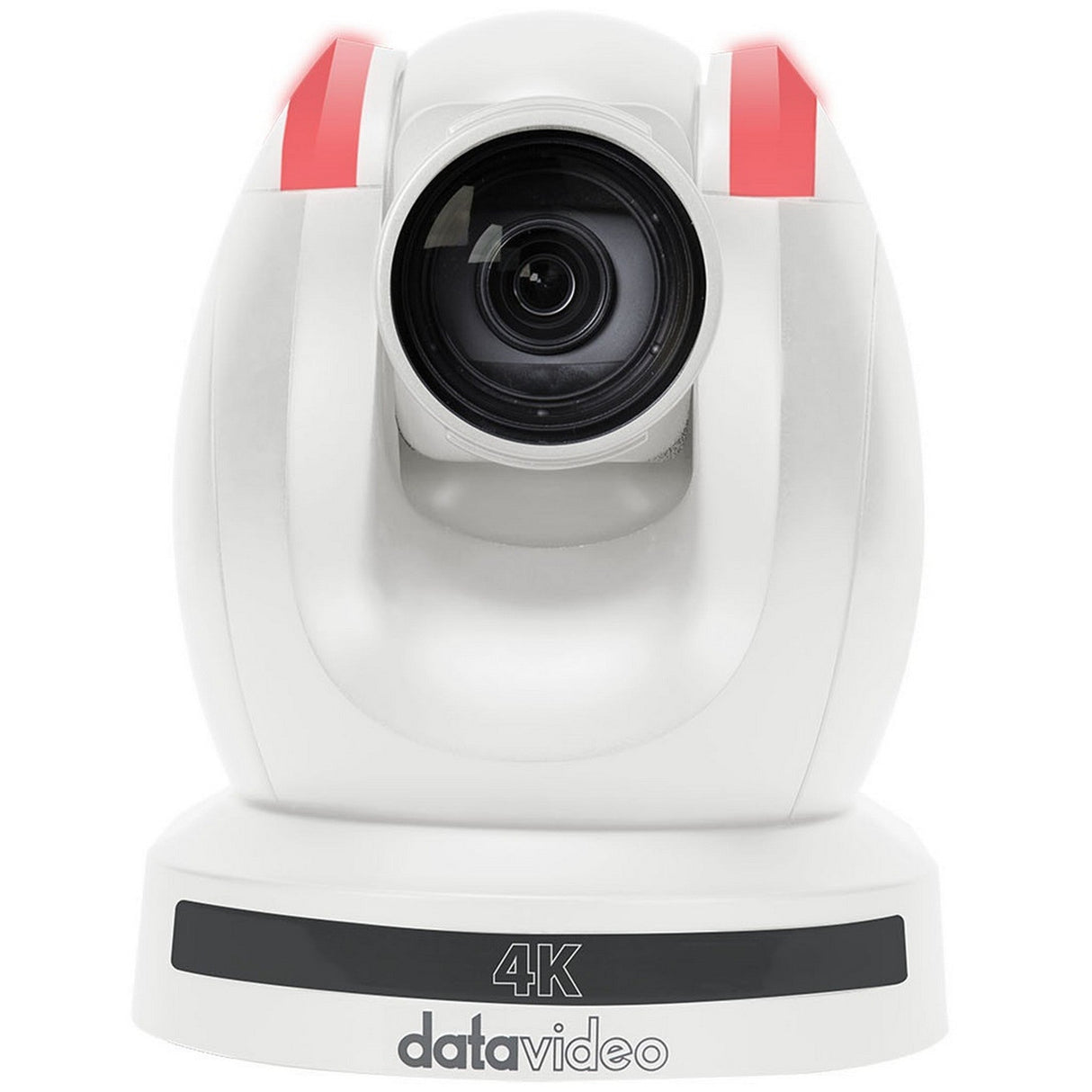

Datavideo PTC-280NDIW 4K 12x NDI HX, 3G-SDI HDMI PTZ Camera, White

Datavideo PTC-280NDIW 4K 12x NDI HX, 3G-SDI HDMI PTZ Camera, White

Datavideo is introducing the NDI 4K50/60p PTZ camera PTC-280NDI, professional NDI PTZ cameras help you capture your event. PTC-280NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol), Sony VISCA over IP or any NDI controller.

This brand new 4K NDI camera supports dual streaming output for A/V market application, you can easily stream to Facebook (RTMPS), YouTube and dvCloud.

Low Noise in Low Light
Advanced 2D/3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Compatible with Various Controller
Control real-time pan, tilt, and zoom camera movements with Datavideo PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.

Wide 71° Field of View
PTC-280NDI provides a wide Field of View of 71°, easily shooting all the scenes in the field.

Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

Power over Ethernet
The PTC-280NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-280NDI.

NDI Virtual Input
Present PTC-280NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

Key Features

• 2160p50/59.94/60 PTZ camera
• 1/2.5” CMOS
• Excellent low light performance (0.5 Lux @ F1.8, AGC ON)
• 12x Optical Zoom, 16x Digital Zoom
• 4K Video outputs: HDMI 2.0, 3G-SDI, IP (H.264 & H.265)
• 2160p and 1080p (3G-SDI) Simultaneous video output
• RS-422 Serial Control
• DVIP (Datavideo Proprietary Protocol) Control
• Supports Sony VISCA via browser and VISCA over IP Protocol
• One Ethernet Cable with NDI | HX Technology NDI Virtual Input
• With the NDI | HX Technology, video source could direct streaming to applications Skype, GoToMeeting, WebEx, Zoom, and more.
• External audio input: 3.5mm audio in
• Friendly web UI via browser & app (iOS and Android)
• Dual streaming: 2160p and 720p simultaneously

Technical Specifications

Video format/Resolution
HDMI
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor
1/2.5” CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
12x Optical Zoom, 16x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
2D/3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255 Position
Focal Length
12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide)
71°
Image Compensation
Back light compensation
Video Output
HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input
3.5mm x1
Tally LED
Yes
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS,
DVIP
NDI
Remote Control Interface
IR
Web UI
RS-422
DVIP
NDI
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution
3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
1280x720
1024x576
720x576 (50Hz)
720x480 (60Hz)
720x408
640x360
480x270
320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Black/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.8 kg
Operating Temp. Range
0~40 Degrees C
Power
DC 12V 12W
What's in the Box
1 x PTC-280NDI product

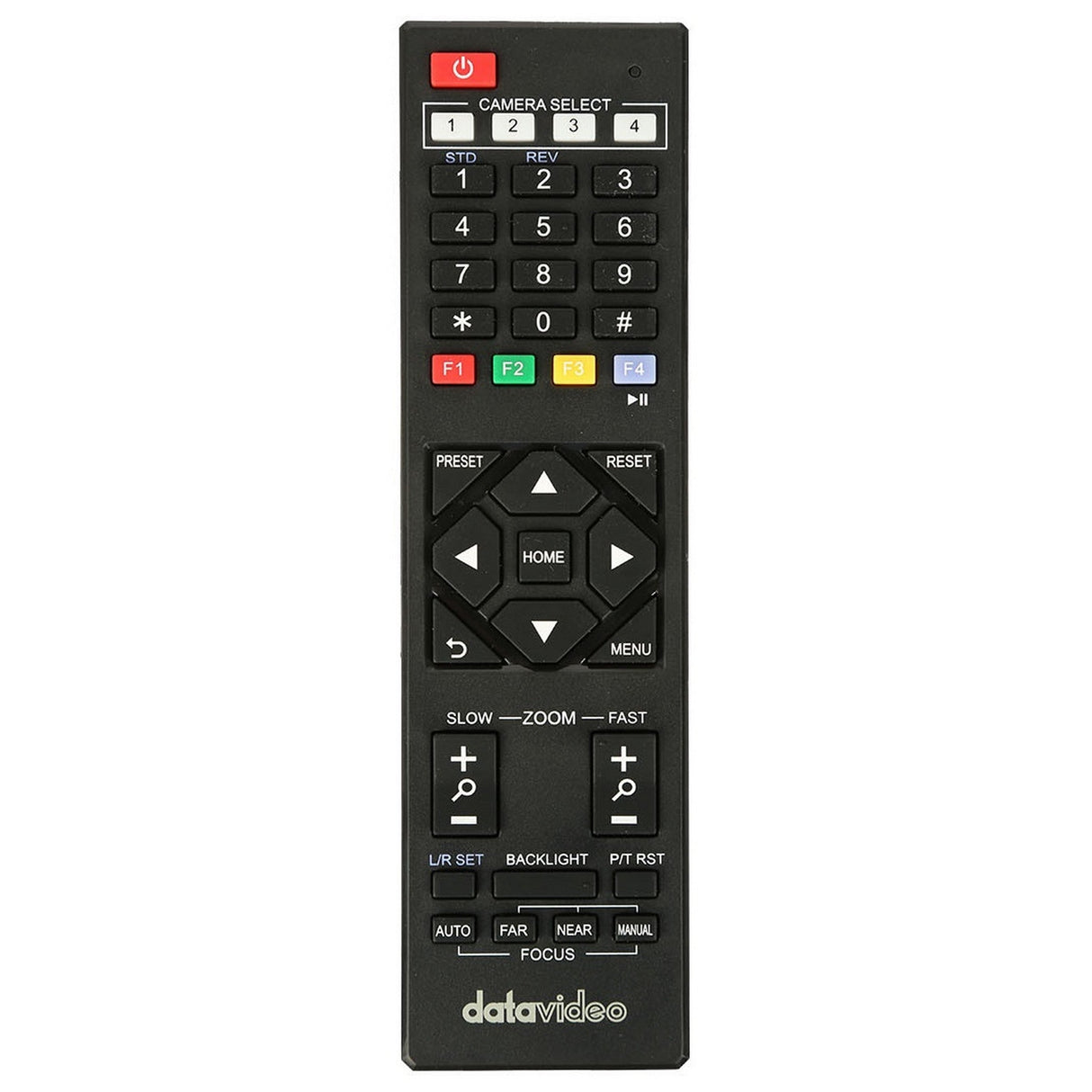

1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x A tightrope
