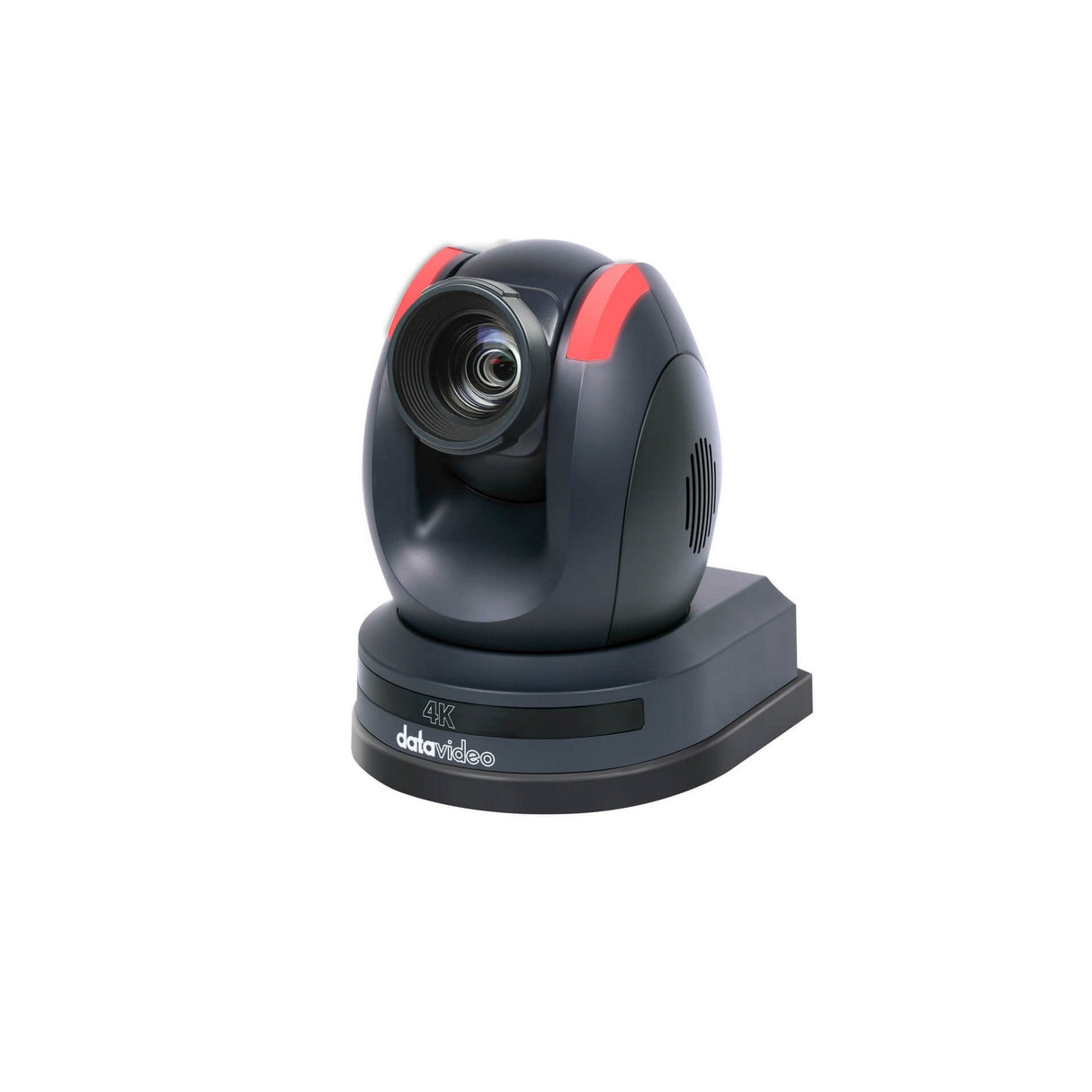

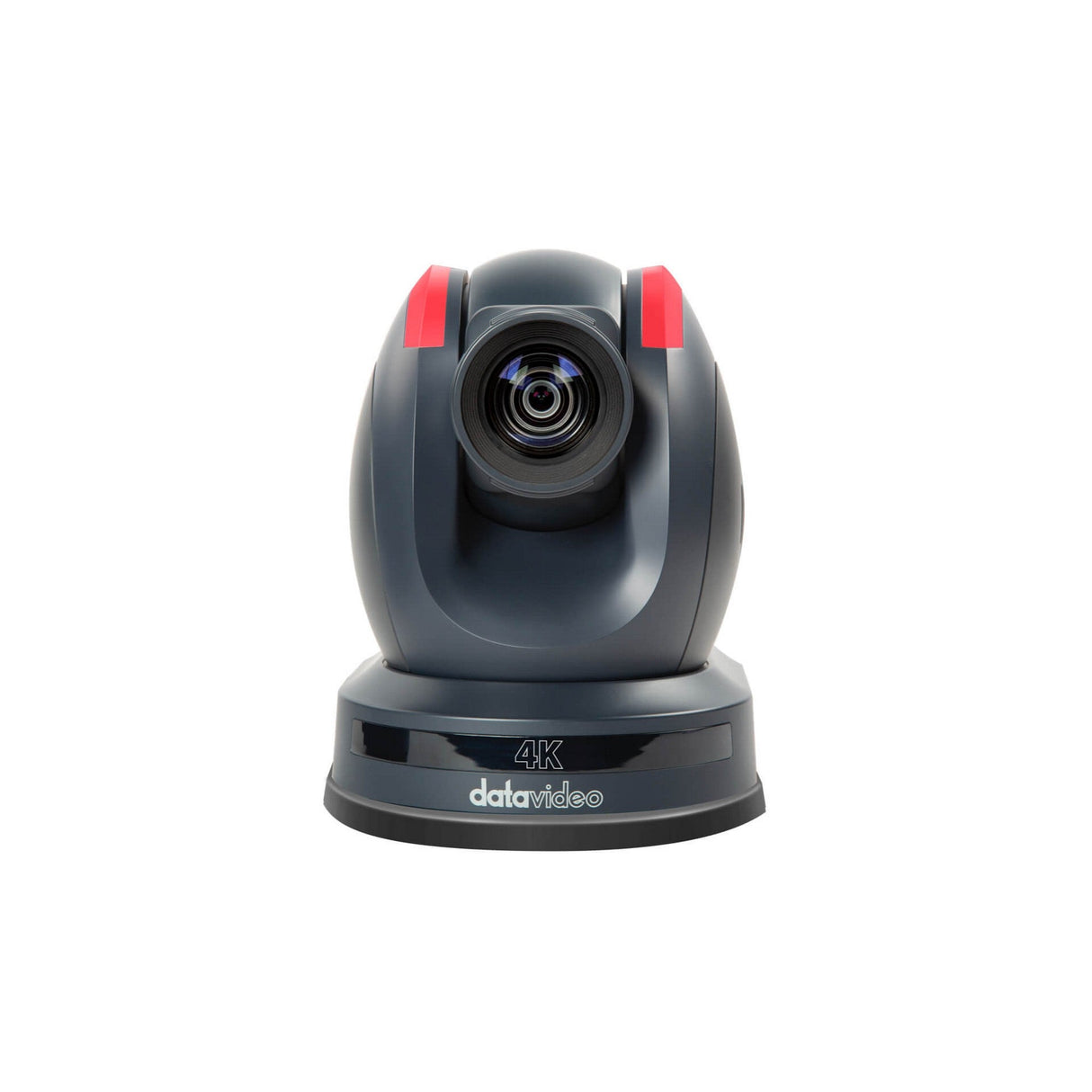

Datavideo PTC-305T 4K 20x HDBaseT Tracking PTZ Camera, Black

Datavideo PTC-305T 4K 20x HDBaseT Tracking PTZ Camera, Black

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p auto tracking PTZ camera, PTC-305T can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP or Sony VISCA over IP. This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

This HDBaseT version allows single CAT-6 cable to transfer video, control, power, and tally.

One Cable Solution
HDBaseT allows you to transmit power, HD video, control, and tally over a single Ethernet cable.

Quick Access to Camera's Auto Tracking
You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1AT remote control and other controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable auto tracking on smart switchers such as KMU-300, SHOWCAST 100, as well as complete solution systems like the ZR-1 APP running on the TPC-700 to control the iCAST 10NDI Hybrid Events switcher.

Custom Auto Tracking
If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, and furniture.

Smart PTZ Speed Adaptation
The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera's corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or halts.

Quick Access to Framing Options
All of the PTC-305 camera series include RMC-1AT controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Simply enable auto tracking with your IR remote control
RMC-1AT PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

Broadcast Quality 4K Resolution
With built-in 1/1.8” CMOS sensor, supports resolution up to 2160p 50/60.

Superior Optical Performance
The PTC-305T camera has 20x Optical Zoom and 16x Digital Zoom with the f1.58 wide open aperture.

Low Noise in Low Light
Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs
Supports simultaneous HDMI 2.0 and HDBaseT/IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function
Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Compatible with Various Controllers
Control real-time pan, tilt, and zoom camera movements with Datavideo SHOWCAST 100, RMC-180 series, RMC-300 series, and PTZ View Assist APP. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control
RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Power over Ethernet
The PTC-305T supports PoE and HDBaseT for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT6 cable to power your PTC-305T.

Tally Light
Green and red lights tally to show the preview and program status for broadcast applications.

Wide 60 Degree Field of View
PTC-305T provides a wide Field of View of 60 Degree, easily shooting all the scenes in the field.

Supports H.264/H.265 Video Compression
Support compression of resolution up to 3840x2160 with frame up to 59.94, 60fps and the second channel 720x480 with 29.97fps compression. AAC, MP3 and PCM audio compression also supported.

Technical Specifications

Video format/Resolution
2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2
Image Sensor
1/1.8” CMOS
Effective Pixels (approx.)
8.51Mega Pixels
S/N Ratio
≥55dB
Min. Illumination
0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter
1/30s ~ 1/10000s
Zoom Ratio
20x Optical Zoom, 16x Digital Zoom
Iris Control
Auto / Manual
Digital Noise Reductions
3D
On-Screen Display (OSD)
English/Simplified Chinese/Traditional Chinese
White Balance
Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control
Yes
Mirror / Flip Image
Yes
Focus Mode
Auto/Manual
Panning / Tilting Range
Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed
Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset
255 Position
Focal Length
20x, f = 6.7mm ~125mm, F1.58 ~ F3.95
Field of View (Horizontal, Wide)
60 Degree
Image Compensation
Back light compensation
Video Output
HDMI 2.0 x1
3G-SDI x1
HDBaseT x 1
10/100/1000M RJ45 (PoE) x1
Audio Input
3.5 mm x1 (mic in/line in)
switch from Web UI
Tally LED
Yes
Control Protocol
Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP
Remote Control Interface
IR
Web GUI
RS-422
DVIP
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
H.264/H.265/MJPEG
Audio Compression Format
AAC
Audio Bitrate
96Kbps, 128Kbps
Streaming Protocols
RTSP, RTMP(S), Onvif, Multicast, SRT
First Stream Supported Resolution
3840x2160
1920x1080
1280x720
1024x576
960x540
640x480
640x360
Second Stream Supported Resolution
720x480
640x360
480x270
320x240
Video Bitrate
32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode
VBR, CBR
Encoding Frame rate
50Hz: 1-50fps
60Hz: 1-60fps
POE
IEEE 802.3at
F/W Update
Via Web UI or USB 2.0
IR Control
Yes
Camera Control Unit
RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount
1/4-20 UNC
Optional Accessories
WM-1/ WM-10/ WM-11
Color
Dark Blue/White
Dimension (LxWxH)
173 (W) x 219 (H) x 189.08 (D)
Weight
2.6 kg
Operating Temp. Range
0~40 Degrees C
Power
DC 12V 21W
What's in the Box
1 x PTC-305T product
1 x RMC-1AT IR remote controller
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x Safety cable
