Datavideo VP-597 | 2x6 3G HD/SD-SDI Distribution Amplifier

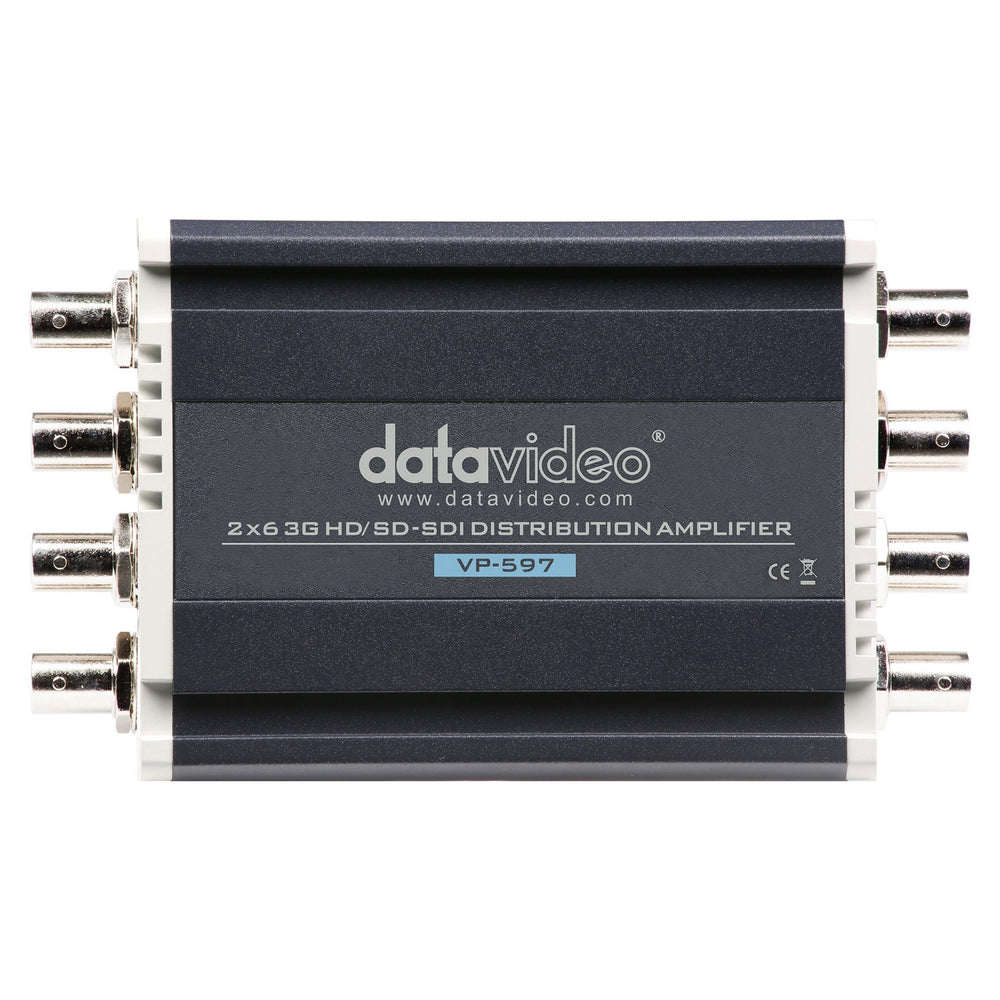

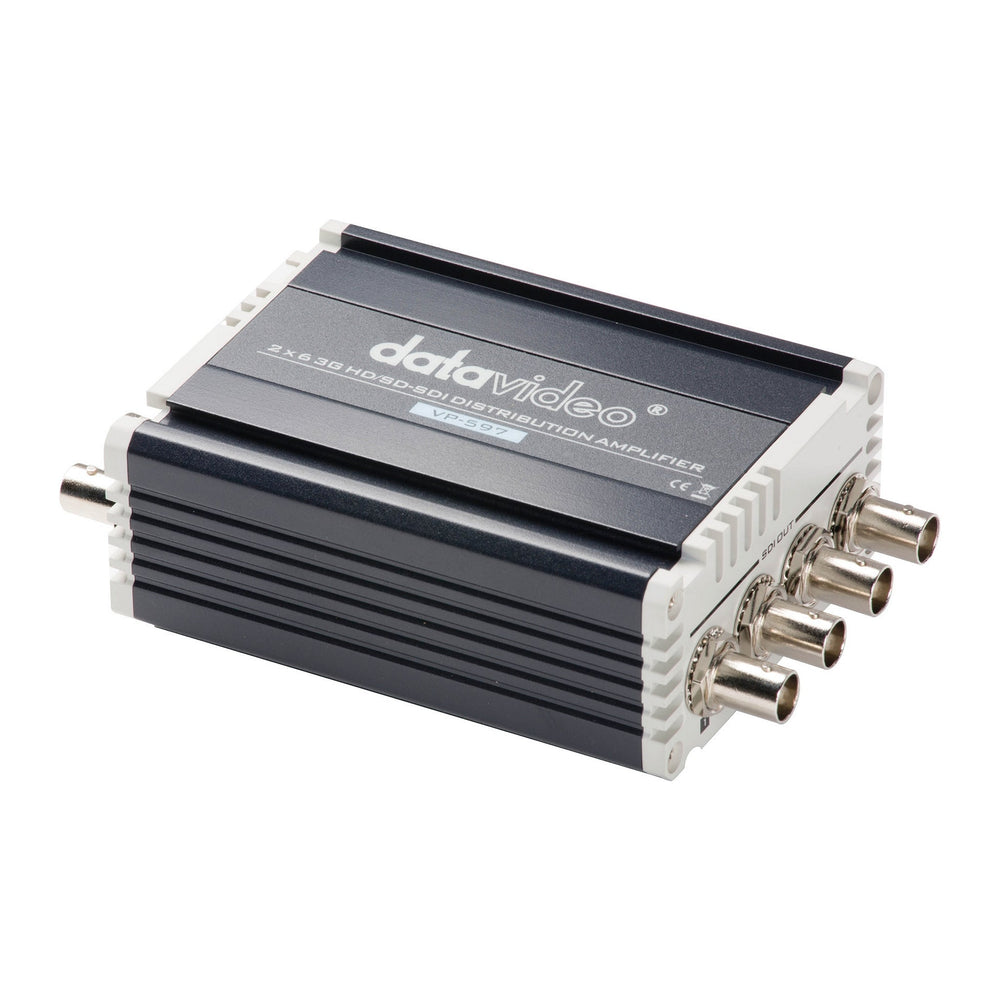

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier

Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked). It'supports 3G/HD/SD SDI video with embedded Audio and re-clock design for long distance transmission. Two source inputs can be controlled by an A/B panel switch or thru GPI remote control interface.

VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.

Key Features

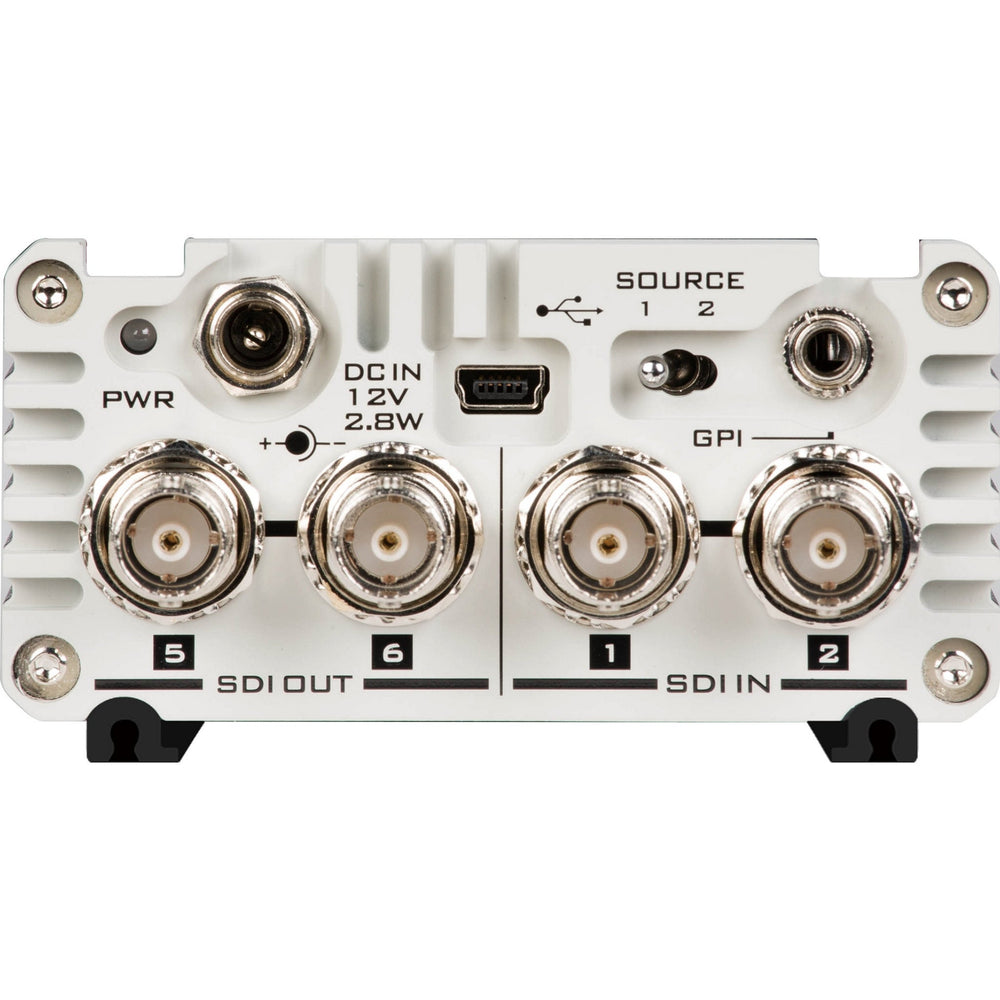

• 2 x 3G/HD/SD-SDI inputs

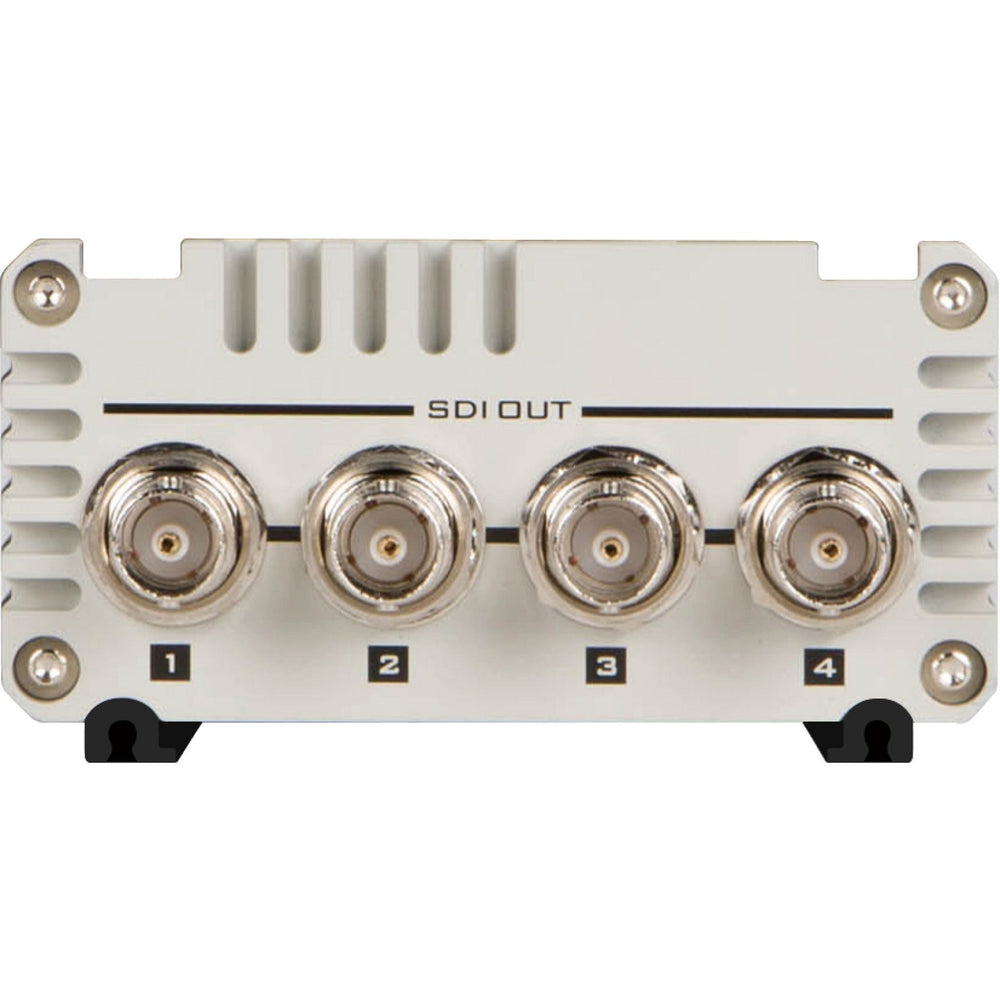

• 6 x 3G/HD/SD-SDI distribution outputs with re-clock
• Supports embedded Audio SDI
• Two input video sources can be controlled by A/B switch or GPI remote (non-locked)
• DC-12V

Technical Specifications

Supported video formats
3G-SDI
1080P 50/59.94/60
HD-SDI
1080P 23.98/24/25/30
1080i 50/59.4/60
720P 50/59.94/60
SD-SDI
525i /625i
