dB Technologies DVA M2M+M2S 400W 2 x 6.5-Inch 2-Way Active Line Array Dual Speaker Set, Black

dB Technologies DVA M2M+M2S 400W 2 x 6.5-Inch 2-Way Active Line Array Dual Speaker Set, Black

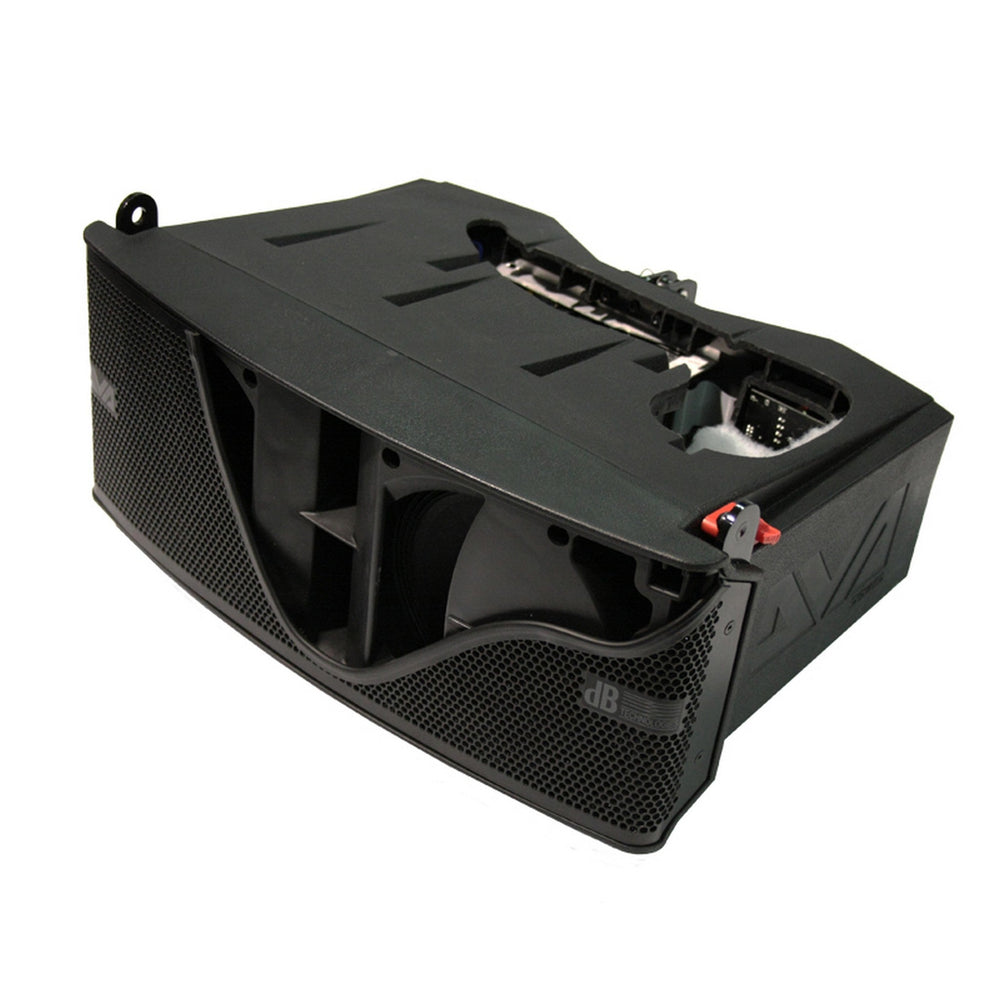

Each unit of DVA MINI system is comprised of two-line array modules, each with two 6.5” neodymium woofers and two 1” high-frequency compression drivers. The M2M module is the master module that contains the 400-watt Digipro G3 amplifier that power both the M2M and M2S slave module. The system achieves 126 dB max SPL per unit. Constructed in solid Polipropilene reinforced with an internal anti-vibration structure, DVA MINI features a new fast-lock mechanic design: users simply place one module below the other and slide it towards one side until it locks in place. Moreover, every DVA MINI module has a back mechanic with incremental steps allowing different line array positioning angles.

Key Features

• 2-Way active line array system
• Innovative Master and Slave concept
• Integrated hardware with innovative Fast lock mechanics
• Lightweight and elegant premium design
• Dual phase plug design for an extremely precise dispersion
• 200+200W RMS Digipro G3 Class-D Amplifier (800W Peak Power)
• Hi end digital controller on board (DSP)

Technical Specifications

Acoustical data
Frequency Response <-6dB>
78 19.000 Hz
Frequency Response <-10dB>
68 20.000 Hz
Max SPL
126 dB per unit
HF
2x1”
Type HF
Neodymium
Voice Coil HF
1”
LF
2x6.5”
Type LF
Neodymium
Voice Coil LF
1.5”
Directivity
90x15 Degrees
Amplifier
Amp Technology
Digipro G3
Amp Class
Class D
RMS Power HF Amp
200 W (100 W + 100 W)
RMS Power LF Amp
200 W (100 W + 100 W)
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/48 kHz
System Presets
9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter
Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF
1800 Hz
Slope LF-HF
24 dB/Octave
Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Power Supply
400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket
1x PowerCon In 1x PowerCon Out
Signal Input M2S
1 Custom connector
Mechanics
Housing
Polypropylen PP
Handles
2x back side
Fittings
Integrated hardware with fast lock mechanics
Splay Angles
0°1,5°3°4,5° 6°8°10°12,5°15°
Width
460 mm (18.1 in)
Height
190 mm (7.5 in)
Depth
345 mm (13.6 in)
Weight M2M
7.6 kg (16.8 lbs)
Weight M2S
7.1 kg (15.7 lbs)
