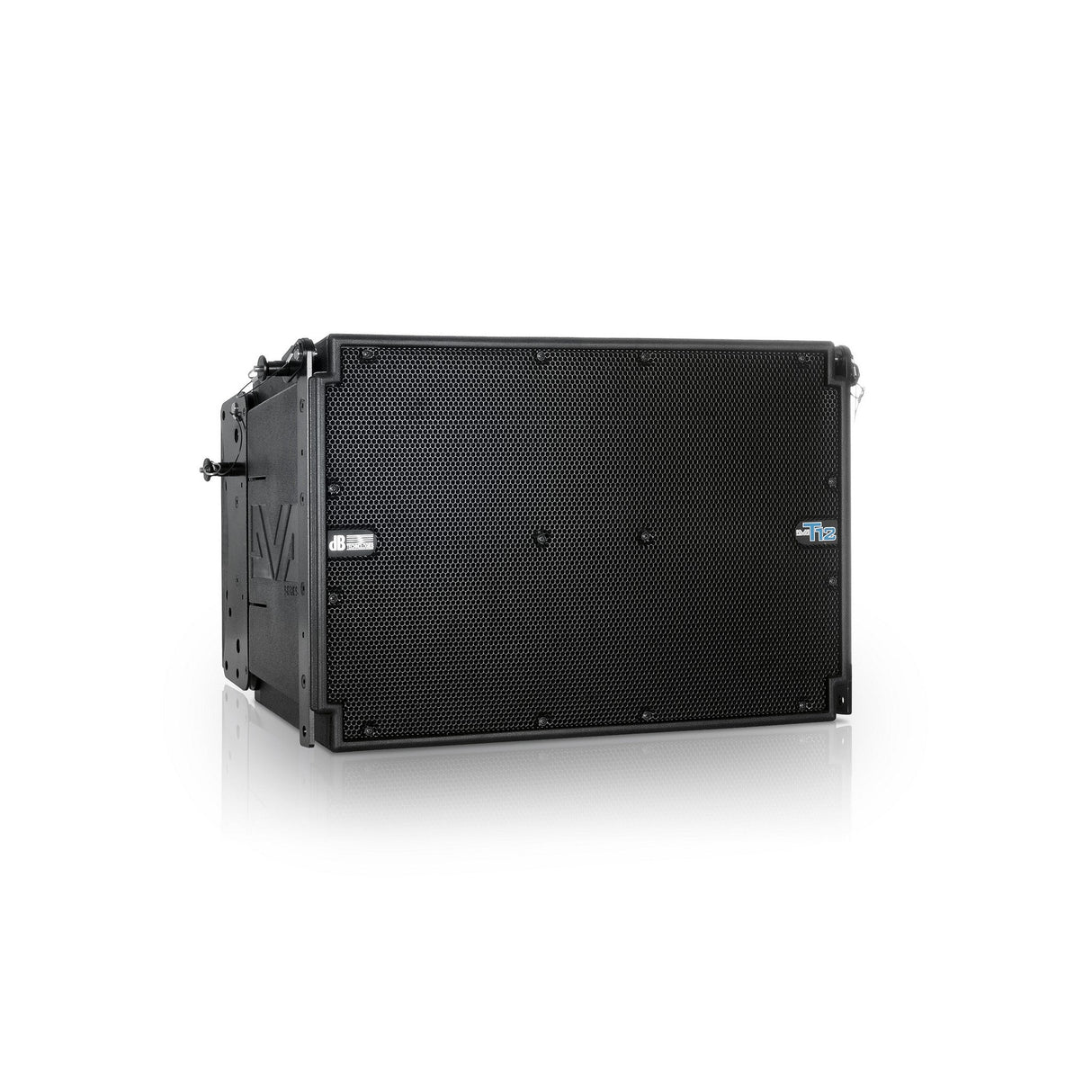

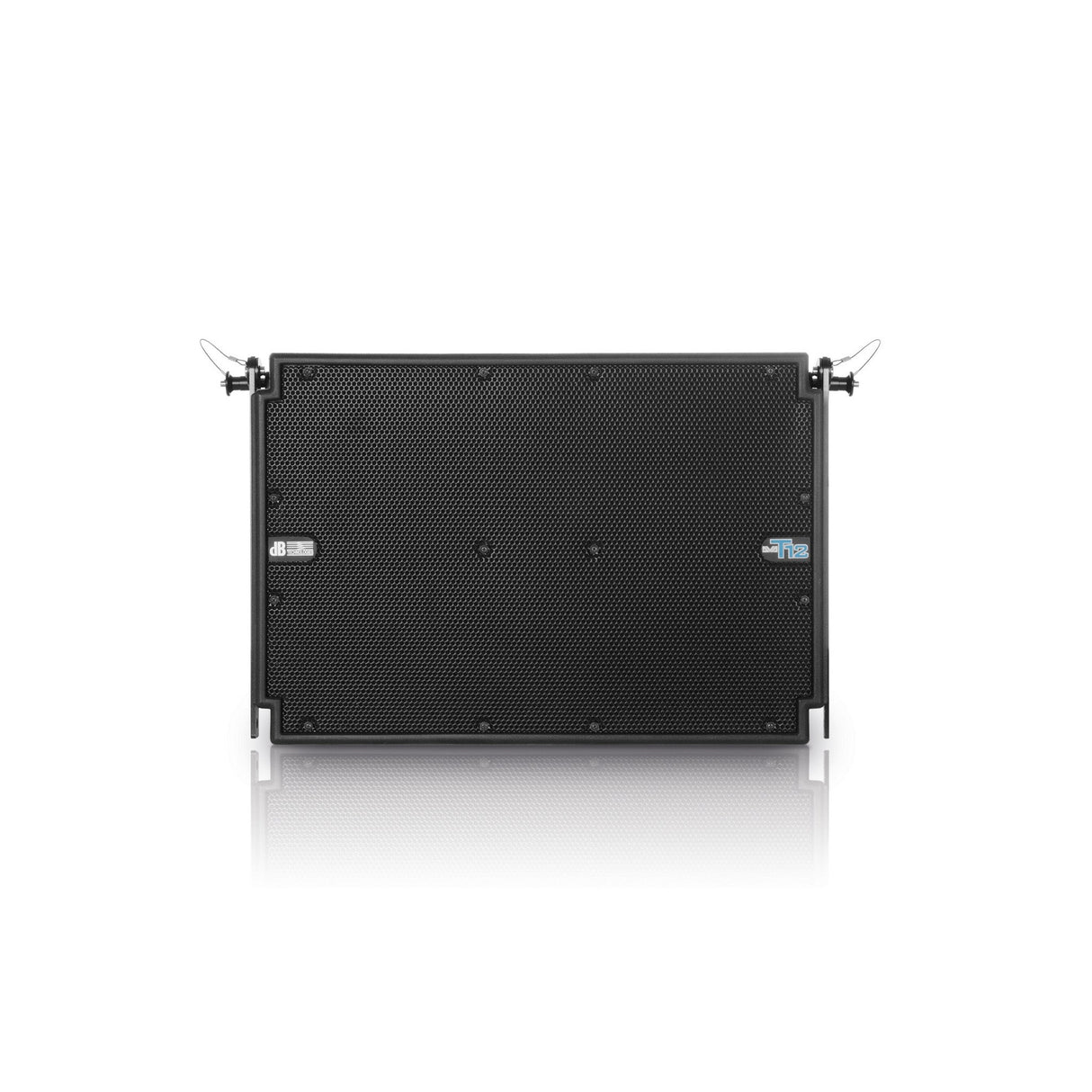

dB Technologies DVA T12 12-Inch Active Line Array Speaker, Black

dB Technologies DVA T12 12-Inch Active Line Array Speaker, Black

DVA T12 features state-of-the-art neodymium speakers and high-performance DIGIPRO digital amps with total of 1,410W output power.

In combination with top-drawer DSP and premium quality AD-DA converter, it delivers high-definition sonic images with massive SPL for large sound reinforcement applications.

A 12” neodymium woofer in a band-pass housing covers the low frequency range. Remarkably powerful, it packs an assertive punch that reaches down to 60 Hz to enable full range applications. The 12” woofer is slanted inside the housing, giving the cabinet a lean, unobtrusive look.

Two 6.5” neodymium midrange is placed close together to maximize coherent coupling and response for those critical midrange frequencies.

The speaker resides in a sealed basket to optimize the displacement volume. This makes the midrange even more responsive. With a high BL factor, it reacts far faster to transients and renders each attack with awesome accuracy. Both 6.5” midrange is equipped with an optimized phase plug and feed into a frontloaded horn to achieve a uniform coverage pattern.

The DVA T12 is loaded with 3 1” HF drivers tuned specifically for the custom designed array horn. This combination maximizes the coupling of the drivers’ outputs and extends the range of the HF signal.

Key Features

• Long-throw system
• Fully powered 3-way unit
• Freely scalable to setups of any size
• High-end digital controller on board
• Network ready with integrated RDNET port
• Hardware compatible with DVA T8 and T4

Technical Specifications

Speaker Type
3-Way Active Line Array Module
Acoustical data
Frequency Response <-6dB>
60 - 19.000 Hz
Max SPL
One Unit: 136 dB
HF
3x1”
Voice Coil HF
1.4”
Directivity
100x10 Degrees Single unit
Horn
Integrated CD Horn
MF
2x 6.5”
Type MF
Neodymium
Sealed Basket
Phase Plug
Horn Loaded
Voice Coil MF
2”
LF
12”
Type LF
Neodymium
Voice Coil LF
3”
Amplifier
Amp Technology
Digipro G2
Amp Class
Class D
HF Amp
350 W RMS
MF Amp
350 W RMS
LF Amp
710 W RMS
Cooling
Convection
Processor
Controller
DSP 56 bit
AD/DA Converter
24 bit/96 kHz
System Presets
8, HF/Low-mid correction
Limiter
Dual Active Limiter
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF
1800 Hz
Slope MF-HF
24 dB/Octave
Crossover Frequency LF-MF
420 Hz
Slope LF-MF
24 dB/Octave
Input
Signal Input
1x XLR fem, Bal.
Signal Output
1x XLR male, Bal.
Network
RDnet remote control RJ45 connector IN/OUT
Power Socket
1x Powercon In
1x Powercon Out
Voltage Range
90 - 240 V
Mechanics
Housing
Polypropylen PP
Aluminum reinforced
Housing Design
Trapezoidal 10°

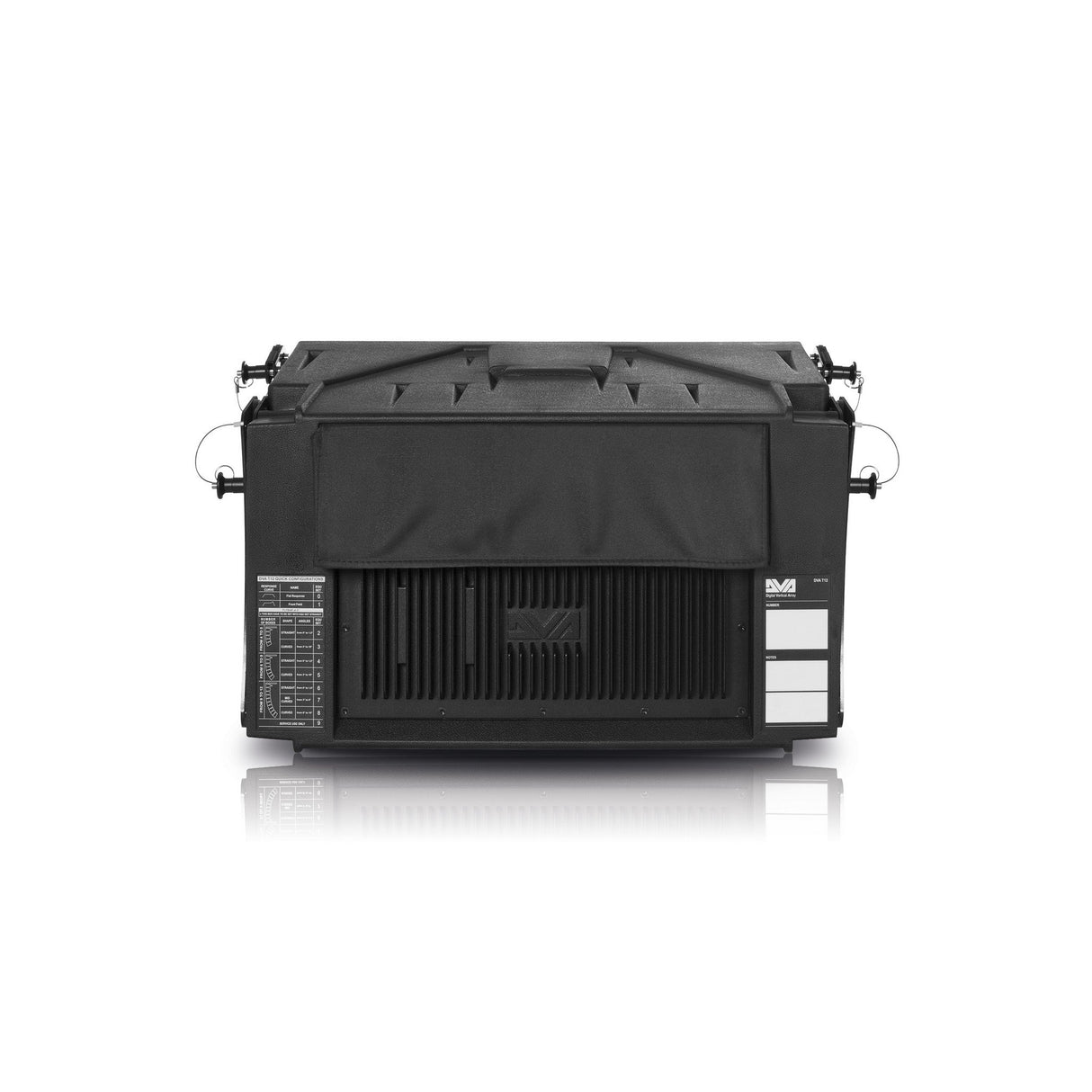

Rain Cover
Included
Rigging Points
Integrated rigging hardware
Width
580 mm (23.2 in)
Height
386 mm (15.44 in)
Depth
430 mm (17.2 in)
Weight
29.9 kg (63.93 lbs)
