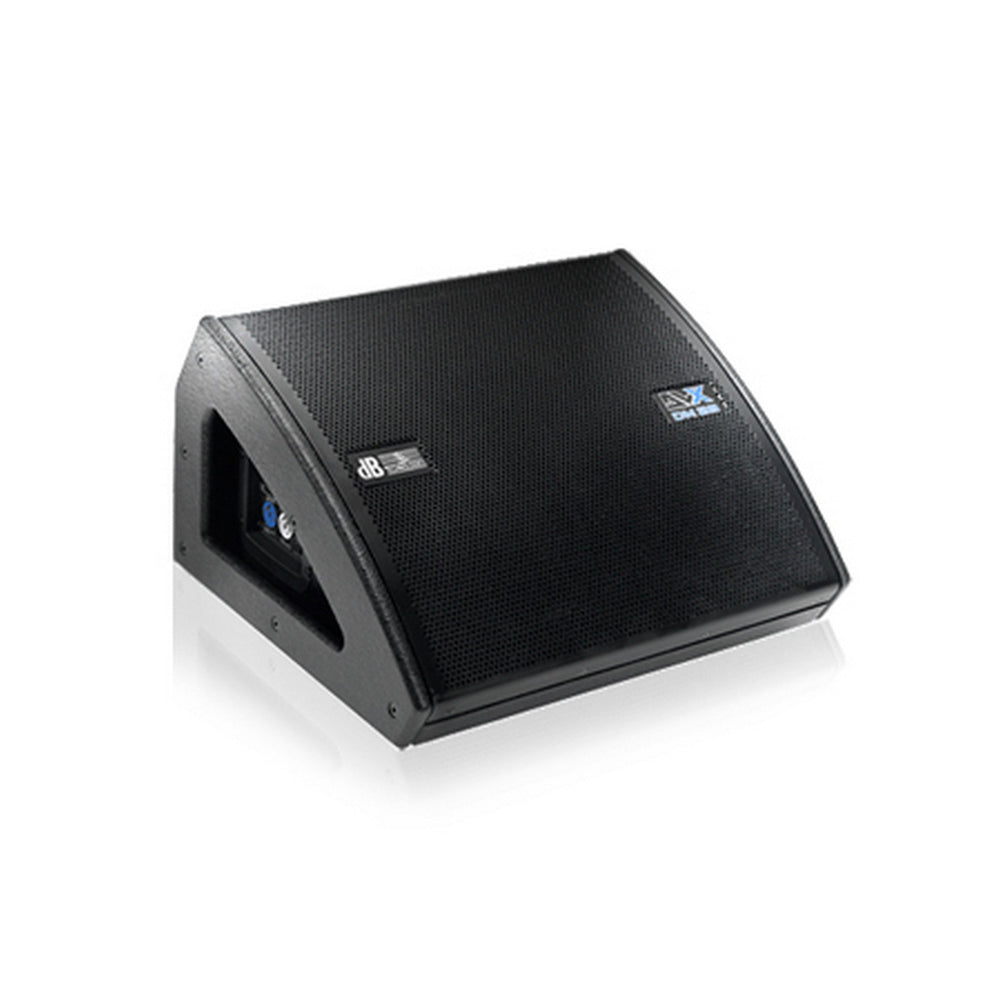

dB Technologies DVX DM28 750W 2 x 8-Inch 2-Way Active Floor Monitor

dB Technologies DVX DM28 750W 2 x 8-Inch 2-Way Active Floor Monitor

The DVX DM28 excels at rendering speech and vocals. Users’ search for natural response, dynamic balance, and high SPL in a compact, inconspicuous package ends with this stage monitor. The ultra-low-profile enclosure sports two 8” neodymium woofers with large 2.5” voice coils that go about their business of rendering signals with impressive precision.

In contrast to cabinets loaded with simple 8” speakers, the DVX DM28 packs a mighty low-midrange punch.

What’s more, it responds far faster to transients in the signal, rendering each attack with awesome accuracy and power.

Offering far greater dynamic range, it outperforms standard 12” systems by.

A combination of asymmetrical CD horn (90° x 60° (40°)) and precision-matched 1” neodymium compression driver efficiently couples high frequencies.

The digipro digital power amp featuring a PFC switched-mode power supply and the speakers are fine-tuned to minimize the risk of feedback, ensuring the DVX DM28 remains remarkably feedback resistant even at peak SPL.

Made of rugged multiplex and coated with tough black lacquer, its light low-profile enclosure sets up at two different angles.

The integrated controller acts as the enclosure’s controller, serving as an active equalizer, active x-over with phase and delay time alignment, and controlling the onboard limiter.

Key Features

• 2-Way Active Stage Monitor
• 90 x 60/40 Degrees directivity
• 2x 8” Neodymium woofers, 2.5” voice coil
• 1” Neodymium driver, 1.75” voice coil, with asymmetrical horn
• 750W RMS Class-D Digipro amplifier
• 24 bit 48 kHz DSP
• Multiband, RMS/Peak, Thermal Limiter
• Flat / Monitor EQ presets

Technical Specifications

Acoustical data
Frequency Response <-10dB>
60 - 20.000 Hz
Frequency Response <+/- 3dB>
70 - 19.000 Hz
Max SPL
130 dB
HF
1”
Type HF
Neodymium Compression Driver
Voice Coil HF
Titanium 1.75”
Directivity
90x60/40 Degrees
Horn
Aysmmterical
LF
2x8”
Type LF
Neodymium
Voice Coil LF
2.5”
Amplifier
Amp Technology
Digipro
Amp Class
Class D
Power RMS
750 W
Peak Power
1500 W
Cooling
Convection
Processor
Controller
DSP 24 Bit/48 kHz
System Presets
Flat, Monitor
Limiter
RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF
1600 Hz
Slope MF-HF
24 dB/Octave
Mechanics
Housing
Multiplex plywood
Housing Design
Low Profile Multifunctional
Angles Up
30, 60 Degrees
Width
480 mm (19.2 in)
Height
265 mm (10.6 in)
Depth
418 mm (16.72 in)
Weight
14 kg (30.86 lbs)
