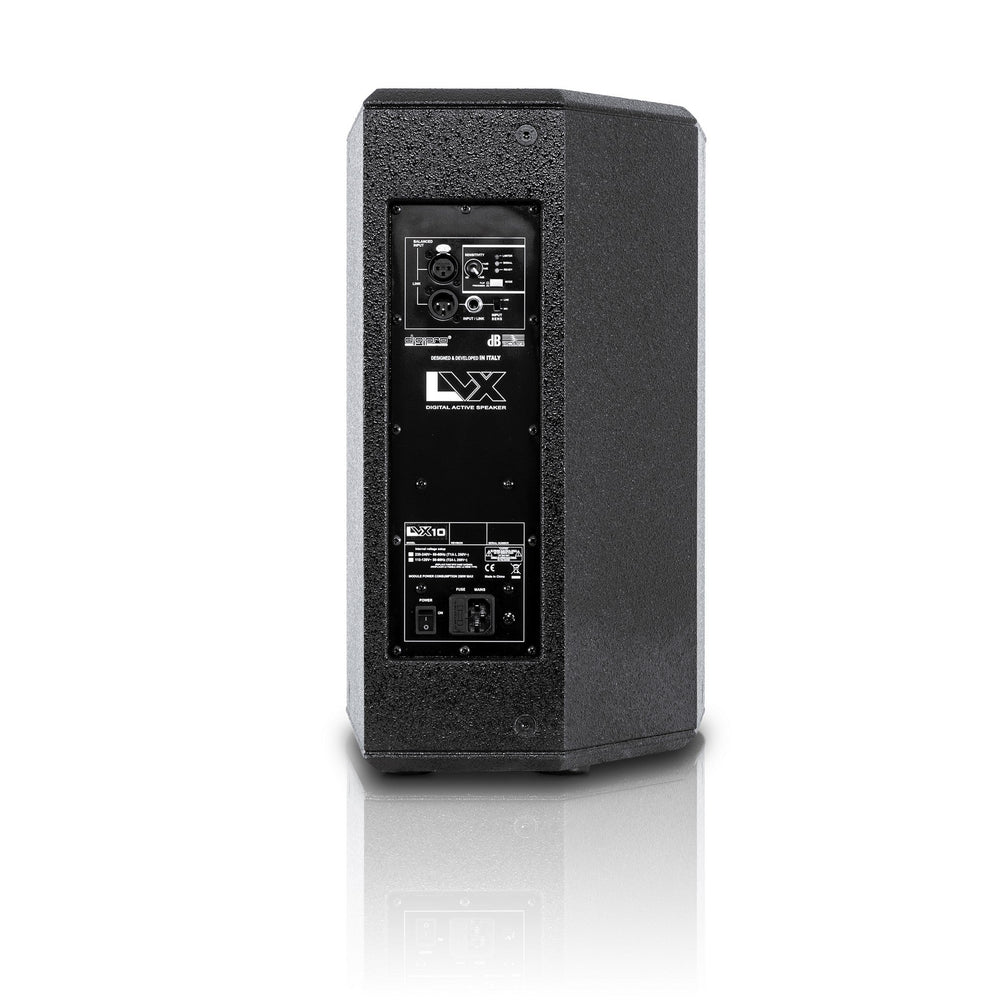

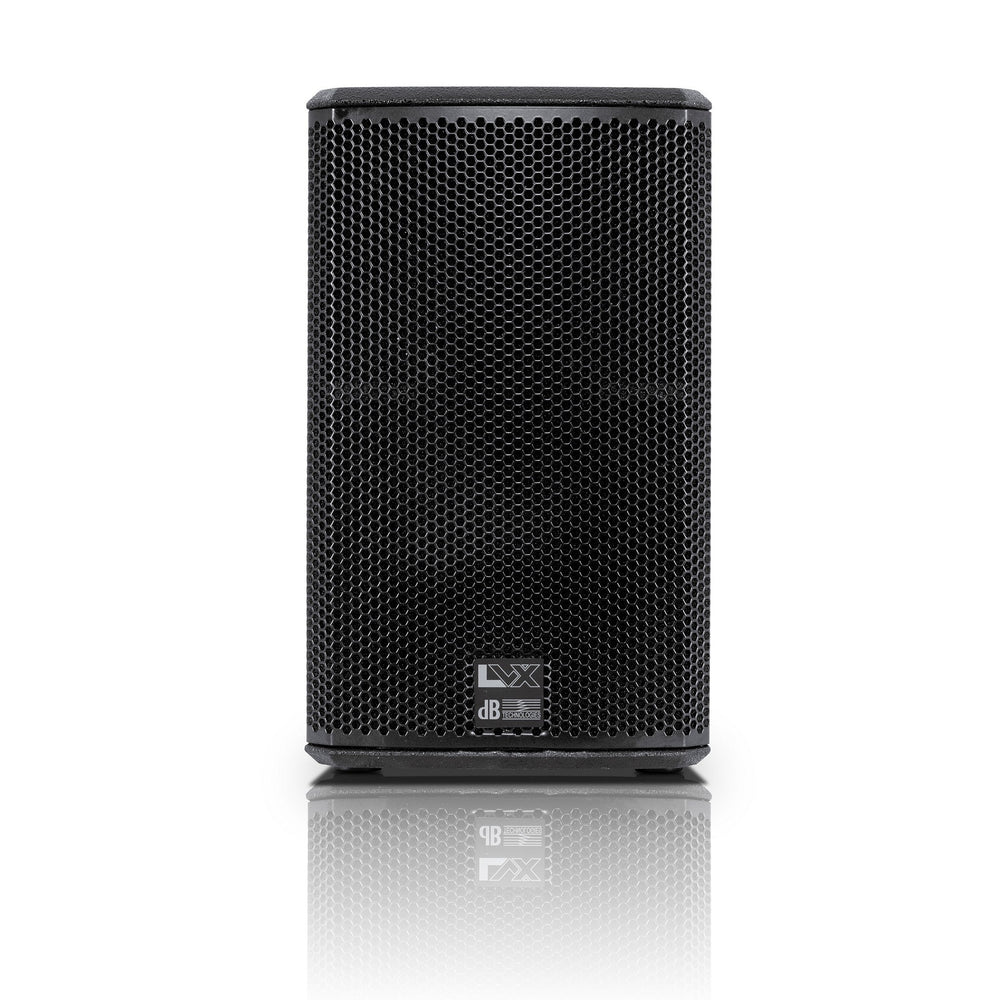

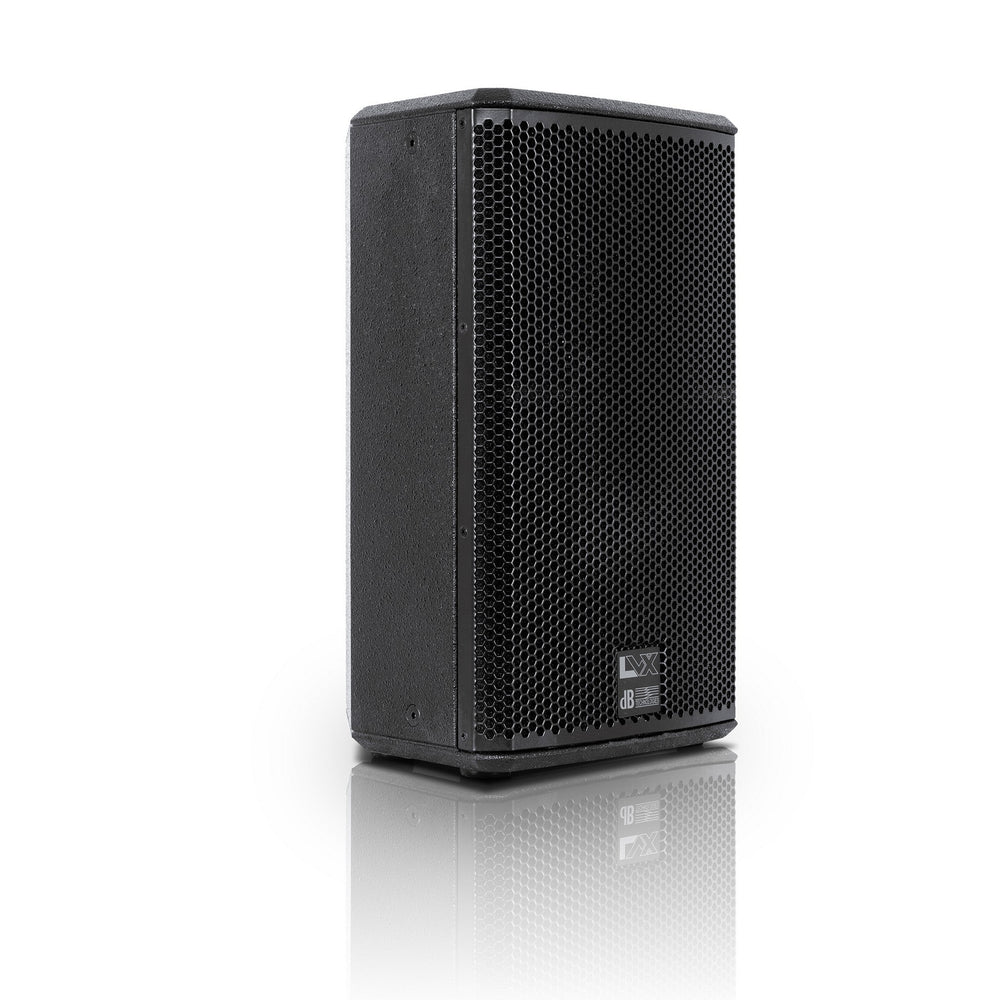

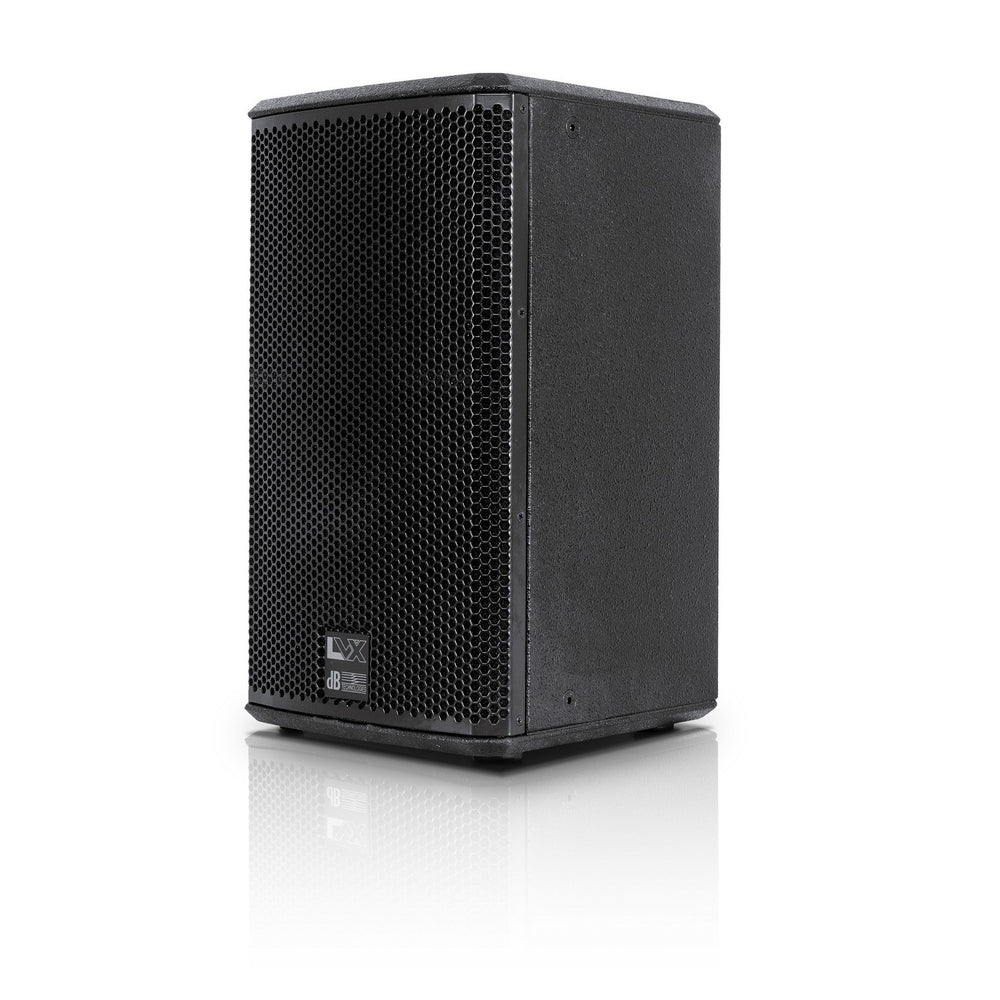

dB Technologies LVX 10 10-Inch 400W 2-Way Active Speaker, Black

dB Technologies LVX 10 10-Inch 400W 2-Way Active Speaker, Black

LVX active loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful. As a result of the experience in touring gear designing, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.

The enclosure is made of robust 12mm plywood with a look very elegant and refined.

LVX 10 provided with a single top handle to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods.

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finishes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look.

Key Features

• 2-Way Active Speakers
• 400W Class-D Digipro amplifier
• 10” woofer (2” voice coil)
• 1” compression driver
• 90° x 70° directivity
• Rotatable Compr. Driver Horn
• AD/DA 24 bit 48 kHz
• EQ presets selection
• Peak, RMS, Thermal Limiter
• 12x M8 Rigging points
• No Cooling Fan

Technical Specifications

Acoustical data
Frequency Response <-10dB>
60 20.000 Hz
Frequency Response <-6dB>
70 19.000 Hz
Max SPL
125 dB
HF
1”
Directivity
90 x 70°
Horn
Rotatable CD Horn
LF
10”
Amplifier
Amp Technology
Digipro G2
Amp Class
Class-D
Peak Power
800 W
PRG Power
400 W
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Processed
Limiter
Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF
2050 Hz
Slope LF-HF
24 dB/Octave
Mechanics
Housing
MDF
Angles Up

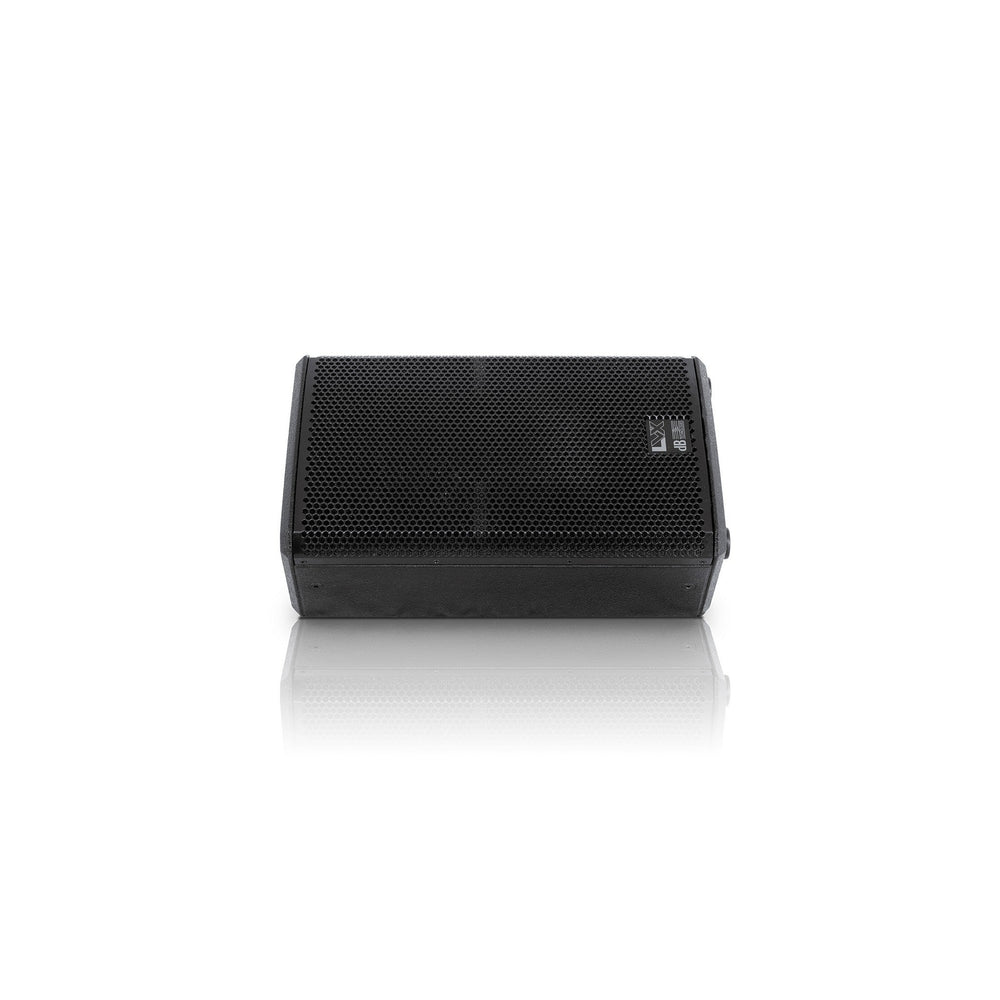

Monitor use 40 Degrees
Handles
1x top side
Rigging points
12 x M8
Pole Mount
D36 mm
Width
300 mm (11.8 in)
Height
480 mm (18.9 in)
Depth
300 mm (11.8 in)
Weight
13.5 kg (29.76 lbs)
