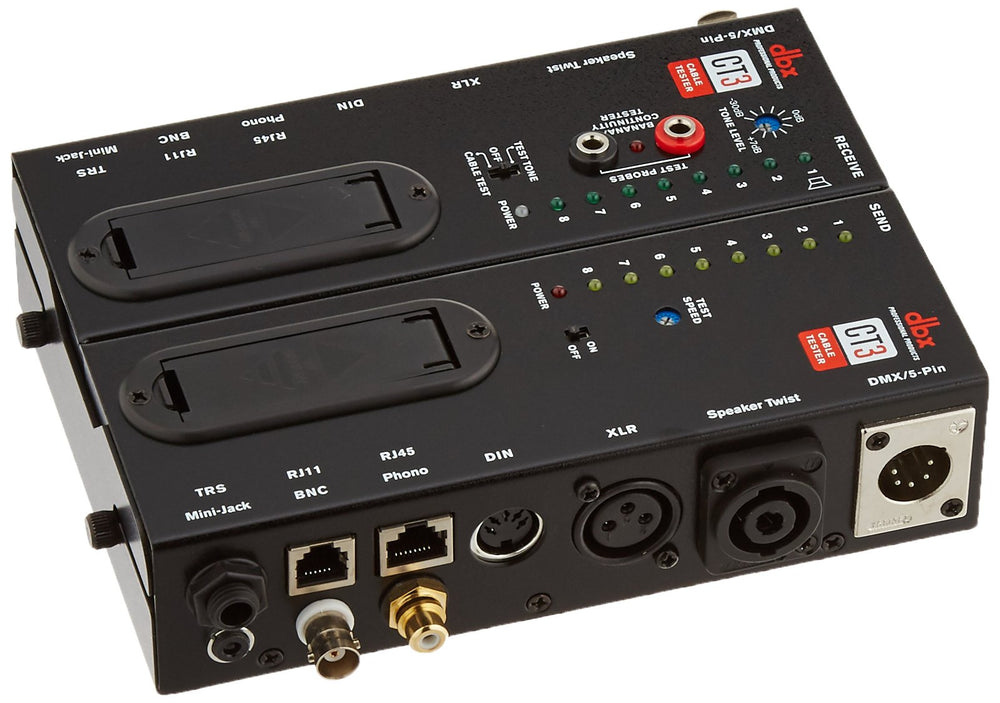

DBX CT3 Advanced Audio Cable Tester Unit
The dbx CT3 is an advanced cable testing unit allowing you to evaluate a large variety of cables with ease. The CT3 offers many common connectors such as RJ45, RJ11, MIDI, Speaker Twist, XLR, RCA Phono, BNC, DIN, TRS, TS, DMX, & Banana. It can be split into 2 parts, a SENDER and RECEIVER so preinstalled and long cables can be tested.
Key Features
- Tests up to 8-pin cables
- 2 piece chassis for testing installed cables
- Test Tone Generator
- Allows connection between different format connectors with ease
- 'Banana' connector continuity tester with beeper and LED indicator
- Super-rugged construction for durability and longer life
- (2) DMX (5-pin) connectors for testing of 5 pin-> to pin connections
- (2) BNC connectors for testing of 2 pin-> to pin connections
- (2) RCA Phono connectors for testing of 2 pin-> to pin connections
- (2) XLR connectors (1 x Male, 1 x Female) for testing of 3 pin-> to pin connections
- (2) MIDI (5-pin DIN) connectors for testing of 5 pin-> to pin connections
- (2) Speaker Twist connectors for testing of 4 pin-> to pin connections
- (2) Banana connectors for testing of 1 pin-> to pin connections
- (2) 1/4" (6.3mm) TRS/TS connectors for testing of 3 pin-> to pin connections
- (2) RJ45 connectors for testing of 8P8C modular connections
- (2) 1/8" (3.5mm) TRS/TS connectors for testing of 3 pin-> to pin connections
Technical Specifications
Power Requirements: (2) 9V batteries, one per side (Batteries not included)
Dimensions: 3.5" (8.9cm) (W) x 5.5" (14cm) (L) x 1.5" (3.7cm) (H)
