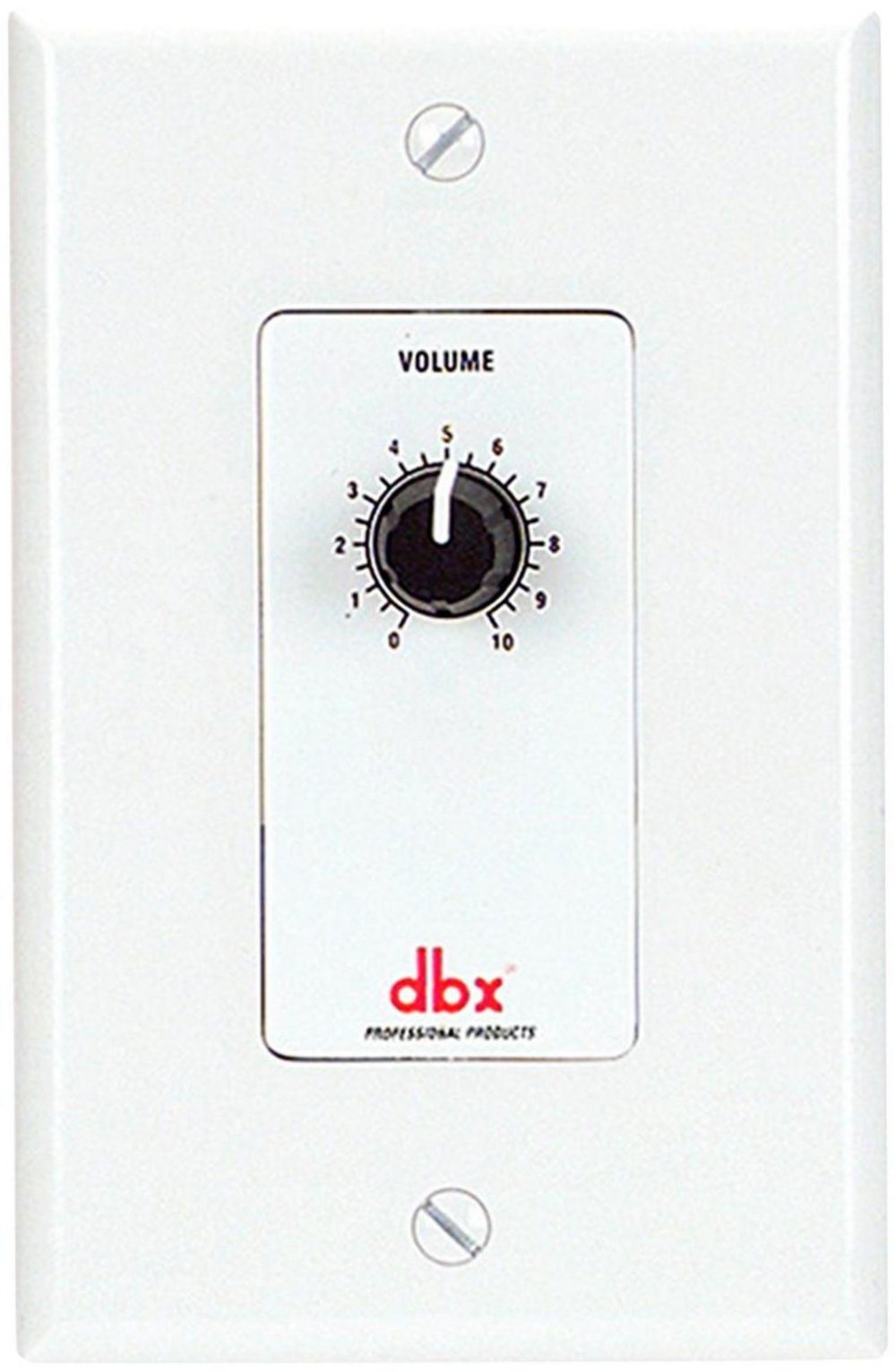

DBX ZC-1 Rotary Volume Control for DriveRack and ZonePro
The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-1 provides programmable remote volume control for the DriveRack 220i, 260 and ZonePRO devices.
All information is subject to change without notice.
Recommended for: Installed.
Key Features
- Provide computer programmable rotary potentiometer volume control for the dbx DriveRack 260, 220i and ZonePRO devices.
- Have DIP switches allowing identification with connection to the processing device via CAT 5 cable on RJ-45 connectors.
- The device shall be a dbx ZC-1 remote controller.
Technical Specifications
Connectors
(2) RJ-45
Series Wiring
Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB
Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable
CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications
UL 60065, IEC 60065, EN 55013, E60065
