DBX ZonePro 640m 6x4 Digital Zone Processor

The ZonePRO 640m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus.

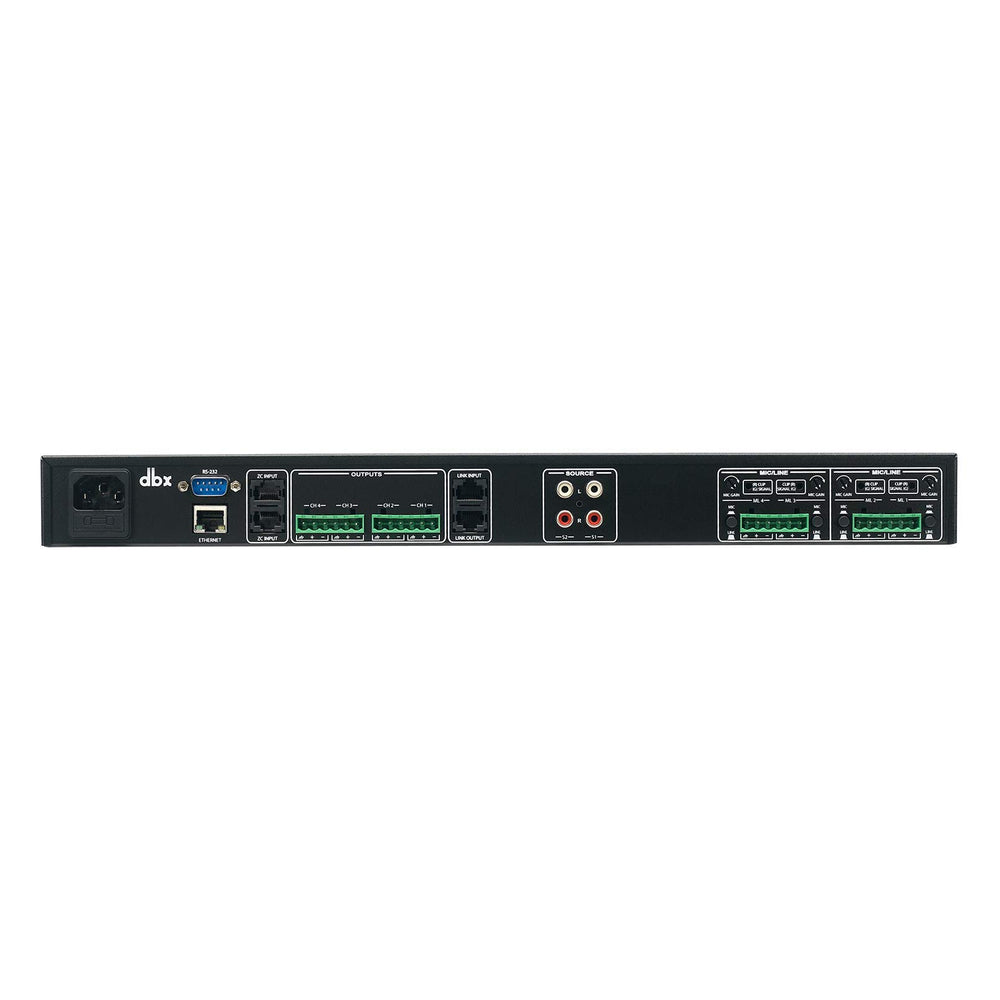

The 640m features a total of six inputs and four outputs. Inputs include four balanced mic/line switchable terminal block inputs and two mono-summed pairs of unbalanced RCA inputs. Hardware-controlled microphone gain allows adjustment of microphone gain per channel.

The 640m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone.

A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required.

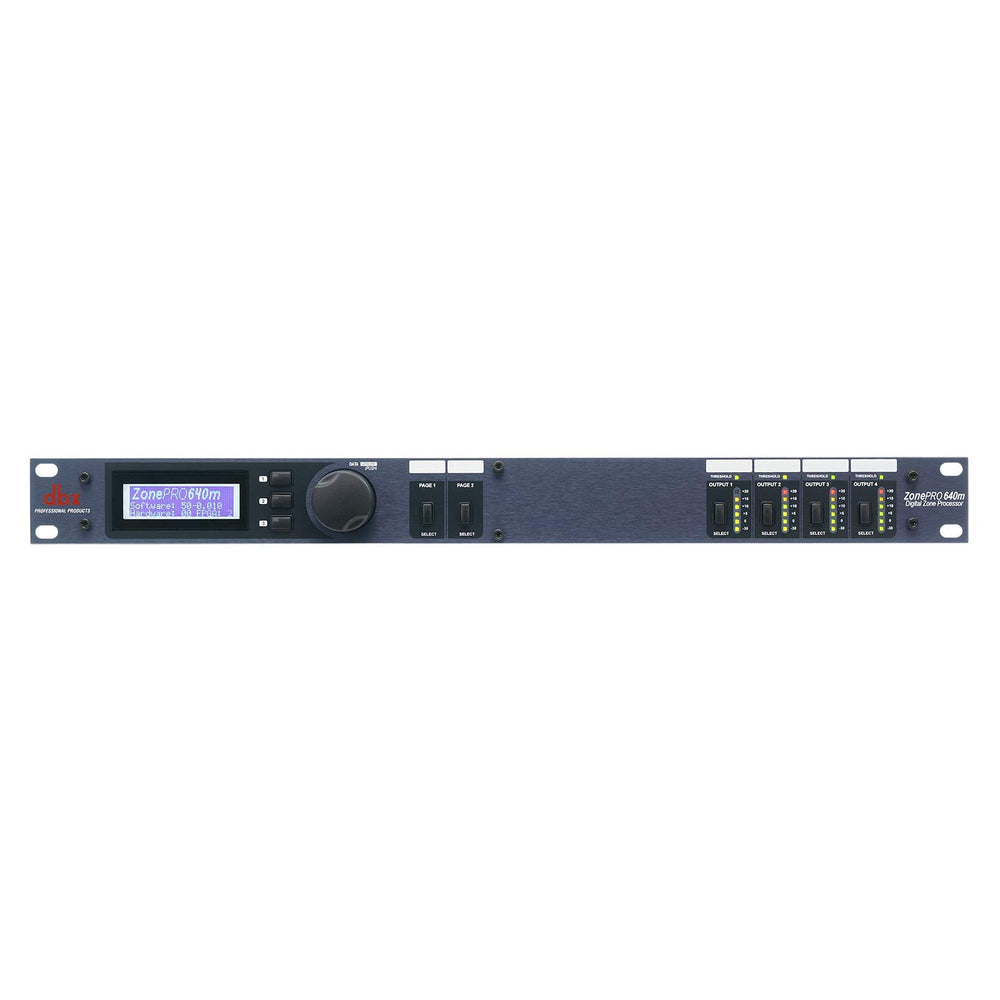

The front panel of the 640m features comprehensive signal metering, an informative LCD display and user-specified front panel control.

Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control.

All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable (see table for further information).

ZonePRO Designerthe configuration, control and monitoring software for the ZonePRO family of devicesoffers control of the ZonePRO 640m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-by-step configuration process of the 640m.

Recommended for: Installed.

Key Features

• 6 Inputs / 4 Outputs
• 4 Balanced Mic/Line Inputs
• 2 Unbalanced, Mono-Summed RCA Input Pairs
• Microphone Gain per Channel
• Pre-Configured Architecture
• Two Configurable Input Insert Positions
• One Configurable Output Insert Position
• AutoWarmth per Output Zone
• Link Bus
• Comprehensive Signal Metering
• Front Panel LCD
• User-Specified Front Panel Control
• Optional ZC Controllers
• Ethernet Control
• Serial Control
• Third Party Control
• Wizard-Driven Configuration

Technical Specifications

Indicators
4 Independent Six-Segment Lightpipe Output Meters that range from -30 to +20 dBu, Threshold Meters
LCD Display
LCD Display provides information about Source Selection, Page Steering, Zone Volume and Mute
Input
6 Total (4) Switchable Mic or Line, (2) Unbalanced, Mono-Summed RCA Input Pairs
Input Connectors
Euroblock (Line and Mic) RCA (Source)
Input Type
Electronically balanced/RF-filtered
Input Impedance
Euroblock: >50k Balanced, >25k Unbalanced, RF Filtered; RCA: >25k Unbalanced, RF Filtered
Max Input
+20dBu Mic/Line, +12dBu RCA
CMRR
>40dB, typically >55dB @ 1 kHz
Mic Preamp gain
30 to 60dB
Mic Preamp Equivalent Input Noise (EIN)
< -118dBu, 22Hz-22kHz, 150 Source Impedance
Mic Preamp Phantom Power
+15VDC
Output
4 total
Output Connectors
Euroblock
Output Type
Electronically Balanced, RF Filtered
Output Impedance
120 Balanced, 60 Unbalanced
Max Output
+20dBu
A/D Converter
dbx Type IV conversion system
A/D Dynamic Range
(line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range
>119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Digital Output Dynamic Range
>114 dB A-weighted, 110dB unweighted
Sample Rate
48kHz
D/A Dynamic Range
112 dB A-weighted, 109dB unweighted, 22kHz BW
Dynamic Range
>109 dB A-weighted, >106 dB unweighted, 22kHz BW
THD+Noise
0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response
20Hz - 20kHz, +/-0.5dB
Interchannel Crosstalk
>80dB typical
Propagation Delay
0.6 msec
Operating Voltage
100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption
29 W
BTU
<92.13
Safety Agency Certifications
UL 600065, IEC 60065, EN 55013, E60065
