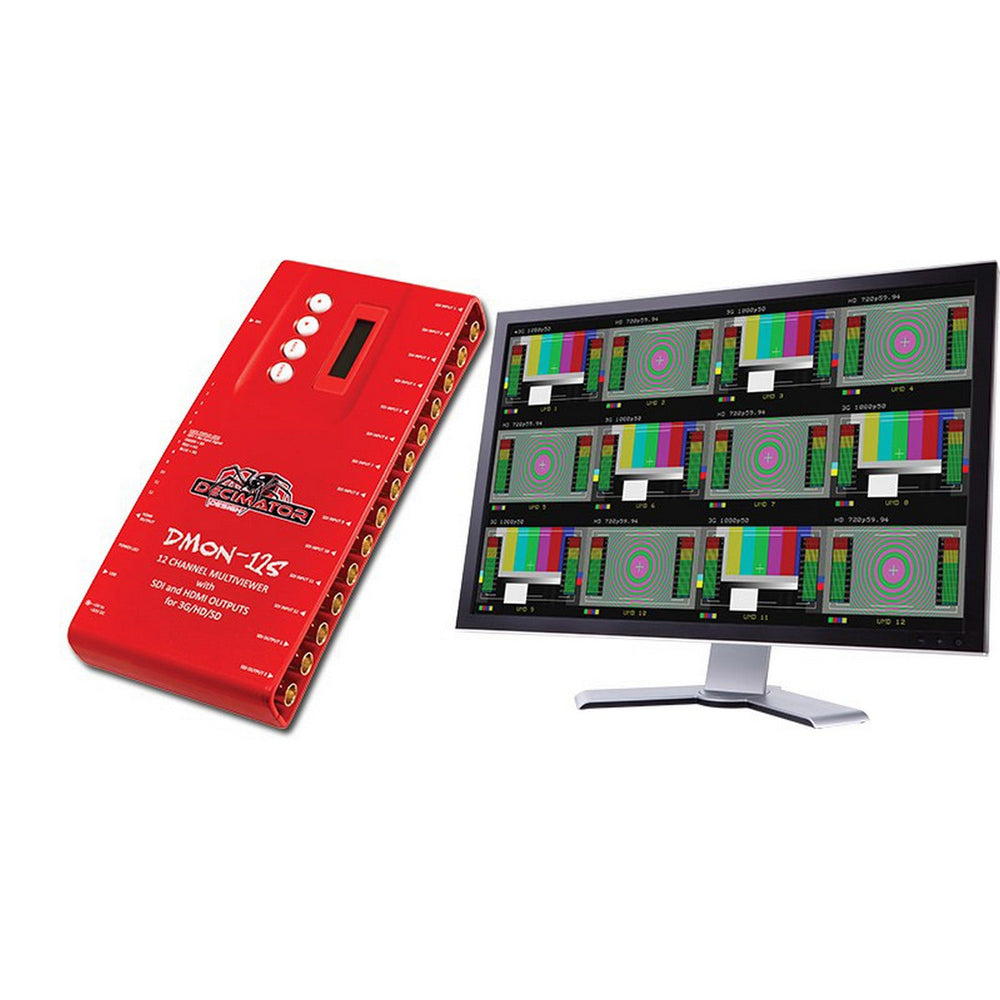

Decimator Design DMON-12S 12 Channel Multi Viewer with HDMI SDI Outputs

1 to 12 Channel MultiViewer with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts.

Key Features

• Low cost miniature (3G/HD/SD)-SDI 12 to 1 Multiviewer or 12 to 1 input multiplexer
• Various multiviewer layouts
• Selectable output format in Multiviewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 12 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each quadrant is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per quadrant
• Pass-Through mode allowing any of the 12 inputs to be selected for output
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs
• Heavy duty metal box
• Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cable

Technical Specifications

SDI INPUT & OUTPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s
1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
625i50
525i59.94
NOTE: Decimator regularly adds new features through free downloadable firmware upgrades.
LCD / BUTTON MENU OPTIONS
HDMI output type
Multiviewr layout
Multiviewer or source selection
Multiviewer output format selection
Multiviewer output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
Multiviewer individual aspect format for each input of
Same as output, Letter-box or Pillar-box
Multiviewer mode reference
HDMI OUTPUT FORMATS
1080p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25
625i50
525i59.94
INPUTS
12 x (3G/HD/SD)-SDI
Input Equalization > 100M using Belden 1694A
USB for control and updates
LED STATUS
Power
12 x Signal lock and rate
OUTPUTS
HDMI Type A
2 x SDI (3G/HD/SD)-SDI
POWER
+5V to +32V DC
Positive Centre Pin
DIMENSIONS
220mm x 103.7mm x 29.5mm (8.7" x 4.1" x 1.2")
