Digital Forecast Bridge M_SH | HD/SD to HDMI Signal Converter
Description
Description

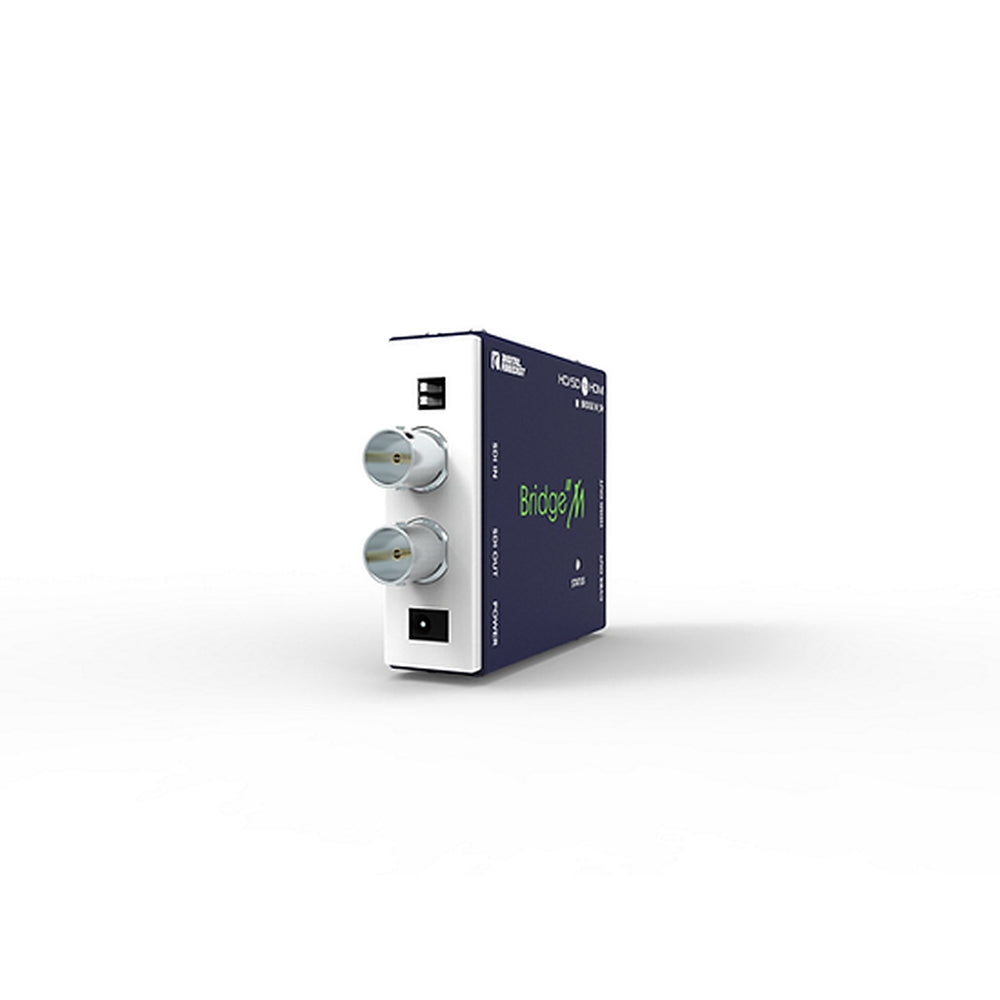

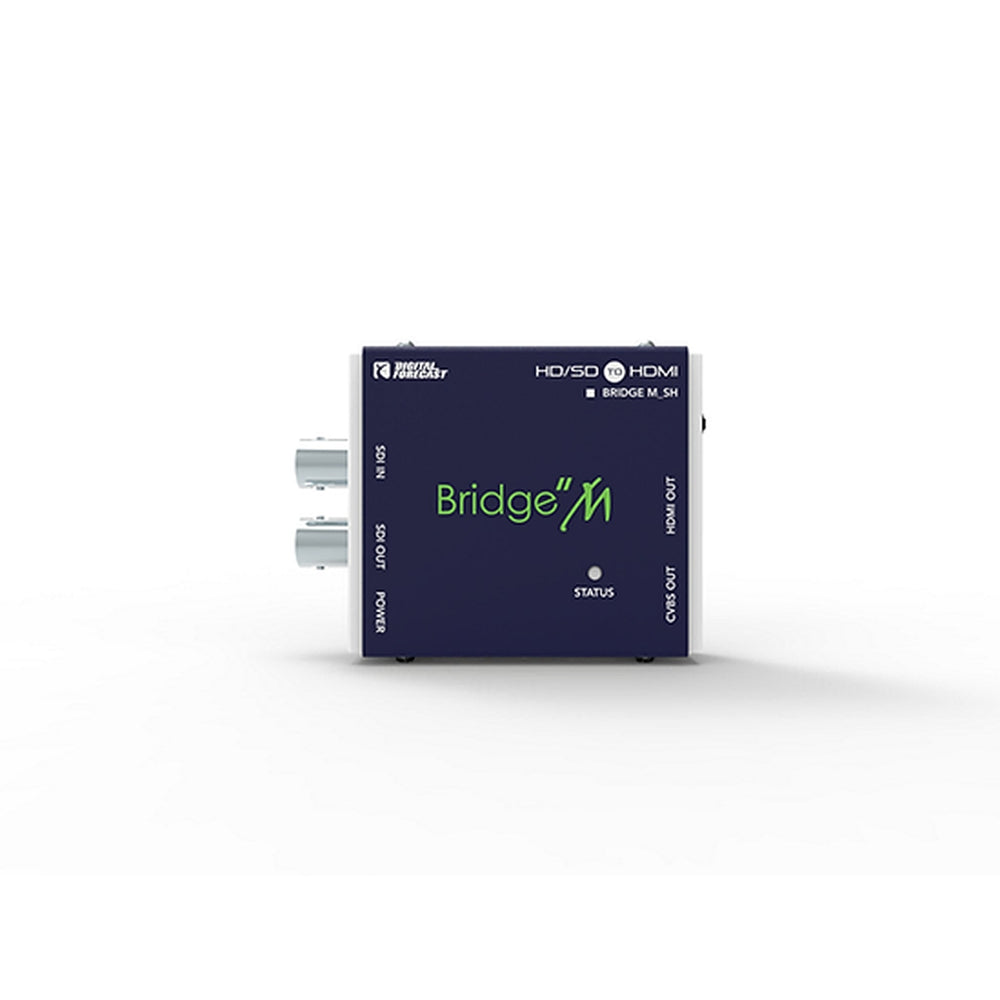

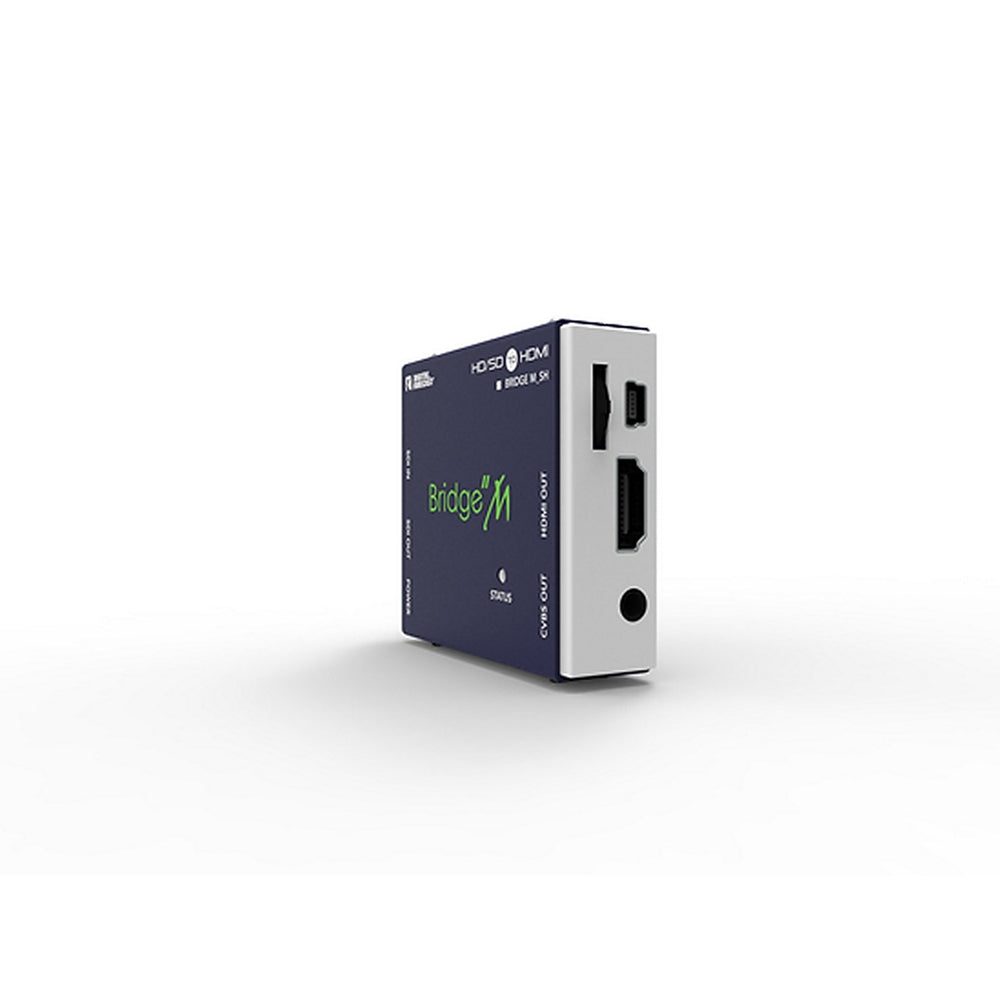

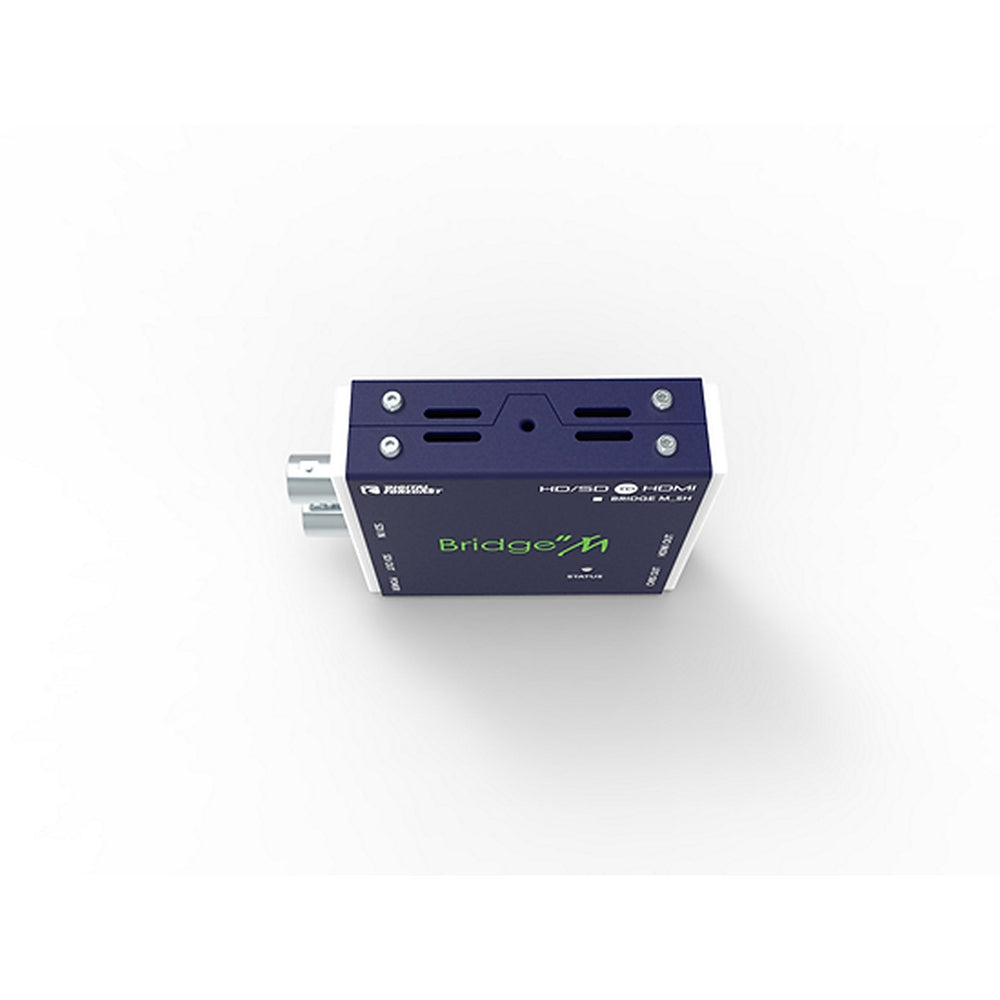

Digital Forecast Bridge M_SH HD/SD to HDMI Signal Converter
Bridge M_SH is a device that will convert an SDI signal of SMPTE standardsthe to HDMI signal. It'support the format of up to 1080p60. In addition, it is also possible to support CVBS outputs for monitoring, fixing the output in a specific format.
Key Features
- HD/SDI to HDMI converter
- Small and High end Function inside High video processing engine.
- SDI signal monitoring for TV
- Normal Bypass mode or fixed format out mode
- 1 HD/SDI input ( SD/HD/3G all standard format )
- 1 HD/SDI input Re-clocking out
- 1 HDMI out ( SD/HD/3G all standard format )
- Low power consumption
- DC 5V ~ 24V wide operating range
Technical Specifications
Digital Video Specs.
Supports HDMI v1.3
Supports multi-rate SDI formats
SMPTE 125M: NTSC (480i 59.94), PAL (576i 50)
SMPTE 296M: 720p (60/59.94/50)
SMPTE-274M,SMPTE-292M: 1080i (60/59.94/50)
1080p (30/29.97/25/24/23.98)
SMPTE-424M: 1080p (60/59.94) 3G
Physical
Dimension (H x W x D): 68 x 59.2 x 20 (mm)
Weight: 90g
Power Level +12 VDC
Power Consumption: 3.0Watts (Max: 4Watts)
Operating Temperature: -20 ~ 70
Humidity: 0 to 95% RH, non-condensing
Data Rate 3 Gbps
Signal Level 800mVp-p +/50m
