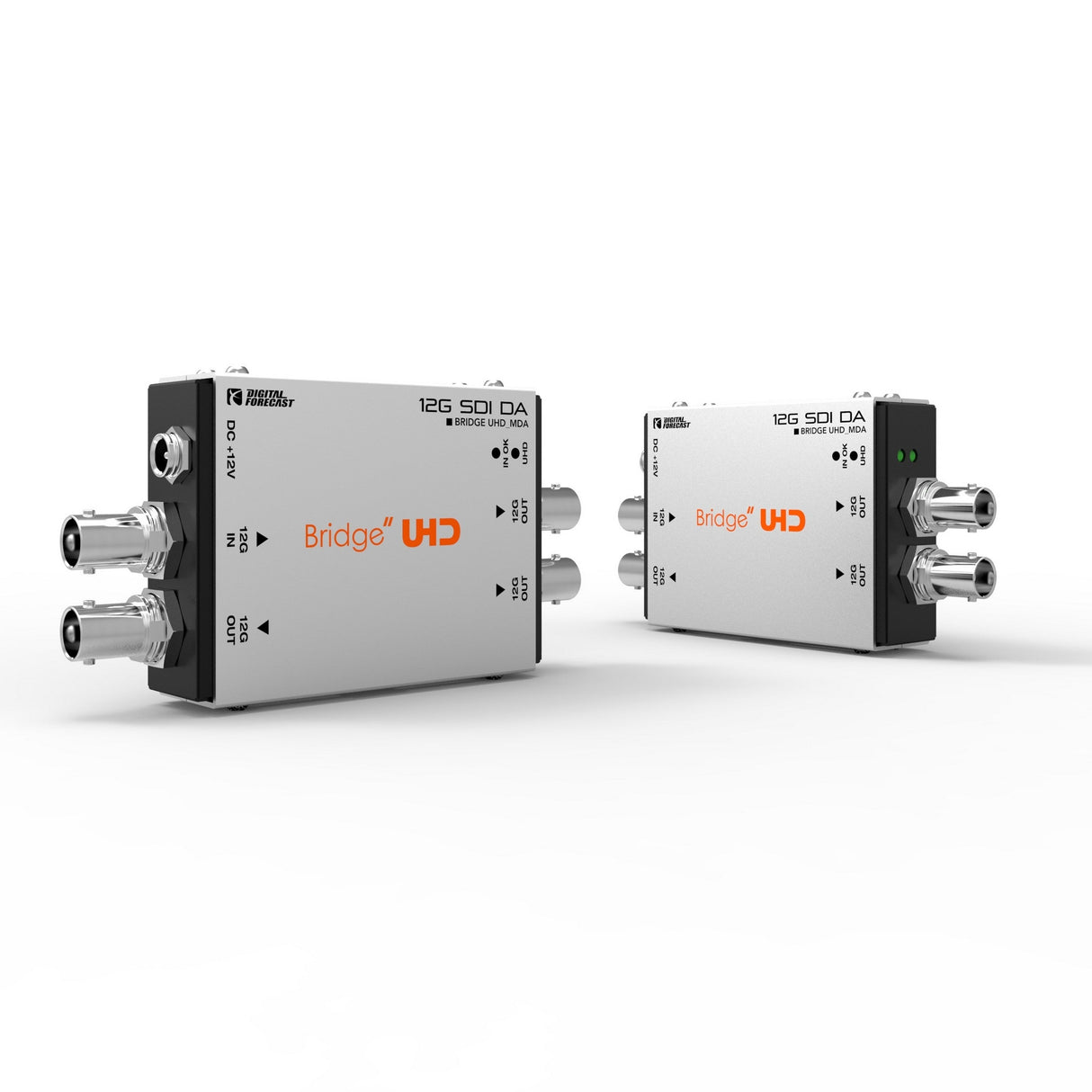

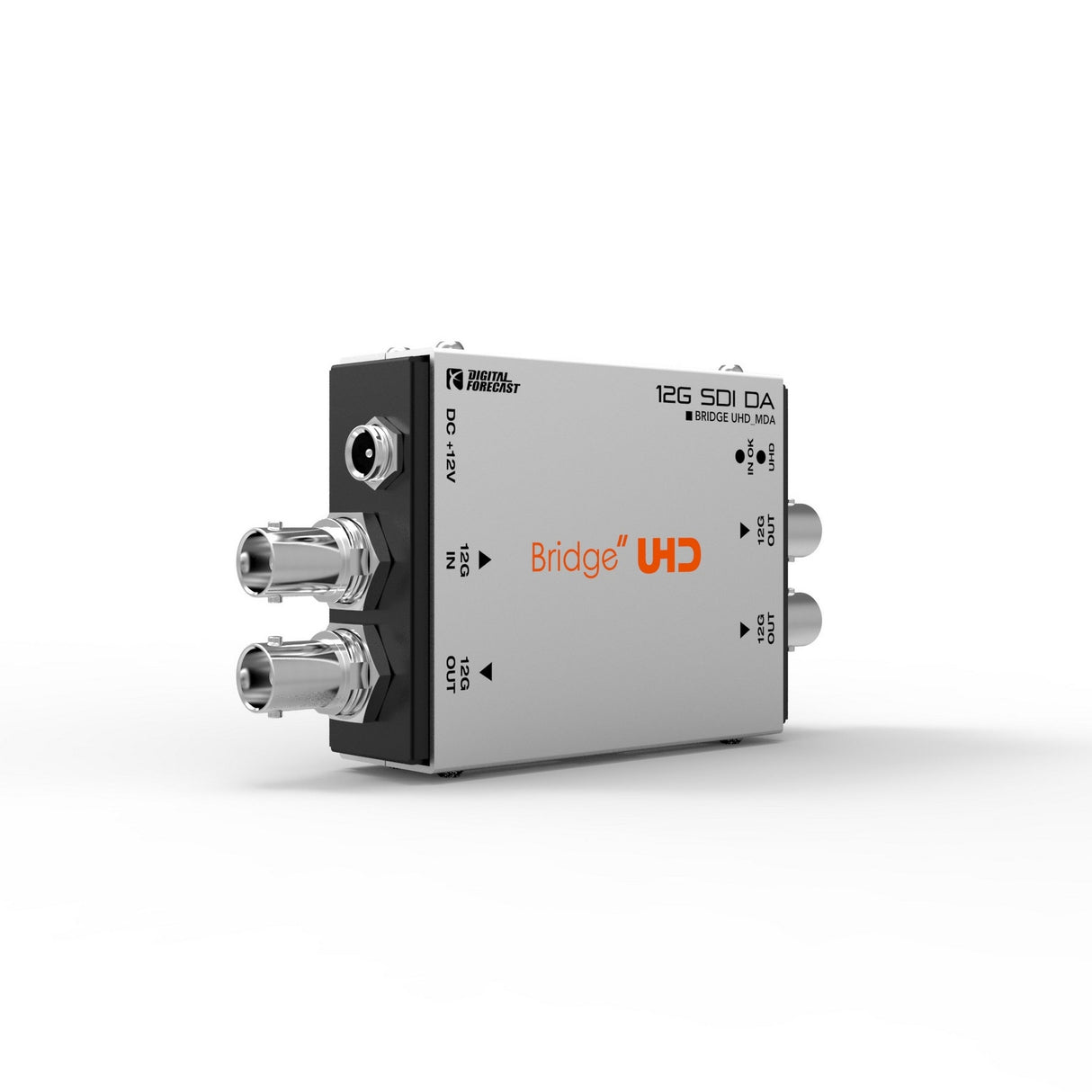

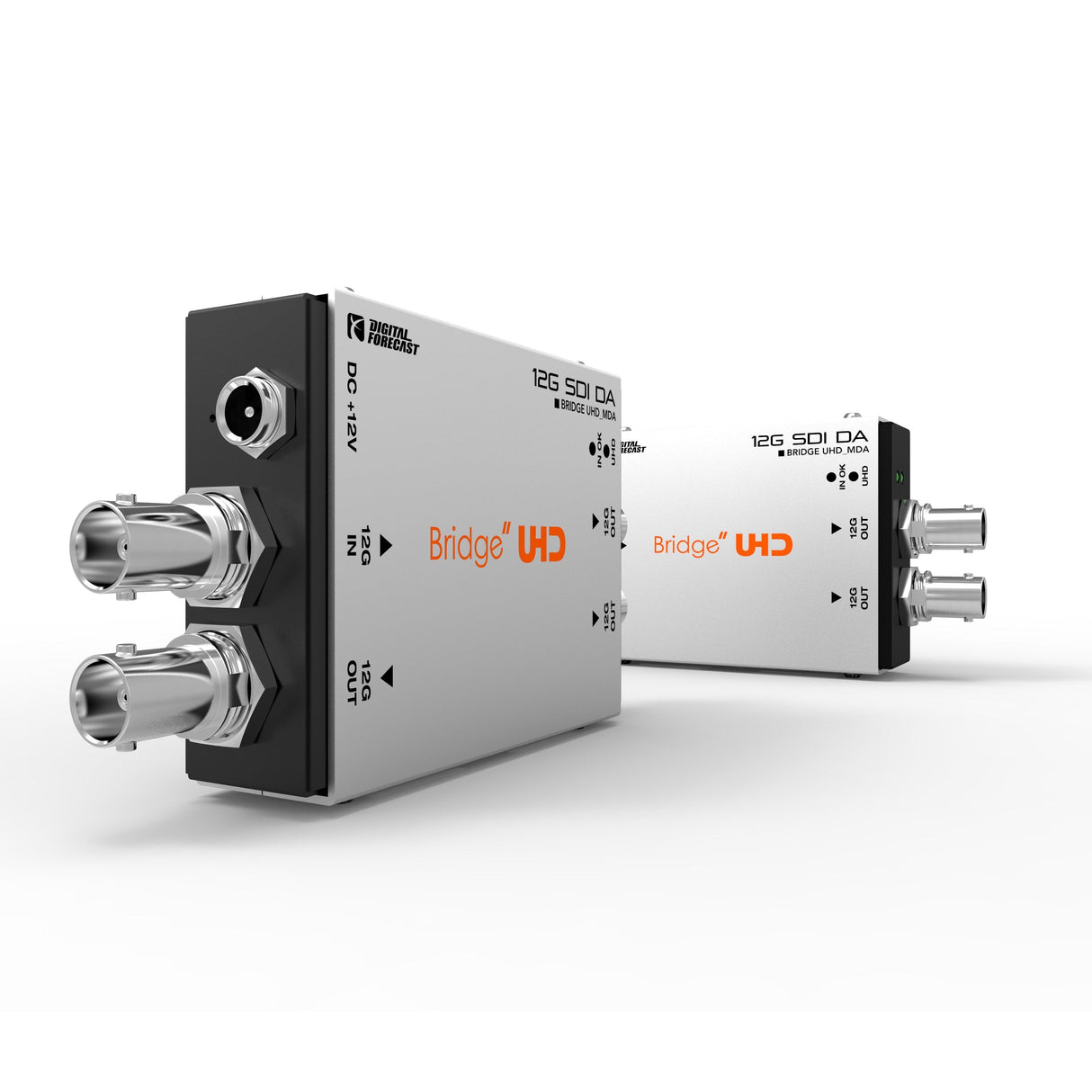

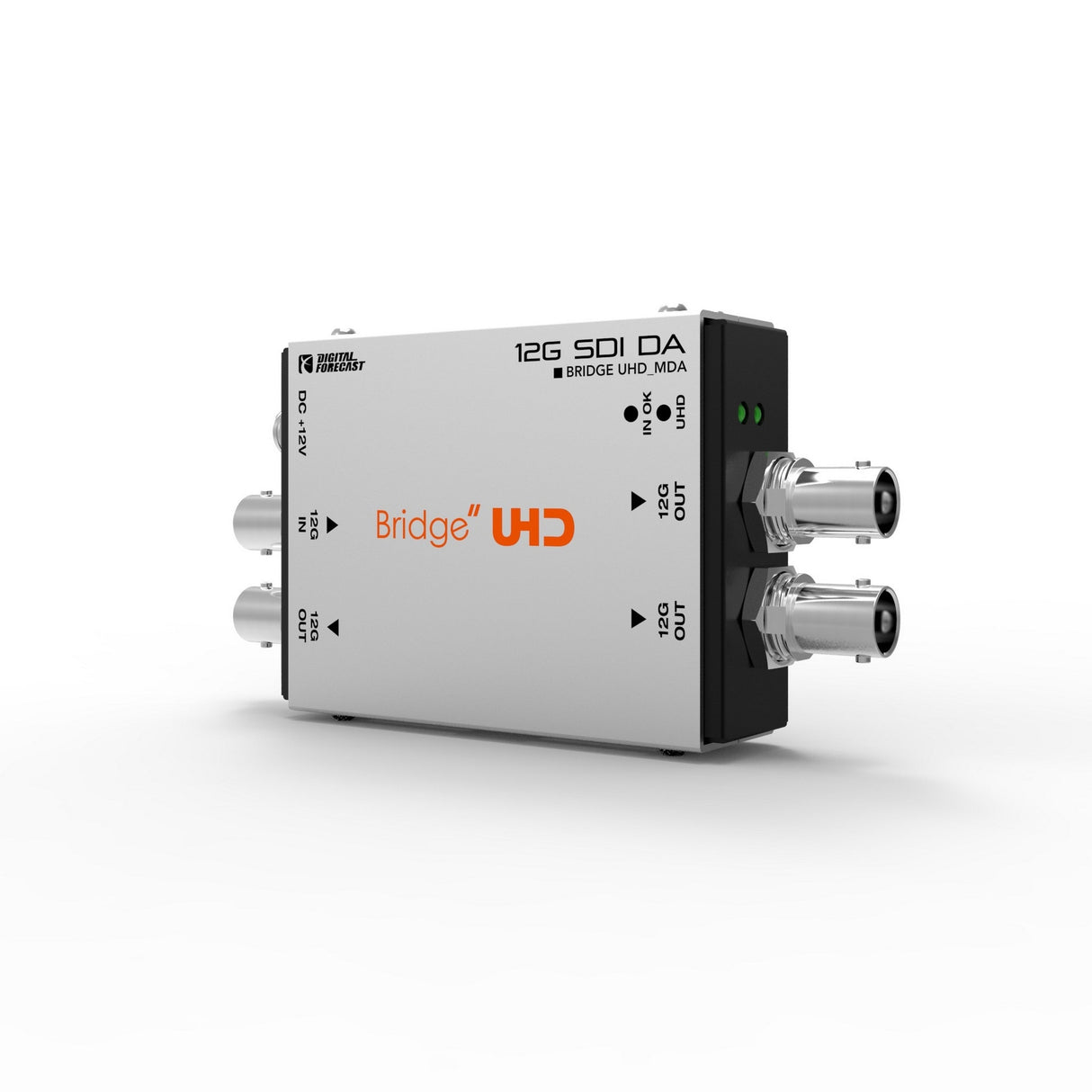

Digital Forecast Bridge UHD M_DA 12G SDI Distribution Amplifier
Digital Forecast Bridge UHD M_DA 12G SDI Distribution Amplifier is backordered. Please call for ETA 877-779-8964
Condition: New
Digital Forecast Bridge UHD M_DA 12G SDI Distribution Amplifier
Description
Description
Digital Forecast Bridge UHD M_DA 12G SDI Distribution Amplifier
Bridge UHD M_DA is the device distributing SDI signals of SMPTE standards. The supported format is from 480i to UHD. And Re-clocker and equalizer are built-in as able to be used as a repeater.
Key Features
- SDI distribution amplifier
- Inside 12G cable equalizer & re-clocker
- 1SDI input (SD/HD/FHD/6G/12G all standard format)
- 3SDI output (SD/HD/FHD/6G/12G all standard format)
- 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)
Technical Specifications
Physical
Dimension (W x H x D)
80 x 59.4 x 22.5 (mm)
Weight
95g
Power Level
7V ~ 16 VDC
Power Consumption
2.6 Watts (Max: 3 Watts)
Humidity
0 to 95% RH, non-condensing
Data Rate
Max 600Mhz
Signal Level
800mVp-p +/- 50m
Digital Video Specs.
SMPTE-296M
720P (60/59.94/50)
SMPTE-274M, SMPTE-292M
1080i (60/59.94/50)
SMPTE-424M
1080p (60/59.94/50) 3G
SMPTE-ST2081
2160p (30/29.97/25) 6G
SMPTE-ST2082
2160p (60/59.94/50) 12G
