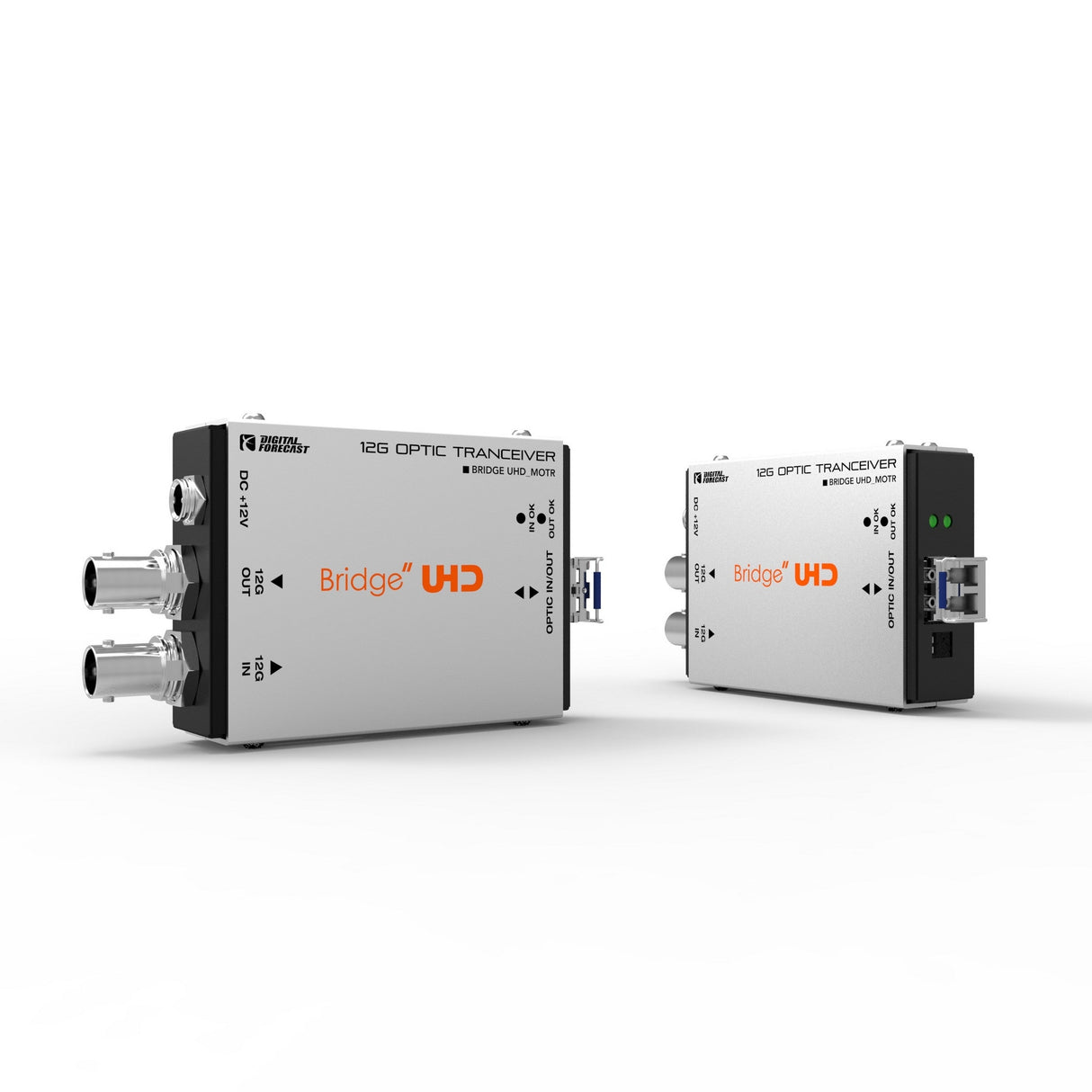

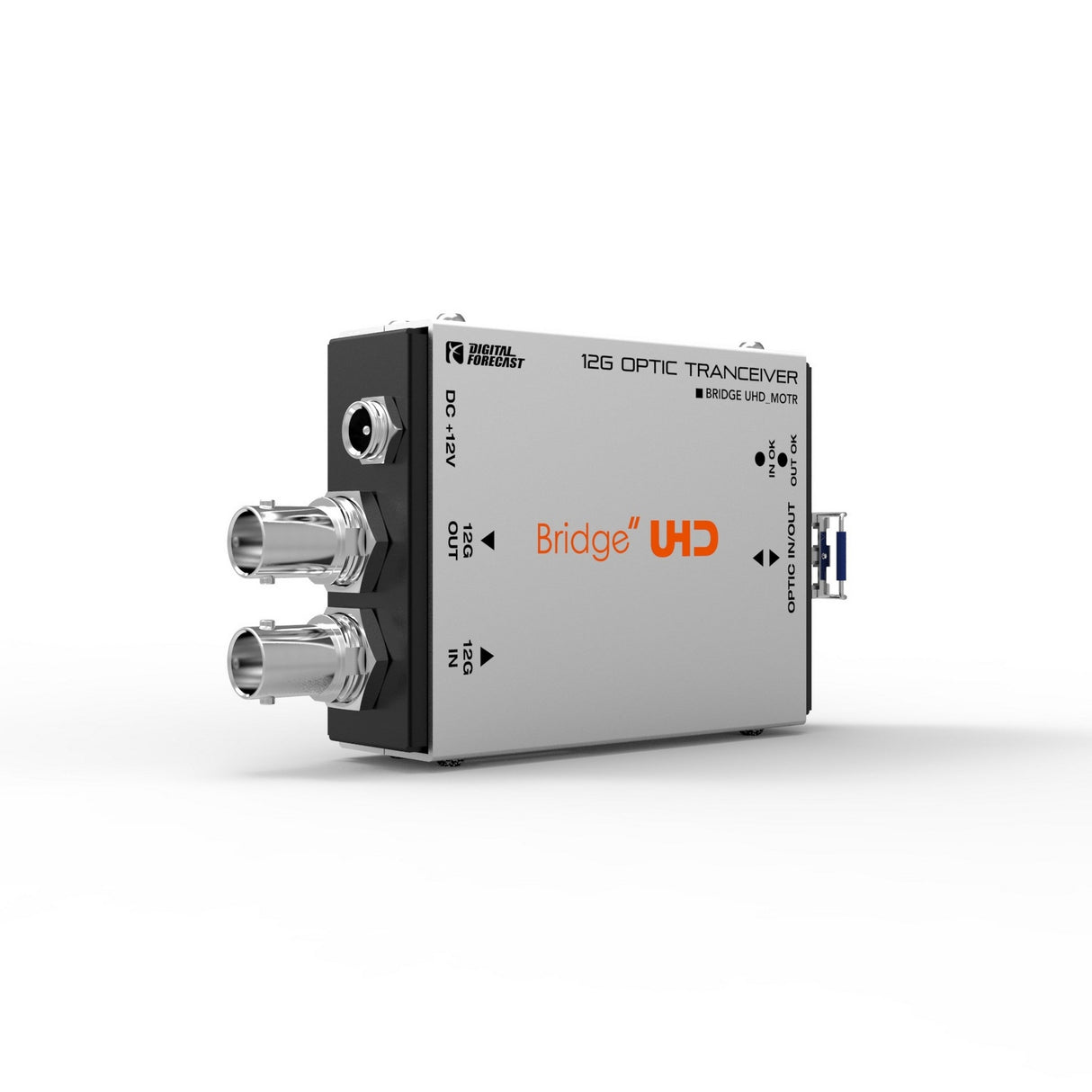

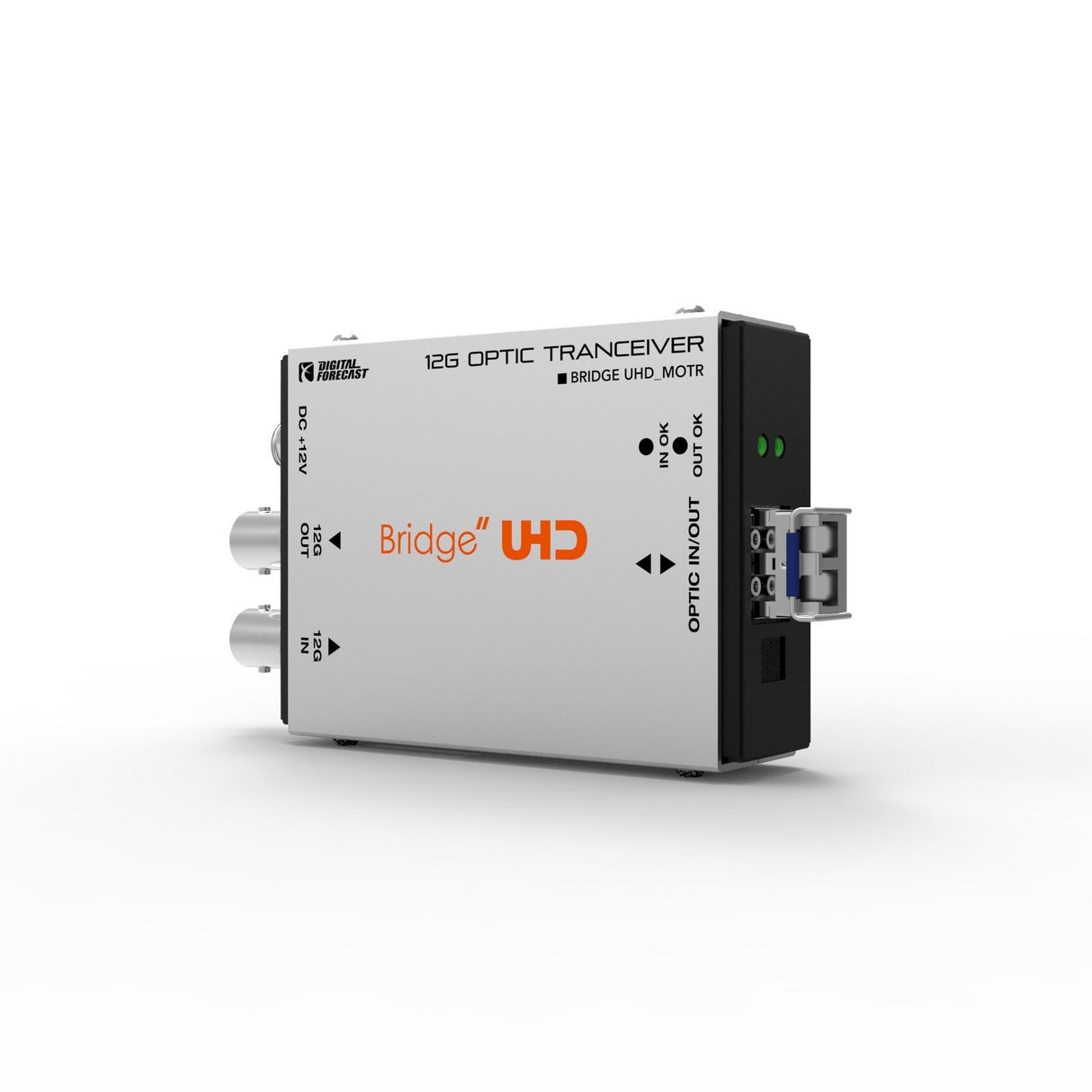

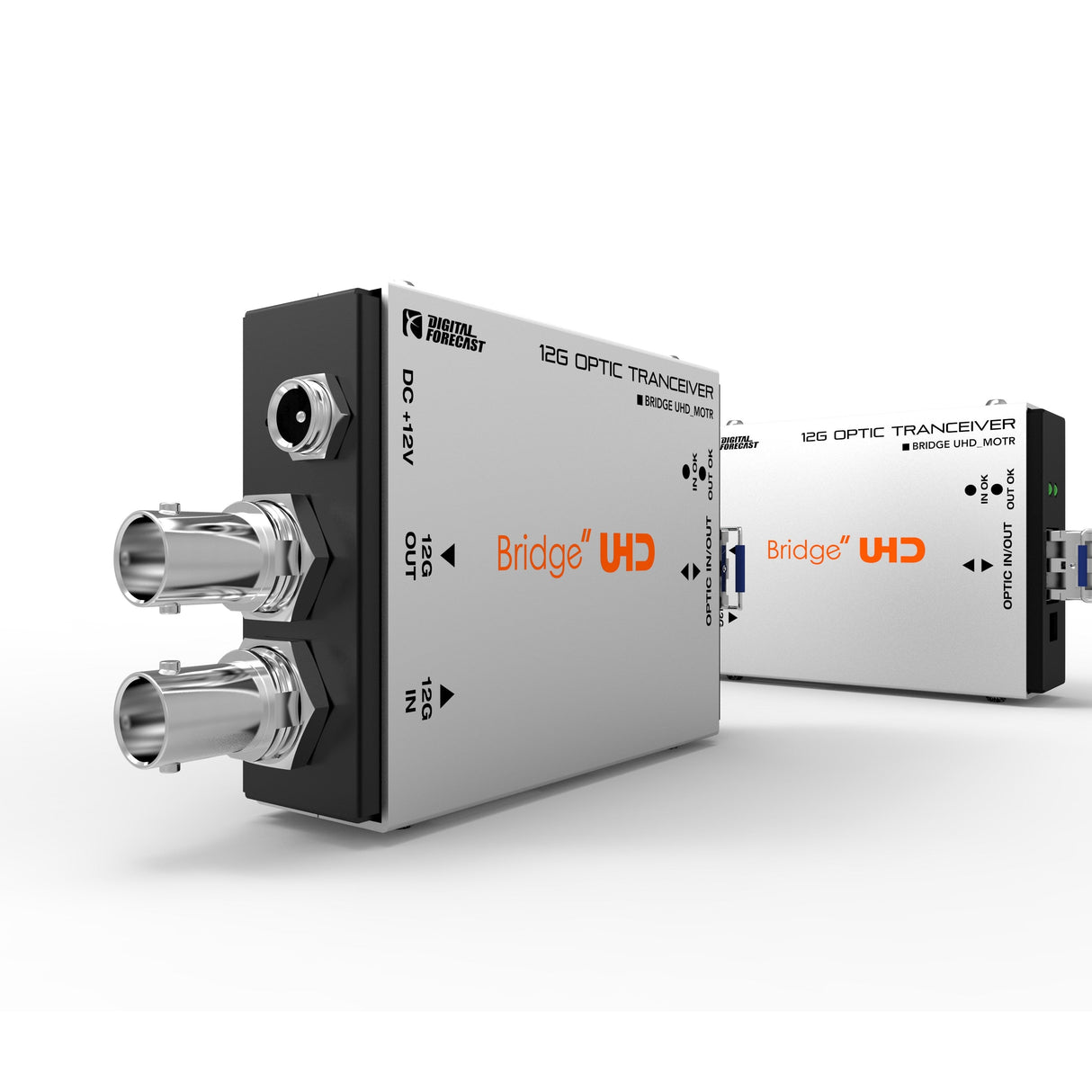

Digital Forecast Bridge UHD M_OTR 12G SDI to Optical Signal Transceiver
Digital Forecast Bridge UHD M_OTR 12G SDI to Optical Signal Transceiver is backordered. Please call for ETA 877-779-8964
Condition: New
Digital Forecast Bridge UHD M_OTR 12G SDI to Optical Signal Transce...
Description
Description
Digital Forecast Bridge UHD M_OTR 12G SDI to Optical Signal Transceiver
Bridge UHD M_OTR is the device converting 12G SDI to optical signal for long range transmission as well as enabling Bi-directional transmission by Dual core.
Key Features
- Standard SDI(SD,HD,3G,6G,12G) format supported
- Bi-directional transmission (TX + RX)
- Optional Optic Interface (SFP module slot)
- LC Dual mode, max 10Km
- 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)
Technical Specifications
Physical
Dimension (W x H x D)
80 x 59.4 x 22.5 (mm)
Weight
105g
Power Level
5V ~ 17 VDC
Power Consumption
3.1 Watts (Max: 4 Watts)
Humidity
0 to 95% RH, non-condensing
Data Rate
12G
Signal Level
800mVp-p +/- 50m
Digital Video Specs.
SMPTE-296M
720P (60/59.94/50)
SMPTE-274M, SMPTE-292M
1080i (60/59.94/50)
SMPTE-424M
1080p (60/59.94/50) 3G
SMPTE-ST2081
2160p (30/29.97/25) 6G
SMPTE-ST2082
2160p (60/59.94/50) 12G
