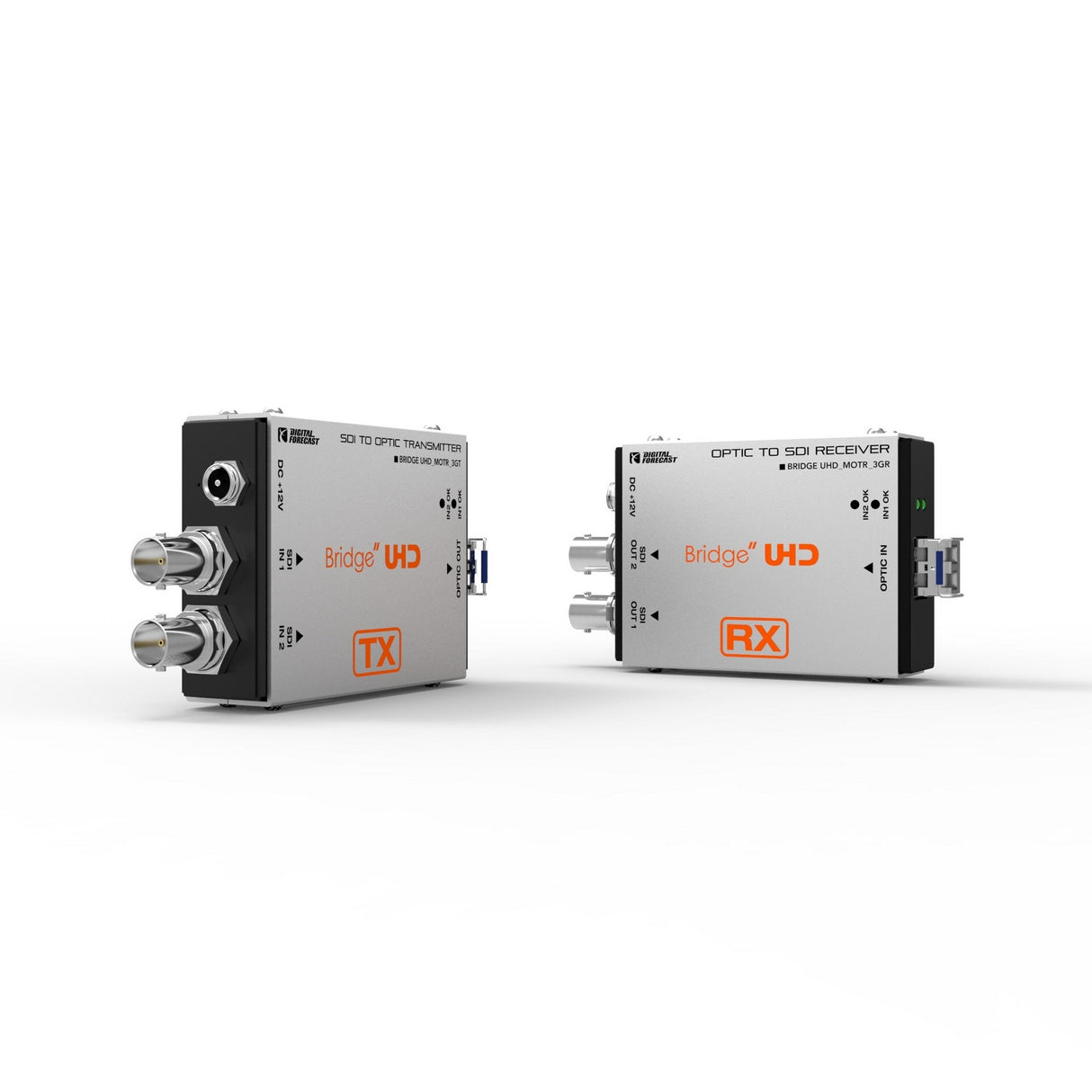

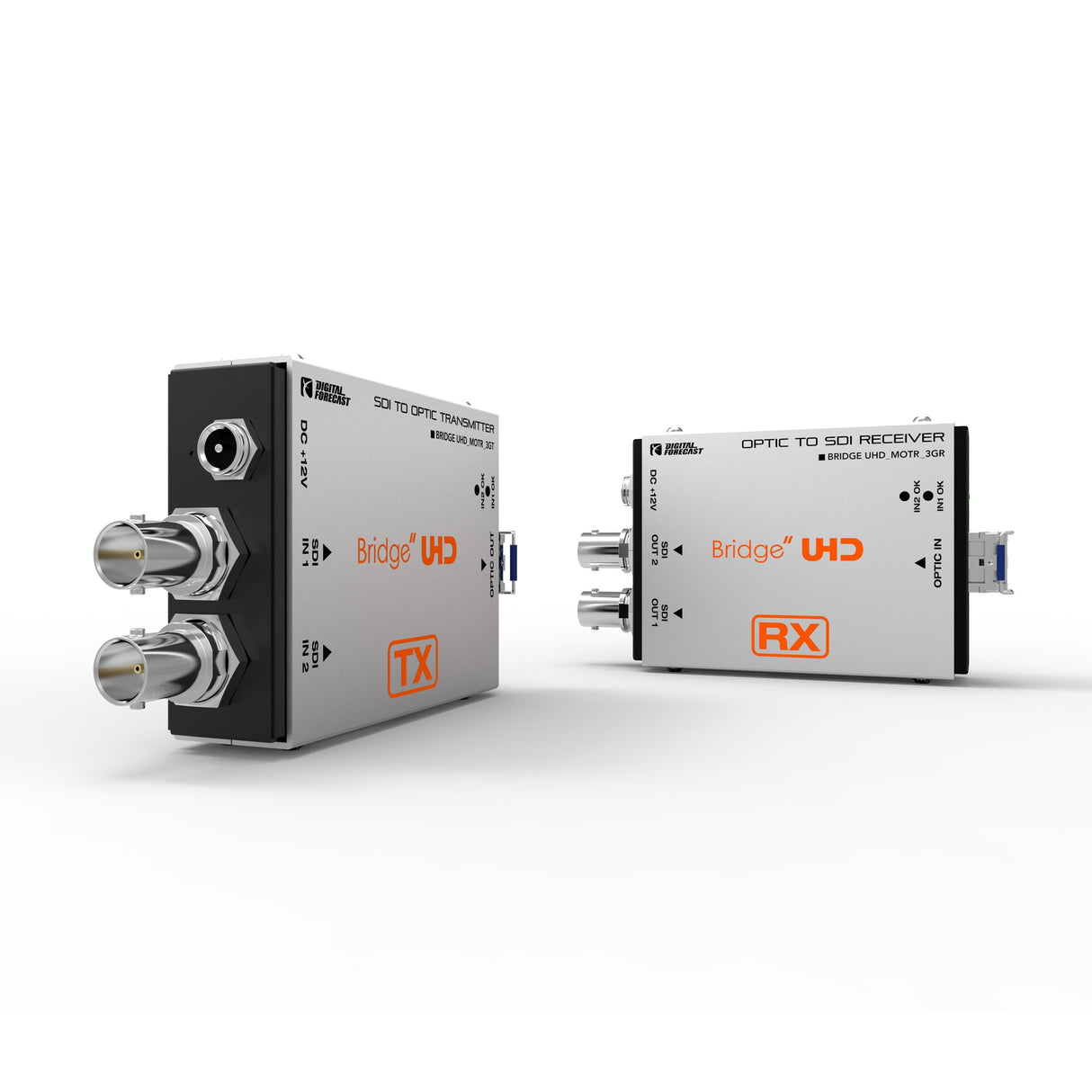

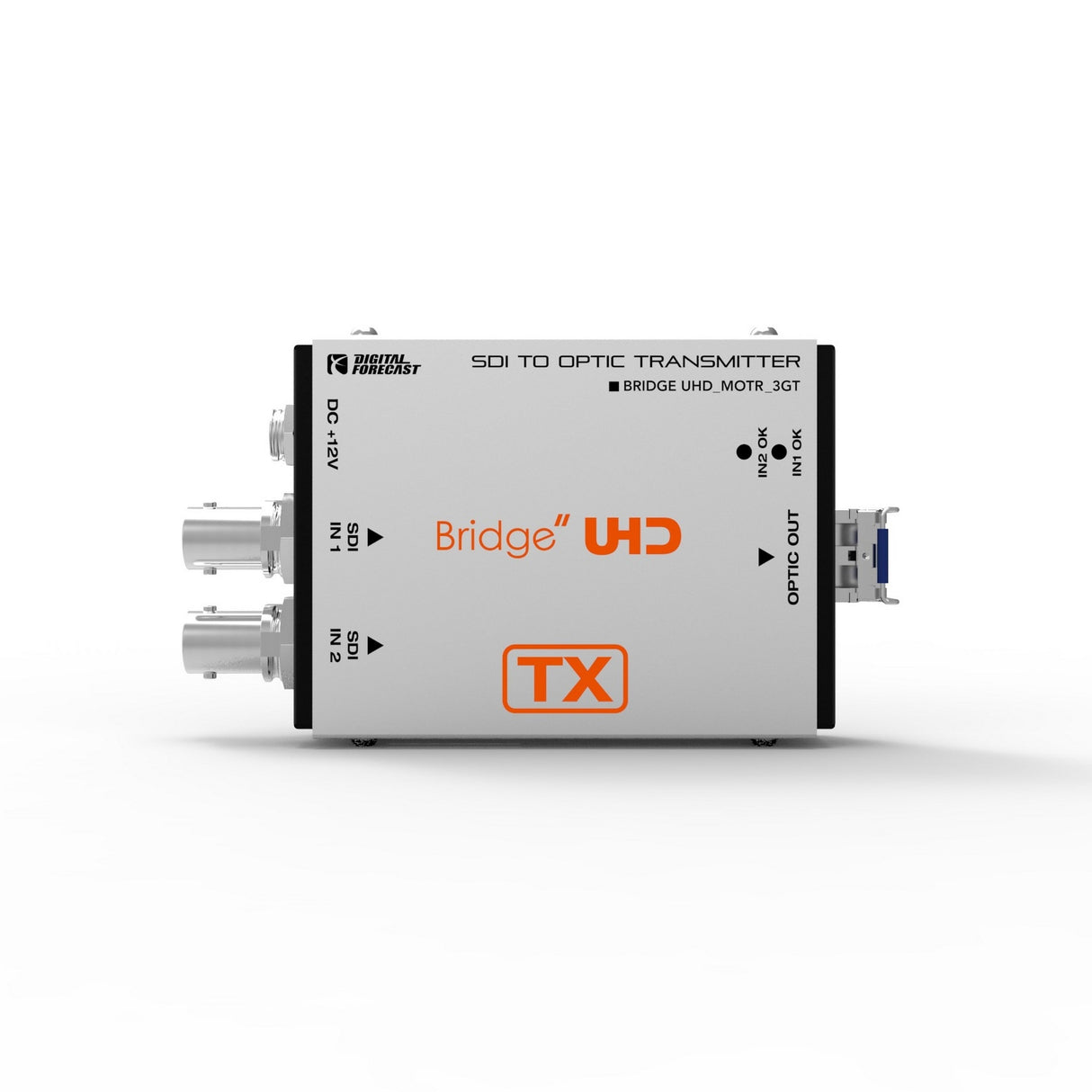

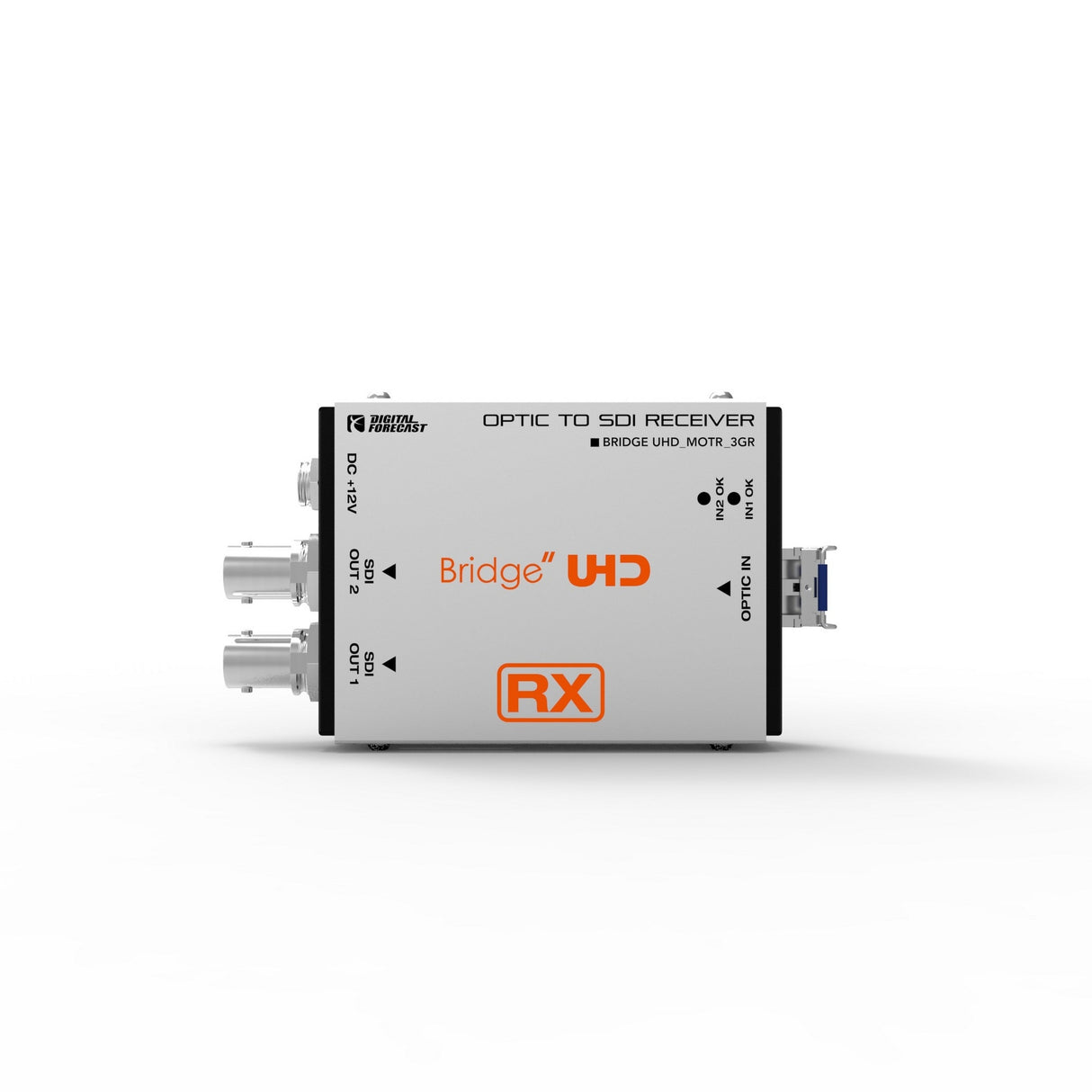

Digital Forecast Bridge UHD M_OTR 3GT/R SDI to Optic Transmitter/Optic to SDI Receiver

Digital Forecast Bridge UHD M_OTR 3GT/R SDI to Optic Transmitter/Optic to SDI Receiver

Bridge UHD M_OTR 3GT/R are Micro Type Optic Transmitter/Receiver for Single LC cable by Optic MUX(Optical Multiplexing) of two 3G-SDI signals Bridge UHD M_OTR 3GT/R provide the Optic Transmission of two different(Asynchronous) SDI signals through Optic MUX of two different internal wavelengths. Since designed by Optima Technology, Bridge UHD M_OTR 3GT/R is compatible with all the Optima-Technology-applied products.

Key Features

• Standard SDI (SD, HD, 3G ) format support
• Dual channel transmission ( TX+TX, RX+RX ) using Single Core LC
• Use Optima STO optic SFP
• LC single mode max 10km , LC multi mode max 100m in OM3
• 12V DC Power supply (Operational Voltage Range : 7 ~ 17V DC)

Technical Specifications

Physical
Dimension (W x H x D)
80 x 59.4 x 22.5 (mm)
Weight
TX: 105g / RX: 105g
Power Level
7V ~ 16 VDC
Power Consumption
TX/RX 3.2/2.9 Watts (Max: 4 Watts)
Humidity
0 to 95% RH, non-condensing
Data Rate
Max 600Mhz
Signal Level
800mVp-p +/- 50m
Digital Video Specs.
HD
720P (60/59.94/50), 1080i (60/59.94/50), 1080P (23.98/24/25/29.98/30)
FHD
1080P (60/59.94/50)
