Amino  |  SKU: AMI-H200

Amino H200 High Definition 4K PoE Ruggedized IPTV Encoder/Media Player

$39000
🚚 Order within the next 2 hours, 15 minutes for delivery by 22 May, 2024.

Condition: New

Description

Amino H200 High Definition 4K PoE Ruggedized IPTV Encoder/Media Player

The H200 is designed for “out of sight” operation to deliver content across a diverse range of environments - from in-room hospitality through public space signage and advertising applications where demand for 4K-based services is growing rapidly.

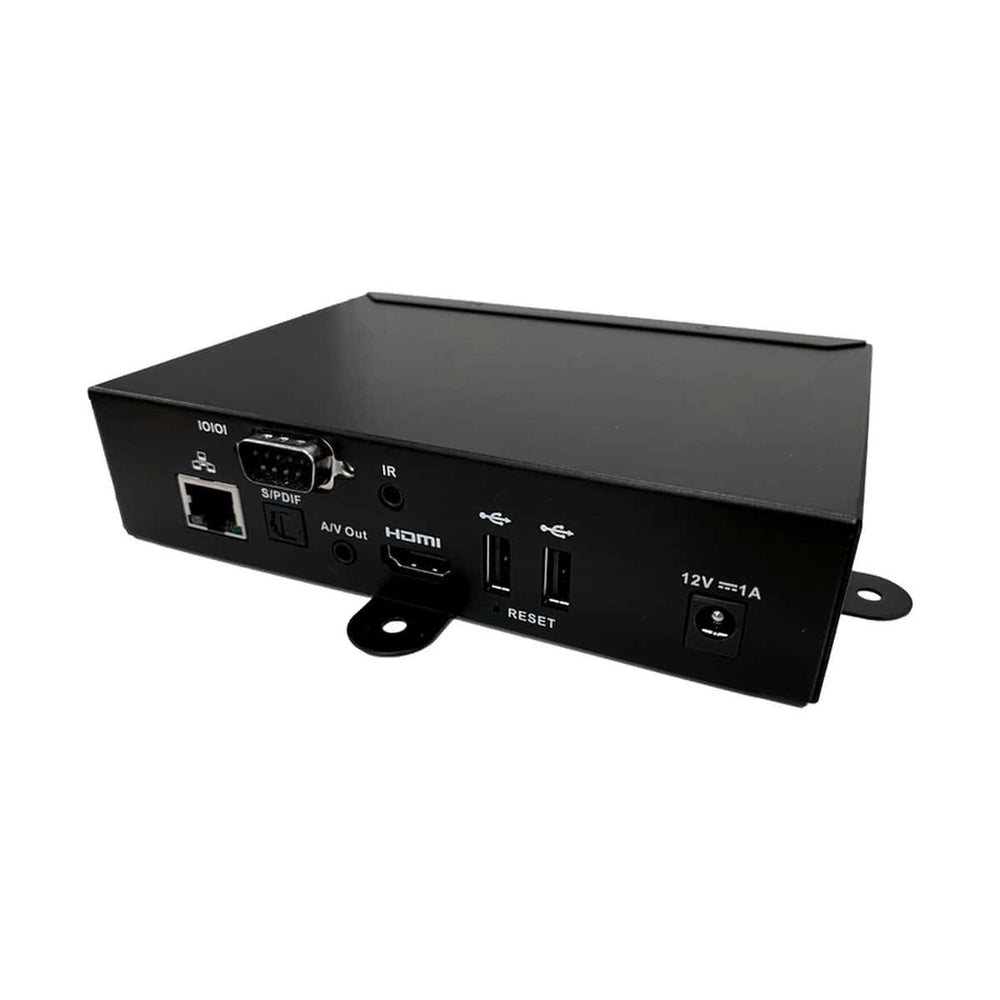

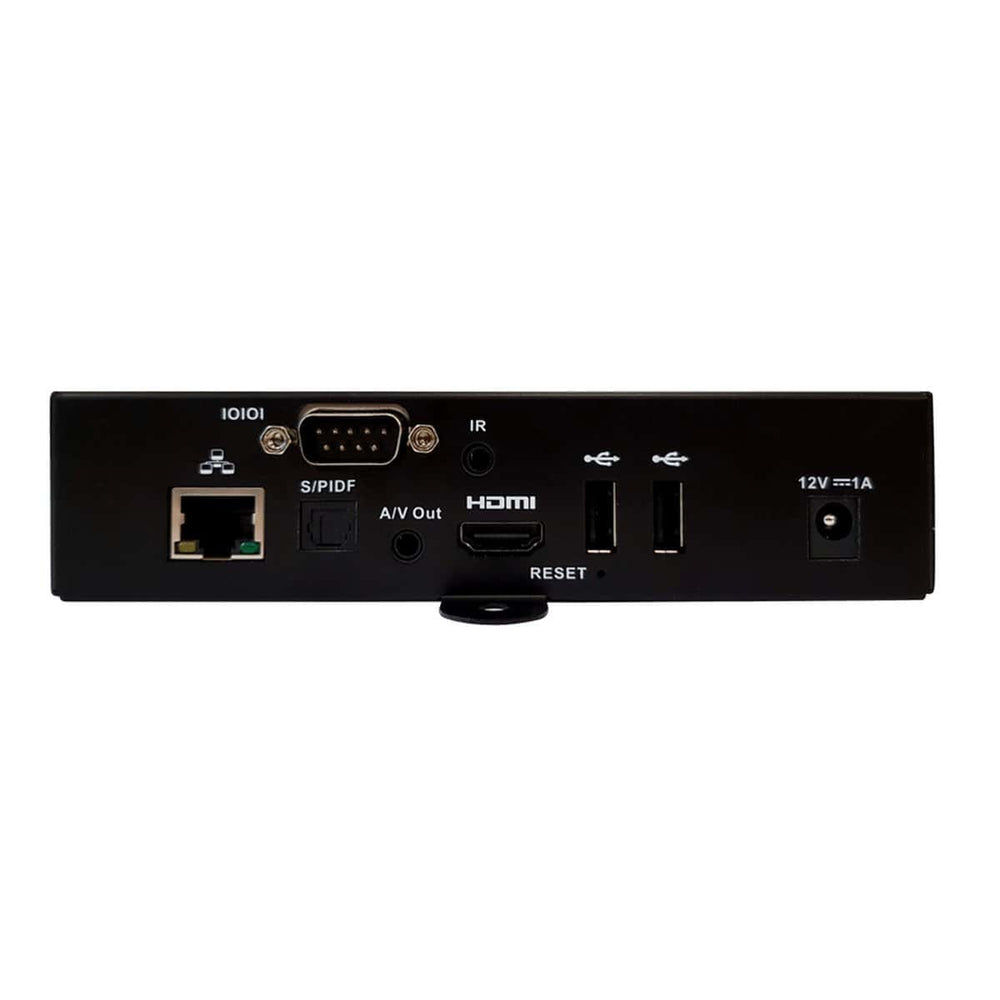

Sector-specific features include a Power over Ethernet (PoE) capability for single-cable installation that reduces installation time and cost. A serial display port, IR extender port and VESA mounting all support out-of-sight operation, easy installation, and promote a simplified user experience.

In a rugged case, the device combines a highperformance AV1 and HEVC capability processor with graphics acceleration for fast rendering of high quality graphics. HEVC capability enables the delivery of high quality images in areas where bandwidth or physical head-end storage needs to be optimised.

Key Features

  • AV1/HEVC 4Kp60 provides high quality images at reduced bandwidth
  • Out-of-sight operation using TVI serial interface or IR extender port as standard
  • Tamper-proof, ruggedized chassis
  • Integrated mounting brackets (VESA) to fit behind a screen for digital signage apps or underneath a desk for hospitality apps
  • Power-over-Ethernet for single cable install

Technical Specifications

Chipset & Memory
DMIPS: 22000
Memory (RAM): 2GB
Memory (Flash): 8GB or 32GB eMMC Flash
Internal microSD: Max 256GB
Mechanics
HDMI: 2.1
USB: 2 x USB2.0
Ethernet: 10/100/1000
IR: Yes w/ IR extender port
3.5mm Jack (Composite AV): Yes
S/PDIF: Yes
POE (internal): Yes
RS232/TVI with IR pass-thru: Yes
Ruggedised case/VESA mount: Yes
Video/Graphics Support
AV1: Yes
HEVC: Yes
4k UHD: Yes
4K Graphics: 4K Still Support
Max. Single decode: 4kp60
OpenGL ES 2.0: Yes
Regulatory Compliance
Environment and Safety: FCC Certified, CB Certified, CE Certified, UKCA Certified, RCM Certified
Power
Power Supply: External 12V/1A (US, EU, UK and AU)
Power Consumption: 9W maximum, fully equipped
Operating Environment
Temperature: 5-40°C (40-104°F) operating temperature
Humidity: 30-95% relative humidity
Physical Properties
Size (L*W*H): 158 mm x 121 mm x 38 mm Mounting: 16 mm
Weight: 500g
