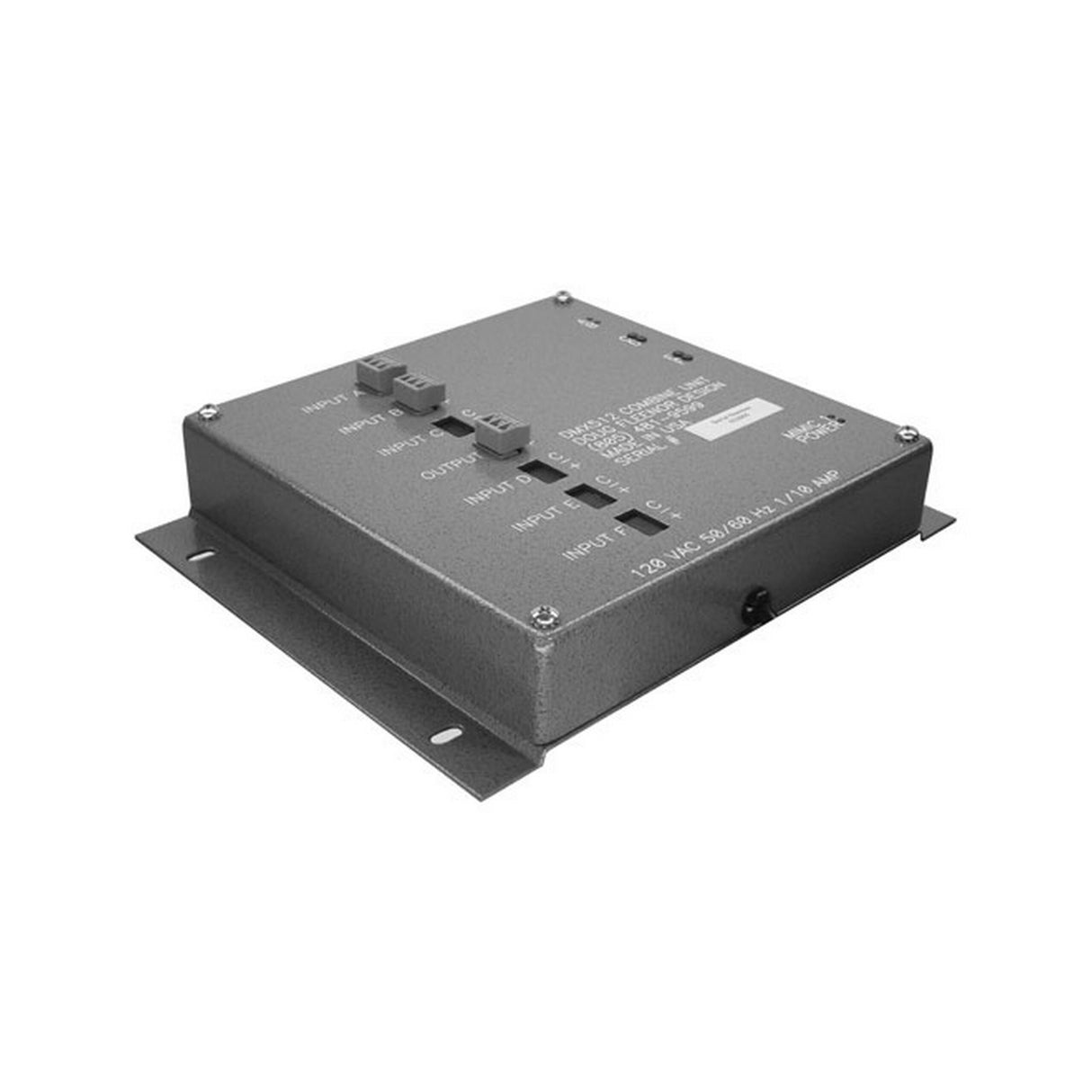

Doug Fleenor Design 221E-WALL Two Input Enhanced Wall Mount
These DMX combine units are designed for use in permanent installations and can accept as many as six DMX512 inputs. They can be mounted directly on a wall or can be mounted in a 12"x12"x4" junction box if conduit entries are required. DMX connections are made with pluggable terminal blocks and the power connection can be plugged into a wall outlet or into a terminal strip. All DMX512 inputs are optically isolated and terminated. These combiners can also be used to convert or accept Colortran's CMX protocol.
Technical Specifications
Baud rate
250 Kilobaud
Input circuit
EIA-485 receiver protected by two self resetting fuses
120 ohm input terminator protected by a self resetting fuse
Four transorb diodes
two on +Data, two on -Data
Input signal
0.5 volts minimum, 12 volts maximum
Input can wIt'stand up to 240 volts without damage, transients up to 5KV
Output circuit
"Slew rate limited" EIA-485 driver protected by two 1/10 amp fuses
(Slew rate limited outputs reduce the errors caused by unterminated lines)
Output signal
EIA-485 driver yields an approximate 3 volt signal into 120 Ohms
Outputs can wIt'stand up to 12 volts without damage, transients up to 5KV
Connectors
3 conductor pluggable terminal blocks
Isolation
2500 volt optical coupler, 5000 volt split bobbin transformer
Power input
100 - 120 volts or 220 - 240 volts, 50/60 hertz, 0.1 amp (24 watts)
Color
Silver hammertone
Size & Weight
2.0"H x 10.5"D x 8.5"W , 4.9 pounds
