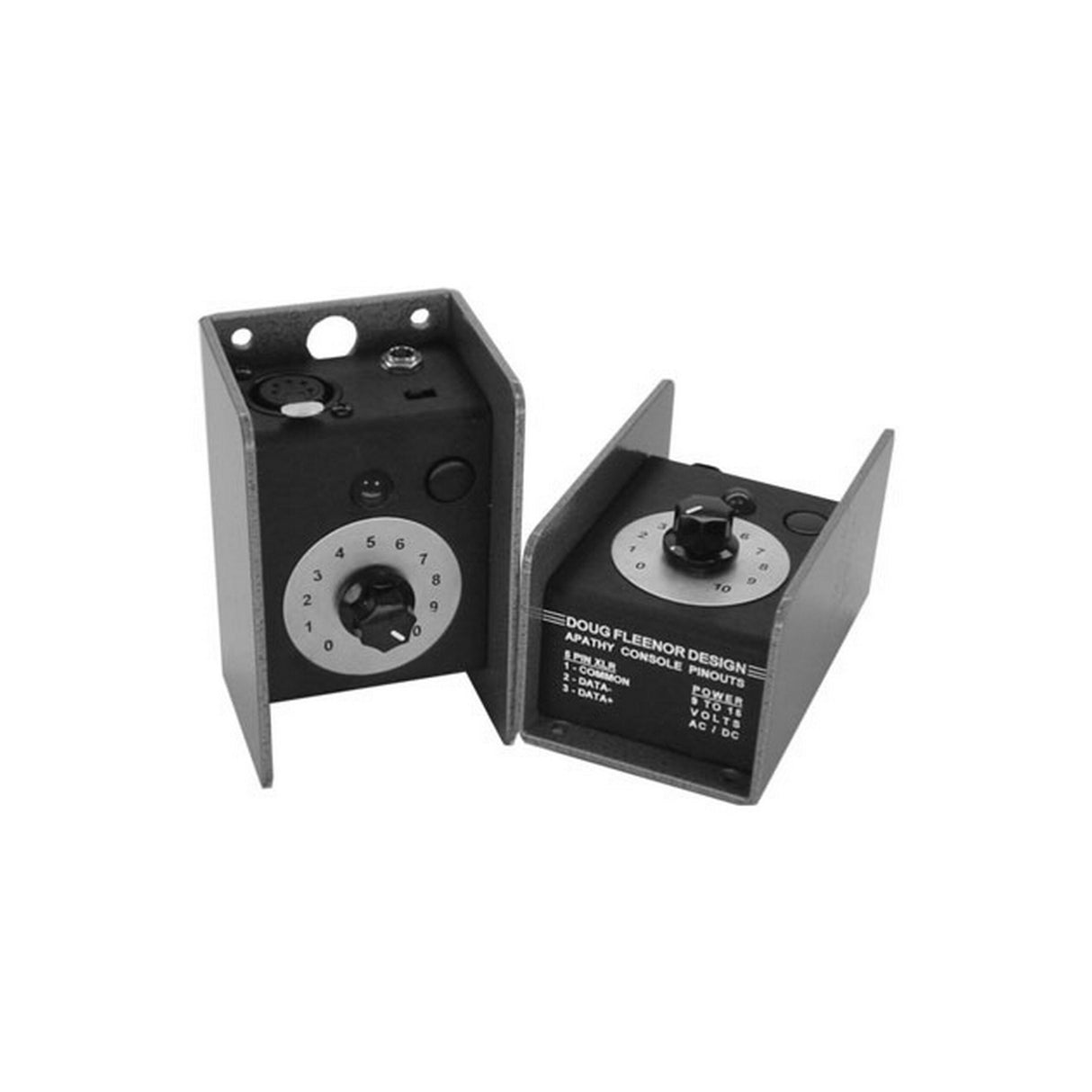

Doug Fleenor Design Apathy Minus, Single Channel Controller
Description
Description
Doug Fleenor Design Apathy Minus, Single Channel Controller
In its most basic mode, the Apathy allows you to command all 512 DMX dimmers to the same level using the single intuitive control knob. Using the Apathy function button, you can assign control of a single DMX dimmer to the control knob. The button serves different functions depending on the position of the level knob. With the level knob at zero button presses enter new addresses. With the level knob above 20%, button presses increment (on a quick press) or decrement (on a hold) the selected channel.
Key Features
- Thick Aluminum Chassis
- Simple User Interface
- Draw 100mA in continuous operation
- Built to take abuse
- Even a Grip can operate this puppy
- Runs for hours on a single 9v battery
Technical Specifications
Baud rate
250 Kilobaud
Update rate
Under Battery “Power Saver Mode”: 30Hz update when fading / 2Hz when idle
Under External Power
22Hz update continuous
Output connector
Gold plated 5 pin female (Neutrik D1 series)
Power input
Battery powered by 9v battery (included), jack for owner provided external PSU
Chassis
Tenth inch Aluminum with rubber feet.
The four corner holes, and a single " hole provide for many mounting options.
Color
Front, Top, Bottom: Black
Back, Sides
Silver Hammertone
Size and weight
4"H - 2.5"D - 2.25"W, 0.75lbs
