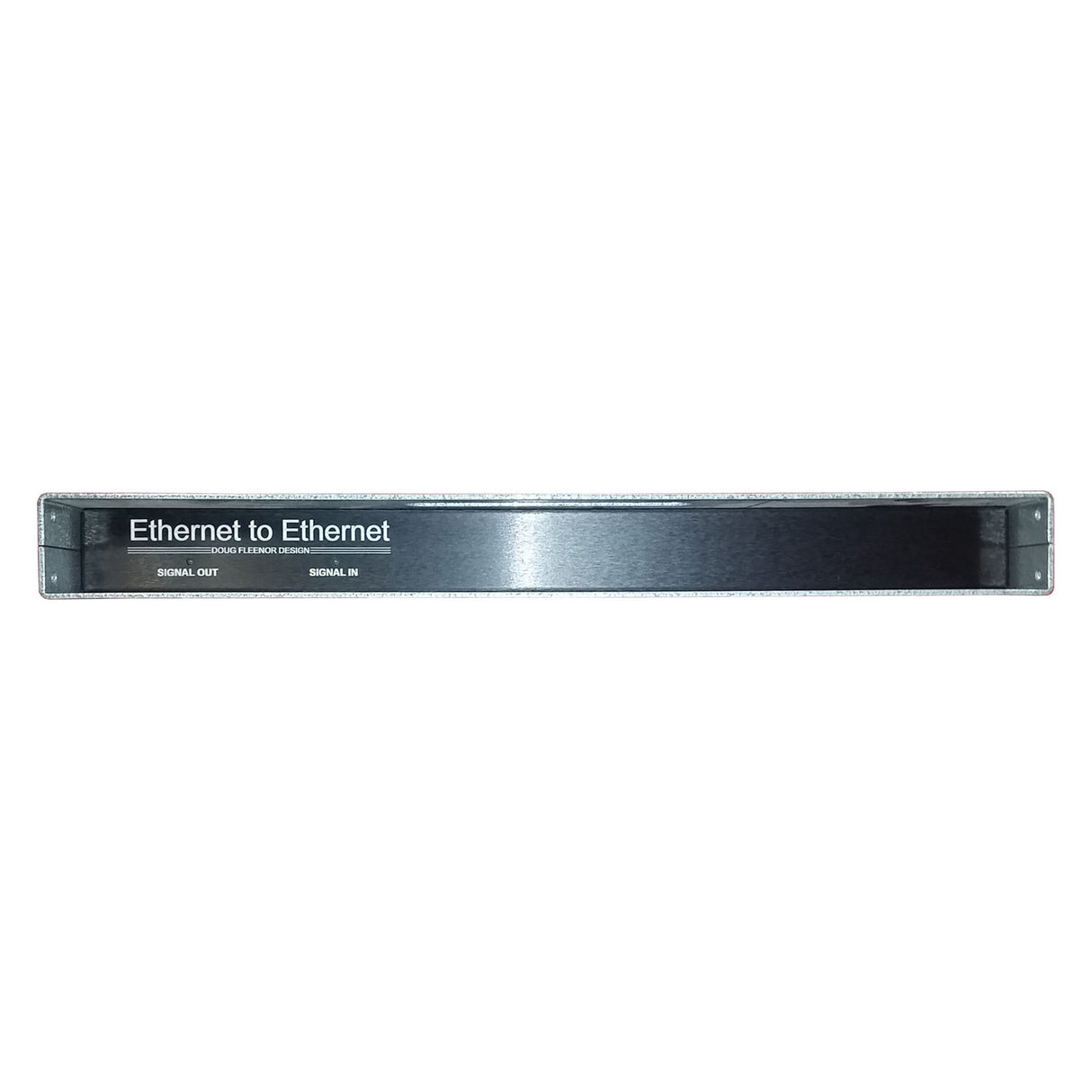

Doug Fleenor Design E2E 4 Universe Ethernet Protocol Converter

Doug Fleenor Design E2E 4 Universe Ethernet Protocol Converter

The E2E Ethernet to Ethernet interface is a lighting protocol conversion device with support for four universes of data. The input and output connections may use completely separate networks simultaneously, or transmit and receive on the same network using a switch. An internal web server provides configuration options on each port. The in and out ports may be configured to use E1.31 sACN, draft sACN, Artnet, Strand Shownet, and KiNeT. Universe numbering may be selected for each of the individual four channels. DHCP or IPv4 fixed addressing may be set individually on input and output.

Technical Specifications

Input signal
E1.31 sACN, draft sACN, ArtNet v3, Strand Shownet, KiNeT
Output signal
E1.31 sACN, draft sACN, ArtNet v3, Strand Shownet, KiNeT
Universes
Four in, four out
Ethernet Circuits
100BASE-TX Fast Ethernet, Crossover Detection

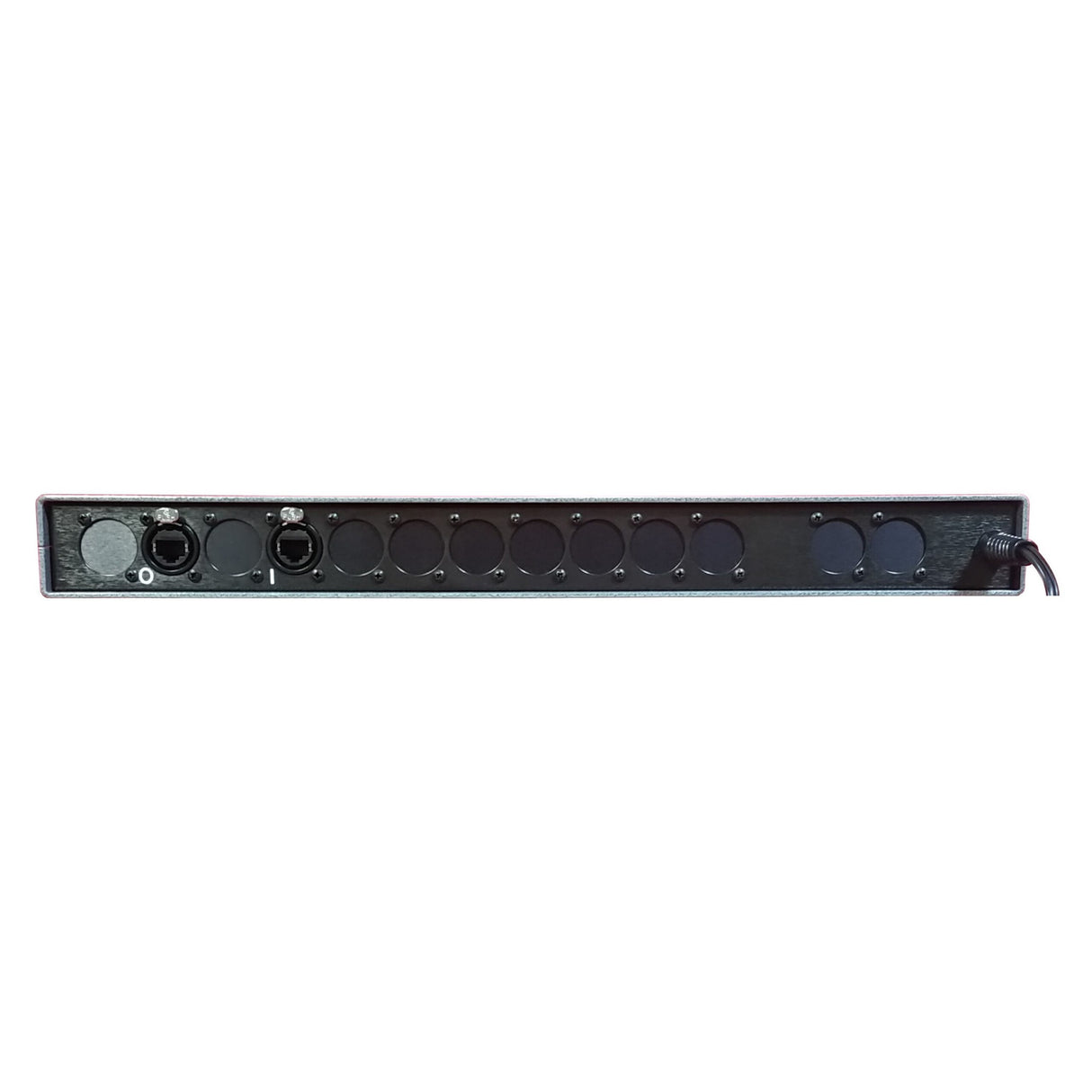

Connectors
Neutrik Ethercon
Power input
100-240 VAC, 50-60 Hz., 0.5 Amps, auto-switching.

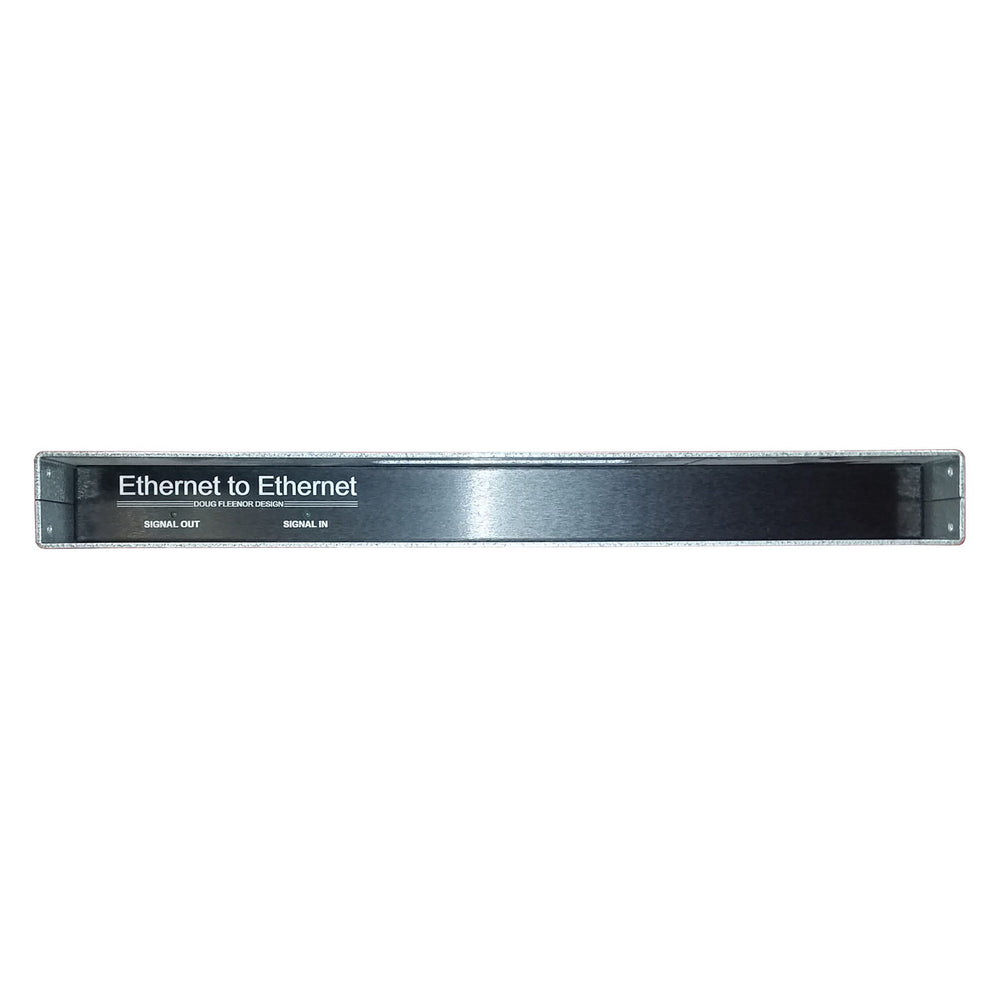

Indicators
Green SIGNAL IN and OUT lights when selected protocol present.
Cooling
Convection cooling, no fan required.
Color
Top, bottom, and sides: Silver hammer tone.
Front and back
Black.
Size and weight
1.7"H - 6.5"D - 16.5"W, 6.5 pounds
