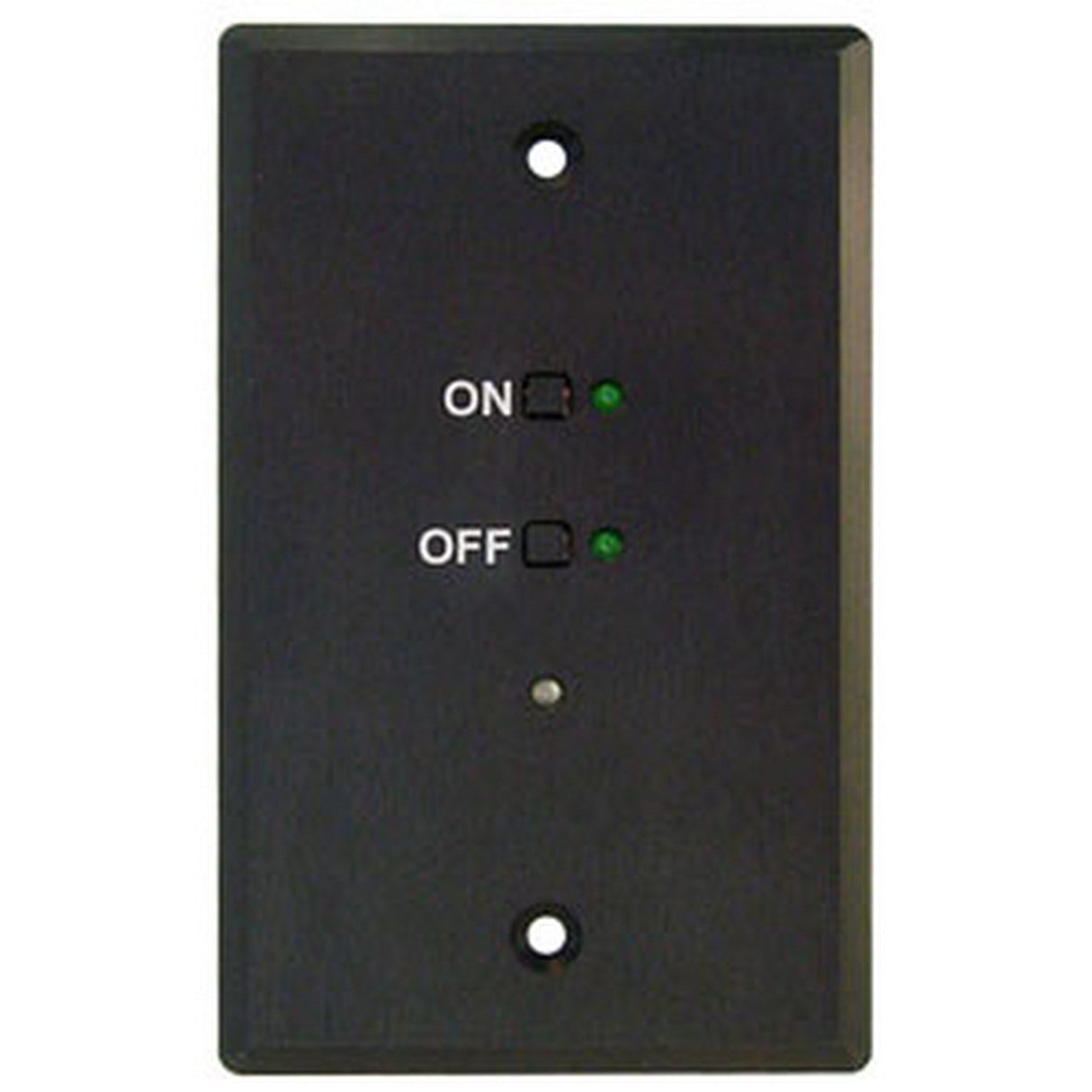

Doug Fleenor Design ES2 2 Button Entry Station, Snapshot Recorder

Doug Fleenor Design ES2 2 Button Entry Station, Snapshot Recorder

The Entry Station Two is a companion to a master Preset Ten, Rerun-A, or another ES2 station. The Entry Station Two is a simplified entry station with two user assignable buttons. The buttons can be associated with any preset on the main station. Presets are recalled by pressing one of the buttons. In remote mode, the ES2 has two buttons which can be assigned to remotely trigger any of the presets/shows on a master station. There is also a recessed button which is used to record presets and to set fade times when the ES2 is configured as a main station.

Technical Specifications

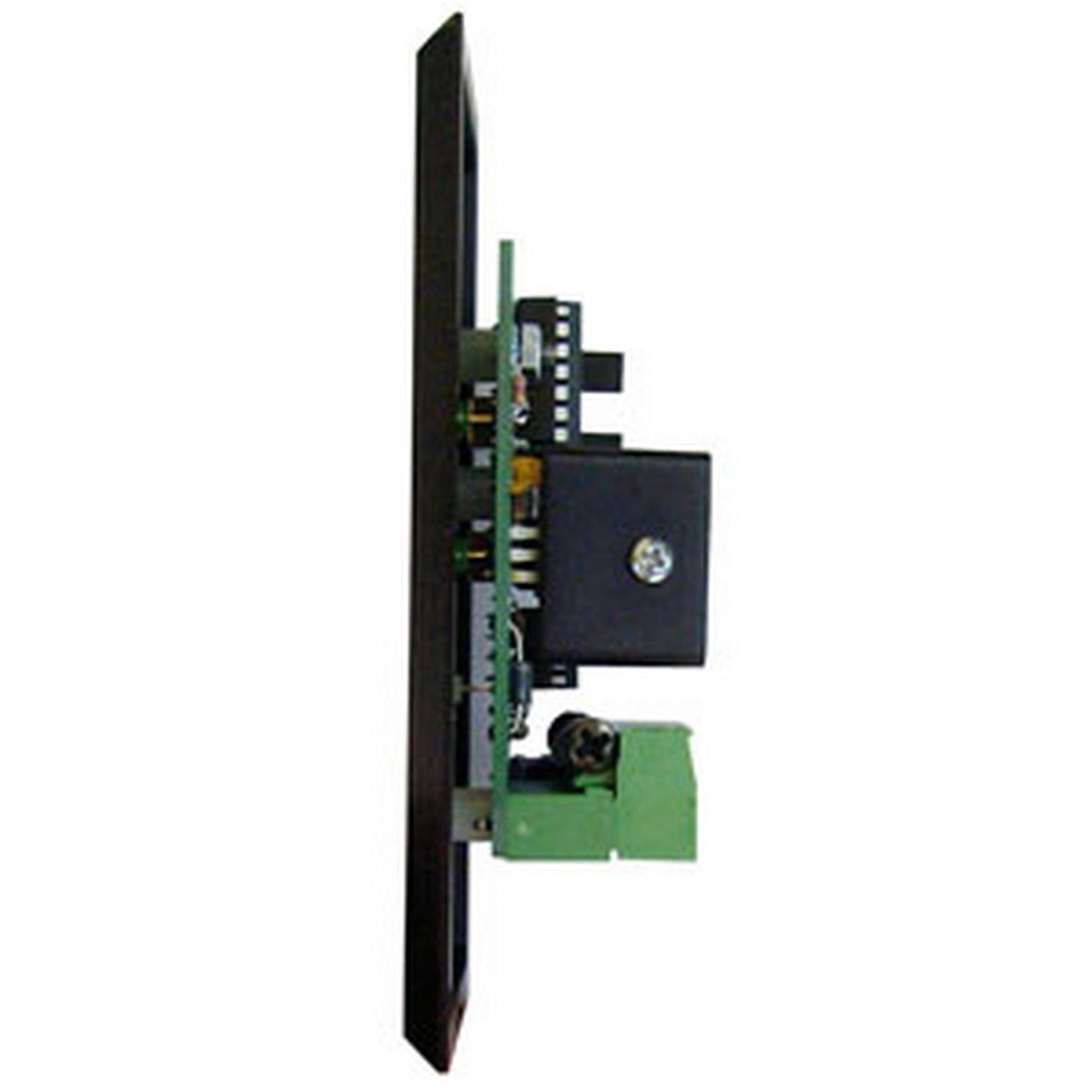

Connector
Phoenix Contact MSTB series 5 position two part terminal block
Connector pin out
1 (C) DMX512 common
2 ( -) DMX512 data -
3 (+) DMX512 data +
4 (C) Supply common (internally tied to pin1)
5 (V) Supply voltage “hot”
Input/Output circuit
ESD protected EIA-485 transceiver (LT1785)
Indicators
Two green preset indicators
One bi-color indicator (Red = Lockout, Yellow = Time, Green = Inactive)
User controls
Two push buttons
Option jumpers
Set button association and select main/remote
Power input
9 to 24 volts DC or 6 to 16 volts AC / 200mA per station
(A 10 volt class 2 “doorbell” transformer is recommended
Size
Faceplate
4.5"h X 2.75"w X 0.2"d
Faceplate
rear inset: 4.15"h X 2.4"w X 0.1"d
Electrical box minimum inside dimensions
2.75"h X 1.5"w X 1.25"d
