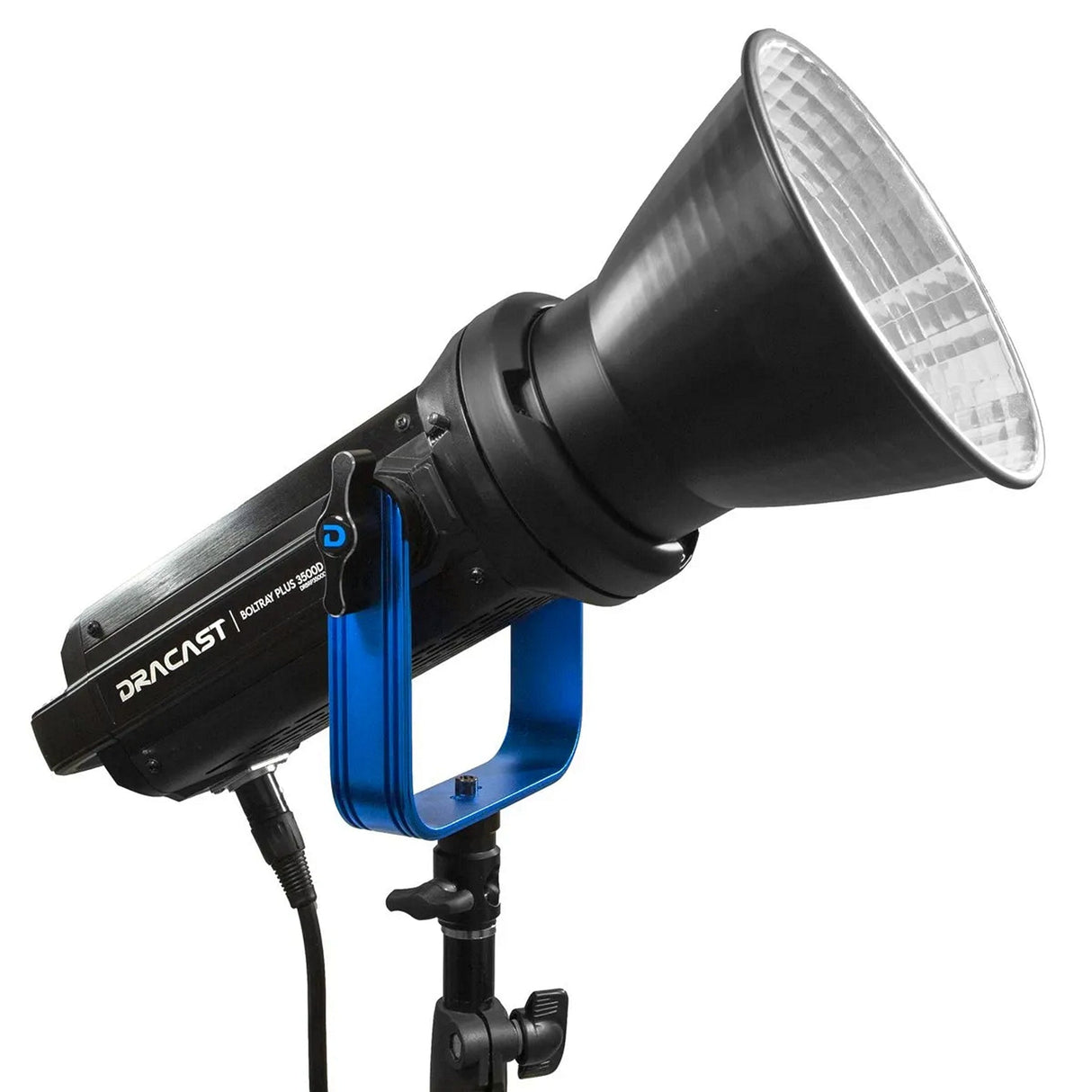

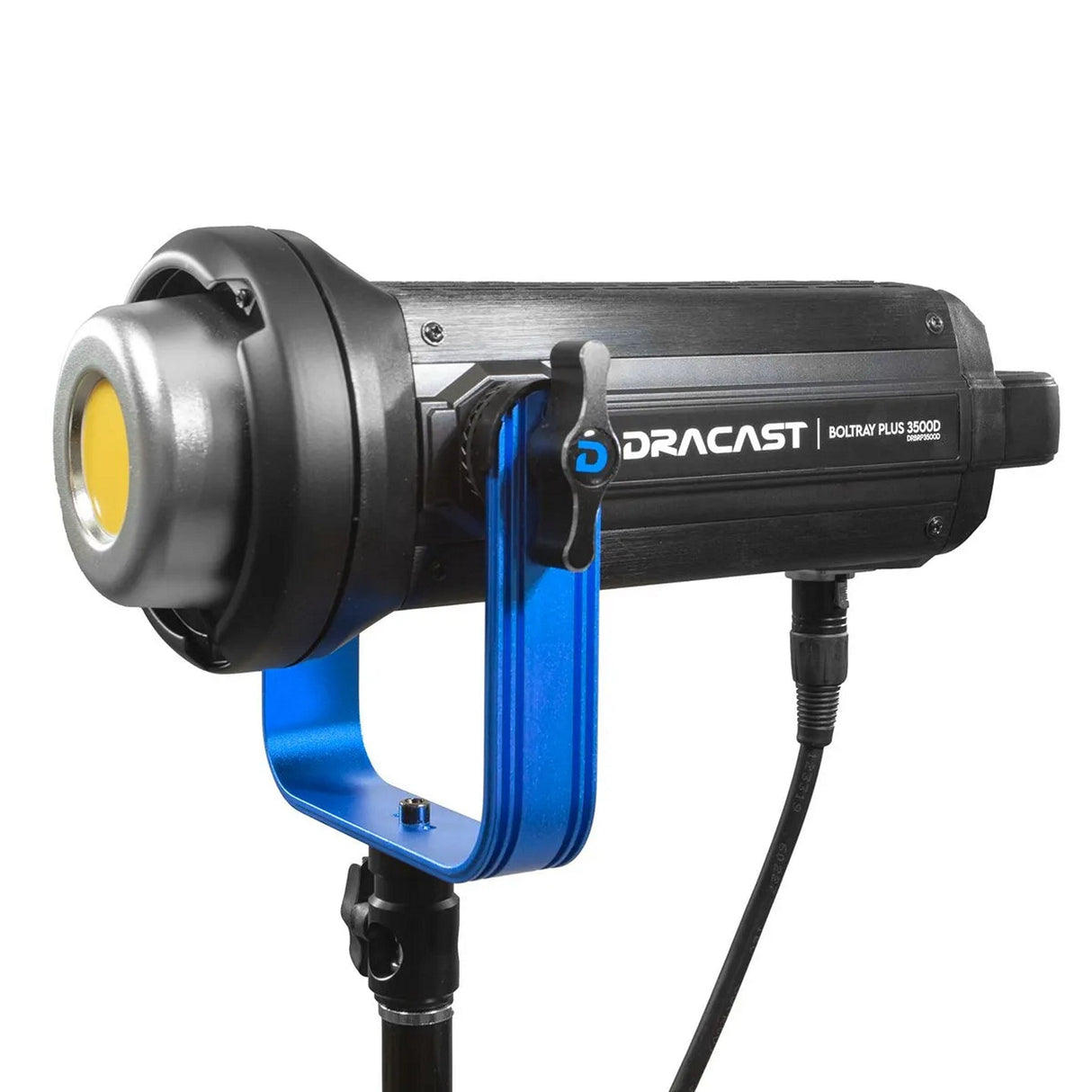

Dracast Boltray Plus LED3500 5600K Daylight Point Source LED Light

Dracast Boltray Plus LED3500 5600K Daylight Point Source LED Light

The Boltray Plus Series is a high-output, point source lighting fixture from Dracast. Available in four variations, each Boltray Plus model features a COB (chip-on-board) integrated LED array that provides the perfect solution of size, power, performance, and value. The 3500 model is a 350W fixture with fixed color tempera ture at 5600K and a CRI rating of 97+ for state-of-the-art color stability, accuracy, and lumen output.

The Boltray Plus 3500 features a Bowens mount for easy use of accessories, DMX I/O ports, and an included remote for wireless control of one or multiple fixtures. All Boltray Plus models include battery plates for an ideal compact, “field-ready” lighting solution.

Dracast Boltray Plus Series LED3500 5600K Daylight Point Source LED Light Features
Remote Control
Full control of your Dracast Boltray Plus Series LED3500 Point Source LED Light. Using the included wireless remote control, you can control your light or groups of Boltray Plus Series lights simultaneously up to 100′. Control dimmer, CCT, special effects and more.

Bowens Mount
The Dracast Boltray Plus Series LED3500 Point Source LED Light includes a Bowens mount for compatibility with any Bowens mount accessories.

10% - 100% Dimming
The Dracast Boltray Plus Series LED3500 Point Source LED Light can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to 10% output with ease.

Optional Battery Power

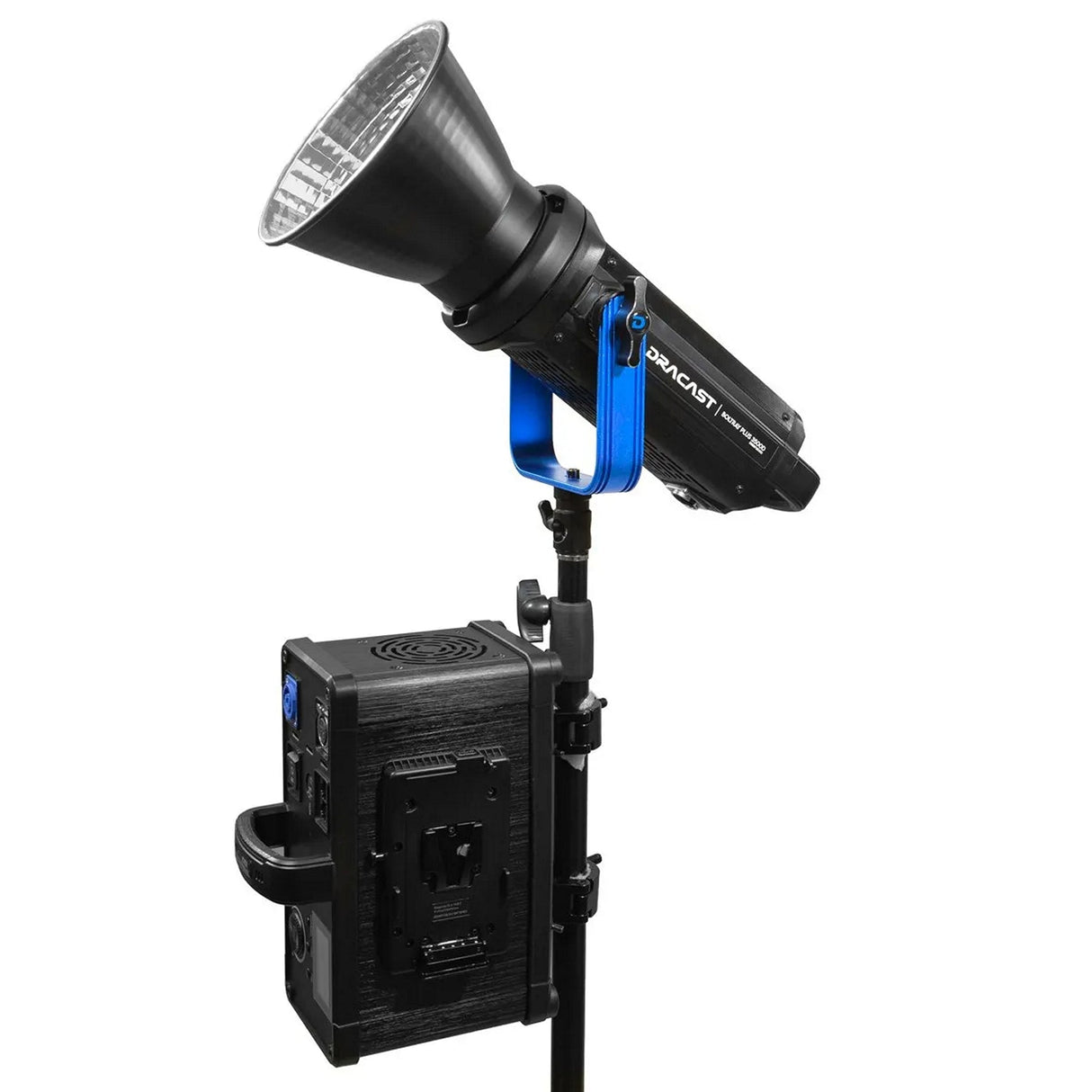

Maximum portability. The Dracast Boltray Plus Series LED3500 Point Source LED Light includes dual v-mount battery plates so that your lights can easily be used on location.

5600K Fixed Color Temperature
Single color temperature LED array means the highest lumen output possible. 5600K CCT means you’re ready to work outdoors in ambient daylight. Color temperature and / or hue can be modified with color filters as needed.

Special Effects
The Dracast Boltray Plus Series LED3500 Point Source LED Light features special effects including strobe, flash, TV, pulse, and more.

Key Features

• High Output 350W Point-Source Lighting
• 5600K Color Temperature
• High CRI: 97+
• Bowens mount for accessories
• AC / DC Power Options
• Dual V-Mount Battery Plates
• Wireless 2.4Ghz remote included
• 10% - 100% Dimming

Technical Specifications

In the Box
Dracast Boltray Plus Series LED3500 Point Source LED Light
Reflector Dish
Single-arm Mounting Yoke
Multi-Voltage AC Power Adapter with Power Cord
Limited 1-Year Warranty
Optical System
High output chip-on-board (COB) integrated LED array.
Light Aperture
2.0” diameter LED array surface.
Beam Angle
180 degrees
Weight
4.5 lbs (2.0 kg) fixture. 5.0 lbs (2.26 kg) power ballast
Handling
Anodized Aluminum Mounting Yoke, Dual Point Locking Tilt
Mounting
Baby 5/8” Pin
Tilt Angle
+/- 360 degrees
Voltage Input
28.8 V DC
Power Consumption
350W
Power Connection
PowerCon Twist Lock Connector, 100 - 240 VAC, 50 - 60 Hz, 12.5 A
Battery Connection
Dual V-Mount Battery Plate (included)
Battery DC Voltage
28.8 V DC (Dual input 14.4V DC li-ion v-mount batteries)
Battery Light Output
100% of Total Output
Color Temperature
5600K (Fixed “Daylight” color temperature)
Color Rendition
CRI>97
Dimming
10% - 100% Continuous
Controls
Local On-Board Manual Controls, 99 Channel 2.4Ghz Wireless Remote, DMX I/O
Housing Color
Blue / Black
Housing Build
Aluminum/ Plastic
Est. LED Lifetime
50,000 hours
Packaging Info
Package Weight
22 lb
Box Dimensions (LxWxH)
20 x 15 x 13”
