Dracast DRX240B X Series LED240 Bicolor On-Camera LED Video Light

Dracast DRX240B X Series LED240 Bicolor On-Camera LED Video Light

The Dracast X Series lineup is expanding its family of lights that can be controlled with the Dracast DRX app for iOS and Android. Now included in the X Series is the new Dracast X Series LED240 Bicolor On Camera LED Video Light. This small and compact lighting instrument can be used for high-output single source portable on camera lighting, or add fill or accent lighting mounted to a light stand. The Dracast X Series Bicolor On-Camera Light has the same rich set of features found with other X Series fixtures, and can be controlled individually or in groups of other Dracast X lights using the DRX app for iOS and Android.

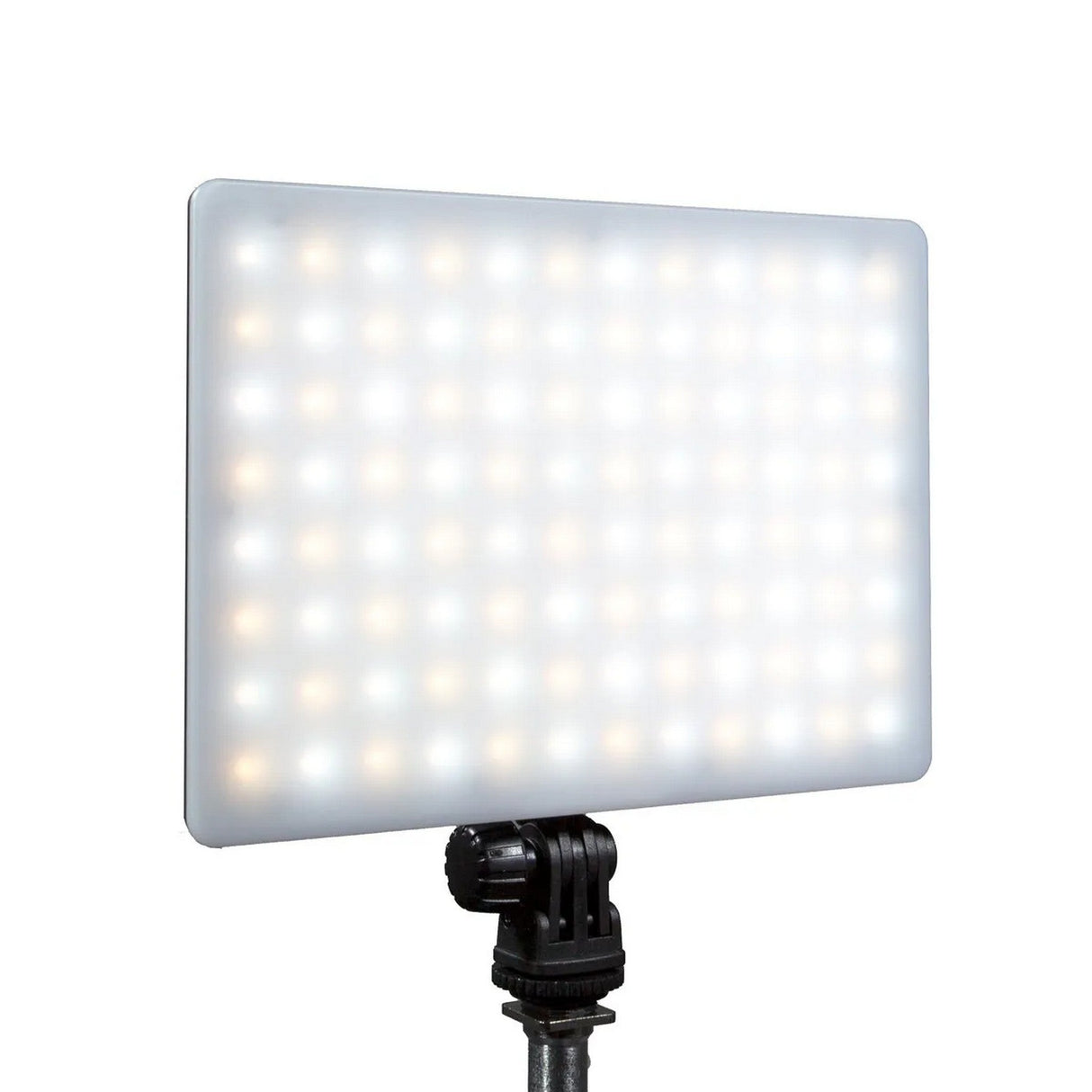

The DRX240B measures 7” by 5” and is equipped with 96 variable CCT white SMD LEDs. The DRX240B consumes 16W of power with an output of up to 419 lux at 1 meter.

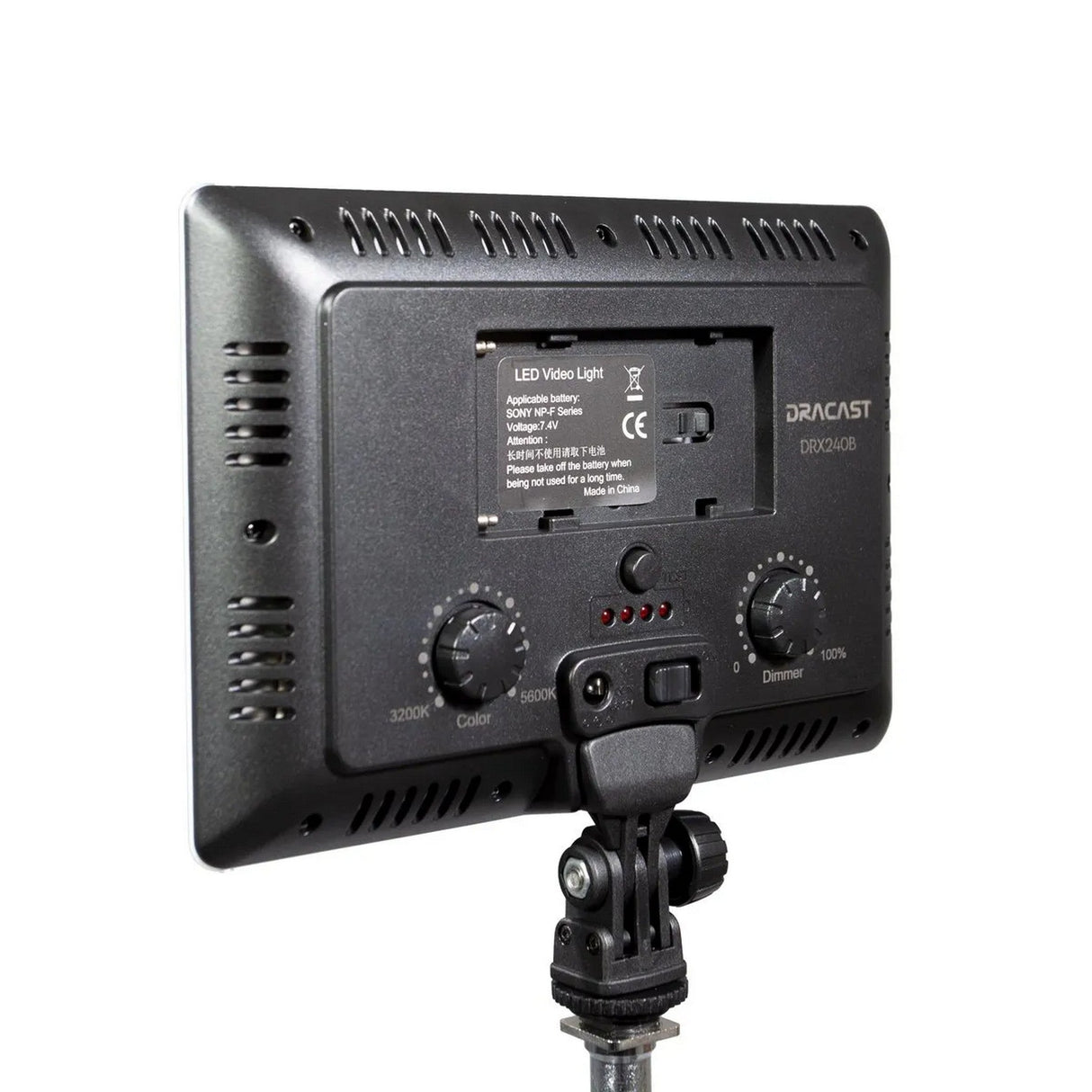

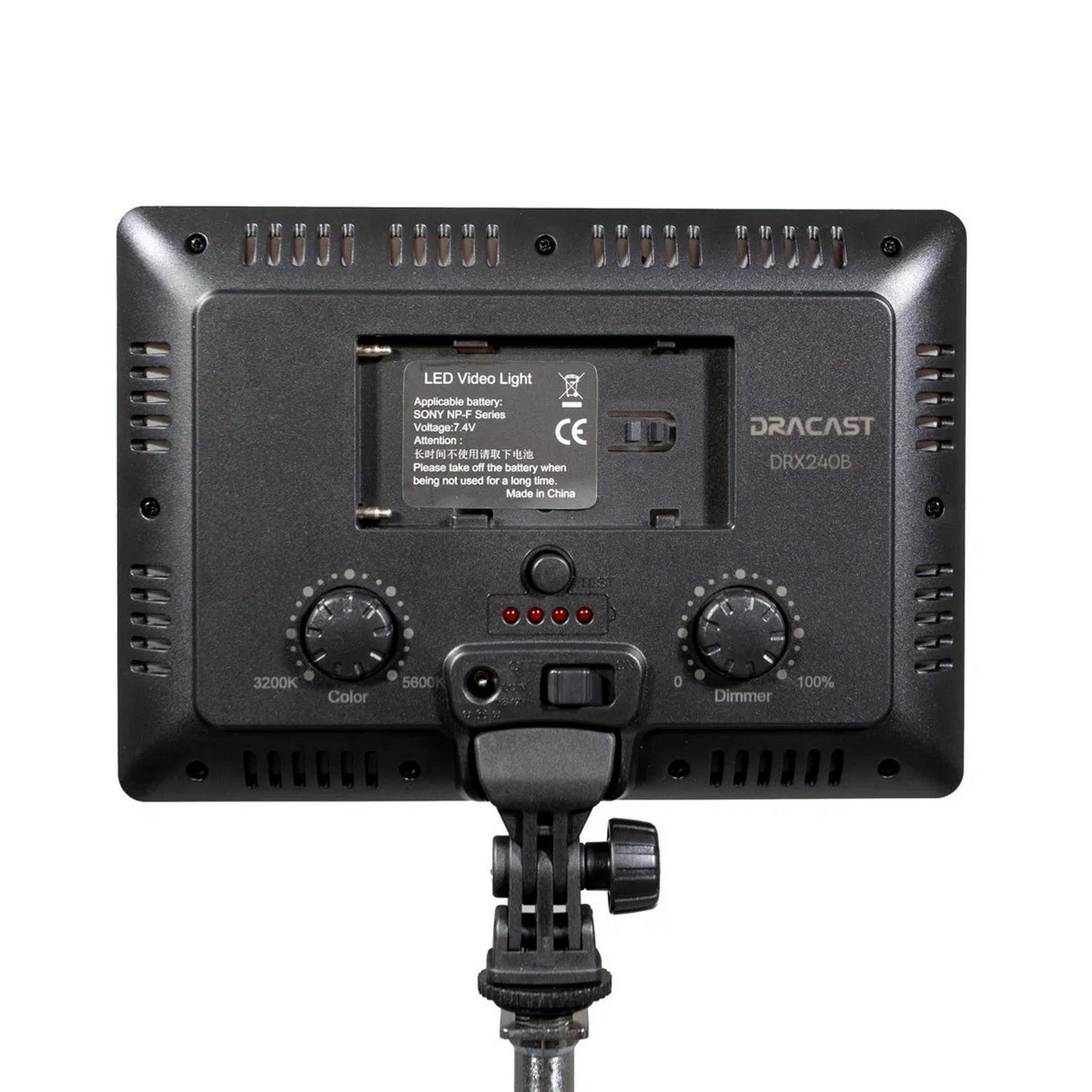

The DRX240B On Camera LED video light has a single NP-F battery plate as well as a digital display. Also featured is a 1/4-20 threaded mounting point at the bottom of the hot shoe mount which allows the light to be mounted to a threaded light stand or atop of your camera.

The DRX240B On Camera LED video light can be operated in variable CCT or “bicolor” mode for adjustable white. In addition, each light comes equipped with a wide variety of special effects built in that can be controlled in the light or via the DRX app. Special effects include: paparazzi, strobe, and more.

App Remote Control
Full control of your Dracast X Series On Camera LED video light. Using the new Dracast DRX app available for iOS and Android, you can control your light or groups of X Series LED lights simultaneously. Control dimmer, CCT, special effects and more right from your phone or tablet.

0% - 100% Dimming
X Series On Camera LED video lights can be manually dimmed via the onboard control knobs for quick and easy light adjustment. Smoothly increase or decrease your light output from full output to total blackout with zero dimmer stepping.

Optional Battery Power
Maximum portability. All X Series on camera LED video lights include an NP-F battery plate so that your lights can easily be used on location. (Batteries and charger sold separately.)

Variable Color Temperature
Adjust the color temperature from 2800K - 6500K to match other light sources or ambient light in your shooting environment. Match subject skin tone easily and quickly without the need for color correction filters

Special Effects
X Series on camera LED video lights feature special effects including strobe, flash, pulse, paparazzi, and more. Effects can be adjusted and customized to get the perfect look for your scene. Effects can be controlled manually, via DMX, or with the X app. (Color effects only available on RGB models)

Soft Diffusion Built In
X Series on camera LED video lights include soft diffusion filters built in, giving you an incredibly soft wash of light right out of the box.

Key Features

• Remote control via DRX app for iOS / Android
• 2800K - 6500K Variable Color Temperature
• Included NP-F battery plate
• 180 Degree Beam Angle
• 0% - 100% Smooth Dimming
• CRI: 96+ / TLCI: 97+
• Soft diffusion filter built in
• CCT Presets, Color Gel Presets, and Special Effects

Technical Specifications

Light Source
96 variable CCT white SMD LEDs
CRI
96+
Color Range
2800K to 6500K, continuous variable CCT
Beam Angle
180°
Dimming
0% - 100%
Remote Control
Dracast DRX app for iOS and Android
Control
Manual Control
App Control with Dracast Kala Plus App
DMX
Master / Slaver Wireless, 100’ / 30.5 m range
Construction
Metal / plastic housing and components
Operating Voltage
100 - 240 VAC, 16.8V DC, 50 / 60 Hz
Power Consumption
15 W
Battery Plate
NP-F Battery Plate
Mount
1/4-20 threaded receiver
Dimensions
6.88” x 6.81” x 1.29” / 17.5 cm x 17.3 cm x 3.3 cm
Weight
0.77 lbs / 0.35 kg
Package Weight
1 lbs
Box Dimensions (L x W x H)
8” x 7” x 2”
In the Box
Dracast X Series LED240 Bicolor On Camera LED Video Light
Cold shoe mount with 1/4-20 threaded receiver
Built in Diffusion Filter
AC Power Adapter
NP-F Battery Plate (Batteries and charger sold separately)
Limited 1-Year Warranty
Not in the Box
Light Stands (Sold separately)
NP-F Batteries
NP-F Battery charger
