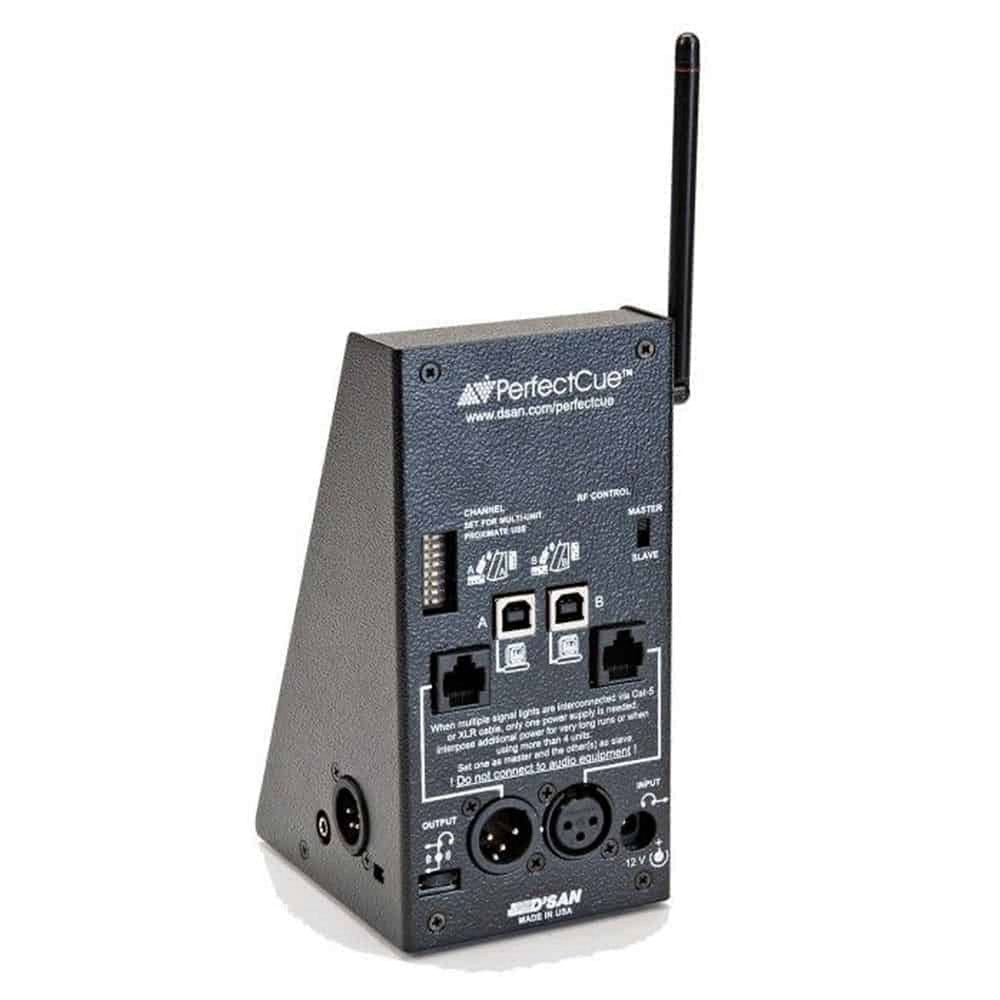

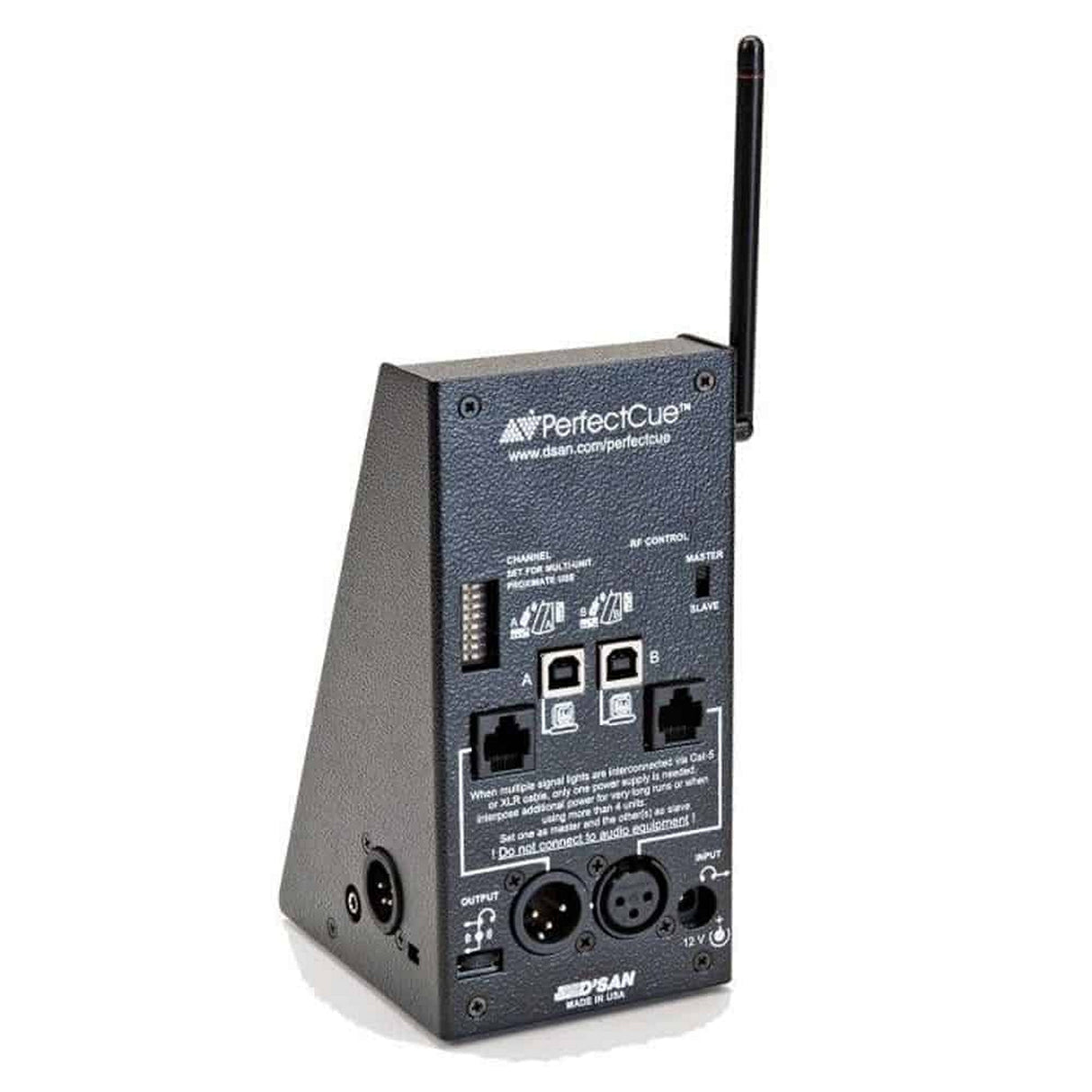

DSAN PC-SYS Wireless Audio and Visual Cueing Receiver for PerfectCue System

Please note: Receiver only. Remote and case are not included.

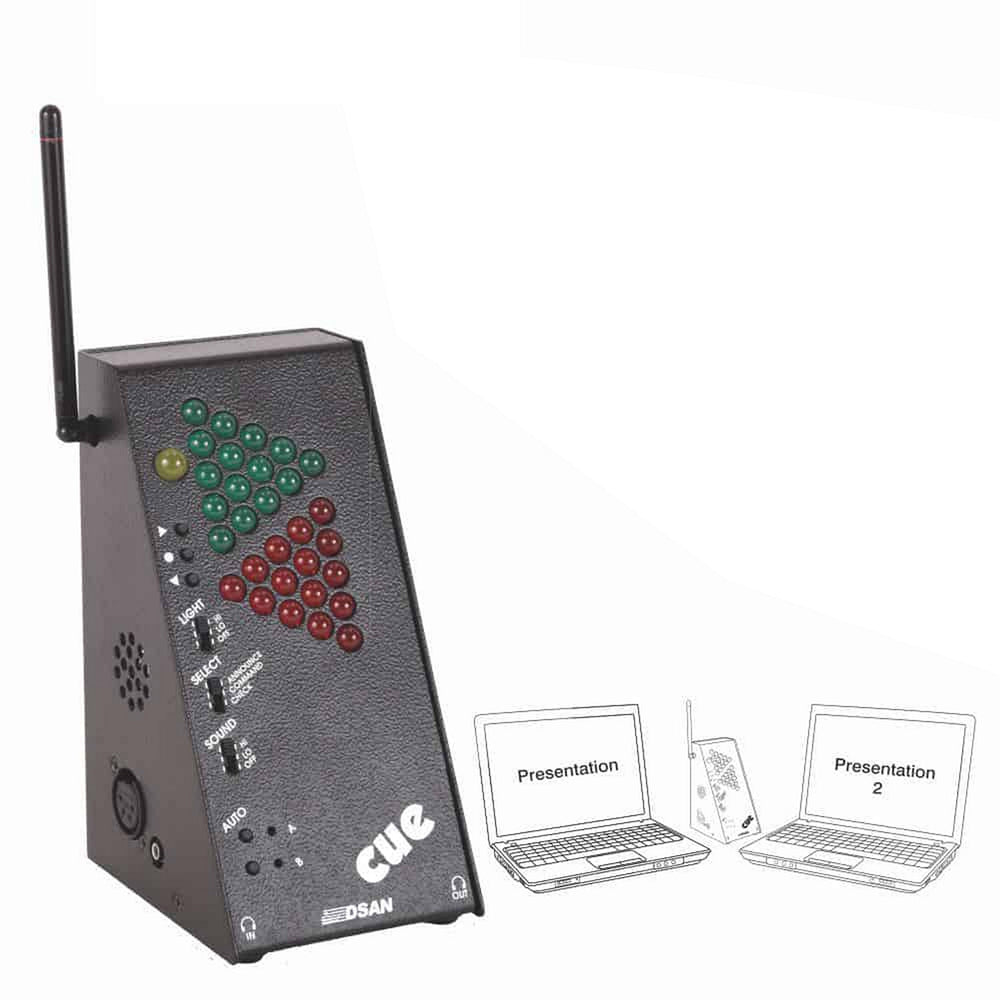

PerfectCue is a state-of-the-art wireless audio and visual cueing system that allows you to remotely control presentations on one or two computers. With a range of up to 300 feet, the communication between the transmitter and cue light is secure and stable.

This innovative system empowers speakers to send cues to a projectionist using a wireless hand-held transmitter, or control presentation software via dual programmable USB ports. The transmitter and receiver are hardcoded via dipswitch settings, allowing users to create any relationship between the transmitter(s) and receiver(s).

For example, PerfectCue systems can work near each other without interference, one cue light can be controlled by multiple transmitters, and one cue light can control two computers in sync. Additionally, one cue light can also control additional cue lights by wiring them together. PerfectCue is the ultimate tool for professionals who demand accuracy, reliability, and flexibility in their presentations.

Technical Specifications

Range of Transmitter to Cue Light
300 feet (100 meters)
Ports
Serial-XLR (2), Serial-RJ45 (2), 4-pin XLR4-Female, 4-pin XLR4-Male, Stereo Phono Jack (2)
Three Selectable Cue Sounds
“Command,” “Announce,” “Check”
Sound Volume Control
High, Low, Off
Lights Control
High, Low, Off
Power
5V USB bus or external (12V / 110-220V) power supply
RF Communication
433.92MHz on 256 possible channels
Local Switch Control
Forward (Green), Back (Red), Blank (Amber), USB engaged/disengaged
Transmitter Batteries
CR 2032 and CR123
Product Dimensions
Cue Light
7” x 4” x 3 1/4”
