E-Image EG03FA3 Rising Column Tripod Kit with GA230 and GH03F

E-Image EG03FA3 Rising Column Tripod Kit with GA230 and GH03F

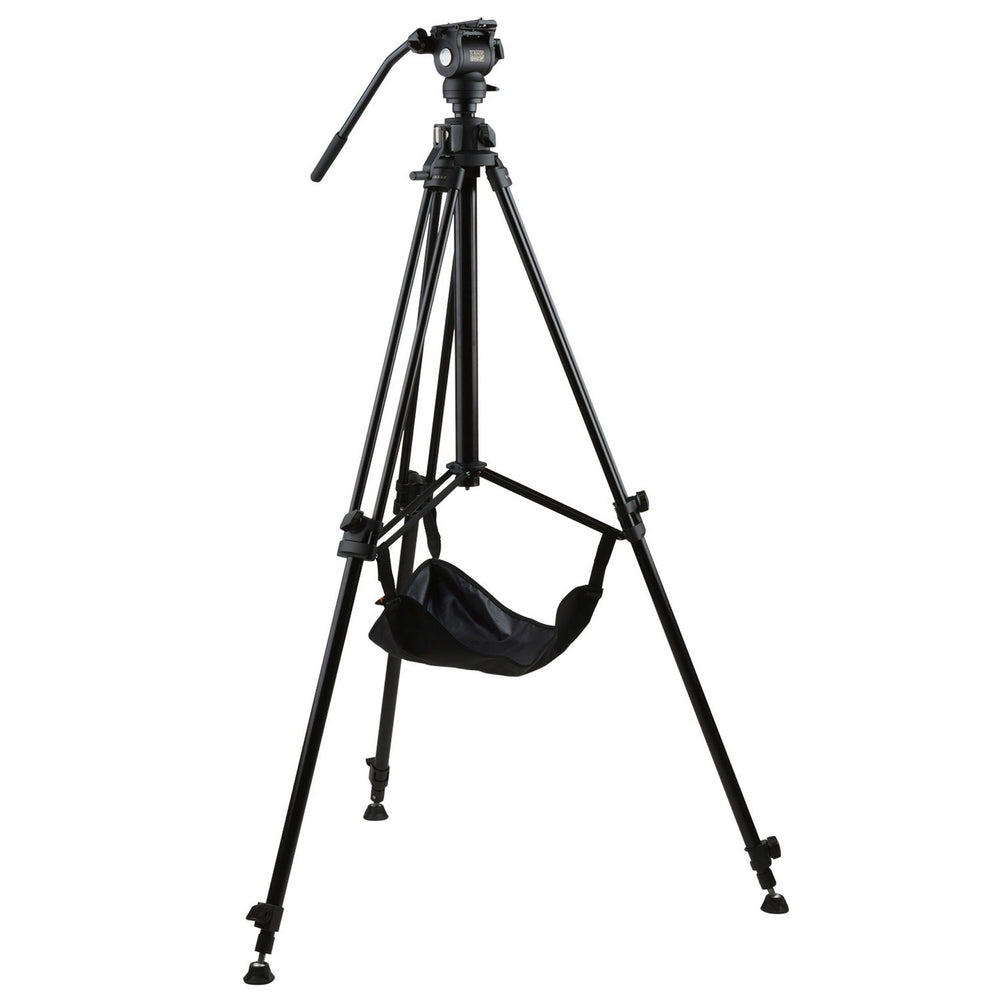

The EG03FA3 tripod kit from E-Image is a tripod designed for vertical reach. The rising center column, combined with the GH03F fluid video head, gives the user an impressive height range of 37-3/4” to over 8 feet at 97-1/4” all. Stability is important at those heights, so the EG03FA3 is equipped with thick bottom-stage legs and retractable spikes in the feet for soft or uneven ground. The GH03F has a recommended maximum payload of 11 lbs., and a flat base with a 3/8-16 threaded mounting point. Pan drag and Counterbalance are installed and fixed, while the tilt drag is variable and controlled with a dial on the side of the head. The pan and tilt axes can be independently locked. The GH03F includes a GB1 panhandle and a GP1 quick release plate with a handy snap-in function to make camera mounting quick and easy.

Key Features

• Extra-Tall Complete Tripod Kit
• Recommended Payload of 11 lb.
• Maximum Height of 97-1/4”, Minimum Height of 37-3/4”
• Installed and Fixed Pan Drag and Counterbalance Settings
• Variable Tilt Drag
• Individual Locks for Each Leg Stage
• Includes Stone Bag, Shoulder Bag, and Shoulder Strap for Out-of-the-Bag Transport
• Retractable Foot Spikes for Soft Ground
• Compatible with GP1 Quick Release Plate (One Included)

Technical Specifications

Brand
E-Image
Bubble Level
Yes
Build Material
Aluminum
Counterbalance System
Fixed
Fixture Weight
13.5 lbs.
Leg Lock Type
One Lock per Stage
Leg Stages/Sections
2 / 3
Max. Height
97.25 in.
Min Height
37.75 in.
Mounting Plate
Easy Lock (GP1)
Payload
11 lbs
Quick Release/Wedge Plate
Quick Release
Spiked/Retractable Feet
Retractable Spikes
Tilt Drag
Variable
Tilt Lock
Yes
Tilt Range
-60° to 90°
UPC Code
847983022953
What's Included
1x GA230 Rising Column Tripod Legs
1x GH03F Flat Fluid Video Tripod Head
1x GP1 Quick Release Plate
1x GB1 Pan Handle
1x Tripod Shoulder Strap
1x Stone Bag
1x SC-3 Padded Travel Bag and Shoulder Strap
